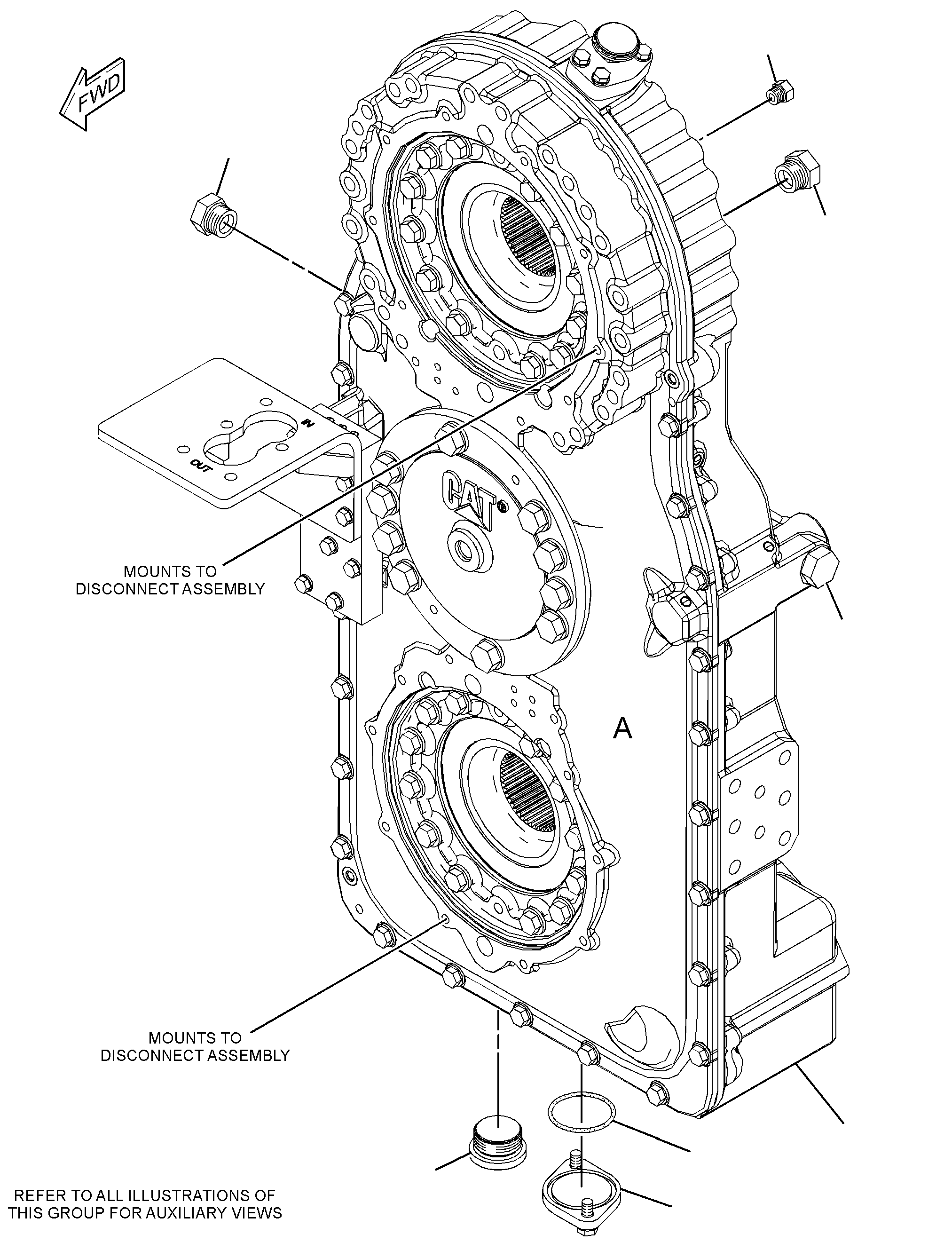

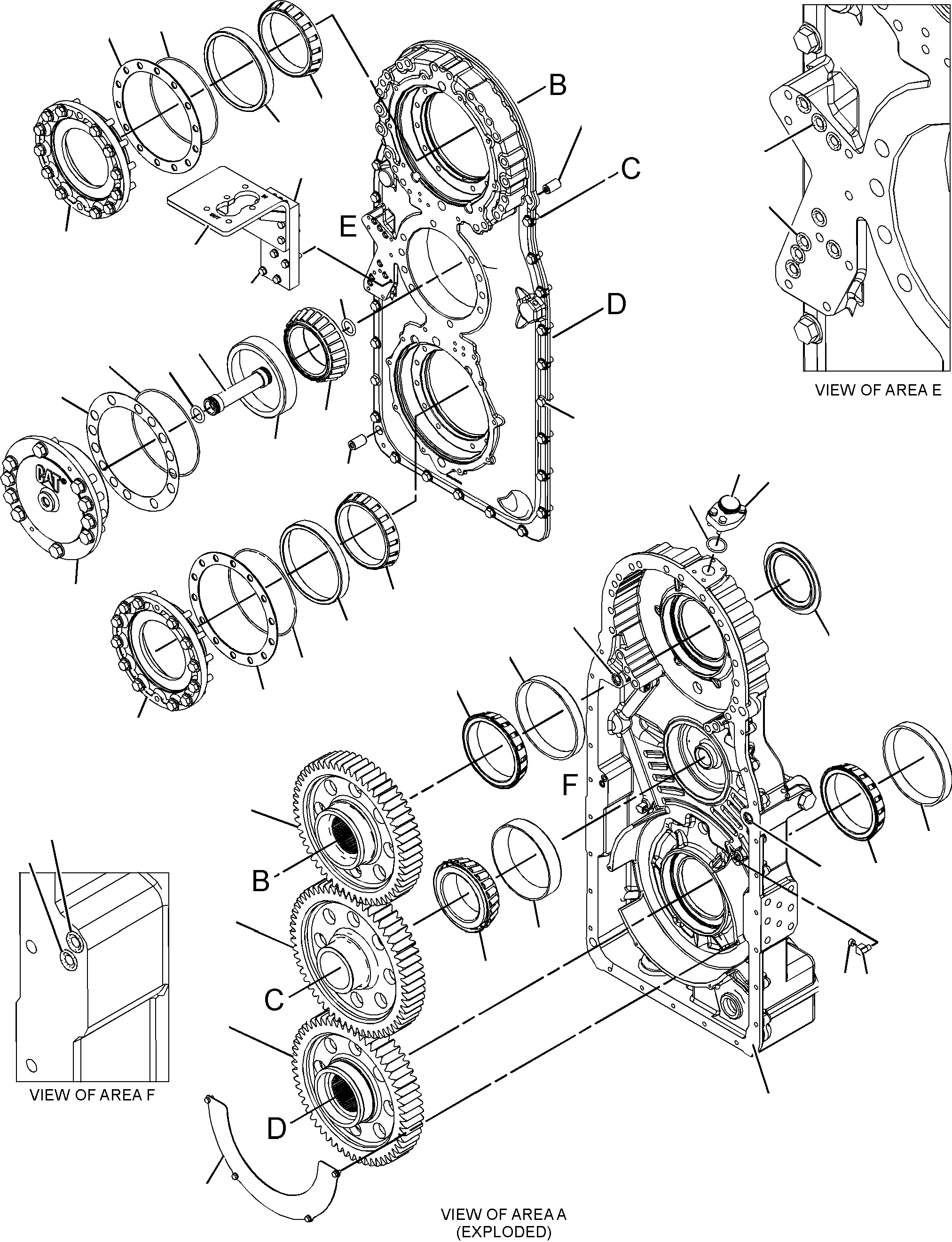

339-3901 GEAR & CASE GP-TRANSFERS/N GFY300-UP

Group No: 339-3901

Part Number	Part Name	Qty
8M8659	1 DOWEL	2
9G5127	2 BREATHER (ATMOSPHERIC)(TRANSFER GEAR)	1
9S7698	3 ELBOW-FLARED	3
1556647	4 CUP-BEARING	4
1760184	5 PLUG AS-DRAIN (MAGNETIC)	1
6V0439	PLUG-MAGNETIC (DRAIN, POWER TRAIN OIL)	1
2S4078	SEAL-O-RING	1
2403658	6 SHIM (2.65-MM THK)	1
2750797	7 TUBE AS	1
3489900	8 CASE AS	1
9M4355	DAMPER-BOLT	23
9G9506	PLUG	7
9W6068	PLUG	10
2750827	9 CAGE	2
2803942	10 SHIM PACK (INCLUDES 11-SHIMS)	2
2830157	11 COVER	1
2830161	12 GEAR-TRANSFER (55-TEETH)	1
2830162	13 GEAR-TRANSFER (58-TEETH)	1
2830163	14 GEAR-TRANSFER (56-TEETH)	1
2864508	15 CAGE AS	1
9G9506	PLUG	1
2954692	16 BLOCK	1
2977940	17 PLUG-ORIFICE	3
3080742	18 MANIFOLD AS	1
9G9506	PLUG	4
3393917	19 BRACKET AS	1
3445176	20 GUARD	1
1488407	21 PLUG AS	1
9S4191	PLUG (9/16-18-THD)	1
3J1907	SEAL-O-RING	1
1488408	22 PLUG AS	3
9S4183	PLUG (1-1/16-12-THD)	1
3D2824	SEAL-O-RING	1
1556648	23 CONE-BEARING	4
1J9671	24 SEAL-O-RING	10
2K2939	25 SEAL-O-RING	3
2N3253	26 CUP-BEARING	2
2N3254	27 CONE-BEARING	2
4J0520	28 SEAL-O-RING	1
4J5140	29 SEAL-O-RING	2
4S5971	30 COVER	1
5P8245	31 WASHER-HARD (13.5X25.5X3-MM THK)	24
6V4248	32 BOLT (M10X1.5X25-MM)	25
6V4429	33 BOLT (M16X2X40-MM)	10
6V5218	34 BOLT (M8X1.25X35-MM)	4
6V5219	35 BOLT (M8X1.25X40-MM)	4
6V5684	36 BOLT (M12X1.75X45-MM)	24
6V5839	37 WASHER (11X21X2.5-MM THK)	25
7F8268	38 SEAL-O-RING	1
8B4967	39 SEAL-O-RING	2
8T0276	40 BOLT (M8X1.25X45-MM)	4
8T0639	41 BOLT (M6X1X12-MM)	4
9M1974	42 WASHER-HARD (8.8X16X2-MM THK)	12
9X8267	43 WASHER (6.6X12X2-MM THK)	4
9X8268	44 WASHER (17.5X30X3.5-MM THK)	10
1U8846	45 SEALANT-GASKET
