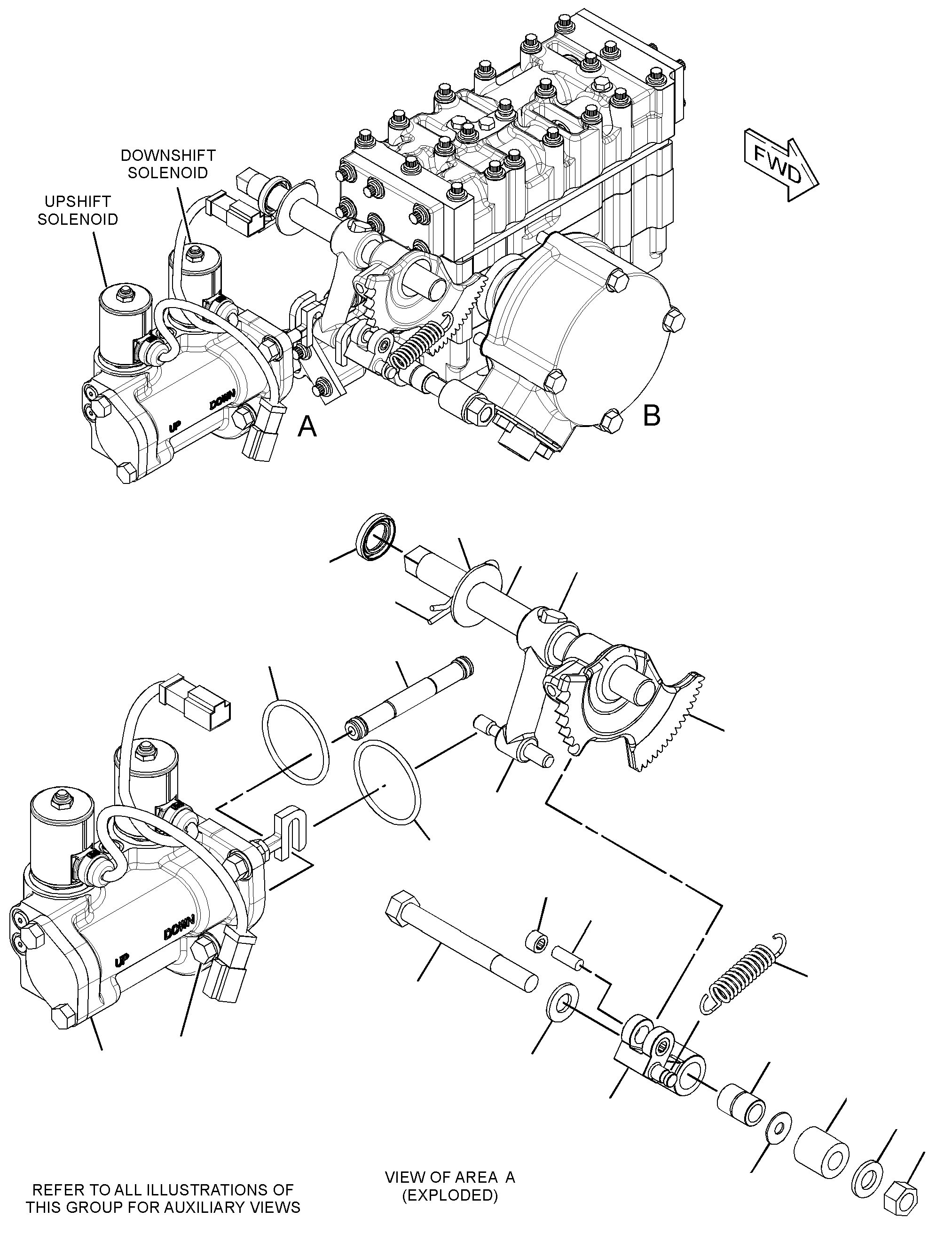

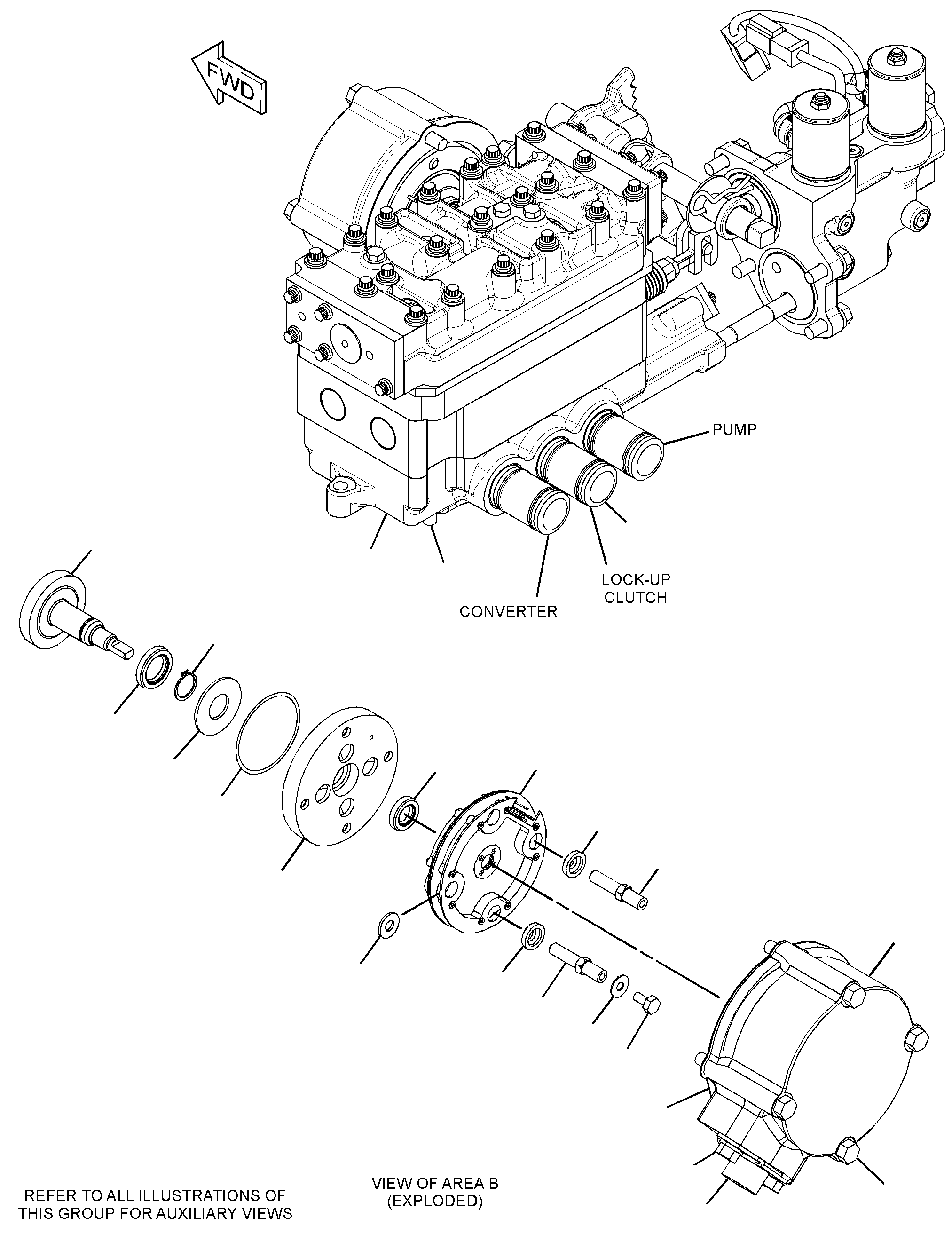

315-4720 CONTROL GP-TRANSMISSION HYDS/N A4D1-UP

Group No: 315-4720

Part Number	Part Name	Qty
1K4649	1 SPACER (0.516X1X1-IN THK)	1
1P8247	2 SHAFT	1
1P8260	3 CAMSHAFT	1
3D4197	4 COVER	1
3T0565	5 COVER	1
5R7137	6 WASHER-SEALING	1
5S0899	7 DETENT AS	1
1S3206	7A BEARING AS-NEEDLE	2
8P4764	7B PIN	1
5S3632	8 SLEEVE	3
5S7954	9 LEVER AS	1
9S2825	DOWEL	1
6P5032	10 VALVE GP-TRANSMISSION CONTROL	1
6Y8676	11 PLATE AS	1
2K3455	PIN-SPRING	1
8S0669	12 SLEEVE	1
8S6377	13 PIN-LOCK	1
9P2182	14 GEAR	1
9S5222	15 SPACER (12.73X18.87X26.19-MM THK)	1
9W1398	16 BOLT-SPECIAL	4
1318194	17 HARNESS AS-TRANSMISSION	1
5S3657	RECEPTACLE AS-CONNECTOR (10-PIN)	1
9W3086	KEY-POLARIZING	1
9W3087	TERMINAL (CRIMP)	7
2192076	18 CYLINDER GP-SHIFT	1
2963423	19 SENSOR GP-POSITION	1
0L1352	20 BOLT (3/8-16X3.25-IN)	4
0S0509	21 BOLT (3/8-16X0.75-IN)	2
0S1571	22 BOLT (3/8-16X1.75-IN)	6
0S1614	23 BOLT (1/4-20X0.5-IN)	2
1A2029	24 BOLT (3/8-16X1.125-IN)	4
1F7958	25 NUT-FULL (1/2-13-THD)	1
1T0738	26 WASHER (8.4X19X1.83-MM THK)	4
2J6356	27 RING-RETAINING	1
2S1381	28 SPRING	1
4B4280	29 WASHER (13.5X27X2.5-MM THK)	1
5B3718	30 SEAL-O-RING	1
5M2894	31 WASHER-HARD (10.2X18.5X2.5-MM THK)	12
5P8245	32 WASHER-HARD (13.5X25.5X3-MM THK)	1
7J2036	33 SEAL-O-RING	1
7M2082	34 GASKET	1
8B4037	35 WASHER (0.766X1.75X0.083-IN THK)	2
8C9648	36 MOUNT-ISOLATION	4
8M5010	37 SEAL-O-RING	2
8M8157	38 SEAL-O-RING	2
8M8514	39 SEAL-O-RING	6
8S5575	40 SEAL-LIP TYPE	1
8S9089	41 BOLT (1/2-13X4.5-IN)	1
9H0223	42 SEAL-LIP TYPE	2
9X2026	43 WASHER (6.5X17X1-MM THK)	2
