System And Components

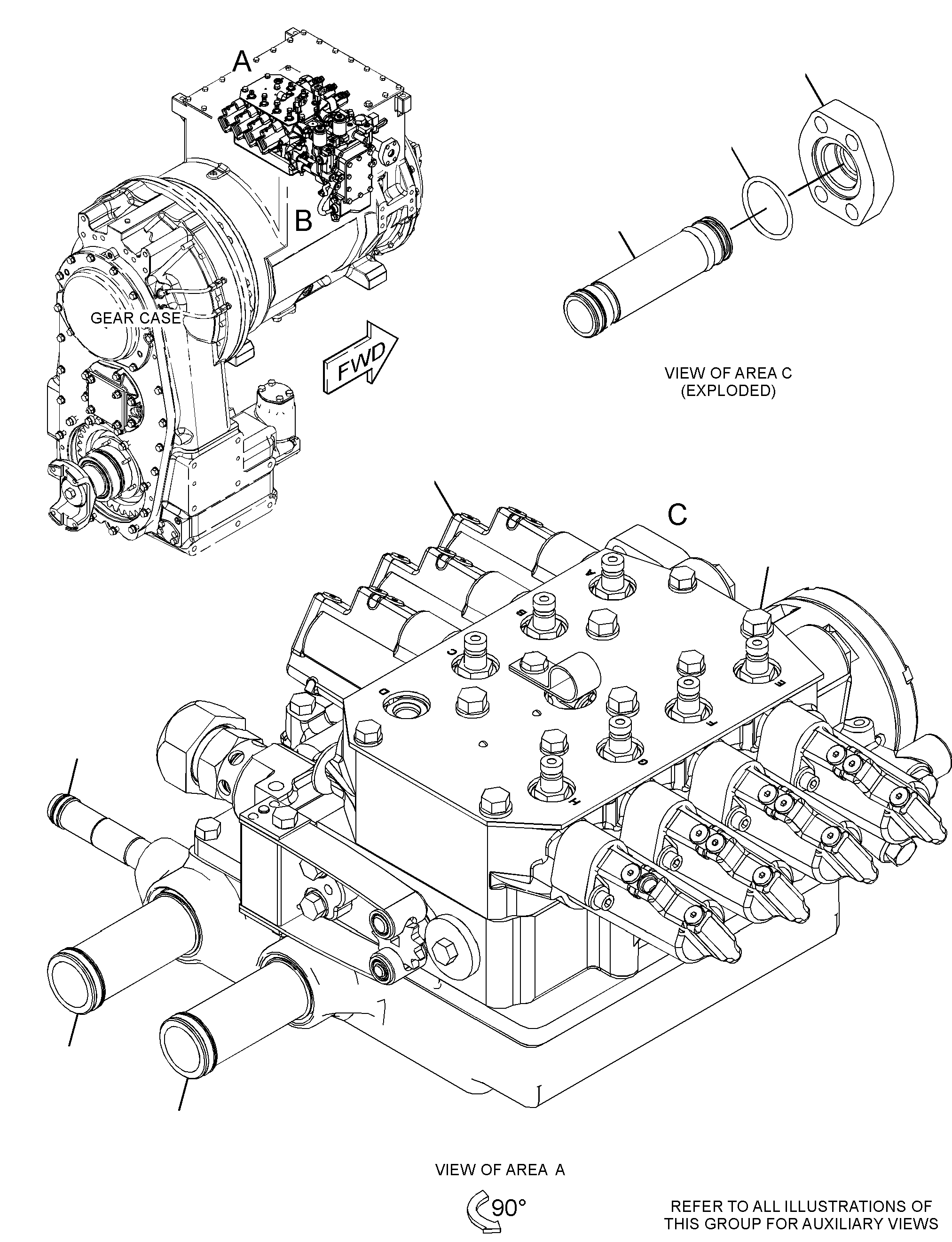

250-3218 CONTROL GP-TRANSMISSION HYDS/N MRB602-UP
Group No: 250-3218
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8E4965 | 1 VALVE GP-TRANSMISSION CONTROL | 1 | |
| 3S2093 | 2 STRAP-CABLE | 1 | |
| 3T0918 | 3 SLEEVE | 2 | |
| 3T0919 | 4 SLEEVE | 1 | |
| 6V4365 | 5 SEAL-O-RING | 6 | |
| 3218641 | 6 PLUG AS | 10 | |
| 9S8001 | PLUG (5/16-24-THD) | 1 | |
| 2385078 | SEAL-O-RING | 1 | |
| 9G9412 | 8 ADAPTER | 1 | |
| 0618561 | 9 SEAL-O-RING | 1 | |
| 7G9473 | 10 SLEEVE | 1 | |
| 5P8118 | 11 SEAL-O-RING | 2 | |
| 2S1457 | 12 SLEEVE | 1 | |
| 3P0647 | 13 SEAL-O-RING | 2 | |
| 7G1595 | 14 SLEEVE | 2 | |
| 5P8210 | 15 SEAL-O-RING | 4 | |
| 9F2773 | 16 BOLT (3/8-16X8.5-IN) | 4 | |
| 5M2894 | 17 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 0S0509 | 18 BOLT (3/8-16X0.75-IN) | 2 | |
| 3240843 | 19 HARNESS AS-TRANSMISSION | 1 | |
| 5S3657 | RECEPTACLE AS-CONNECTOR (10-PIN) | 1 | |
| 3P1155 | 20 SEAL-O-RING | 1 | |
| 3381462 | 21 SENSOR GP-POSITION (TRANSMISSION SPEED) | 1 | |
| 3D4197 | 22 COVER | 1 | |
| 3023813 | 23 VALVE GP-SOLENOID (TRANSMISSION) | 2 | |
| 3159842 | 24 PLUG AS | 1 | |
| 6Y0789 | PLUG | 1 | |
| 2284947 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3072673 | 27 PLUG AS | 5 | |
| 9S8005 | PLUG (3/4-16-THD) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 5P6718 | 29 SEAL-O-RING | 5 | |
| 1833407 | 30 PLUG AS | 1 | |
| 9S8004 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1305300 | 32 CLIP | 2 | |
| 0S1594 | 33 BOLT (3/8-16X1-IN) | 6 | |
| 8T4896 | 34 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 3159835 | 35 ELBOW AS | 1 | |
| 6V0484 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1645567 | 36 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 6V0852 | 37 CAP-DUST | 1 | |
| 0S1619 | 38 BOLT (3/8-16X3-IN) | 2 | |
| 0S1617 | 39 BOLT (5/16-18X0.75-IN) | 6 | |
| 0L2070 | 40 BOLT (3/8-16X2.25-IN) | 2 | |
| 6T5132 | 41 COVER | 1 | |
| 6T5133 | 42 GASKET | 1 | |
| 1003998 | 43 MANIFOLD AS | 1 | |
| 5P7661 | 43A BEARING AS-NEEDLE | 1 | |
| 6V3683 | 44 SEAL-O-RING | 1 | |
| 7S5757 | 45 RING-RETAINING | 1 | |
| 6Y9850 | 46 COUPLING AS | 1 | |
| 8S5575 | 47 SEAL-LIP TYPE | 1 |
