System And Components

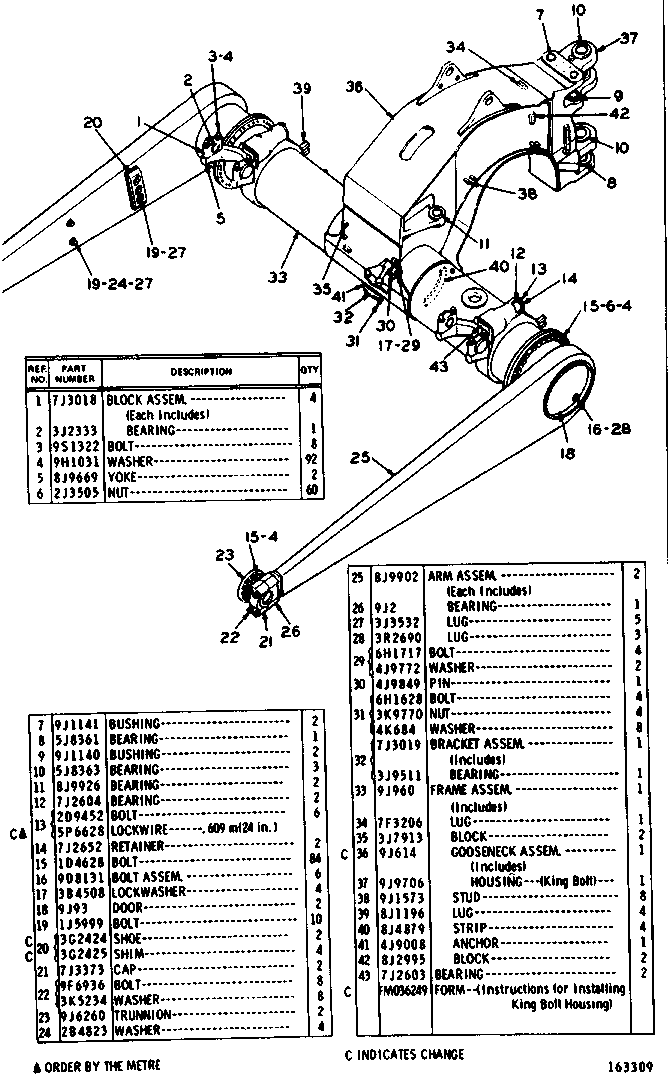

9J1 DRAFT FRAME GROUPSerial No. 28W1 to 28W698 inclusive & 29W1 to 29W699 inclusive
Group No: 9J1
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7J3018 | 1 BLOCK ASSEM. | 4 | |
| 3J2333 | 2 BEARING | 1 | |
| 9S1322 | 3 BOLT | 8 | |
| 9H1031 | 4 WASHER | 92 | |
| 8J9669 | 5 YOKE | 2 | |
| 2J3505 | 6 NUT | 60 | |
| 9J1141 | 7 BUSHING | 2 | |
| 5J8361 | 8 BEARING | 1 | |
| 9J1140 | 9 BUSHING | 2 | |
| 5J8363 | 10 BEARING | 3 | |
| 8J9926 | 11 BEARING | 2 | |
| 7J2604 | 12 BEARING | 2 | |
| 2D9452 | 13 BOLT | 6 | |
| 5P6628 | LOCKWIRE .609 m(24 in.) | NULL | |
| 7J2652 | 14 RETAINER | 2 | |
| 1D4628 | 15 BOLT | 84 | |
| 9D8131 | 16 BOLT ASSEM. | 6 | |
| 3B4508 | 17 LOCKWASHER | 4 | |
| 9J0093 | 18 DOOR | 2 | |
| 1J5999 | 19 BOLT | 10 | |
| 3G2424 | 20 SHOE | 2 | |
| 3G2425 | SHIM | 4 | |
| 7J3373 | 21 CAP | 2 | |
| 9F6936 | 22 BOLT | 8 | |
| 3K5234 | WASHER | 8 | |
| 9J6260 | 23 TRUNNION | 2 | |
| 2B4823 | 24 WASHER | 4 | |
| 8J9902 | 25 ARM ASSEM. | 2 | |
| 9J0002 | 26 BEARING | 1 | |
| 3J3532 | 27 LUG | 5 | |
| 3R2690 | 28 LUG | 3 | |
| 6H1717 | 29 BOLT | 4 | |
| 4J9772 | WASHER | 2 | |
| 4J9849 | 30 PIN | 1 | |
| 6H1628 | 31 BOLT | 4 | |
| 3K9770 | NUT | 4 | |
| 4K0684 | WASHER | 8 | |
| 7J3019 | 32 BRACKET ASSEM. | 1 | |
| 3J9511 | BEARING | 1 | |
| 9J0960 | 33 FRAME ASSEM. | 1 | |
| 7F3206 | 34 LUG | 1 | |
| 3J7913 | 35 BLOCK | 2 | |
| 9J0614 | 36 GOOSENECK ASSEM. | 1 | |
| 9J9706 | 37 HOUSING (King Bolt) | 1 | |
| 9J1573 | 38 STUD | 8 | |
| 8J1196 | 39 LUG | 4 | |
| 8J4879 | 40 STRIP | 4 | |
| 4J9008 | 41 ANCHOR | 1 | |
| 8J2995 | 42 BLOCK | 2 | |
| 7J2603 | 43 BEARING | 2 |
