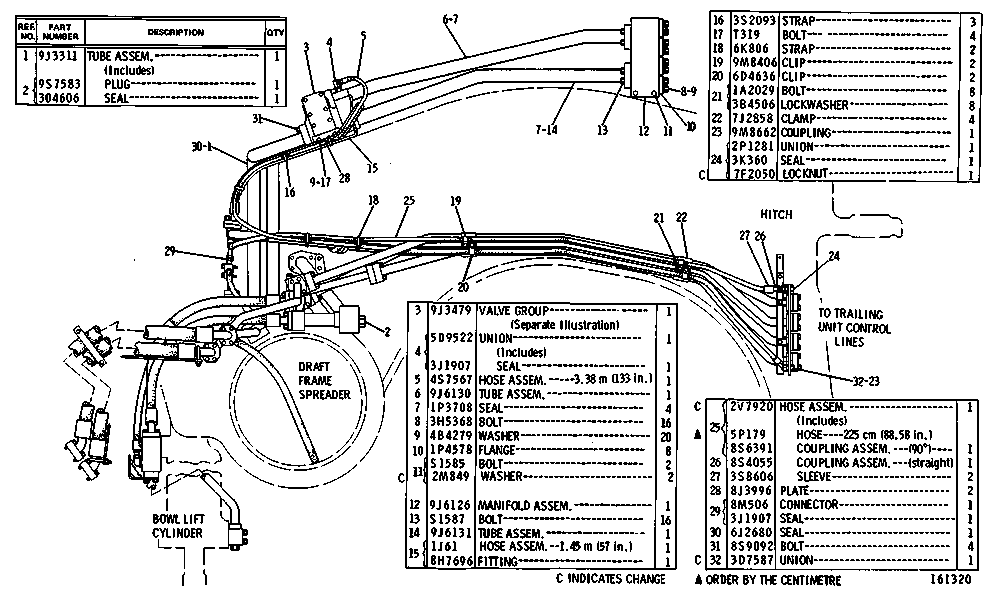

9J1024 DRAFT FRAME LINES GROUP--Part 1 of 4Serial No. 19W1 to 19W461 inclusive
Group No: 9J1024
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9J3311 | 1 TUBE ASSEM. | 1 | |
| 9S7583 | 2 PLUG | 1 | |
| 0304606 | SEAL | 1 | |
| 9J3479 | 3 VALVE GROUP | 1 | |
| 5D9522 | 4 UNION | 1 | |
| 3J1907 | SEAL | 1 | |
| 4S7567 | 5 HOSE ASSEM. 3.38 m (133 in.) | 1 | |
| 9J6130 | 6 TUBE ASSEM. | 1 | |
| 1P3708 | 7 SEAL | 4 | |
| 3H5368 | 8 BOLT | 16 | |
| 4B4279 | 9 WASHER | 20 | |
| 1P4578 | 10 FLANGE | 8 | |
| 0S1585 | 11 BOLT | 2 | |
| 2M0849 | WASHER | 2 | |
| 9J6126 | 12 MANIFOLD ASSEM. | 1 | |
| 0S1587 | 13 BOLT | 16 | |
| 9J6131 | 14 TUBE ASSEM. | 1 | |
| 1J0061 | 15 HOSE ASSEM. 1.45 m (57 in.) | 1 | |
| 8H7696 | FITTING | 1 | |
| 3S2093 | 16 STRAP | 3 | |
| 0T0319 | 17 BOLT | 4 | |
| 6K0806 | 18 STRAP | 2 | |
| 9M8406 | 19 CLIP | 2 | |
| 6D4636 | 20 CLIP | 2 | |
| 1A2029 | 21 BOLT | 8 | |
| 3B4506 | LOCKWASHER | 8 | |
| 7J2858 | 22 CLAMP | 4 | |
| 9M8662 | 23 COUPLING | 1 | |
| 2P1281 | 24 UNION | 1 | |
| 3K0360 | SEAL | 1 | |
| 7F2050 | LOCKNUT | 1 | |
| 2V7920 | 25 HOSE ASSEM. | 1 | |
| 5P0179 | HOSE 225 cm (88.58 in.) | NULL | |
| 8S6391 | COUPLING ASSEM. (90 degrees) | 1 | |
| 8S4055 | 26 COUPLING ASSEM. (straight) | 1 | |
| 3S8606 | 27 SLEEVE | 2 | |
| 8J3996 | 28 PLATE | 2 | |
| 8M0506 | 29 CONNECTOR | 1 | |
| 3J1907 | SEAL | 1 | |
| 6J2680 | 30 SEAL | 1 | |
| 8S9092 | 31 BOLT | 4 | |
| 3D7587 | 32 UNION | 1 |
