System And Components

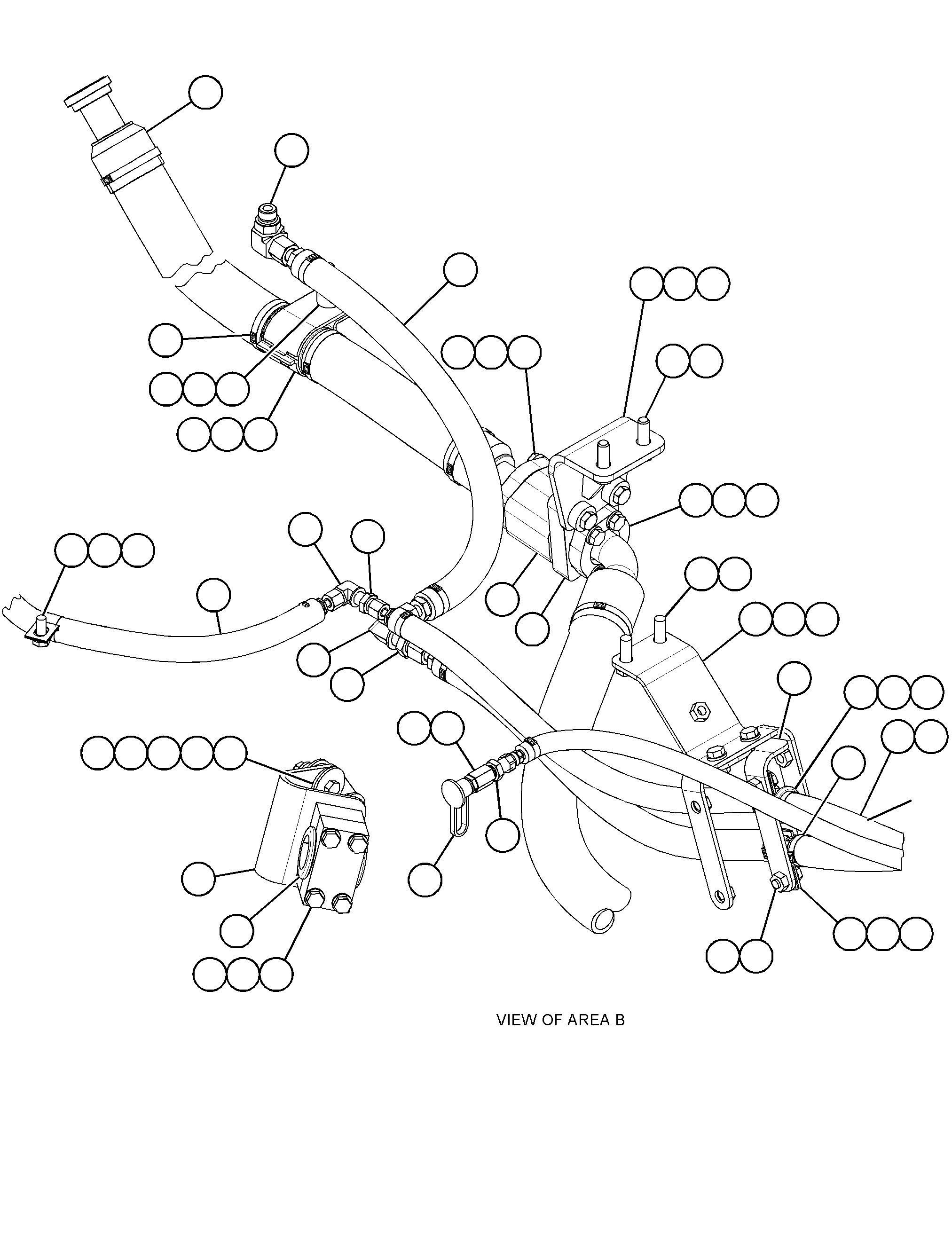

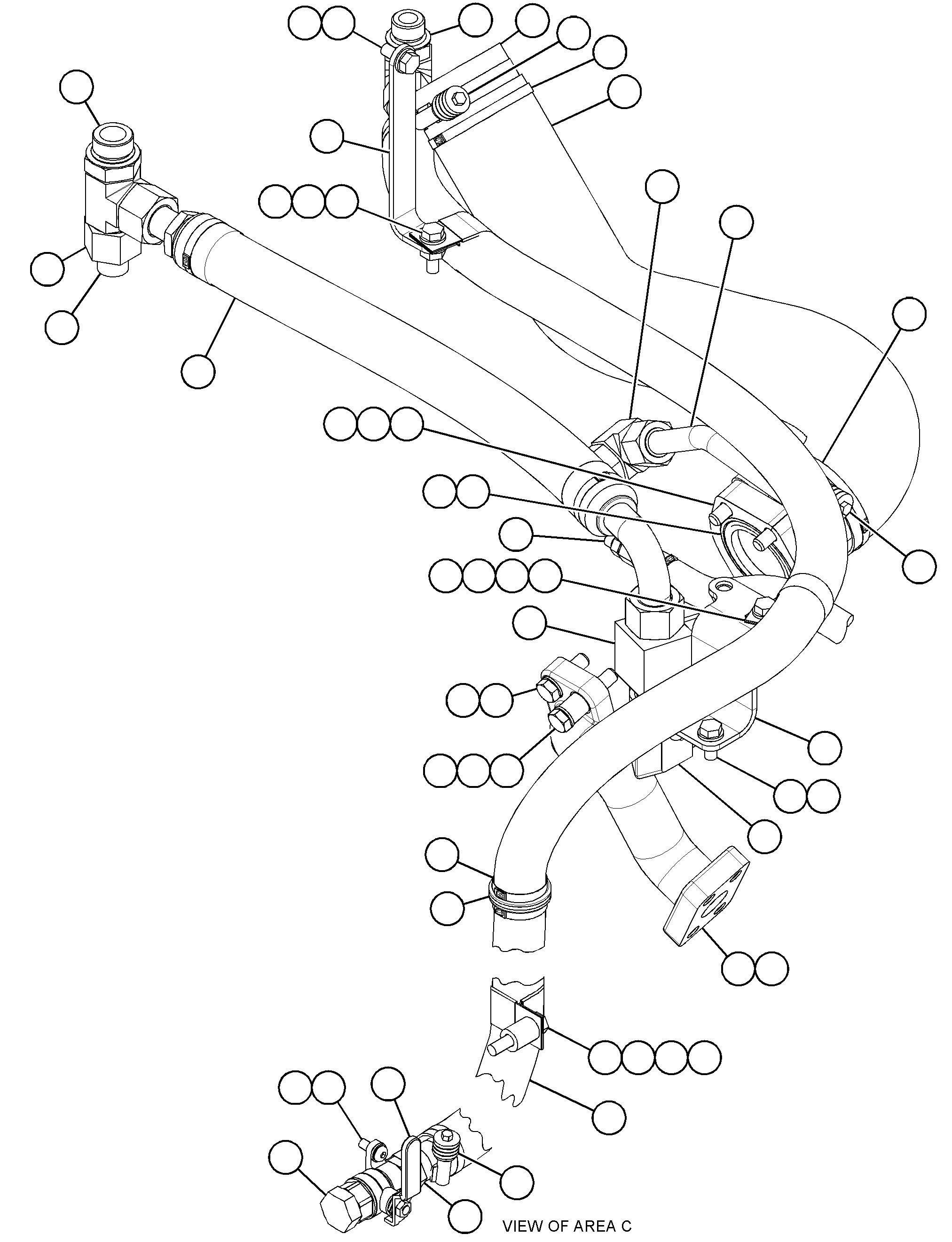

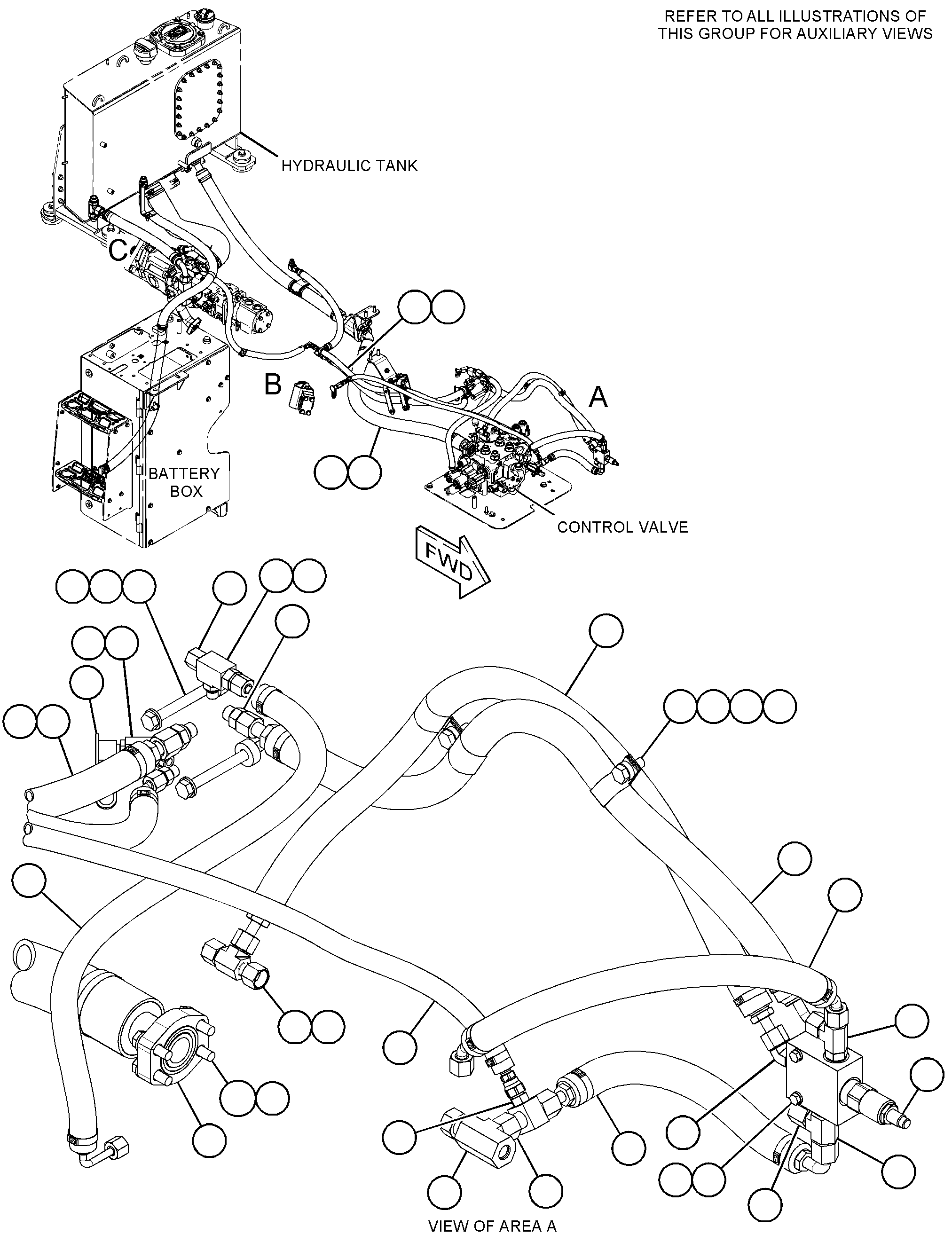

500-3644 LINES GP-HYDRAULICS/N LXX10505-UP
Group No: 500-3644
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6J2680 | 1 SEAL-O-RING | 1 | |
| 8T4183 | 2 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4184 | 3 BOLT (M12X1.75X45-MM) | 2 | |
| 8T4910 | 4 BOLT (M12X1.75X60-MM) | 3 | |
| 2P1279 | 5 LOCKNUT (9/16-18-THD) | 2 | |
| 6V9169 | 6 NUT (13/16-16-THD) | 1 | |
| 7X0584 | 7 WASHER-HARD (13.5X20.5X2-MM THK) | 4 | |
| 8T4194 | 8 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4223 | 9 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T7934 | 10 WASHER-HARD (11X21X5-MM THK) | 5 | |
| 1488316 | 11 CONNECTOR AS | 3 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 6V8647 | CONNECTOR | 1 | |
| 1488336 | 12 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488347 | 13 ELBOW AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9007 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488353 | 14 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488364 | 15 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488375 | 16 ELBOW AS | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8981 | ELBOW | 1 | |
| 1488384 | 17 ELBOW AS | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 6V8979 | ELBOW | 1 | |
| 1488431 | 18 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V8785 | TEE | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488433 | 19 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488435 | 20 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1504043 | 21 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 1628264 | 22 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 0815645 | TEE | 1 | |
| 1645567 | 23 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1654931 | 24 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8077 | ELBOW | 1 | |
| 1695863 | 25 ADAPTER AS | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 7X7945 | ADAPTER (9/16-18-THD) | 1 | |
| 1984778 | 26 WASHER-HARD (13.5X30X12-MM THK) | 6 | |
| 2416185 | 27 PLUG AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5P9436 | PLUG | 1 | |
| 2416208 | 28 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1196220 | ELBOW | 1 | |
| 2468889 | 29 ELBOW | 1 | |
| 2681559 | 30 ADAPTER AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 2090939 | ADAPTER | 1 | |
| 2815898 | 31 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1536270 | TEE | 1 | |
| 3410120 | 32 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 3410119 | TEE | 1 | |
| 3445675 | 33 NUT (M10X1.5-THD) | 3 | |
| 3498844 | 34 VALVE GP-CHECK | 1 | |
| 3510290 | 35 ADAPTER AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 3089568 | ADAPTER-TEE | 1 | |
| 3574621 | 36 CONNECTOR AS | 1 | |
| 0336783 | FITTING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3678969 | 37 VALVE GP-PRESSURE REDUCING | 1 | |
| 3723679 | 38 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 3762198 | 39 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3762200 | 40 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 3768804 | 41 CLAMP | 2 | |
| 3849529 | 42 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 3894203 | 43 VALVE-BALL | 1 | |
| 3958606 | 44 TEE AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 4590661 | ADAPTER-TEE | 1 | |
| 4367065 | 45 HOSE | 1 | |
| 4627024 | 46 TUBE AS | 1 | |
| 4890447 | 47 TUBE AS | 1 | |
| 4945022 | 48 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 5081449 | 49 HOSE AS | 1 | |
| 5081450 | 50 HOSE AS | 1 | |
| 5081451 | 51 HOSE AS | 1 | |
| 5081452 | 52 HOSE AS | 1 | |
| 5081453 | 53 HOSE AS | 1 | |
| 5081454 | 54 HOSE AS | 1 | |
| 5081455 | 55 HOSE AS | 1 | |
| 5081456 | 56 HOSE AS | 1 | |
| 5081458 | 57 HOSE AS | 1 | |
| 5081459 | 58 HOSE AS | 1 | |
| 5081460 | 59 HOSE AS | 1 | |
| 5081540 | 60 HOSE AS | 1 | |
| 5208805 | 61 BRACKET AS | 1 | |
| 5208808 | 62 PLATE | 1 | |
| 5208929 | 63 HOSE AS | 1 | |
| 5208930 | 64 HOSE AS | 1 | |
| 1327551 | 65 SPACER (11X19X6-MM THK) | 2 | |
| 1336934 | 66 SPACER (11X20X25-MM THK) | 1 | |
| 1440367 | 67 CLAMP-HOSE | 2 | |
| 1503071 | 68 REDUCER AS | 1 | |
| 6V8945 | REDUCER-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1591503 | 69 CLAMP-HOSE | 1 | |
| 1983899 | 70 SCREW-BUTTON HEAD (M8X1.25X20-MM) | 2 | |
| 1984777 | 71 WASHER-HARD (11X25X10-MM THK) | 2 | |
| 1P3705 | 72 SEAL-RECTANGULAR | 1 | |
| 1P4578 | 73 FLANGE-HALF | 6 | |
| 1P4584 | 74 FLANGE-HALF | 2 | |
| 2432289 | 75 MOUNT AS | 3 | |
| 3709488 | 76 STRAP-CABLE | 10 | |
| 4D7388 | 77 CLIP | 3 | |
| 4J0522 | 78 SEAL-O-RING | 4 | |
| 5G3676 | 79 GROMMET | 1 | |
| 5P1076 | 80 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 5P4295 | 81 CLIP | 1 | |
| 5P7468 | 82 CLIP (SLOT) | 1 | |
| 5P7469 | 83 CLIP (TAB) | 1 | |
| 5P8444 | 84 GROMMET (37-MM ID) | 1 | |
| 1224026 | 85 SPACER (13X25X25-MM THK) | 1 | |
| 6D4244 | 86 CLIP (LOOP) | 2 | |
| 6V0545 | 87 GROMMET | 1 | |
| 6V0826 | 88 GROMMET | 1 | |
| 6V0852 | 89 CAP-DUST | 2 | |
| 6V9828 | 90 CAP (ORFS) | 1 | |
| 6V9829 | 91 CAP (ORFS) | 1 | |
| 6V9830 | 92 CAP (ORFS) | 1 | |
| 7C4354 | 93 CLIP | 2 | |
| 7X4743 | 94 GROMMET | 1 | |
| 7X7729 | 95 WASHER (11X25X3-MM THK) | 3 | |
| 8S0948 | 96 CLIP | 1 | |
| 8T1889 | 97 CLIP (SLOT) | 2 | |
| 8T1890 | 98 CLIP (TAB) | 2 | |
| 8T4121 | 99 WASHER-HARD (11X21X2.5-MM THK) | 24 | |
| 8T4136 | 100 BOLT (M10X1.5X25-MM) | 10 | |
| 8T4178 | 101 BOLT (M10X1.5X90-MM) | 4 | |
| 8T4185 | 102 BOLT (M10X1.5X50-MM) | 4 | |
| 8T4186 | 103 BOLT (M10X1.5X40-MM) | 4 | |
| 8T4196 | 104 BOLT (M10X1.5X35-MM) | 6 | |
| 8T4224 | 105 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4226 | 106 WASHER-PLATED (10.5X45X3-MM THK) | 6 | |
| 8T4956 | 107 BOLT (M12X1.75X35-MM) | 2 | |
| 8T6685 | 108 BOLT (M10X1.5X110-MM) | 6 | |
| 9P4898 | 109 SPACER (12.7X19.05X19-MM THK) | 1 | |
| 9X2480 | 110 BOLT (M6X1X45-MM) | 2 | |
| 9X6579 | 111 NUT-ORIFICE (7/16-12-THD) | 1 | |
| 9X8256 | 112 WASHER (6.6X12X2-MM THK) | 2 | |
| 2Q2153 | 113 INSULATION (54-CM) |
