System And Components

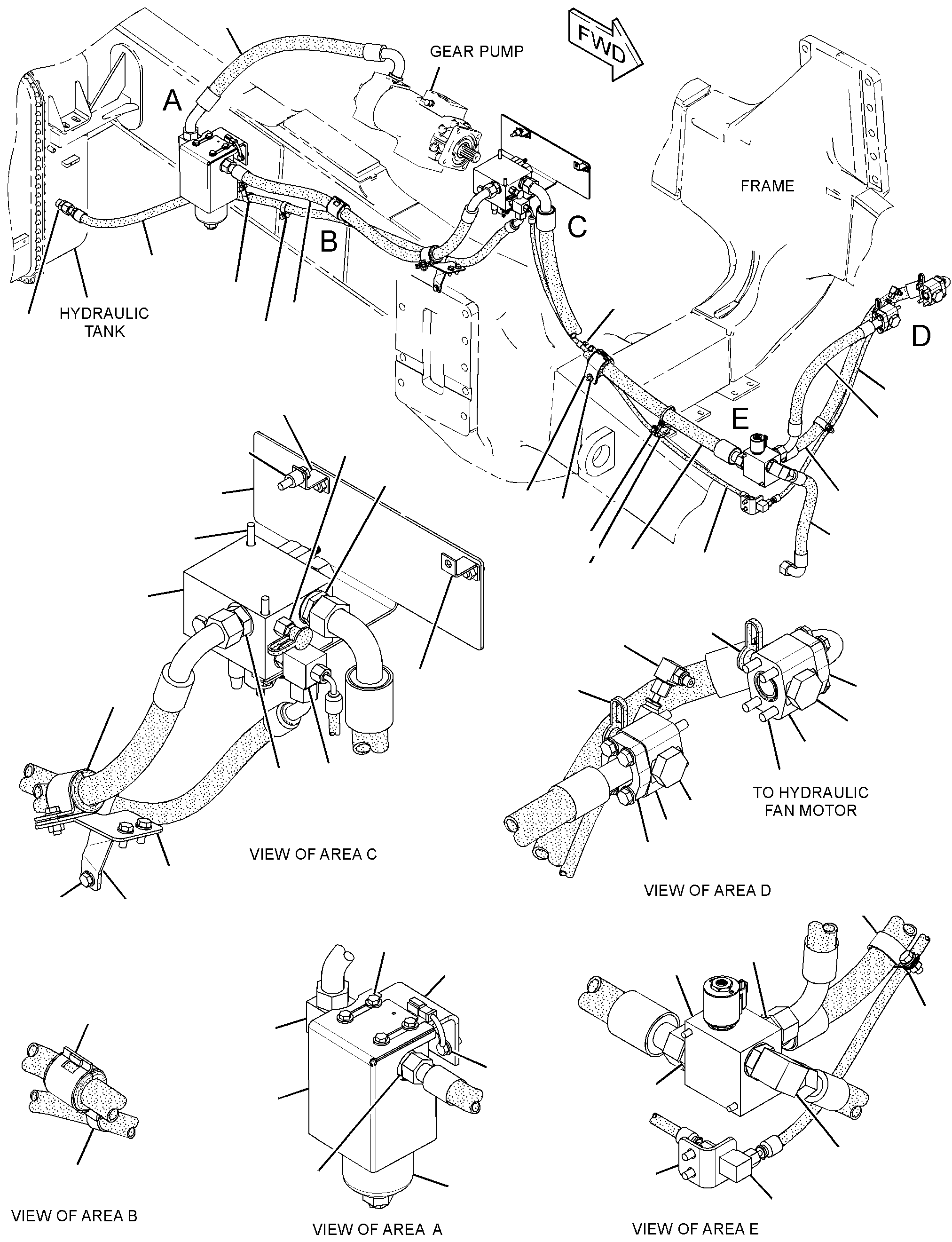

270-1752 LINES GP-HYDRAULIC FANS/N BZZ594-UP
Group No: 270-1752 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8R6784 | 1 FLANGE | 2 | |
| 1556061 | 2 FILTER GP-OIL (BRAKE, HYDRAULIC FAN) | 1 | |
| 1645567 | 3 COUPLER AS-QUICK DISCONNECT (MALE) | 3 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 2059425 | 4 HOSE AS | 1 | |
| 2700510 | 5 MANIFOLD GP-CONTROL (HYDRAULIC FAN) | 1 | |
| 2759255 | 6 HOSE AS | 1 | |
| 2764517 | 7 HOSE AS | 1 | |
| 2806907 | 8 HOSE AS | 1 | |
| 2938452 | 9 BRACKET AS | 1 | |
| 3696975 | 10 GUARD | 1 | |
| 3091366 | 11 GUARD | 1 | |
| 3091368 | 12 BRACKET AS | 2 | |
| 3317522 | 13 HOSE AS | 1 | |
| 3317535 | 14 HOSE AS | 1 | |
| 3317536 | 15 HOSE AS | 1 | |
| 3466135 | 16 PLATE | 1 | |
| 3537413 | 17 PLATE AS | 1 | |
| 3537478 | 18 HOSE AS | 1 | |
| 3537567 | 19 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3568352 | 20 HOSE AS | 1 | |
| 1488313 | 21 ADAPTER AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 5P6944 | ADAPTER | 1 | |
| 1488317 | 22 CONNECTOR AS | 1 | |
| 6V8714 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488327 | 23 CONNECTOR AS | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488333 | 24 CONNECTOR AS | 2 | |
| 8T7927 | CONNECTOR | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488335 | 25 CONNECTOR AS | 3 | |
| 6V8635 | CONNECTOR | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488357 | 26 ELBOW AS | 1 | |
| 6V9008 | ELBOW (90-DEG)(90-DEG) | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488369 | 27 ELBOW AS | 1 | |
| 6V8628 | ELBOW | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 1488377 | 28 ELBOW AS | 1 | |
| 6V8980 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488421 | 29 TEE AS | 1 | |
| 8T2883 | TEE | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1644180 | 30 PLUG AS | 2 | |
| 9S4181 | PLUG (1-5/16-12-THD) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1645592 | 31 ELBOW AS | 1 | |
| 8C3751 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 2758982 | 32 MANIFOLD GP-CONTROL (BRAKE ACCUM CHARGE, HYD FAN) | 1 | |
| 1P3703 | 33 SEAL-RECTANGULAR | 2 | |
| 3P2404 | 34 CLIP | 1 | |
| 4J0520 | 35 SEAL-O-RING | 2 | |
| 4J0522 | 36 SEAL-O-RING | 1 | |
| 4K8864 | 37 CLIP (LOOP) | 3 | |
| 5P7468 | 38 CLIP (SLOT) | 2 | |
| 5P7469 | 39 CLIP (TAB) | 2 | |
| 5P7470 | 40 CLIP (SLOT) | 1 | |
| 5P7471 | 41 CLIP (TAB) | 1 | |
| 5P8182 | 42 GROMMET (46-MM ID) | 1 | |
| 5P8444 | 43 GROMMET (37-MM ID) | 2 | |
| 6V0852 | 44 CAP-DUST | 3 | |
| 6V1889 | 45 CLIP (LOOP) | 3 | |
| 6V8367 | 46 LOCKWASHER | 1 | |
| 6V9168 | 47 NUT (11/16-16-THD) | 1 | |
| 7D7233 | 48 CLIP (LOOP) | 1 | |
| 7X7729 | 49 WASHER (11X25X3-MM THK) | 5 | |
| 8C3206 | 50 FLANGE-HALF | 4 | |
| 8T4121 | 51 WASHER-HARD (11X21X2.5-MM THK) | 27 | |
| 8T4133 | 52 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 53 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4137 | 54 BOLT (M10X1.5X20-MM) | 7 | |
| 8T4139 | 55 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4177 | 56 BOLT (M8X1.25X90-MM) | 2 | |
| 8T4178 | 57 BOLT (M10X1.5X90-MM) | 8 | |
| 8T4186 | 58 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4195 | 59 BOLT (M10X1.5X30-MM) | 7 | |
| 8T4223 | 60 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 61 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T5436 | 62 BOLT (M10X1.5X130-MM) | 2 | |
| 9V9116 | 63 SPACER (11.11X19.05X165-MM THK) | 1 | |
| 2006345 | 64 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 1542302 | 65 SPACER (11X20X15-MM THK) | 1 | |
| 8T4196 | 66 BOLT (M10X1.5X35-MM) | 1 | |
| 7K1181 | 67 STRAP-CABLE | 2 |
