System And Components

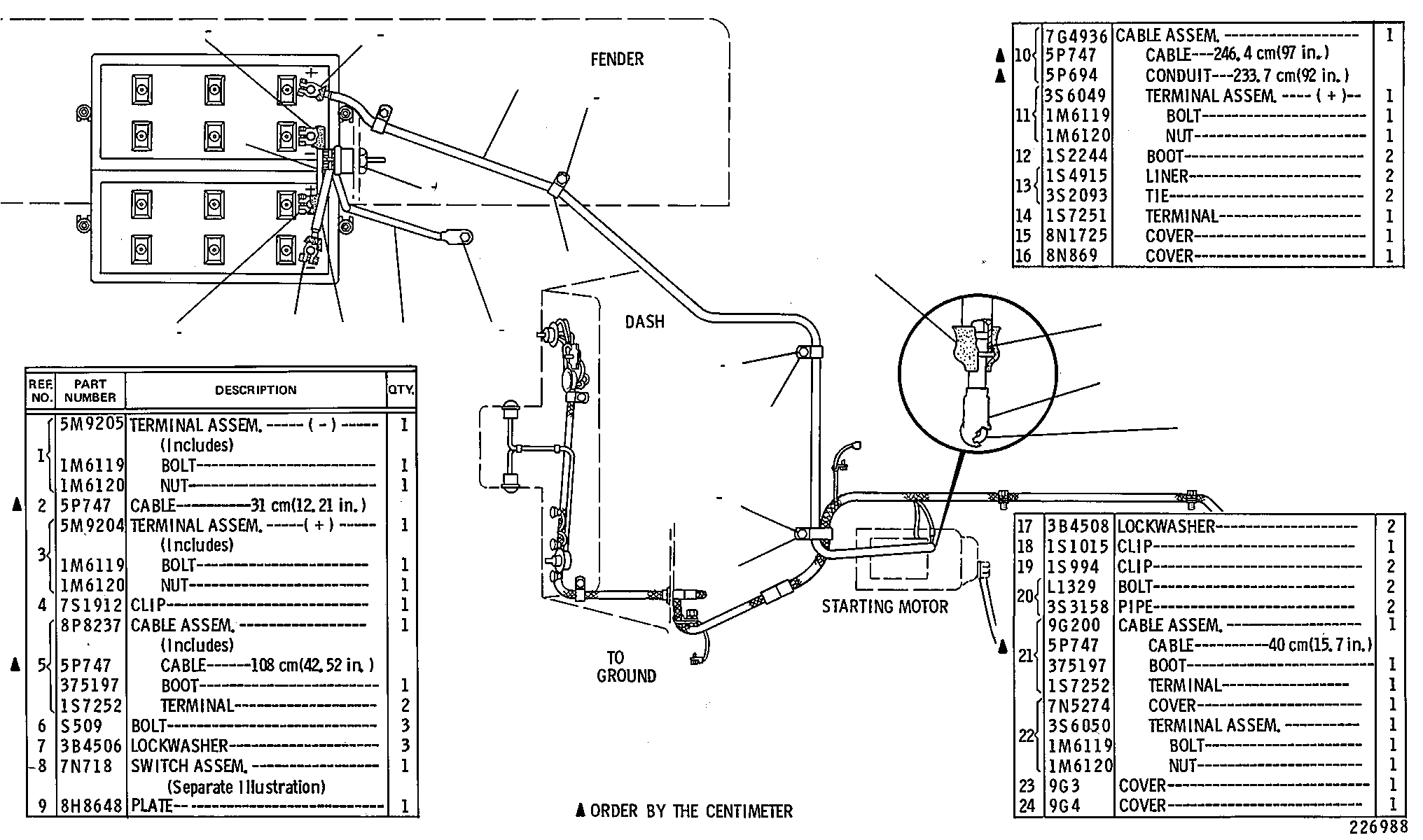

9G6035 BATTERY & WIRING GROUP-PART 1 OF 3SERIAL NO. 6X1115 TO 6X1179 INCLUSIVE
Group No: 9G6035
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5M9205 | 1 TERMINAL ASSEM. (-) | 1 | |
| 1M6119 | BOLT | 1 | |
| 1M6120 | NUT | 1 | |
| 5P0747 | 2 CABLE 31 cm(12.21 in.) | NULL | |
| 5M9204 | 3 TERMINAL ASSEM. (+) | 1 | |
| 1M6119 | BOLT | 1 | |
| 1M6120 | NUT | 1 | |
| 7S1912 | 4 CLIP | 1 | |
| 8P8237 | 5 CABLE ASSEM. | 1 | |
| 5P0747 | CABLE 108 cm(42.52 in.) | NULL | |
| 0375197 | BOOT | 1 | |
| 1S7252 | TERMINAL | 2 | |
| 0S0509 | 6 BOLT | 3 | |
| 3B4506 | 7 LOCKWASHER | 3 | |
| 7N0718 | 8 SWITCH ASSEM. | 1 | |
| 8H8648 | 9 PLATE | 1 | |
| 7G4936 | 10 CABLE ASSEM. | 1 | |
| 5P0747 | CABLE 246.4 cm(97 in.) | NULL | |
| 5P0694 | CONDUIT 233.7 cm(92 in.) | NULL | |
| 3S6049 | 11 TERMINAL ASSEM. (+) | 1 | |
| 1M6119 | BOLT | 1 | |
| 1M6120 | NUT | 1 | |
| 1S2244 | 12 BOOT | 2 | |
| 1S4915 | 13 LINER | 2 | |
| 3S2093 | TIE | 2 | |
| 1S7251 | 14 TERMINAL | 1 | |
| 8N1725 | 15 COVER | 1 | |
| 8N0869 | 16 COVER | 1 | |
| 3B4508 | 17 LOCKWASHER | 2 | |
| 1S1015 | 18 CLIP | 1 | |
| 1S0994 | 19 CLIP | 2 | |
| 0L1329 | 20 BOLT | 2 | |
| 3S3158 | PIPE | 2 | |
| 9G0200 | 21 CABLE ASSEM. | 1 | |
| 5P0747 | CABLE 40 cm(15.7 in.) | NULL | |
| 0375197 | BOOT | 1 | |
| 1S7252 | TERMINAL | 1 | |
| 7N5274 | 22 COVER | 1 | |
| 3S6050 | TERMINAL ASSEM. | 1 | |
| 1M6119 | BOLT | 1 | |
| 1M6120 | NUT | 1 | |
| 9G0003 | 23 COVER | 1 | |
| 9G0004 | 24 COVER | 1 |
