System And Components

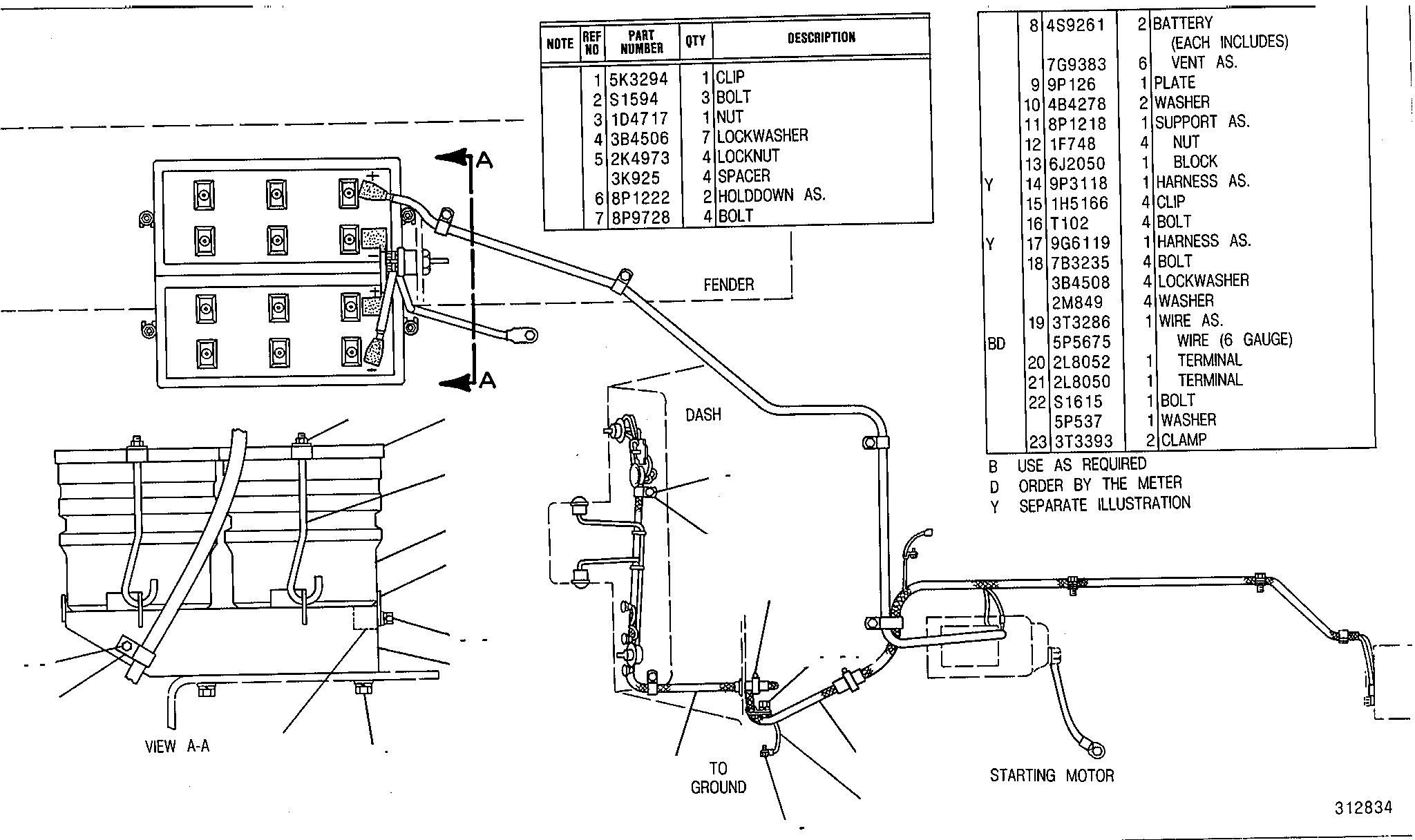

9G6035 BATTERY & WIRING GROUP-PART 2 OF 3SERIAL NO. 6X1508 TO 6X1578 INCLUSIVE
Group No: 9G6035
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5K3294 | 1 CLIP | 1 | |
| 0S1594 | 2 BOLT | 3 | |
| 1D4717 | 3 NUT | 1 | |
| 3B4506 | 4 LOCKWASHER | 3 | |
| 2K4973 | 5 LOCKNUT | 4 | |
| 3K0925 | WASHER | 4 | |
| 8P1222 | 6 HOLD-DOWN AS-BATTERY | 2 | |
| 8P9728 | 7 BOLT-BATTERY | 4 | |
| 4S9261 | 8 BATTERY (12 V) | NULL | |
| 7G9383 | VENT AS | 6 | |
| 9P0126 | 9 PLATE | 1 | |
| 4B4278 | 10 WASHER | 2 | |
| 8P1218 | 11 SUPPORT AS | 1 | |
| 1F0748 | 12 NUT | 4 | |
| 6J2050 | 13 BLOCK | 1 | |
| 9P3118 | 14 HARNESS AS | 1 | |
| 1H5166 | 15 CLIP | 1 | |
| 0T0102 | 16 BOLT | 4 | |
| 9G6119 | 17 HARNESS AS | 1 | |
| 7B3235 | 18 BOLT | 4 | |
| 3B4508 | LOCKWASHER | 4 | |
| 2M0849 | WASHER | 4 | |
| 3T3286 | 19 WIRE AS | 1 | |
| 5P5675 | WIRE (6 GAUGE) | NULL | |
| 2L8052 | 20 TERMINAL | 1 | |
| 2L8050 | 21 TERMINAL | 1 | |
| 0S1615 | 22 BOLT | 1 | |
| 5P0537 | WASHER | 1 | |
| 3T3393 | 23 CLAMP-RETAINER | 2 |
