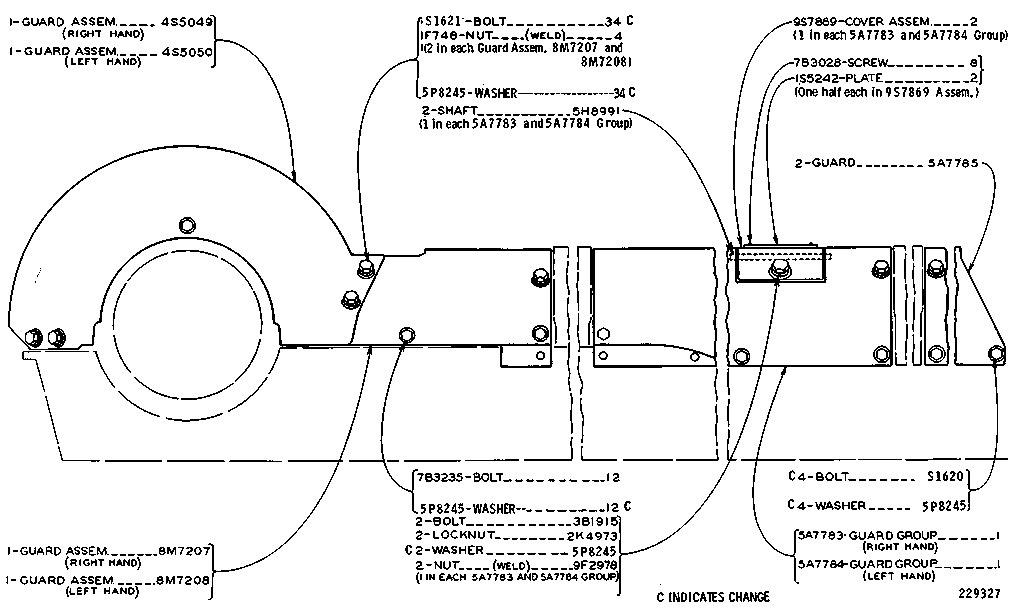

5A7778 RECOIL MECHANISM GUARD GROUPNOTE: QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH R.H. & L.H.SIDES

Group No: 5A7778
Part NumberPart NameQty
4S5049GUARD ASSEM. (RIGHT HAND)1
4S5050GUARD ASSEM. (LEFT HAND)1
8M7207GUARD ASSEM. (RIGHT HAND)1
8M7208GUARD ASSEM. (LEFT HAND)1
0S1621BOLT34
1F0748NUT (WELD)4
5P8245WASHER34
5H8991SHAFT2
7B3235BOLT12
5P8245WASHER12
3B1915BOLT2
2K4973LOCKNUT2
5P8245WASHER2
9F2978NUT (WELD)2
9S7869COVER ASSEM.2
7B3028SCREW8
1S5242PLATE2
5A7785GUARD2
0S1620BOLT4
5P8245WASHER4
5A7783GUARD GROUP (RIGHT HAND)1
5A7784GUARD GROUP (LEFT HAND)1
