System And Components

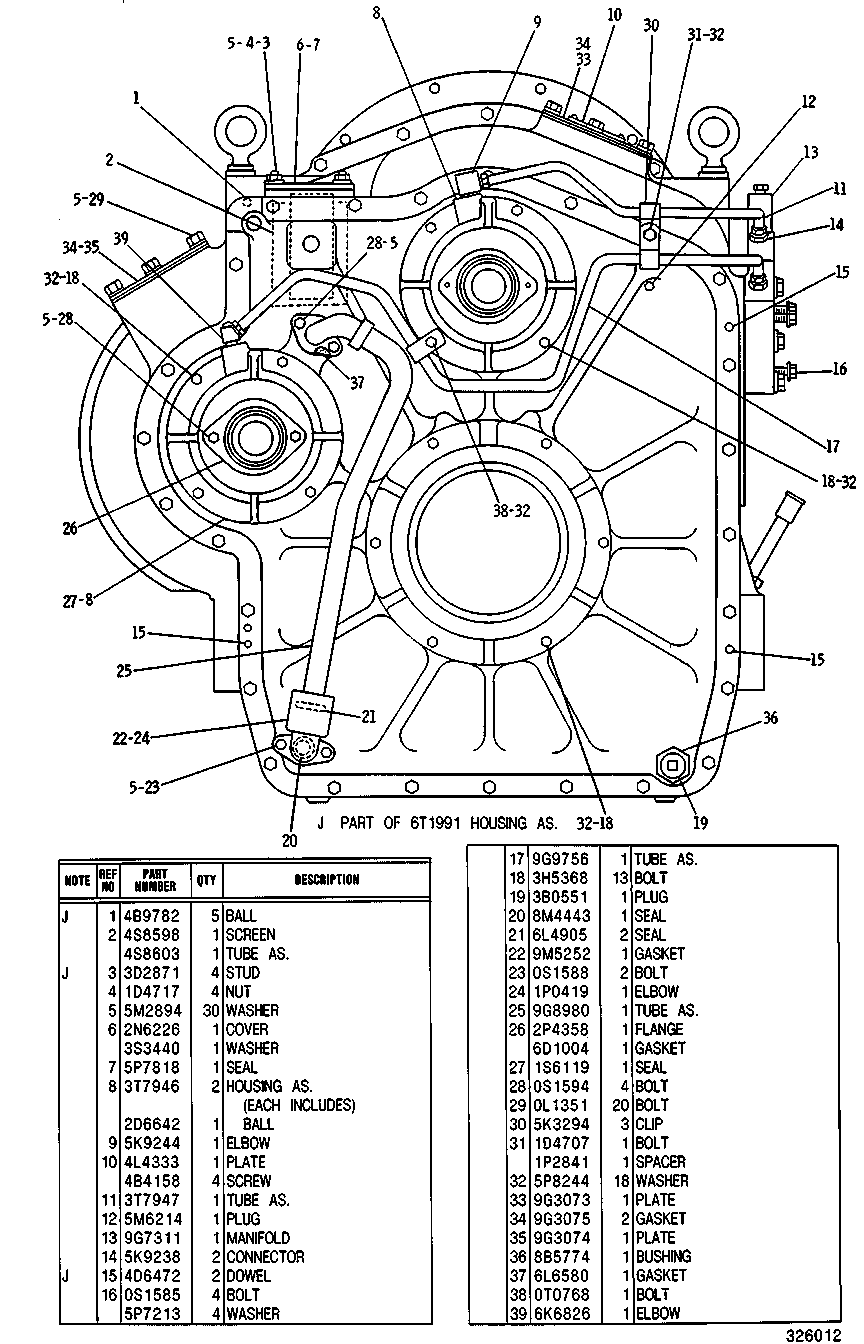

3T9285 MARINE TRANSMISSION HOUSING GROUP-PART 1 OF 3
Group No: 3T9285
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4B9782 | 1 BALL | 5 | |
| 4S8598 | 2 SCREEN-SUCTION | 1 | |
| 4S8603 | TUBE AS-SCREEN | 1 | |
| 3D2871 | 3 STUD | 4 | |
| 1D4717 | 4 NUT | 4 | |
| 5M2894 | 5 WASHER | 30 | |
| 2N6226 | 6 COVER-HOUSING | 1 | |
| 3S3440 | WASHER-WAVE | 1 | |
| 5P7818 | 7 SEAL-O-RING | 1 | |
| 3T7946 | 8 HOUSING AS | 2 | |
| 2D6642 | BALL | 1 | |
| 5K9244 | 9 ELBOW-FLARED | 1 | |
| 4L4333 | 10 PLATE-NAME & INFO | 1 | |
| 4B4158 | SCREW | 4 | |
| 3T7947 | 11 TUBE AS | 1 | |
| 5M6214 | 12 PLUG-PIPE | 1 | |
| 9G7311 | 13 MANIFOLD | 1 | |
| 5K9238 | 14 CONNECTOR-FLARED | 2 | |
| 4D6472 | 15 DOWEL | 2 | |
| 0S1585 | 16 BOLT | 4 | |
| 5P7213 | WASHER-HARD | 4 | |
| 9G9756 | 17 TUBE AS | 1 | |
| 3H5368 | 18 BOLT | 13 | |
| 3B0551 | 19 PLUG-PIPE | 1 | |
| 8M4443 | 20 SEAL | 1 | |
| 6L4905 | 21 SEAL-O-RING | 2 | |
| 9M5252 | 22 GASKET | 1 | |
| 0S1588 | 23 BOLT | 2 | |
| 1P0419 | 24 ELBOW | 1 | |
| 9G8980 | 25 TUBE AS-OIL SUMP | 1 | |
| 2P4358 | 26 FLANGE | 1 | |
| 6D1004 | GASKET | 1 | |
| 1S6119 | 27 SEAL-O-RING | 1 | |
| 0S1594 | 28 BOLT | 4 | |
| 0L1351 | 29 BOLT | 20 | |
| 5K3294 | 30 CLIP | 3 | |
| 1D4707 | 31 BOLT | 1 | |
| 1P2841 | SPACER | 1 | |
| 5P8244 | 32 WASHER | 18 | |
| 9G3073 | 33 PLATE | 1 | |
| 9G3075 | 34 GASKET | 2 | |
| 9G3074 | 35 PLATE | 1 | |
| 8B5774 | 36 BUSHING-REDUCING | 1 | |
| 6L6580 | 37 GASKET | 1 | |
| 0T0768 | 38 BOLT | 1 | |
| 6K6826 | 39 ELBOW | 1 |
