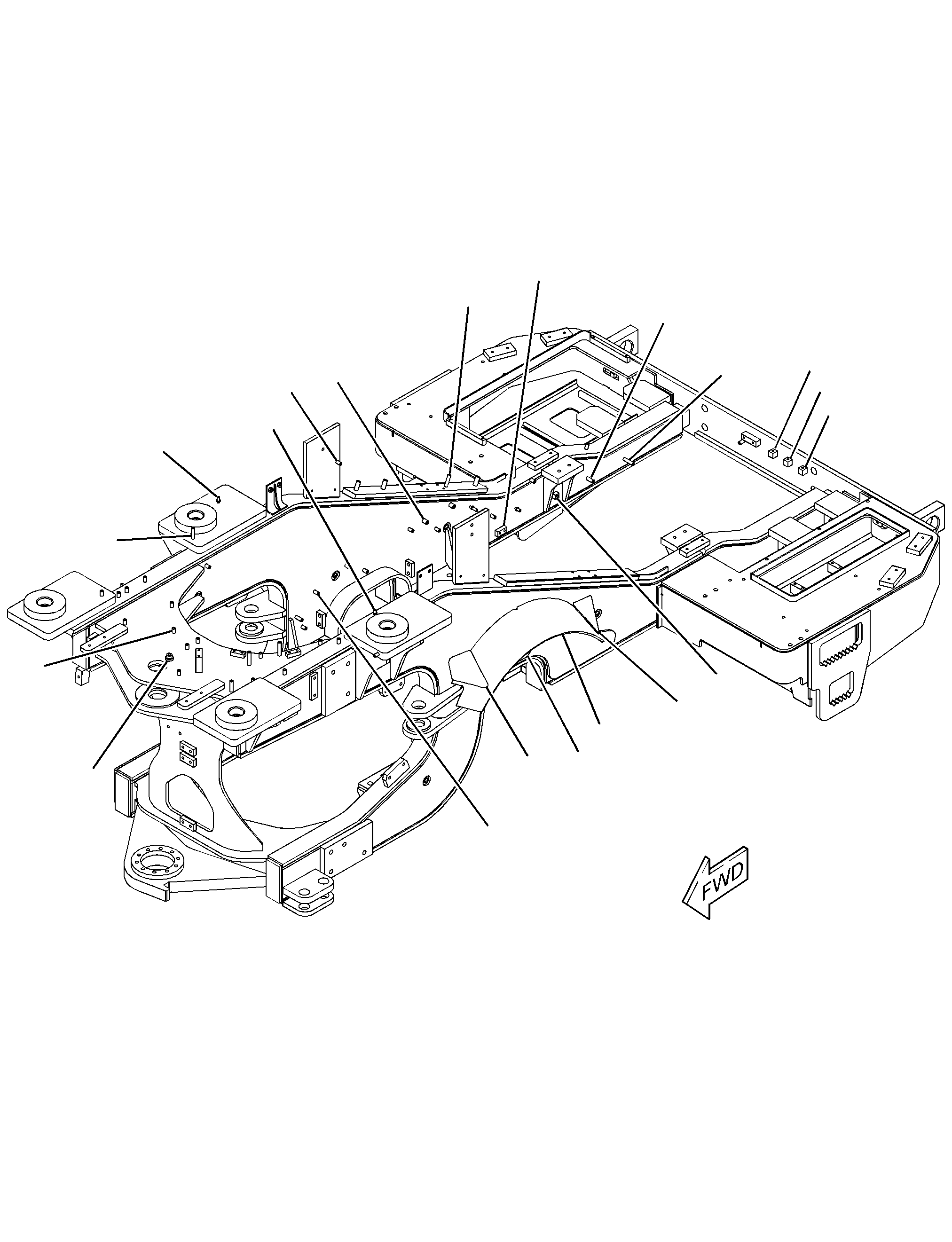

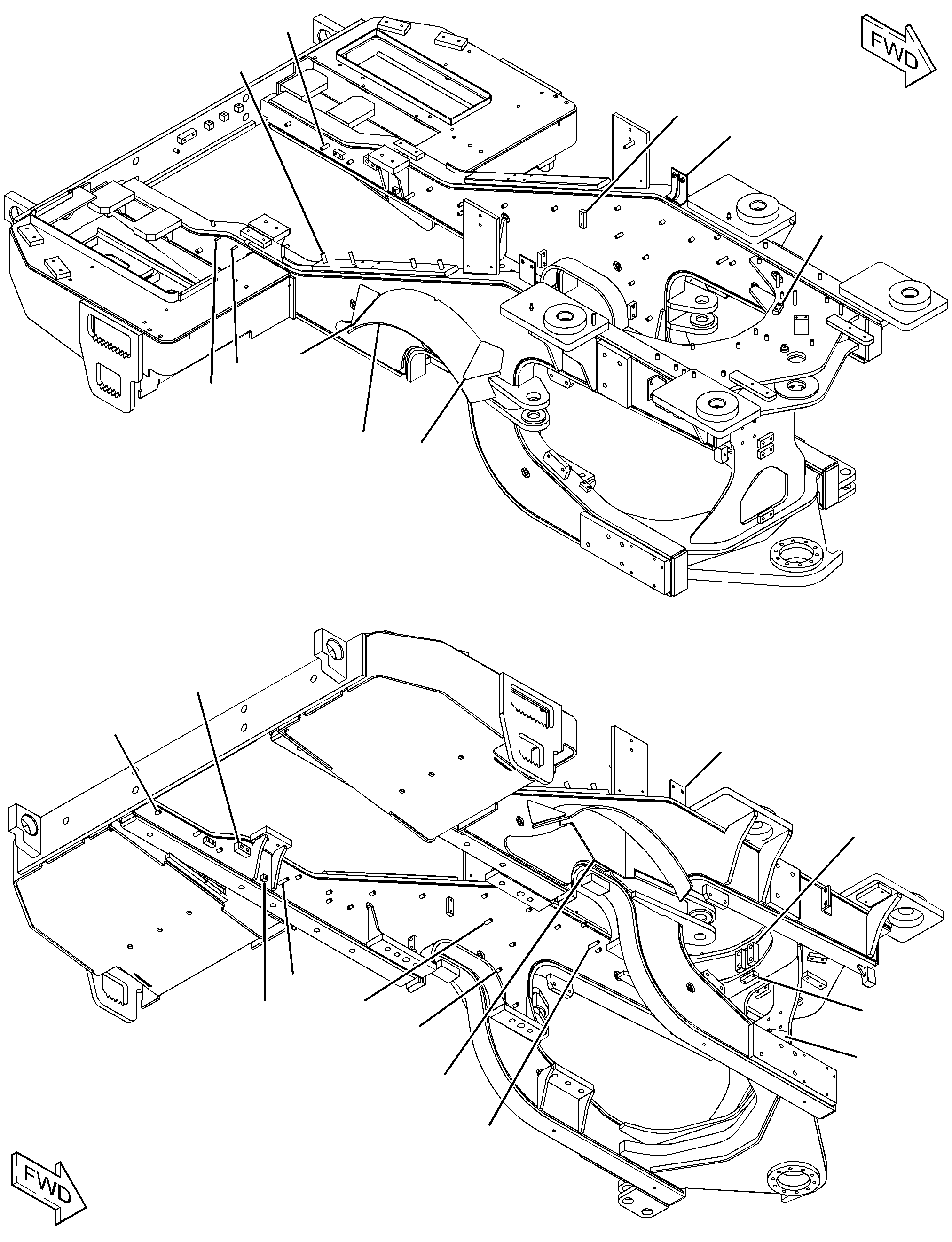

225-9534 FRAME AS-REARS/N AWF412-603

Group No: 225-9534
Part NumberPart NameQty
4V03681 BLOCK1
7X07522 BOSS-WELD (M10X1.5X65-MM)8
8T36353 STUD-WELD (M12X1.75X34.93-MM)4
8T38514 BOSS-WELD (M10X1.5X17.5-MM)43
8T75015 STUD-WELD (M10X1.5X38-MM)2
9C49356 PLATE2
09082477 BLOCK (M10X1.5-MM)2
16676968 PLATE1
16676979 PLATE1
216913910 GUSSET1
216914011 GUSSET1
216914112 GUSSET1
216914213 GUSSET1
8Y702314 BOSS (M12X1.75-MM)1
137300115 BLOCK1
8T493517 BOSS-WELD (M10X1.5X45-MM)3
9C680918 BLOCK (M10X1.5-MM)2
9C792919 BLOCK1
9R261320 BOSS-WELD (M10X1.5X25-MM)3
9R986621 BOSS-THREADED (M10X1.5-THD)3
8C849922 BOSS-WELD (M10X1.5X50-MM)1
301309823 PLATE2
263773524 BRACKET AS2
8T3597NUT-WELD (M12X1.75-THD)2
269839825 PLATE (RH)1
269839926 PLATE (LH)1
9C944627 BLOCK3
