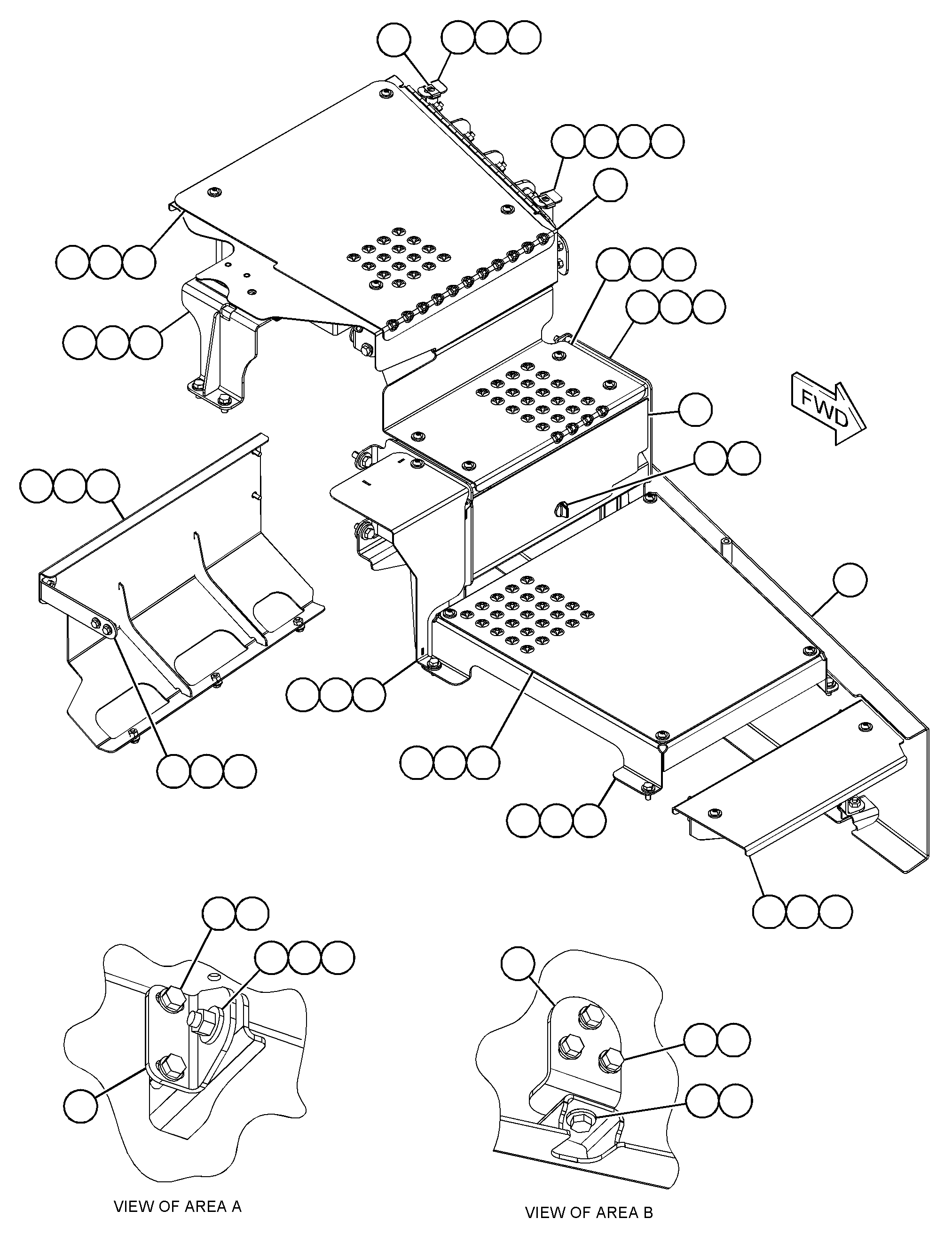

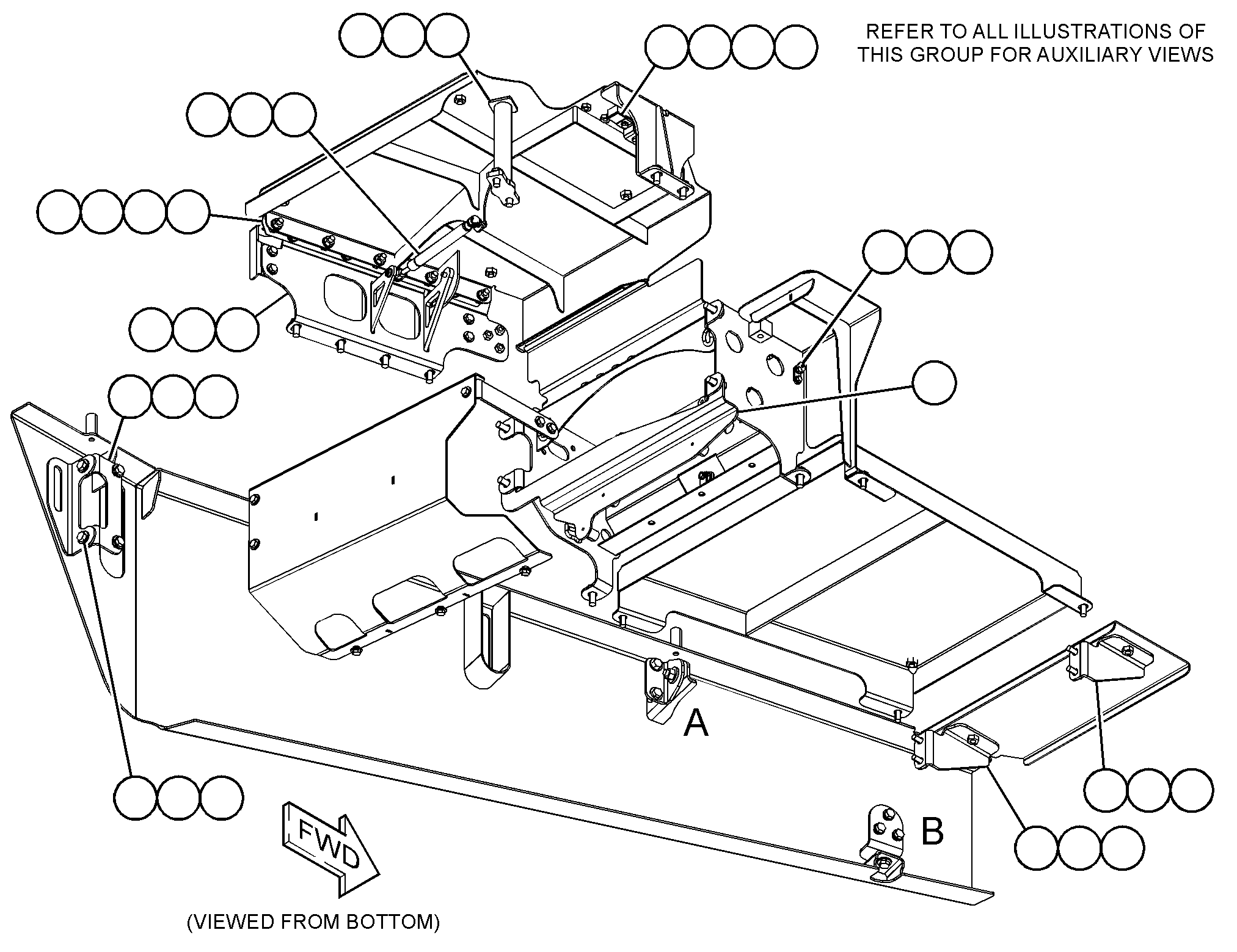

391-0727 GUARD GP-HYDRAULIC TANKS/N LFJ1-UP

Group No: 391-0727 · Commonality
Part NumberPart NameQty
5U42291 LATCH1
18556982 HINGE AS1
18761563 LATCH AS (PANEL)1
20113794 SHIM (1-MM THK)4
25356575 SHIM (1-MM THK)3
33379296 SUPPORT AS1
50574837 BRACKET AS2
33406598 BRACKET AS (WIRING)1
33448899 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)2
339522510 PLATE-END1
355848411 STRUT-GAS1
355849212 BRACKET AS (SUPPORT)1
8T3612NUT-WELD (M8X1.25-THD)3
355849313 COVER AS-GUARD1
355849714 BRACKET AS1
8T3612NUT-WELD (M8X1.25-THD)1
356328315 BRACKET AS2
8T3490NUT-WELD (M10X1.5-THD)1
369873616 BRACKET1
415026817 COVER AS1
415572618 PLATE AS1
418856919 COVER AS (LH)1
435585720 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)4
435843021 PLATE-COVER1
436994322 PANEL GP-SWITCH1
8T3490NUT-WELD (M10X1.5-THD)4
9C9446BLOCK1
442466123 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)4
8T3612NUT-WELD (M8X1.25-THD)2
451235024 COVER AS1
8T3612NUT-WELD (M8X1.25-THD)3
519426025 PLATE-TREAD1
457422626 PLATE-TREAD1
457424027 PLATE-TREAD1
457990228 PLATFORM AS1
8T3490NUT-WELD (M10X1.5-THD)4
160850029 NUT (M8X1.25-THD)2
5C955330 BOLT (M6X1X16-MM)4
5P107631 WASHER-HARD (13.5X30X4-MM THK)8
5P411632 WASHER-HARD (8.8X20.5X2-MM THK)12
7X772933 WASHER (11X25X3-MM THK)28
8C858534 SCREW-BUTTON HEAD (M10X1.5X20-MM)15
8T412135 WASHER-HARD (11X21X2.5-MM THK)25
8T413336 NUT (M10X1.5-THD)11
8T413637 BOLT (M10X1.5X25-MM)27
8T413938 BOLT (M12X1.75X30-MM)6
8T418939 BOLT (M8X1.25X20-MM)12
8T419240 BOLT (M12X1.75X25-MM)8
8T422342 WASHER-HARD (13.5X25.5X3-MM THK)8
8T422443 WASHER-HARD (8.8X16X2-MM THK)2
8T424444 NUT (M12X1.75-THD)1
8T495645 BOLT (M12X1.75X35-MM)1
9X825646 WASHER (6.6X12X2-MM THK)4
259112747 NUT-CLIP2
