System And Components

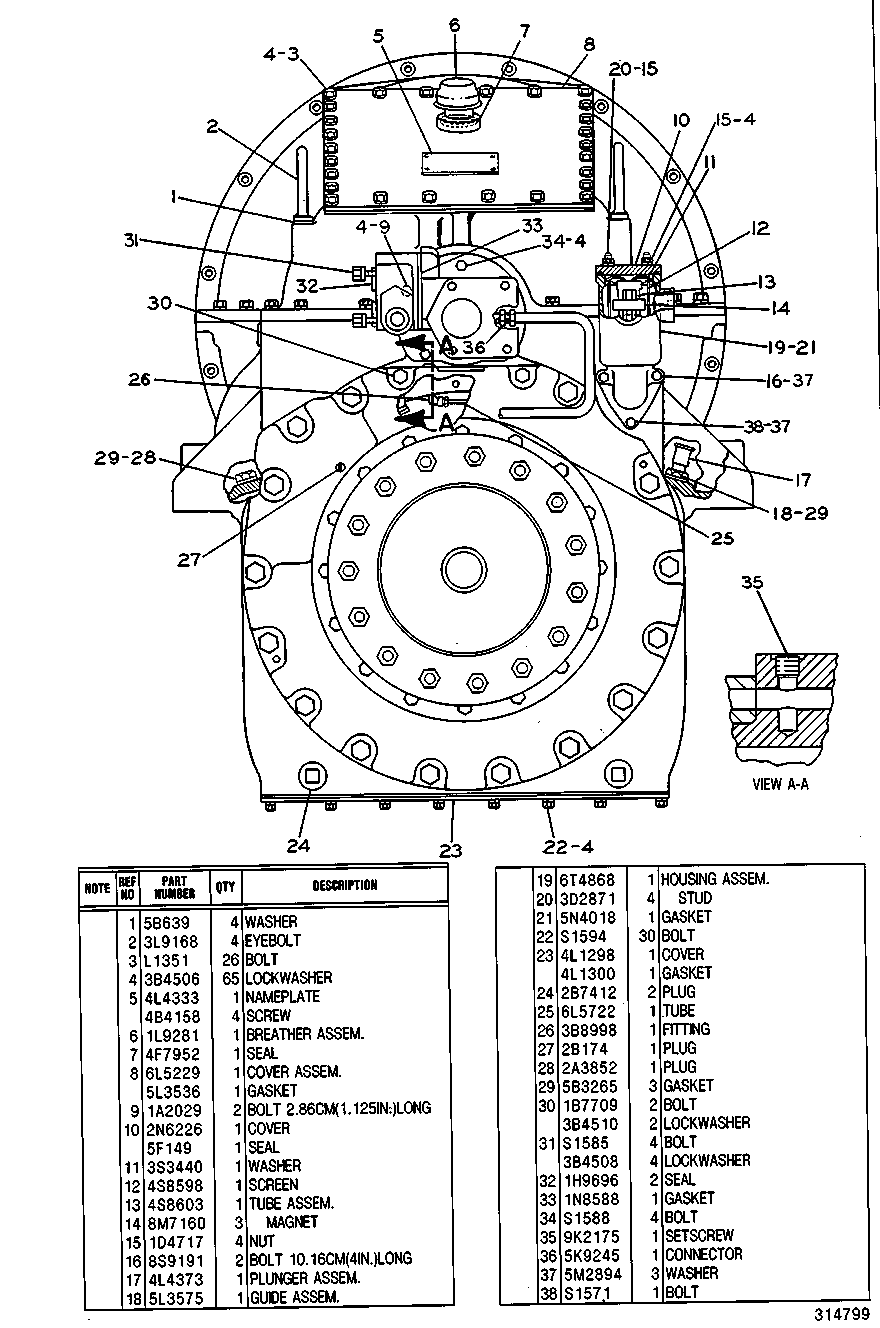

7L4911 HOUSING GP-MARINE TRANSMISSION-PART 1 OF 3S/N 6LB1-192
Group No: 7L4911
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5B0639 | 1 WASHER | 4 | |
| 3L9168 | 2 BOLT-EYE | 4 | |
| 0L1351 | 3 BOLT | 26 | |
| 3B4506 | 4 LOCKWASHER | 65 | |
| 4L4333 | 5 PLATE-NAME & INFO | 1 | |
| 4B4158 | SCREW | 4 | |
| 1L9281 | 6 BREATHER AS | 1 | |
| 4F7952 | 7 SEAL-O-RING | 1 | |
| 6L5229 | 8 COVER AS-INSPECTION | 1 | |
| 5L3536 | GASKET-COVER | 1 | |
| 1A2029 | 9 BOLT 2.86CM(1.125IN.)LONG | 2 | |
| 2N6226 | 10 COVER-HOUSING | 1 | |
| 5F0149 | SEAL | 1 | |
| 3S3440 | 11 WASHER-WAVE | 1 | |
| 4S8598 | 12 SCREEN-SUCTION | 1 | |
| 4S8603 | 13 TUBE AS-SCREEN | 1 | |
| 8M7160 | 14 MAGNET | 3 | |
| 1D4717 | 15 NUT | 4 | |
| 8S9191 | 16 BOLT 10.16CM(4IN.)LONG | 2 | |
| 4L4373 | 17 PLUNGER AS-GAUGE | 1 | |
| 5L3575 | 18 GUIDE AS-GAGE | 1 | |
| 6T4868 | 19 HOUSING AS | 1 | |
| 3D2871 | 20 STUD | 4 | |
| 5N4018 | 21 GASKET | 1 | |
| 0S1594 | 22 BOLT | 30 | |
| 4L1298 | 23 COVER-BOTTOM | 1 | |
| 4L1300 | GASKET-COVER | 1 | |
| 2B7412 | 24 PLUG-PIPE | 2 | |
| 6L5722 | 25 TUBE-LUBE SUPPLY | 1 | |
| 3B8998 | 26 FITTING | 1 | |
| 2B0174 | 27 PLUG-PIPE | 1 | |
| 2A3852 | 28 PLUG | 1 | |
| 5B3265 | 29 GASKET | 3 | |
| 1B7709 | 30 BOLT | 2 | |
| 3B4510 | LOCKWASHER | 2 | |
| 0S1585 | 31 BOLT | 4 | |
| 3B4508 | LOCKWASHER | 4 | |
| 1H9696 | 32 SEAL-O-RING | 2 | |
| 1N8588 | 33 GASKET-MANIFOLD | 1 | |
| 0S1588 | 34 BOLT | 4 | |
| 9K2175 | 35 SETSCREW | 1 | |
| 5K9245 | 36 CONNECTOR-FLARED | 1 | |
| 5M2894 | 37 WASHER | 3 | |
| 0S1571 | 38 BOLT | 1 |
