System And Components

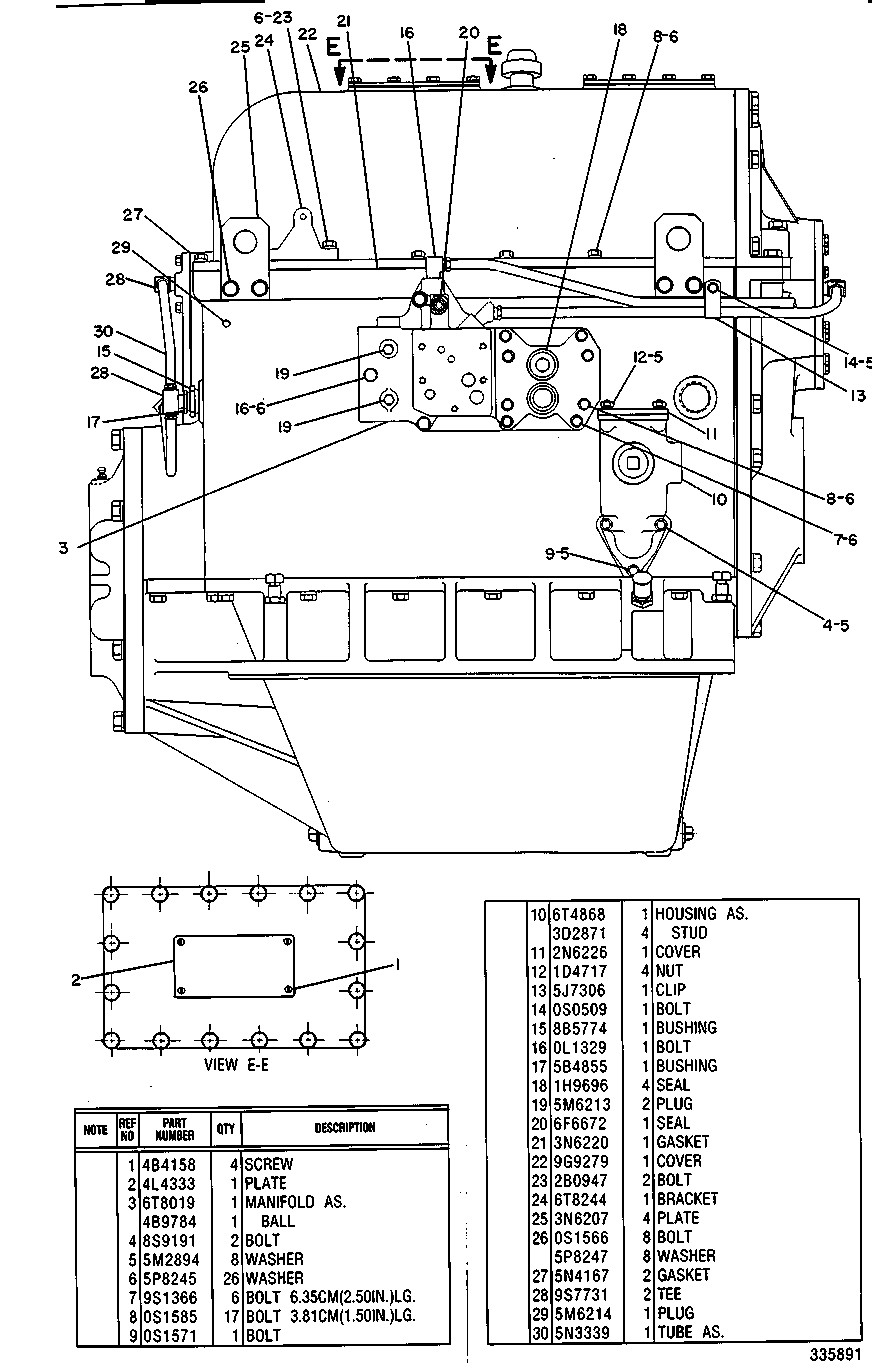

6T7896 MARINE TRANSMISSION HOUSING GROUP-PART 1 OF 5
Group No: 6T7896
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6T8477 | 1 HOUSING AS | 1 | |
| 6F4161 | DOWEL | 2 | |
| 5B9318 | BALL | 2 | |
| 4B9880 | 2 BALL | 1 | |
| 2B7412 | 3 PLUG-PIPE | 2 | |
| 8S9191 | 4 BOLT | 2 | |
| 5M2894 | 5 WASHER | 8 | |
| 5P8245 | 6 WASHER | 26 | |
| 9S1366 | 7 BOLT 6.35CM(2.50IN.)LG. | 6 | |
| 0S1585 | 8 BOLT 3.81CM(1.50IN.)LG. | 17 | |
| 0S1571 | 9 BOLT | 1 | |
| 6T4868 | 10 HOUSING AS | 1 | |
| 3D2871 | STUD | 4 | |
| 2N6226 | 11 COVER-HOUSING | 1 | |
| 1D4717 | 12 NUT | 4 | |
| 5J7306 | 13 CLIP | 1 | |
| 0S0509 | 14 BOLT | 1 | |
| 3N9332 | 15 TUBE AS | 1 | |
| 5K9240 | 16 ELBOW-FLARED | 2 | |
| 6T8472 | 17 GASKET | 1 | |
| 1H9696 | 18 SEAL-O-RING | 4 | |
| 9S7724 | 19 ELBOW-FLARED | 1 | |
| 6F6672 | 20 SEAL-O-RING | 1 | |
| 3N6220 | 21 GASKET-TOP COVER | 1 | |
| 9G9279 | 22 COVER-HOUSING | 1 | |
| 2B0947 | 23 BOLT | 2 | |
| 6T8244 | 24 BRACKET | 1 | |
| 3N6207 | 25 PLATE | 4 | |
| 0S1566 | 26 BOLT | 8 | |
| 5P8247 | WASHER-HARD | 8 | |
| 5N4167 | 27 GASKET-COVER | 2 | |
| 9S7731 | 28 TEE-FLARED | 2 | |
| 5M6214 | 29 PLUG-PIPE | 1 | |
| 5N3339 | 30 TUBE AS | 1 | |
| 8B5774 | 31 BUSHING-REDUCING | 1 | |
| 0L1329 | 32 BOLT | 1 | |
| 5B4855 | 33 BUSHING-REDUCING | 1 | |
| 5M6213 | 34 PLUG | 2 | |
| 6T8019 | 35 MANIFOLD AS | 1 | |
| 4B9784 | BALL | 1 | |
| 4L4333 | 36 PLATE-NAME & INFO | 1 | |
| 4B4158 | 37 SCREW | 4 |
