System And Components

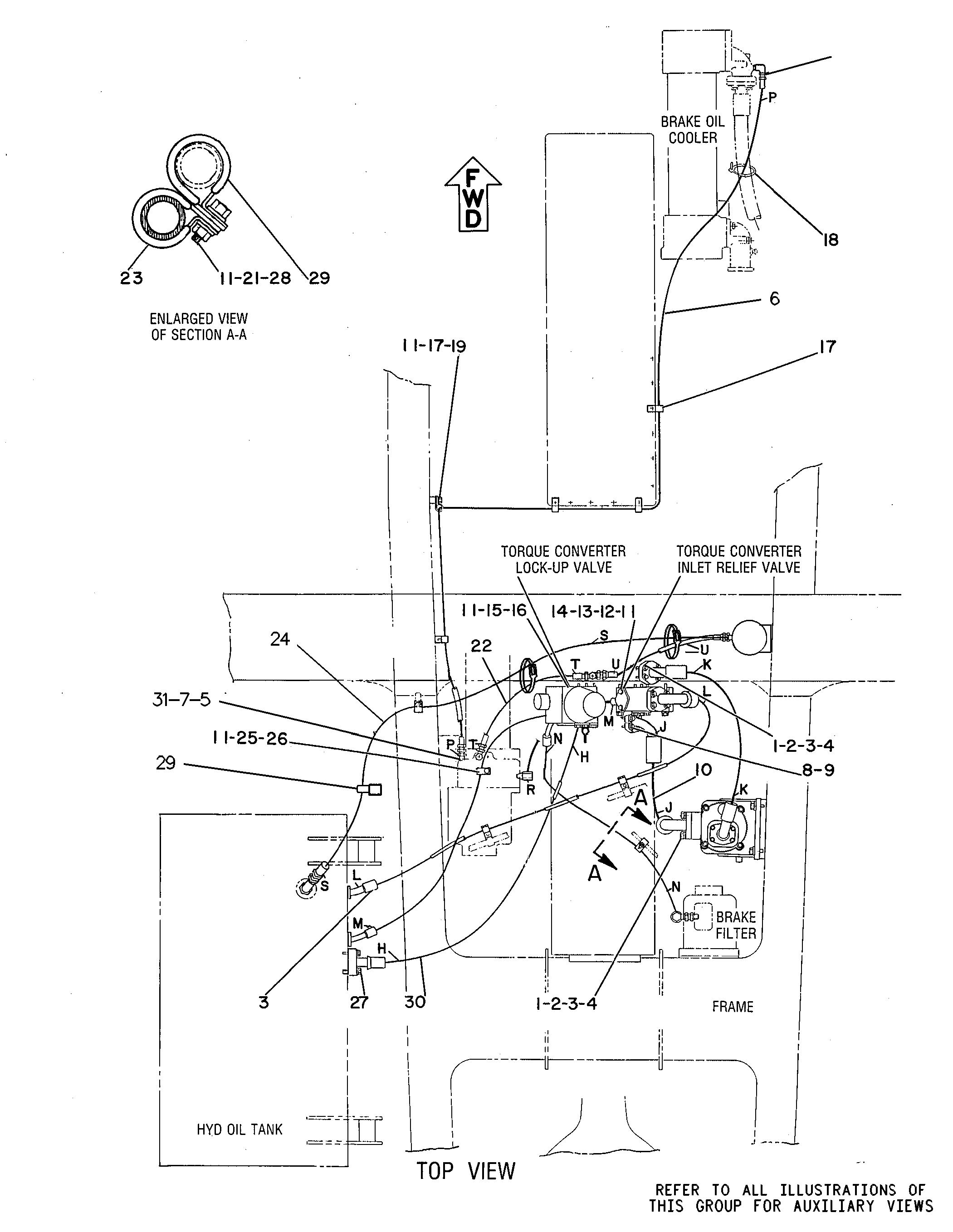

8W-4503 FILTER & LINES GP-TORQUE CONVS/N 7XJ200-204
Group No: 8W-4503
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4223 | 1 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 1P4579 | 2 FLANGE-HALF | 4 | |
| 4J0524 | 3 SEAL-O-RING | 3 | |
| 5P2566 | 4 BOLT (1/2-13X1.5-IN) | 8 | |
| 3J1907 | 5 SEAL-O-RING | 2 | |
| 8X7329 | 6 HOSE AS | 1 | |
| 6V8641 | 7 CONNECTOR | 1 | |
| 1P4578 | 8 FLANGE-HALF | 2 | |
| 4J0522 | SEAL-O-RING | 1 | |
| 8T8916 | 9 BOLT (7/16-14X1.5-IN) | 4 | |
| 8T5360 | WASHER (12X22.5X2.5-MM THK) | 4 | |
| 5T7026 | 10 HOSE AS | 1 | |
| 8T4896 | 11 WASHER-HARD (10.2X18.5X2.5-MM THK) | 11 | |
| 8M8157 | 12 SEAL-O-RING | 1 | |
| 3P0348 | 13 VALVE GP-RELIEF (T.C.INLET RELIEF) | 1 | |
| 7X0290 | 14 BOLT (3/8-16X3.5-IN) | 3 | |
| 8M4443 | SEAL-O-RING | 1 | |
| 4B4845 | PLUG | 1 | |
| 6I9513 | 15 VALVE GP-LOCKUP CLUTCH & SOL (T.C.LOCK-UP) | 1 | |
| 8M4435 | 16 SEAL-O-RING | 2 | |
| 7X0296 | BOLT (3/8-16X5.5-IN) | 3 | |
| 4K8864 | 17 CLIP (LOOP)(CIRCULAR) | 5 | |
| 7K2828 | 18 CLIP | 1 | |
| 5M3062 | 19 BOLT (3/8-16X0.75-IN) | 2 | |
| 6V8627 | 20 ELBOW | 1 | |
| 4L6454 | 21 BOLT (3/8-16X1-IN) | 1 | |
| 4E3446 | 22 HOSE AS | 1 | |
| 4S4455 | 23 CLIP | 1 | |
| 1141831 | 24 HOSE AS | 1 | |
| 5P8167 | 25 BOLT (3/8-16X0.625-IN) | 1 | |
| 6V1889 | 26 CLIP (LOOP) | 1 | |
| 1P7017 | 27 FLANGE-HALF | 2 | |
| 4H9105 | SEAL-O-RING | 1 | |
| 7X0347 | BOLT (5/8-11X2.25-IN) | 4 | |
| 8T4122 | WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 6V8801 | 28 NUT (3/8-16-THD) | 1 | |
| 7D7233 | 29 CLIP (LOOP) | 2 | |
| 8W8681 | 30 HOSE AS | 1 | |
| 4J5477 | 31 SEAL-O-RING | 2 | |
| 8T4223 | 32 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 1P4579 | 33 FLANGE-HALF | 4 | |
| 4J0524 | 34 SEAL-O-RING | 2 | |
| 5P2566 | 35 BOLT (1/2-13X1.5-IN) | 8 | |
| 3D2824 | 36 SEAL-O-RING | 2 | |
| 6V9746 | 37 SEAL-O-RING | 3 | |
| 6V9007 | 38 ELBOW | 1 | |
| 1P4576 | 39 FLANGE-HALF | 2 | |
| 4J5267 | 40 SEAL-O-RING | 2 | |
| 5S7382 | 41 BOLT (3/8-16X1.375-IN) | 7 | |
| 8T4896 | 42 WASHER-HARD (10.2X18.5X2.5-MM THK) | 13 | |
| 5P7468 | 43 CLIP (SLOT) | 2 | |
| 5P7469 | 44 CLIP (TAB) | 2 | |
| 1P4584 | 45 FLANGE-HALF | 2 | |
| 6J2680 | 46 SEAL-O-RING | 2 | |
| 8W5005 | 47 ADAPTER | 1 | |
| 9S4185 | 48 PLUG (3/4-16-THD) | 1 | |
| 3K0360 | 49 SEAL-O-RING | 2 | |
| 7X0326 | 50 BOLT (1/2-13X3-IN) | 4 | |
| 8W9757 | 51 HOSE AS | 1 | |
| 7G5000 | 52 FILTER GP-OIL | 1 | |
| 4L6454 | 53 BOLT (3/8-16X1-IN) | 4 | |
| 8W7821 | 54 HOSE AS | 1 | |
| 6V8944 | 55 REDUCER | 1 | |
| 6V9005 | 56 ELBOW | 1 | |
| 6V8637 | 57 CONNECTOR | 1 | |
| 6V9853 | 58 ELBOW | 1 | |
| 5T7025 | 59 HOSE AS | 1 | |
| 2T2098 | 60 HOSE AS | 1 | |
| 5K9090 | 61 SEAL-O-RING | 3 | |
| 2H3940 | 62 ELBOW | 2 | |
| 4E3446 | 63 HOSE AS | 1 | |
| 6V8775 | 64 TEE-FACE SEAL | 1 | |
| 6V0484 | 65 ELBOW | 2 | |
| 3J1907 | 66 SEAL-O-RING | 4 | |
| 6V3965 | 67 FITTING (QUICK DISCONNECT) | 1 | |
| 6V0852 | 68 CAP-DUST | 2 | |
| 8W8775 | 69 ELBOW | 1 | |
| 1P3706 | 70 SEAL-RECTANGULAR | 1 | |
| 8M8157 | 71 SEAL-O-RING | 1 | |
| 8C3446 | 72 VALVE-SAMPLING (T.C.CASE) | 1 | |
| 3J7354 | 73 SEAL-O-RING | 1 | |
| 7D7509 | 74 HOSE AS | 1 | |
| 6D4636 | 75 CLIP (LOOP) | 1 | |
| 1050381 | 76 BLOCK | 1 | |
| 8T9101 | 77 BOLT (3/8-16X2.75-IN) | 2 | |
| 7M8485 | 78 SEAL-O-RING | 2 | |
| 8X4575 | 79 FILTER AS-BREATHER | 1 | |
| 9M0164 | 80 CLAMP-HOSE | 1 | |
| 6V8785 | 81 TEE | 1 | |
| 6V8398 | 82 SEAL-O-RING | 4 | |
| 8C6872 | 83 CONNECTOR | 1 | |
| 7D7233 | 84 CLIP (LOOP) | 1 | |
| 4D5371 | 85 CLIP | 2 | |
| 9S4191 | 86 PLUG (9/16-18-THD) | 1 | |
| 6V8557 | 87 NUT-FACE SEAL (1-7/16-12-THD) | 1 |
