System And Components

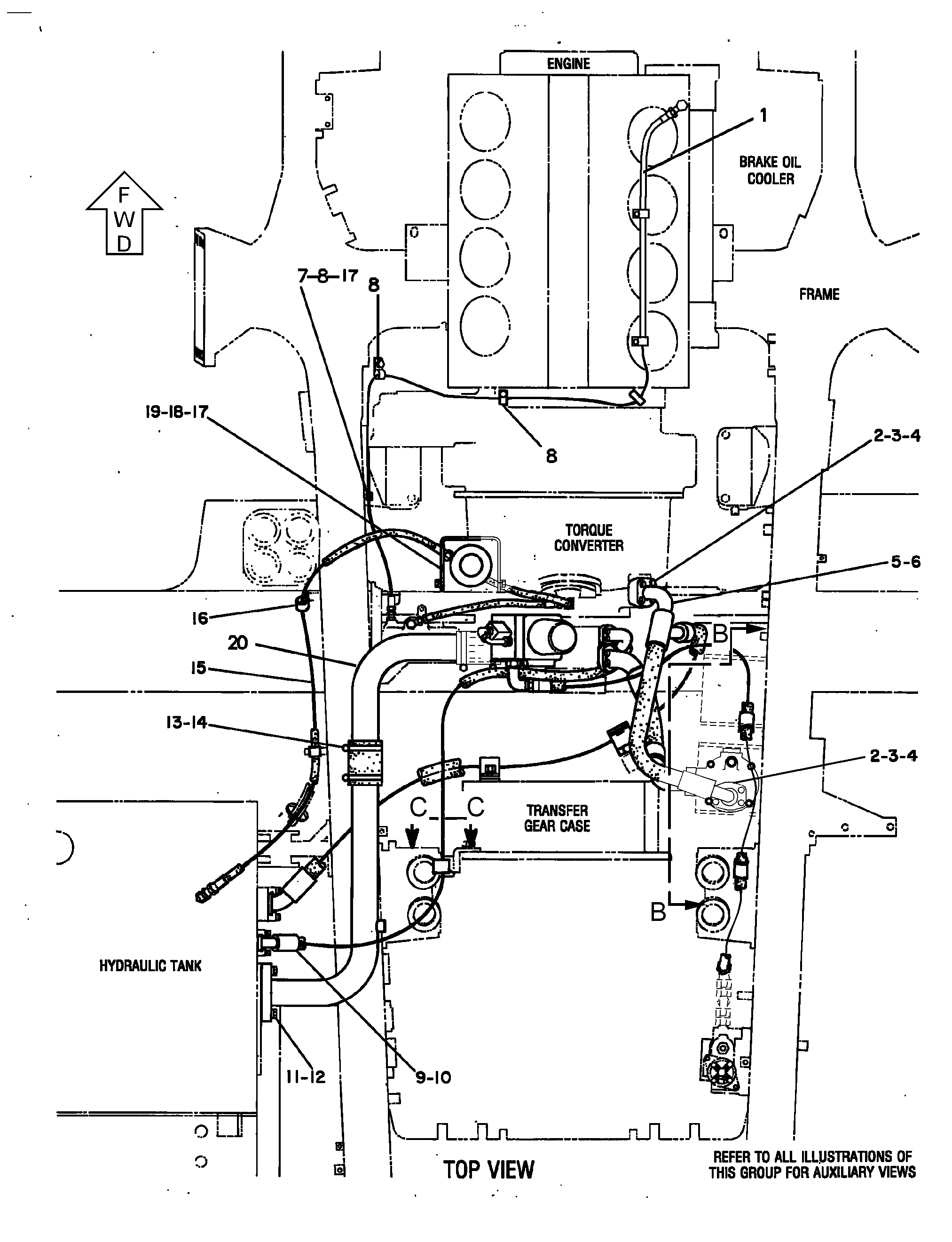

129-4904 FILTER & LINES GP-TORQUE CONVS/N 5TR1-504
Group No: 129-4904
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8W6836 | 1 HOSE AS | 1 | |
| 5P2566 | 2 BOLT (1/2-13X1.5-IN) | 8 | |
| 8T4223 | 3 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 1P4579 | 4 FLANGE-HALF | 4 | |
| 1058676 | 5 HOSE AS | 1 | |
| 4J0524 | 6 SEAL-O-RING | 2 | |
| 5S7379 | 7 BOLT (3/8-16X0.875-IN) | 1 | |
| 8M2773 | 8 CLIP (LOOP) | 6 | |
| 8X3419 | 9 HOSE AS | 1 | |
| 4J5267 | 10 SEAL-O-RING | 1 | |
| 7X0346 | 11 BOLT (5/8-11X2-IN) | 4 | |
| 8T4122 | 12 WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 8K6892 | 13 HOSE | 1 | |
| 5P0598 | 14 CLAMP-HOSE | 2 | |
| 1123345 | 15 HOSE AS | 1 | |
| 4D7388 | 16 CLIP | 2 | |
| 8T4896 | 17 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 5M3062 | 18 BOLT (3/8-16X0.75-IN) | 4 | |
| 1123346 | 19 GUARD AS | 1 | |
| 9D6166 | BOSS (3/8-16-THD) | 1 | |
| 8X7658 | 20 TUBE | 1 | |
| 5P7462 | 21 CLIP (SLOT) | 3 | |
| 5P7463 | 22 CLIP (TAB) | 3 | |
| 5S7382 | 23 BOLT (3/8-16X1.375-IN) | 1 | |
| 5P1075 | 24 WASHER-HARD (10.2X22.5X3-MM THK) | 3 | |
| 4L6454 | 25 BOLT (3/8-16X1-IN) | 4 | |
| 8T4896 | 26 WASHER-HARD (10.2X18.5X2.5-MM THK) | 19 | |
| 2H3940 | 27 ELBOW | 1 | |
| 1123344 | 28 HOSE AS | 2 | |
| 7X0296 | 29 BOLT (3/8-16X5.5-IN) | 3 | |
| 6V8782 | 30 TEE | 1 | |
| 3P0348 | 31 VALVE GP-RELIEF (TORQUE CONVERTER INLET) | 1 | |
| 8M4443 | 32 SEAL-O-RING | 2 | |
| 8M8157 | 33 SEAL-O-RING | 2 | |
| 4B4845 | 34 PLUG | 2 | |
| 7X0290 | 35 BOLT (3/8-16X3.5-IN) | 6 | |
| 8M4435 | 36 SEAL-O-RING | 2 | |
| 1282352 | 37 VALVE GP-LOCKUP CLUTCH & SOL | 1 | |
| 3D2824 | 38 SEAL-O-RING | 1 | |
| 6V9007 | 39 ELBOW | 1 | |
| 6V9746 | 40 SEAL-O-RING | 3 | |
| 2B0858 | 41 PLUG-PIPE | 2 | |
| 4J0522 | 42 SEAL-O-RING | 1 | |
| 1P4578 | 43 FLANGE-HALF | 2 | |
| 4D3734 | 44 ELBOW | 1 | |
| 5P2566 | 45 BOLT (1/2-13X1.5-IN) | 12 | |
| 8T4223 | 46 WASHER-HARD (13.5X25.5X3-MM THK) | 14 | |
| 2G1412 | 47 HOSE AS | 1 | |
| 6D4636 | 48 CLIP (LOOP) | 1 | |
| 1P4579 | 49 FLANGE-HALF | 4 | |
| 6V3965 | 50 FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | 51 SEAL-O-RING | 4 | |
| 6V0484 | 52 ELBOW | 1 | |
| 6V0852 | 53 CAP-DUST | 1 | |
| 8P1471 | 54 VALVE GP-RELIEF (TORQUE CONVERTER OUTLET) | 1 | |
| 8T8916 | 55 BOLT (7/16-14X1.5-IN) | 4 | |
| 8T5360 | 56 WASHER (12X22.5X2.5-MM THK) | 4 | |
| 9B7237 | 57 BOLT (3/8-16X1.25-IN) | 4 | |
| 1P4576 | 58 FLANGE-HALF | 2 | |
| 4J5267 | 59 SEAL-O-RING | 1 | |
| 1012586 | 60 HOSE AS | 1 | |
| 6V9005 | 61 ELBOW | 1 | |
| 7M8485 | 62 SEAL-O-RING | 2 | |
| 6V8398 | 63 SEAL-O-RING | 4 | |
| 6V8944 | 64 REDUCER | 1 | |
| 6V8557 | 65 NUT-FACE SEAL (1-7/16-12-THD) | 1 | |
| 6V9853 | 66 ELBOW | 1 | |
| 1J2859 | 67 SEAL-O-RING | 1 | |
| 8W9870 | 68 TUBE AS | 1 | |
| 4J0524 | 69 SEAL-O-RING | 3 | |
| 5T6917 | 70 HOSE AS | 1 | |
| 7X0288 | 71 BOLT (3/8-16X1.625-IN) | 1 | |
| 5P7467 | 72 CLIP (TAB) | 2 | |
| 5P7466 | 73 CLIP (SLOT) | 2 | |
| 8T8919 | 74 BOLT (1/2-13X1.75-IN) | 1 | |
| 6V8188 | 75 NUT (1/2-13-THD) | 1 | |
| 2H6184 | 76 SEAL-O-RING | 1 | |
| 8X7659 | 77 TUBE AS | 1 | |
| 6V8627 | 78 ELBOW | 1 | |
| 6V8641 | 79 CONNECTOR | 1 | |
| 6V8785 | 80 TEE | 1 | |
| 8T9101 | 81 BOLT (3/8-16X2.75-IN) | 2 | |
| 1050381 | 82 BLOCK | 1 | |
| 9M2904 | 83 CLAMP-HOSE | 1 | |
| 8X4575 | 84 FILTER AS-BREATHER | 1 | |
| 5T6919 | 85 HOSE AS | 1 | |
| 7G5000 | 86 FILTER GP-OIL (TORQUE CONVERTER) | 1 | |
| 3K0360 | 87 SEAL-O-RING | 2 | |
| 4J5477 | 88 SEAL-O-RING | 2 | |
| 3P1932 | 89 ADAPTER | 1 | |
| 8K6892 | 90 HOSE | 1 | |
| 5P0598 | 91 CLAMP-HOSE | 2 | |
| 8C6872 | 92 CONNECTOR | 1 | |
| 5K9090 | 93 SEAL-O-RING | 3 | |
| 3P2404 | 94 CLIP | 1 | |
| 8C3446 | 95 VALVE-SAMPLING | 1 | |
| 8C3451 | CAP-DUST (HYDRAULIC OIL) | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 5S7383 | 96 BOLT (3/8-16X1.75-IN) | 1 |
