System And Components

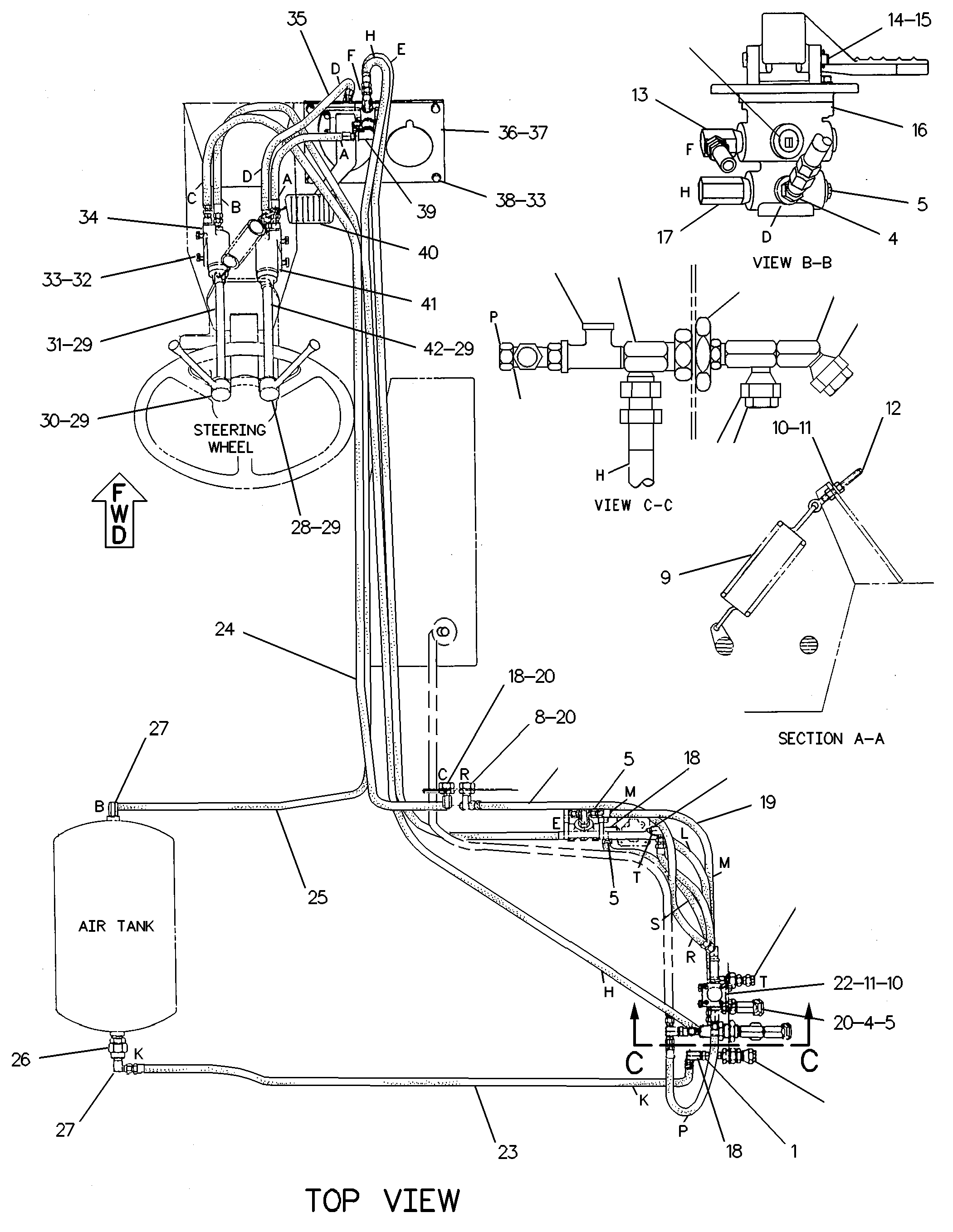

2A-6499 CONTROL GP-SERVICE BRAKE -CABS/N 7EK277-454
Group No: 2A-6499
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2D7325 | 1 TEE-PIPE | 2 | |
| 9D3351 | 2 ELBOW | 1 | |
| 8D9423 | 3 COUPLING | 1 | |
| 3D7587 | 4 ELBOW | 7 | |
| 5M6213 | 5 PLUG-PIPE (1/4-18-THD) | 5 | |
| 3J5389 | 6 PLUG (EXTERNAL) | 1 | |
| 9D3352 | 7 ELBOW | 1 | |
| 3S6115 | 8 TEE | 1 | |
| 2B1016 | 9 SPRING | 1 | |
| 6V8185 | 10 NUT (1/4-20-THD) | 4 | |
| 8T4205 | 11 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 0333044 | 12 EYEBOLT | 1 | |
| 3D6370 | 13 ELBOW | 1 | |
| 3B4610 | 14 PIN-COTTER | 1 | |
| 2D6006 | 15 PIN | 1 | |
| 9D8097 | 16 VALVE GP-AIR CONTROL (SERVICE BRAKE) | 1 | |
| 3D8913 | 17 ELBOW | 1 | |
| 5H4778 | 18 ELBOW | 4 | |
| 4S7560 | 19 HOSE AS | 1 | |
| 9M8662 | 20 COUPLING | 6 | |
| 4S7528 | 21 HOSE AS | 1 | |
| 7X0264 | 22 BOLT (1/4-20X2.5-IN) | 2 | |
| 3D6931 | 23 HOSE AS | 1 | |
| 4S7561 | 24 HOSE AS | 1 | |
| 7D4922 | 25 HOSE AS | 1 | |
| 4D0487 | 26 VALVE AS-CHECK (AIR TANK) | 1 | |
| 4J3914 | 27 ELBOW | 2 | |
| 5T9691 | 28 HANDLE | 1 | |
| 6V7417 | 29 SETSCREW (5/16-18X0.84-IN) | 4 | |
| 5T9690 | 30 HANDLE | 1 | |
| 2G2511 | 31 SHAFT AS | 1 | |
| 5S7382 | 32 BOLT (3/8-16X1.375-IN) | 4 | |
| 8T4896 | 33 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 9D8098 | 34 VALVE GP-AIR CONTROL (SECONDARY BRAKE) | 1 | |
| 7D5998 | 35 HOSE AS | 1 | |
| 8X8579 | 36 PLATE AS | 1 | |
| 4K9097 | NUT-WELD (5/16-18-THD) | 6 | |
| 8X7797 | 37 GASKET | 1 | |
| 5M3062 | 38 BOLT (3/8-16X0.75-IN) | 4 | |
| 0045933 | 39 TEE-PIPE | 1 | |
| 8X6553 | 40 PEDAL-BRAKE | 1 | |
| 9D3886 | 41 VALVE GP-AIR CONTROL (RETARDER) | 1 | |
| 2G2512 | 42 SHAFT | 1 | |
| 2B0858 | 43 PLUG-PIPE | 1 | |
| 5D3426 | 44 ROLLER | 1 | |
| 7B9323 | 45 PIN | 1 | |
| 3B4607 | 46 PIN-COTTER | 1 | |
| 4M0061 | 47 BOLT (5/16-18X0.75-IN) | 7 | |
| 8T4224 | 48 WASHER-HARD (8.8X16X2-MM THK) | 7 | |
| 7J0664 | 49 HOSE AS | 1 | |
| 2B0858 | 50 PLUG-PIPE | 3 | |
| 5D5911 | 51 HOSE AS | 2 | |
| 4S7558 | 52 HOSE AS | 1 | |
| 5H4778 | 53 ELBOW | 4 | |
| 5M3062 | 54 BOLT (3/8-16X0.75-IN) | 1 | |
| 8T4896 | 55 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 6D3781 | 56 VALVE GP-CHECK (DOUBLE)(AUTO RETARDER) | 1 | |
| 7D6096 | 57 HOSE AS | 1 | |
| 3D7587 | 58 ELBOW | 5 | |
| 5K2294 | 59 BEARING-SELF-ALIGNING | 2 | |
| 4S7572 | 60 HOSE AS | 1 | |
| 5D7464 | 61 HOSE AS | 1 | |
| 4S7560 | 62 HOSE AS | 1 | |
| 5P9135 | 63 GROMMET | 1 | |
| 4K2986 | 64 TEE-ANCHOR | 2 | |
| 3B7722 | 65 BUSHING-PIPE | 2 | |
| 3S6115 | 66 TEE | 3 | |
| 7D5998 | 67 HOSE AS | 1 | |
| 2D7325 | 68 TEE-PIPE | 2 | |
| 2G8815 | 69 VALVE GP-RELIEF (AIR SYSTEM) | 1 | |
| 6V7535 | 70 ELBOW-PIPE | 1 |
