System And Components

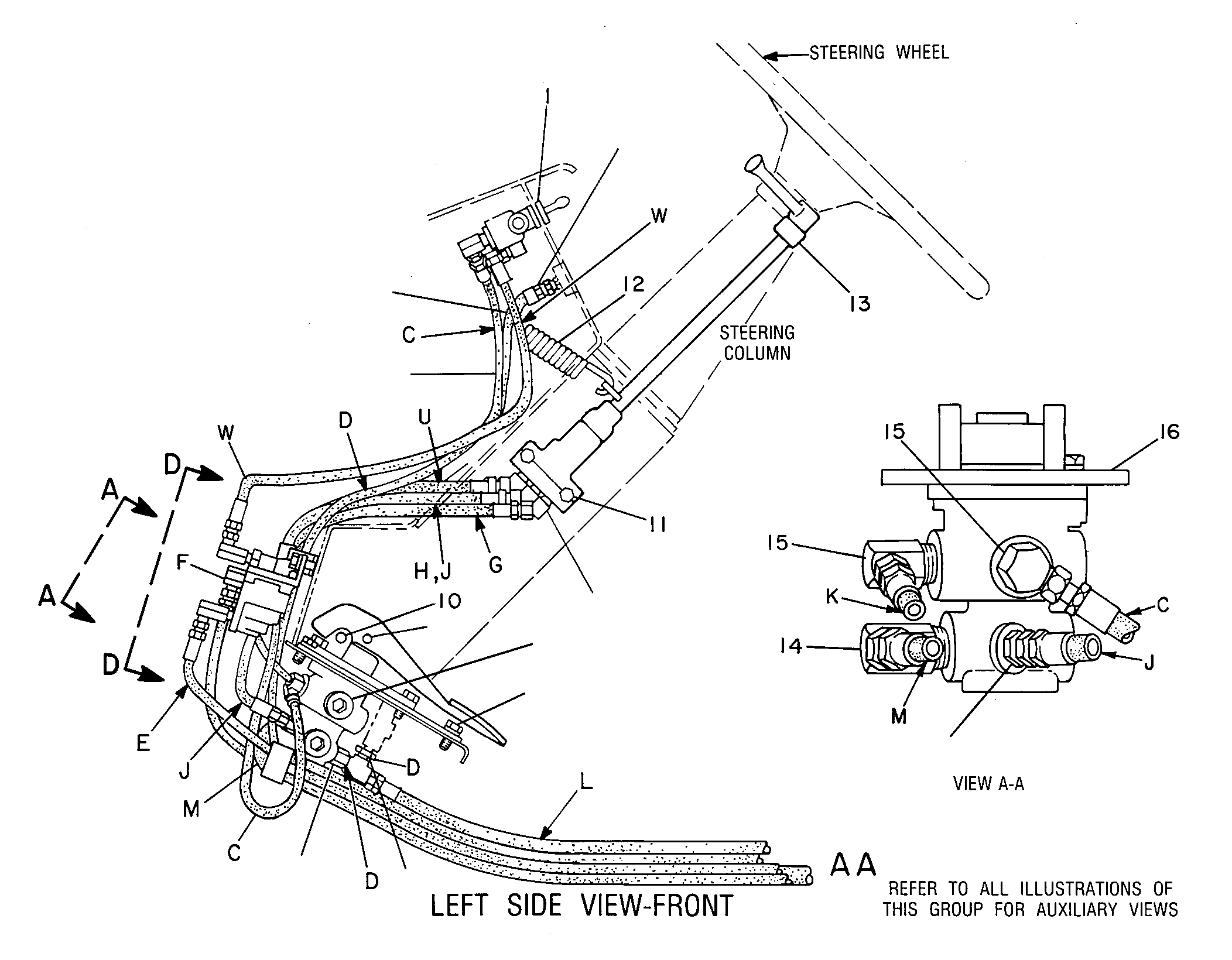

8W-8985 CONTROL GP-SERVICE BRAKES/N 01X6600-UP
Group No: 8W-8985
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4M8478 | 1 SCREW-MACHINE (10-24X0.5-IN) | 4 | |
| 7D0215 | 2 CONNECTOR-PIPE | 1 | |
| 4S7527 | 3 HOSE AS | 1 | |
| 3D7587 | 4 ELBOW | 5 | |
| 3D8935 | 5 HOSE AS | 1 | |
| 5H4778 | 6 ELBOW | 1 | |
| 4H6147 | 7 CONNECTOR | 1 | |
| 4M0061 | 8 BOLT (5/16-18X0.75-IN) | 3 | |
| 8T4224 | WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 5D3426 | 9 ROLLER | 1 | |
| 7B9323 | PIN | 1 | |
| 3B4607 | PIN-COTTER | 1 | |
| 2D6006 | 10 PIN | 1 | |
| 3B4610 | PIN-COTTER | 1 | |
| 5S7382 | 11 BOLT (3/8-16X1.375-IN) | 4 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 6V8185 | 12 NUT (1/4-20-THD) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 1 | |
| 2B1016 | SPRING | 1 | |
| 0333044 | EYEBOLT | 1 | |
| 5K2294 | 13 BEARING-SELF-ALIGNING | 2 | |
| 3D8913 | 14 ELBOW | 1 | |
| 3D6370 | 15 ELBOW | 2 | |
| 9D8097 | 16 VALVE GP-AIR CONTROL (SERVICE BRAKE) | 1 | |
| 8T6762 | 17 PLUG-PIPE (1/2-14-THD) | 3 | |
| 2D7325 | 18 TEE-PIPE | 2 | |
| 7D3963 | 19 HOSE AS | 1 | |
| 3S6115 | 20 TEE | 2 | |
| 3B7722 | BUSHING-PIPE | 2 | |
| 5D7464 | 21 HOSE AS | 2 | |
| 4K2986 | 22 TEE-ANCHOR | 2 | |
| 4M0061 | BOLT (5/16-18X0.75-IN) | 4 | |
| 8T4224 | WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 4S6667 | 23 HOSE AS | 2 | |
| 7W6493 | 24 PLUG-PIPE | 1 | |
| 6J7926 | 25 HOSE AS | 1 | |
| 5D5911 | 26 HOSE AS | 1 | |
| 5H4778 | 27 ELBOW | 2 | |
| 4H6147 | 28 CONNECTOR | 1 | |
| 2G8815 | 29 VALVE GP-RELIEF | 1 | |
| 7X0264 | BOLT (1/4-20X2.5-IN) | 2 | |
| 6V8185 | NUT (1/4-20-THD) | 2 | |
| 8T4205 | WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 8D4973 | 30 HOSE AS | 1 | |
| 2H3940 | 31 ELBOW | 1 | |
| 5M3062 | 32 BOLT (3/8-16X0.75-IN) | 6 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 5T3031 | 33 PLATE AS | 1 | |
| 4K9097 | NUT-WELD (5/16-18-THD) | 6 | |
| 8X6553 | 34 PEDAL-BRAKE | 1 | |
| 7D6106 | 35 HOSE AS | 1 | |
| 4D1544 | 36 CLIP | 2 | |
| 4J3914 | 37 ELBOW | 2 | |
| 8W6908 | 38 VALVE | 1 | |
| 4M0061 | BOLT (5/16-18X0.75-IN) | 2 | |
| 8T4224 | WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 4S6667 | 39 HOSE AS | 1 | |
| 5H4778 | 40 ELBOW | 2 | |
| 3D8884 | 41 ELBOW | 1 | |
| 4D3278 | 42 VALVE GP-AIR CONTROL (FRONT BRAKE ON/OFF) | 1 | |
| 8T6763 | 43 PLUG-PIPE (1/4-18-THD) | 1 | |
| 9D8098 | 44 VALVE GP-AIR CONTROL (SECONDARY BRAKE) | 1 | |
| 2G2511 | 45 SHAFT AS | 1 | |
| 6V7417 | 46 SETSCREW (5/16-18X0.84-IN) | 4 | |
| 5T9690 | 47 HANDLE | 1 | |
| 5T9691 | 48 HANDLE | 1 | |
| 2G2512 | 49 SHAFT | 1 | |
| 9D3886 | 50 VALVE GP-AIR CONTROL (RETARDER) | 1 | |
| 5D7464 | 51 HOSE AS | 1 | |
| 4D0593 | 52 HOSE AS | 1 | |
| 2H9091 | 53 CONNECTOR-PIPE | 1 | |
| 2D7325 | 54 TEE-PIPE | 1 | |
| 3D7587 | 55 ELBOW | 5 | |
| 7D4922 | 56 HOSE AS | 1 | |
| 8X7797 | 57 GASKET | 1 | |
| 4S7572 | 58 HOSE AS | 1 | |
| 5H4778 | 59 ELBOW | 7 | |
| 6D3781 | 60 VALVE GP-CHECK (DOUBLE) | 1 | |
| 5S7379 | BOLT (3/8-16X0.875-IN) | 1 | |
| 8T4896 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 0045933 | 61 TEE-PIPE | 2 | |
| 4M5317 | 62 BUSHING-REDUCER | 1 | |
| 2D7325 | 63 TEE-PIPE | 1 | |
| 5M6213 | 64 PLUG-PIPE (1/4-18-THD) | 1 | |
| 9D3351 | 65 ELBOW | 1 | |
| 7D4242 | 66 HOSE AS | 1 | |
| 4H6147 | 67 CONNECTOR | 1 | |
| 6D4045 | 68 HOSE AS | 1 | |
| 6D1432 | 69 VALVE-CHECK | 1 | |
| 3D8884 | ELBOW | 1 | |
| 3B7722 | BUSHING-PIPE | 1 | |
| 7D6096 | 70 HOSE AS | 1 | |
| 8D9423 | 71 COUPLING | 2 | |
| 9M8662 | 72 COUPLING | 5 | |
| 4J3914 | 73 ELBOW | 1 | |
| 6J7926 | 74 HOSE AS | 1 | |
| 3S6115 | 75 TEE | 1 | |
| 3D8913 | 76 ELBOW | 1 | |
| 9D3352 | 77 ELBOW | 1 | |
| 3E1799 | FILM (PANEL SWITCHES) | 1 |
