System And Components

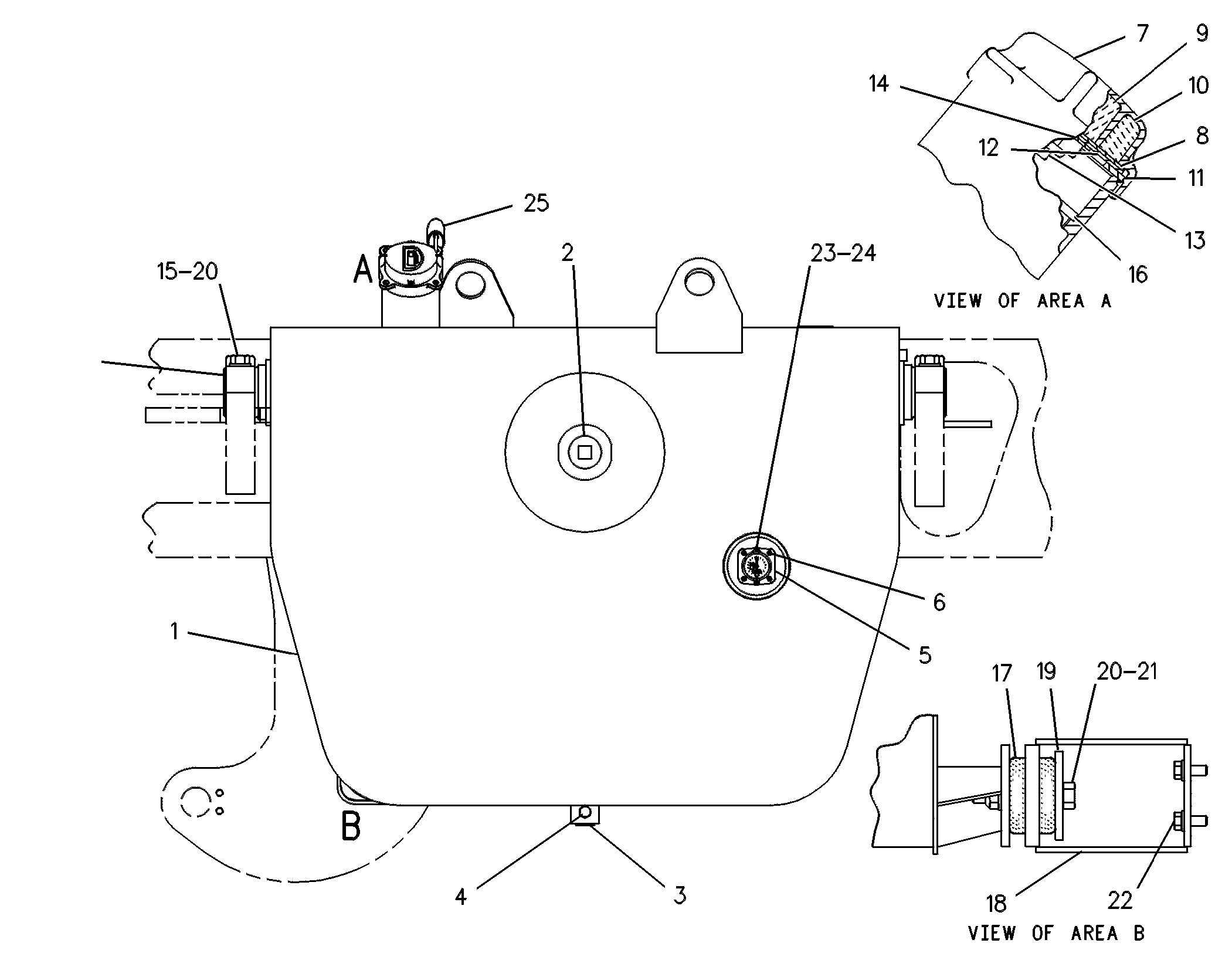

5T-2476 TANK GP-FUELS/N 3BJ200-UP
Group No: 5T-2476
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1021439 | 1 TANK AS-FUEL | 1 | |
| 4H9027 | 2 PLUG-PIPE | 2 | |
| 3B0551 | 3 PLUG-PIPE | 1 | |
| 1H8306 | 4 SCREW-PURGE (1/2-20X1.625-IN) | 1 | |
| 8W0651 | 5 SENDER GP-FLOAT | 1 | |
| 5P3729 | SEAL-RECTANGULAR | 1 | |
| 4B1326 | 6 SCREW-MACHINE (1/4-28X0.625-IN) | 1 | |
| 7T2036 | 7 CAP AS-FILLER (FUEL) | 1 | |
| 8P0408 | CAP-FILLER (FUEL TANK) | 1 | |
| 4B5423 | 8 GASKET | 1 | |
| 4B5949 | 9 FILTER ELEMENT-FUEL (FUEL CAP) | 1 | |
| 4B1663 | 10 FILTER ELEMENT-FUEL (FUEL CAP) | 1 | |
| 7T2037 | 11 GASKET | 1 | |
| 3F4134 | 12 BAFFLE (FUEL TANK FILL CAP) | 1 | |
| 7T2009 | 13 VALVE AS | 1 | |
| 7B2002 | 14 WASHER (10.2X44.5X3-MM THK) | 1 | |
| 1D4609 | 15 BOLT (3/4-10X3-IN) | 4 | |
| 9P7121 | 16 STRAINER-FUEL | 1 | |
| 5D5654 | 17 MOUNTING | 2 | |
| 9D9439 | 18 PLATE AS | 1 | |
| 9D9438 | 19 WASHER (21X111X10-MM THK) | 1 | |
| 5P8248 | 20 WASHER-HARD (20X36.5X3.5-MM THK) | 5 | |
| 1K6870 | 21 LOCKNUT (3/4-10-THD) | 1 | |
| 0S1627 | BOLT (3/4-10X4.5-IN) | 1 | |
| 0S1595 | 22 BOLT (1/2-13X1.25-IN) | 4 | |
| 5P8245 | WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 2G0244 | 23 GAUGE GP-FUEL LEVEL | 1 | |
| 7V6480 | 24 SCREW-PAN HEAD (6-32X6.35-MM) | 2 | |
| 5P8502 | 25 PADLOCK GP | 1 | |
| 5P8500 | KEY | 2 | |
| 8Y6364 | SLEEVE | 1 | |
| 6G5294 | 26 CAP | 2 |
