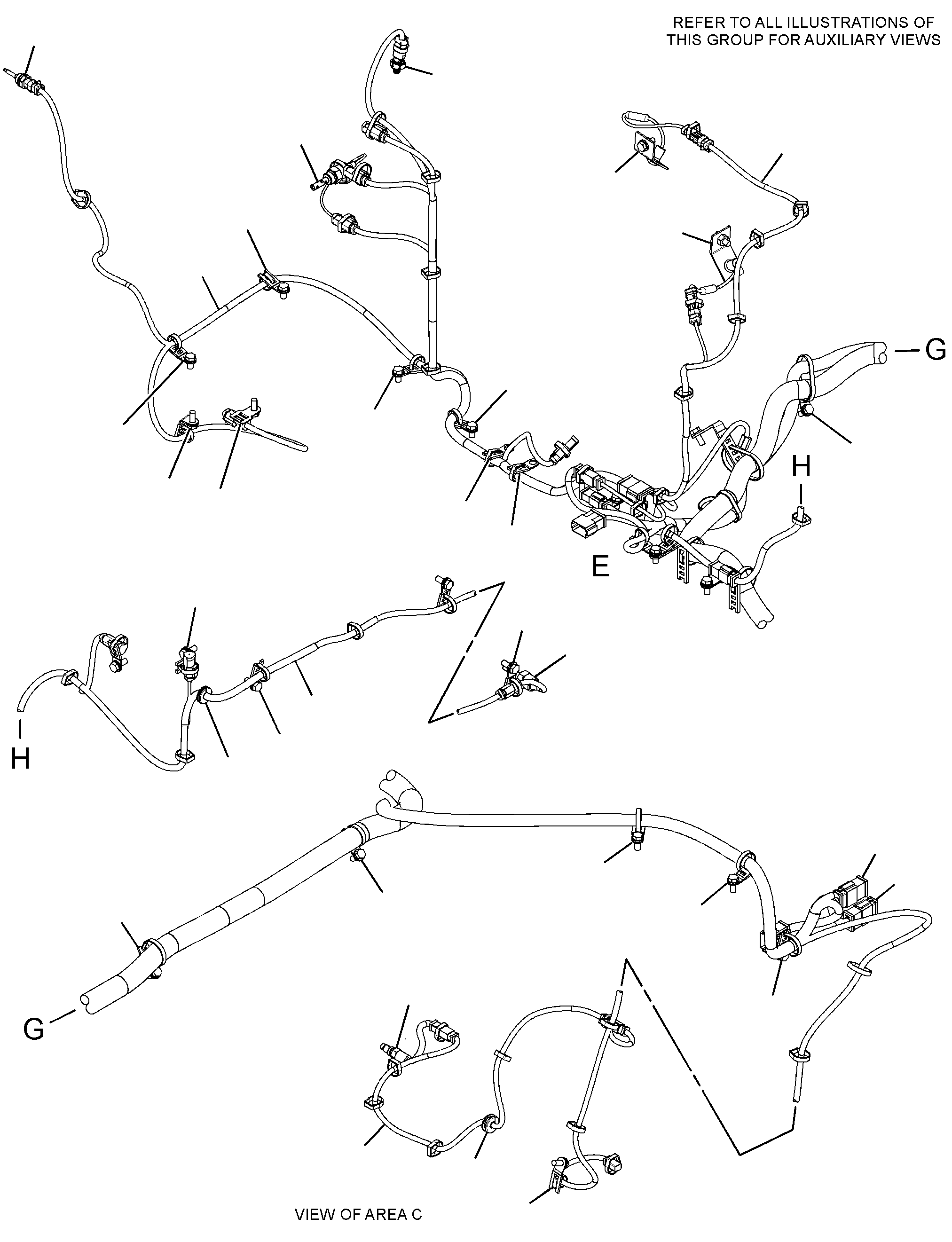

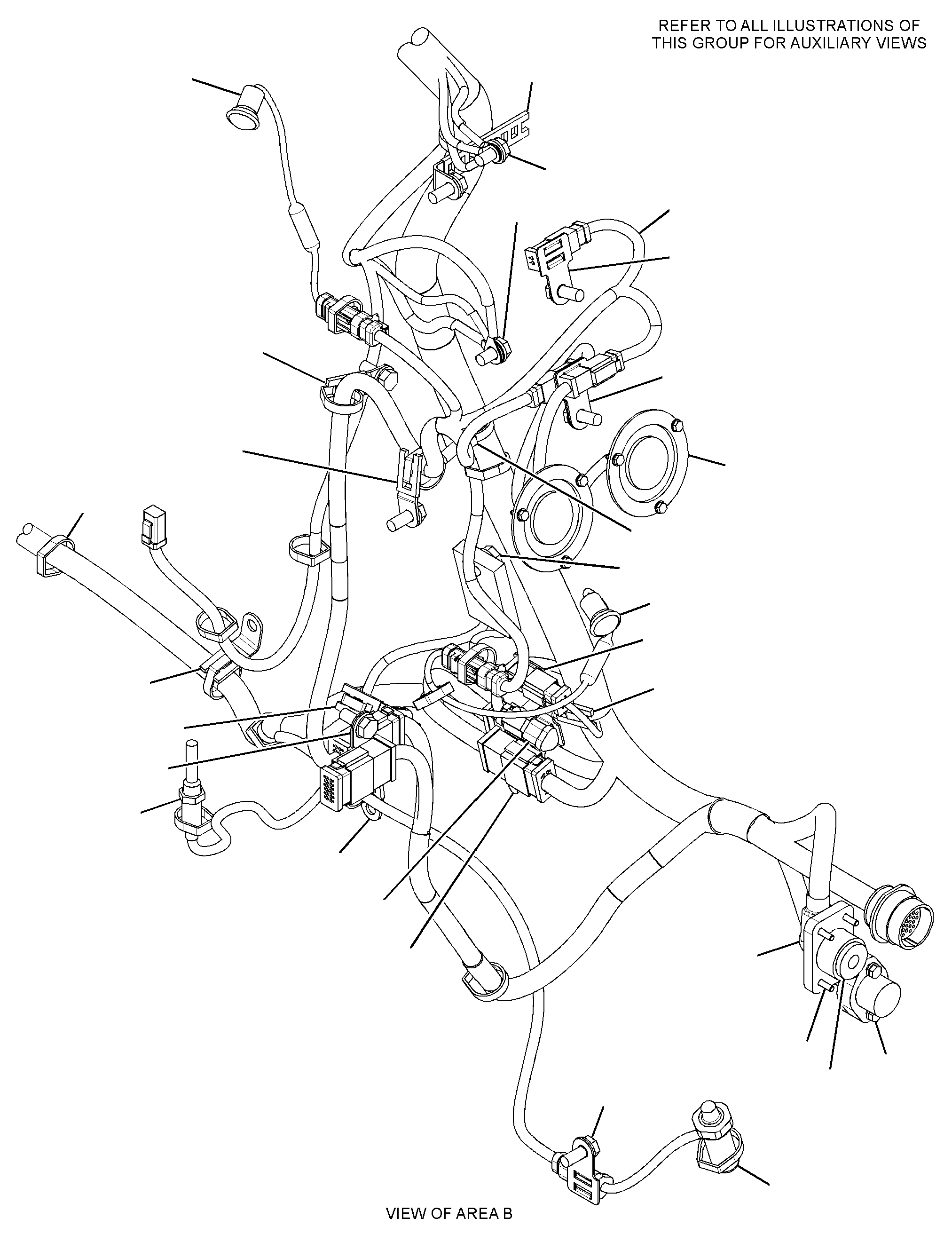

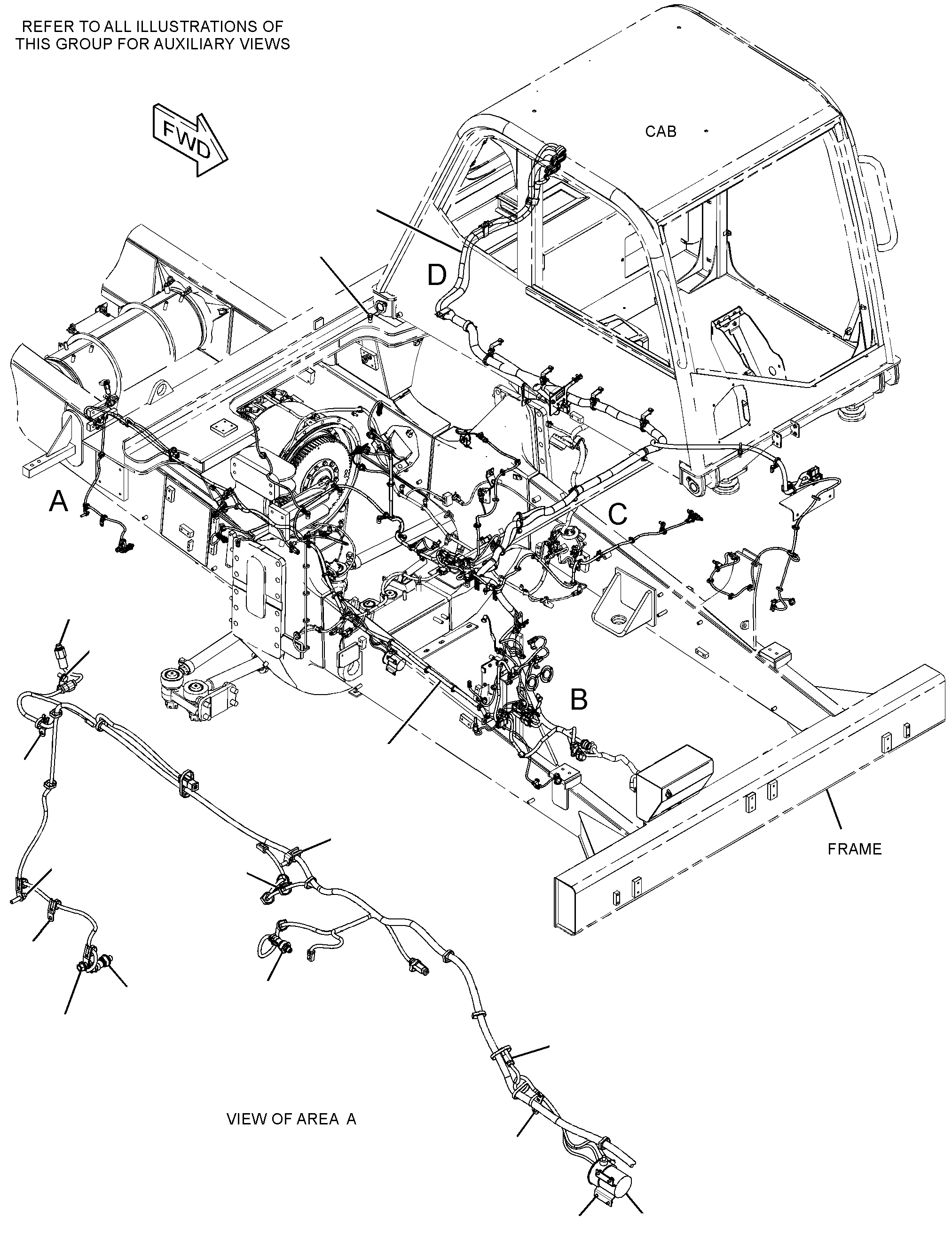

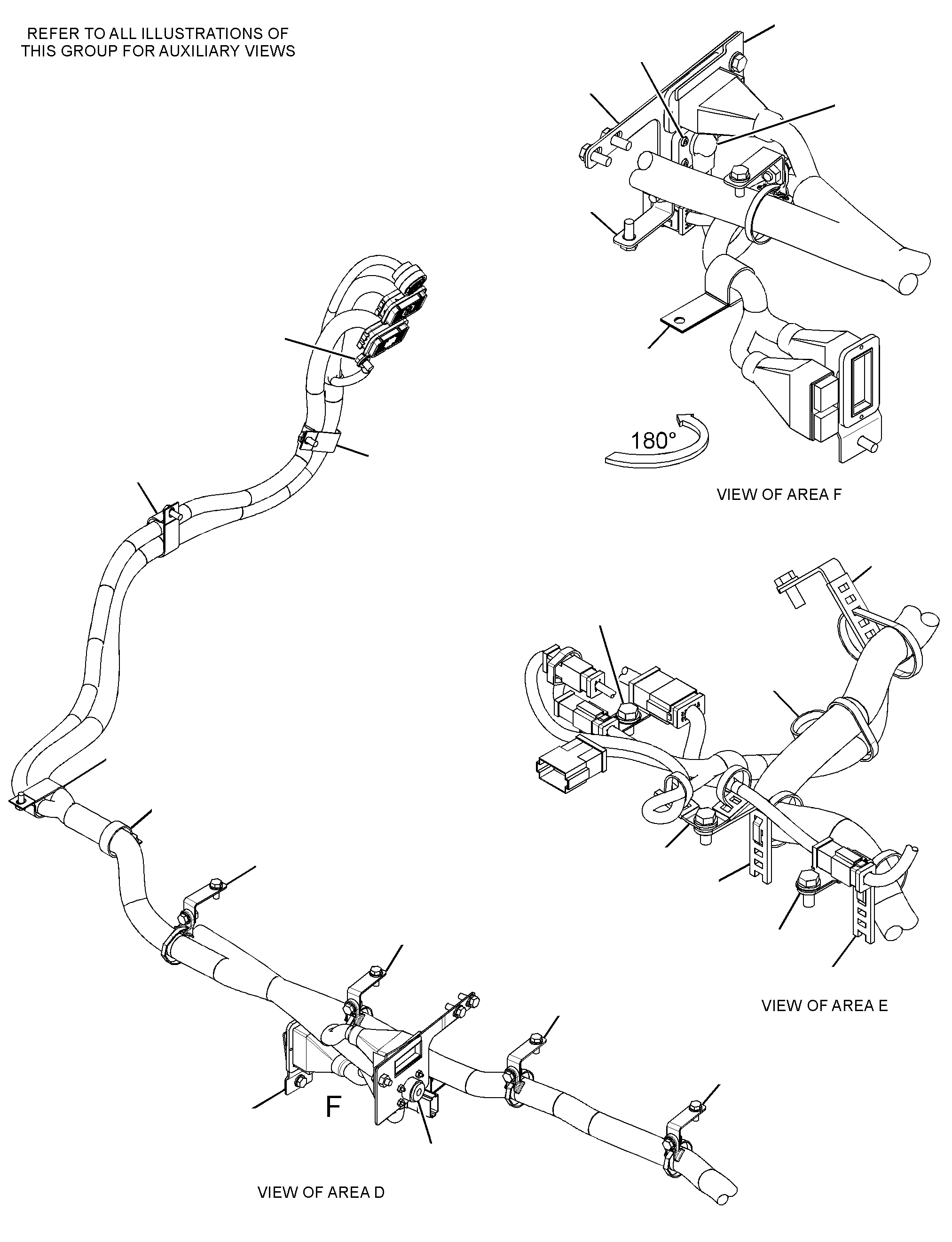

314-4222 WIRING GP-CHASSIS -FRONTS/N JWS1-164

Group No: 314-4222

Part Number	Part Name	Qty
7K1181	1 STRAP-CABLE	105
9X4455	2 SWITCH AS-PRESSURE (SECONDARY STEERING)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	3
1028803	KIT-RECEPTACLE (3-PIN)	1
1561382	3 SWITCH AS-DIFF PRESSURE (FILTER BYPASS)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
9X1813	SLEEVE (14-CM)
1602609	4 SWITCH AS-PRESSURE (PARKING BRAKE)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	1
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	3
1782345	5 SENSOR GP-LIQUID LEVEL (WATER SEPARATOR)	1
2048000	6 MOUNTING-CABLE TIE	4
2306278	7 SWITCH GP-MAGNETIC	1
2418488	8 PLATE	2
2469871	9 LAMP GP-MARKER (24-VOLT, AMBER)	2
2727239	10 BLOCK AS	2
2905562	11 MOUNT (DUAL SWIVEL)	1
3169948	12 HARNESS AS-LIGHTING (ENGINE)	1
6V0491	TERMINAL-BLADE (14-GA TO 18-GA)	2
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	8
1237615	CONNECTOR (1-PIN)	1
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1552271	KIT-CONNECTING PLUG (4-PIN)	1
2108958	TUBE-HEAT SHRINK (24-MM DIA)(3-CM)
2304011	PLUG AS-CONNECTOR (2-PIN)	2
2647029	SEAL-CONNECTOR	1
3170765	13 HARNESS AS-CHASSIS (MAIN)	1
1028804	KIT-RECEPTACLE (4-PIN)	1
1028805	KIT-RECEPTACLE (6-PIN)	1
1028801	KIT-RECEPTACLE (12-PIN)	6
7K1181	STRAP-CABLE	1
8N1548	PIN-CONNECTOR (4-GA)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	142
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	208
8T8737	PLUG-SEAL	99
9W0844	SOCKET-CONNECTOR (14-GA TO 16-GA)	8
9W0852	PIN-CONNECTOR (14-GA TO 16-GA)	14
9X0141	PLUG AS-CONNECTOR (40-PIN)	1
3E4367	RING-RETAINING	1
3E8557	BOLT (M5X0.8X39.37-MM)	1
9X3490	SEAL-CONNECTOR (40-PIN)	2
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)	7
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	3
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(160-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
9G4344	TERMINAL-RING (4-GA, 1/2-IN SCREW)	1
3T4696	TERMINAL-RING (10-GA TO 12-GA, 7/16-IN SCREW)	2
1552255	KIT-CONNECTING PLUG (12-PIN)	5
1552270	KIT-CONNECTING PLUG (2-PIN)	3
1552271	KIT-CONNECTING PLUG (4-PIN)	2
1740503	KIT-CONNECTING PLUG (3-PIN)	1
1607689	PLUG AS-CONNECTOR (70-PIN)	1
1607690	PLUG AS-CONNECTOR (70-PIN)	1
1599322	SEAL-O-RING	1
1673693	PLUG AS-CONNECTOR (31-PIN)	1
1886210	RECEPTACLE AS-CONNECTOR (1-PIN)	1
2722840	RECEPTACLE AS-CONNECTOR (31-PIN)	1
9X1343	RECEPTACLE AS-CONNECTOR (40-PIN)	2
2110052	NUT (1-11/16-18-THD)	1
2503485	BOOT	3
3088161	COVER-TERMINAL	2
3100674	LOCKWASHER	1
3203063	14 SENSOR GP-PRESSURE (ATMOSPHERIC AIR)	1
3217058	15 HARNESS AS-CHASSIS (REAR)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
1028805	KIT-RECEPTACLE (6-PIN)	1
1028801	KIT-RECEPTACLE (12-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	16
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	30
8T8737	PLUG-SEAL	13
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	2
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM)
2L8076	TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW)	2
1552255	KIT-CONNECTING PLUG (12-PIN)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	4
1552274	KIT-CONNECTING PLUG (6-PIN)	1
1740503	KIT-CONNECTING PLUG (3-PIN)	1
2304013	PLUG AS-CONNECTOR (3-PIN)	2
2647030	SEAL-CONNECTOR	1
3217437	16 HARNESS AS-CHASSIS (FRONT)	1
1028802	KIT-RECEPTACLE (2-PIN)	2
1028803	KIT-RECEPTACLE (3-PIN)	3
1028804	KIT-RECEPTACLE (4-PIN)	1
1028801	KIT-RECEPTACLE (12-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	18
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	10
8T8737	PLUG-SEAL	12
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	6
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1552260	KIT-CONNECTING PLUG (3-PIN)	4
1552270	KIT-CONNECTING PLUG (2-PIN)	1
2304011	PLUG AS-CONNECTOR (2-PIN)	1
2647029	SEAL-CONNECTOR	1
2818803	PLUG AS-CONNECTOR (3-PIN)	1
2647030	SEAL-CONNECTOR	1
3217440	17 HARNESS AS-SENSOR	1
1028803	KIT-RECEPTACLE (3-PIN)	2
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	8
8T8737	PLUG-SEAL	7
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	6
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1552260	KIT-CONNECTING PLUG (3-PIN)	3
1552274	KIT-CONNECTING PLUG (6-PIN)	1
3245188	18 PLATE AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
8T8874	NUT-WELD (M5X0.8-THD)	4
3245189	19 BRACKET AS	2
8T3490	NUT-WELD (M10X1.5-THD)	1
3309321	20 SENSOR GP-LIQUID LEVEL (HYDRAULIC OIL)	1
3317352	21 SENSOR GP-LIQUID LEVEL (COOLANT LEVEL)	1
3337383	22 LAMP GP (24-VOLT)	4
1863735	PIN-CONNECTOR (16-GA TO 18-GA)	2
2304012	RECEPTACLE AS-CONNECTOR (2-PIN)	1
3447391	23 SENSOR-PRESSURE (BRAKE OIL)	1
3447391	23A SENSOR-PRESSURE (DIFFERENTIAL LOCK)	1
3725910	24 HARNESS AS-PANEL	1
1028802	KIT-RECEPTACLE (2-PIN)	1
1028801	KIT-RECEPTACLE (12-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	7
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	10
8T8737	PLUG-SEAL	7
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM)
1552270	KIT-CONNECTING PLUG (2-PIN)	3
3726022	25 HARNESS AS-SWITCH	1
1028802	KIT-RECEPTACLE (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	2
1552270	KIT-CONNECTING PLUG (2-PIN)	1
0309612	26 SCREW-FORMING (10-24X0.5-IN)	6
0964833	27 BOLT-SOCKET HEAD (M5X0.8X20-MM)	8
1305300	28 CLIP	17
1325789	29 CLIP (LADDER)	2
1342540	30 RECEPTACLE AS-CONNECTOR (3-PIN)	2
1552255	31 KIT-CONNECTING PLUG (12-PIN)	1
1803998	32 STUD (M10X1.5X55-MM)	1
2263492	33 BRACKET AS	5
2282775	34 CLIP (LOOP)	3
2287100	35 SEAL-O-RING	1
2566453	36 SENSOR-TEMPERATURE (2-PIN)	1
2771873	37 CLIP (LADDER)	1
2M9780	38 SEAL-O-RING	1
3101898	39 CLIP (LADDER)	3
3230049	40 CLIP (LOOP)	1
1028801	41 KIT-RECEPTACLE (12-PIN)	1
3J1907	42 SEAL-O-RING	5
3K0360	43 SEAL-O-RING	2
4P7428	44 CLIP (LADDER)	3
4P7581	45 CLIP (LADDER)	26
4P8134	46 CLIP (LADDER)	4
6V2235	47 CLIP	1
7G7053	48 GROMMET	1
8T0328	49 WASHER-HARD (5.5X10X1-MM THK)	8
8T4121	50 WASHER-HARD (11X21X2.5-MM THK)	59
8T4133	51 NUT (M10X1.5-THD)	1
8T4136	52 BOLT (M10X1.5X25-MM)	44
8T4137	53 BOLT (M10X1.5X20-MM)	14
8T4138	54 BOLT (M6X1X20-MM)	2
8T4139	55 BOLT (M12X1.75X30-MM)	1
8T4171	56 BOLT (M6X1X12-MM)	4
8T4179	57 BOLT (M12X1.75X20-MM)	3
8T4223	58 WASHER-HARD (13.5X25.5X3-MM THK)	5
8T4244	59 NUT (M12X1.75-THD)	1
9X7345	60 GROMMET	1
9X8256	61 WASHER (6.6X12X2-MM THK)	6
