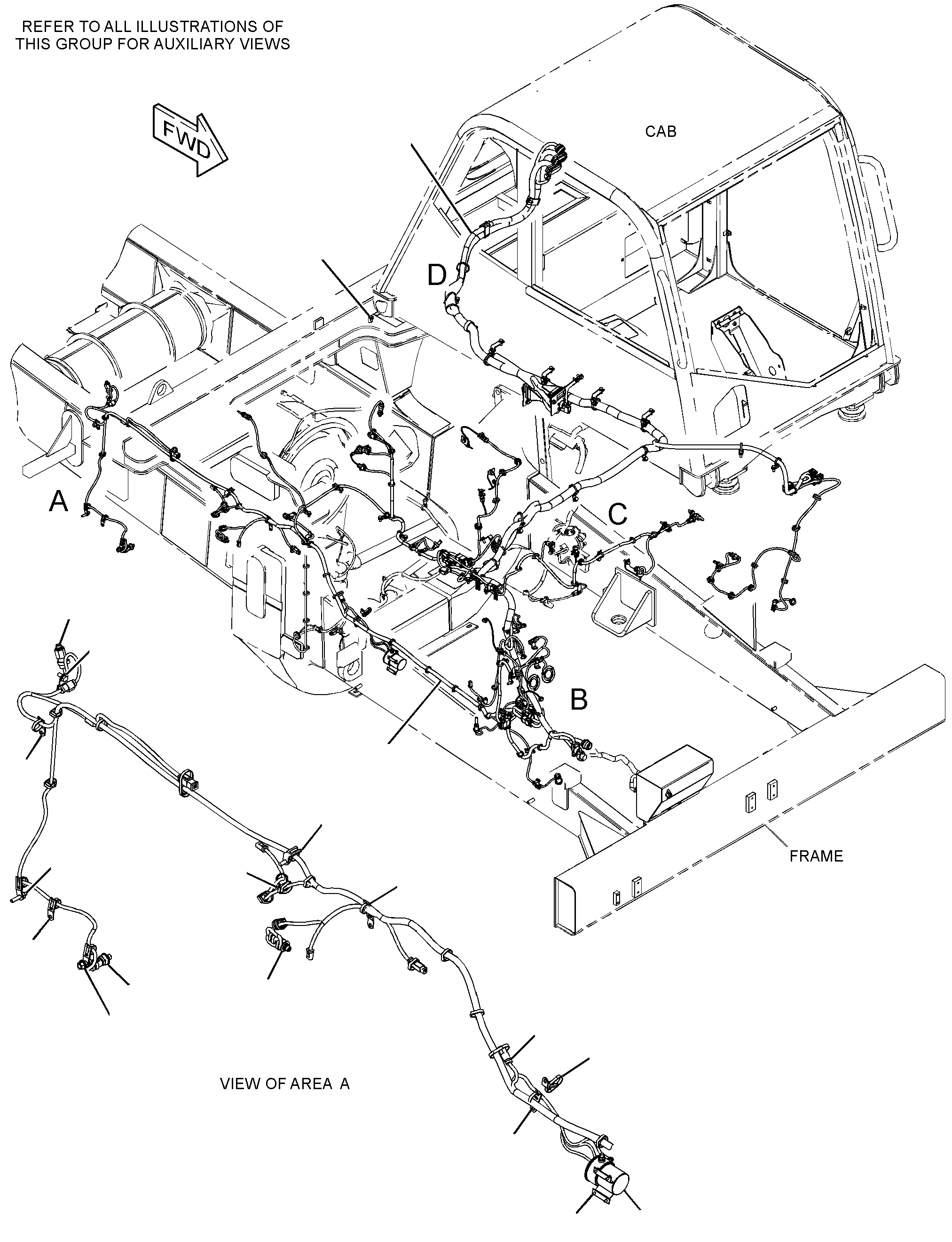

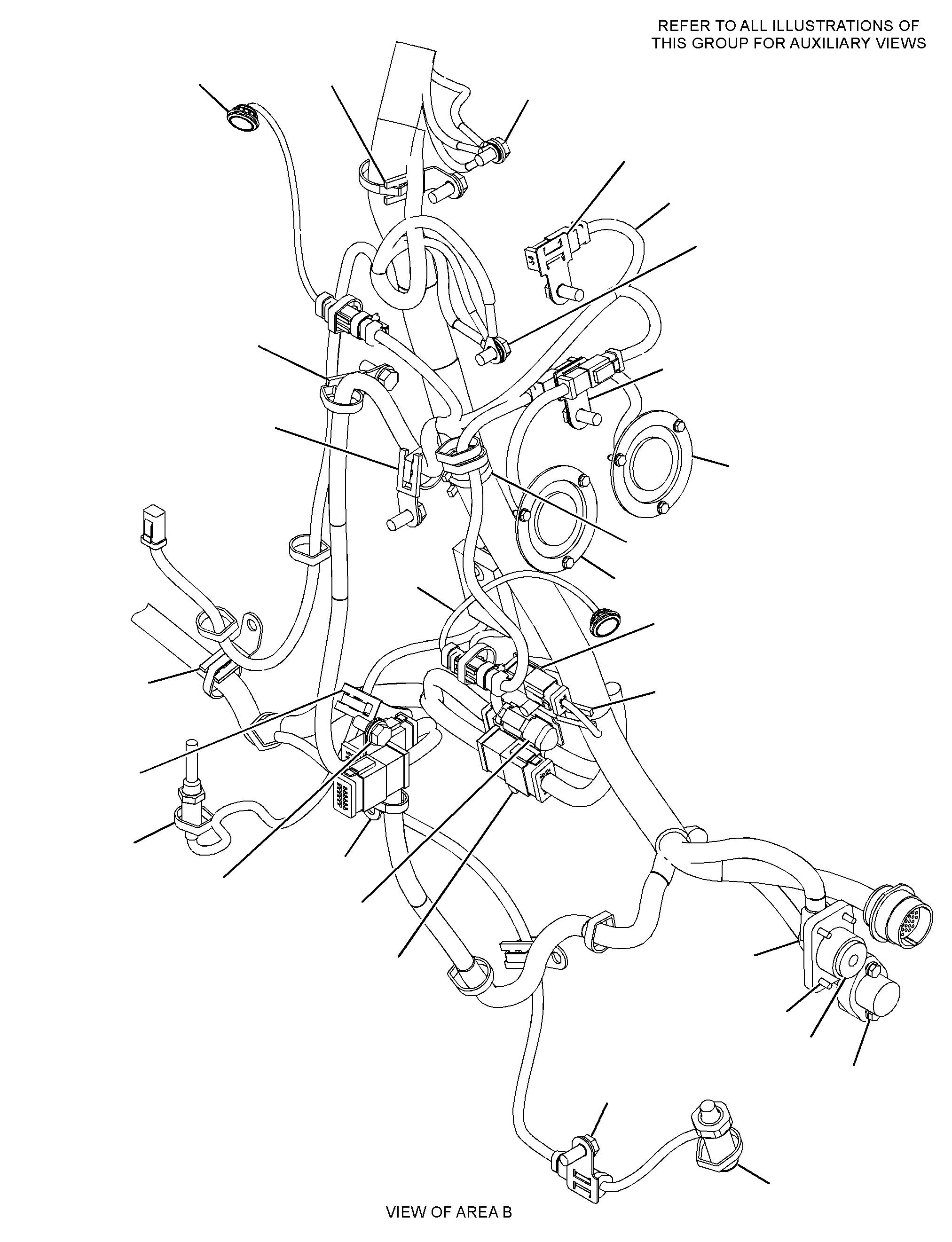

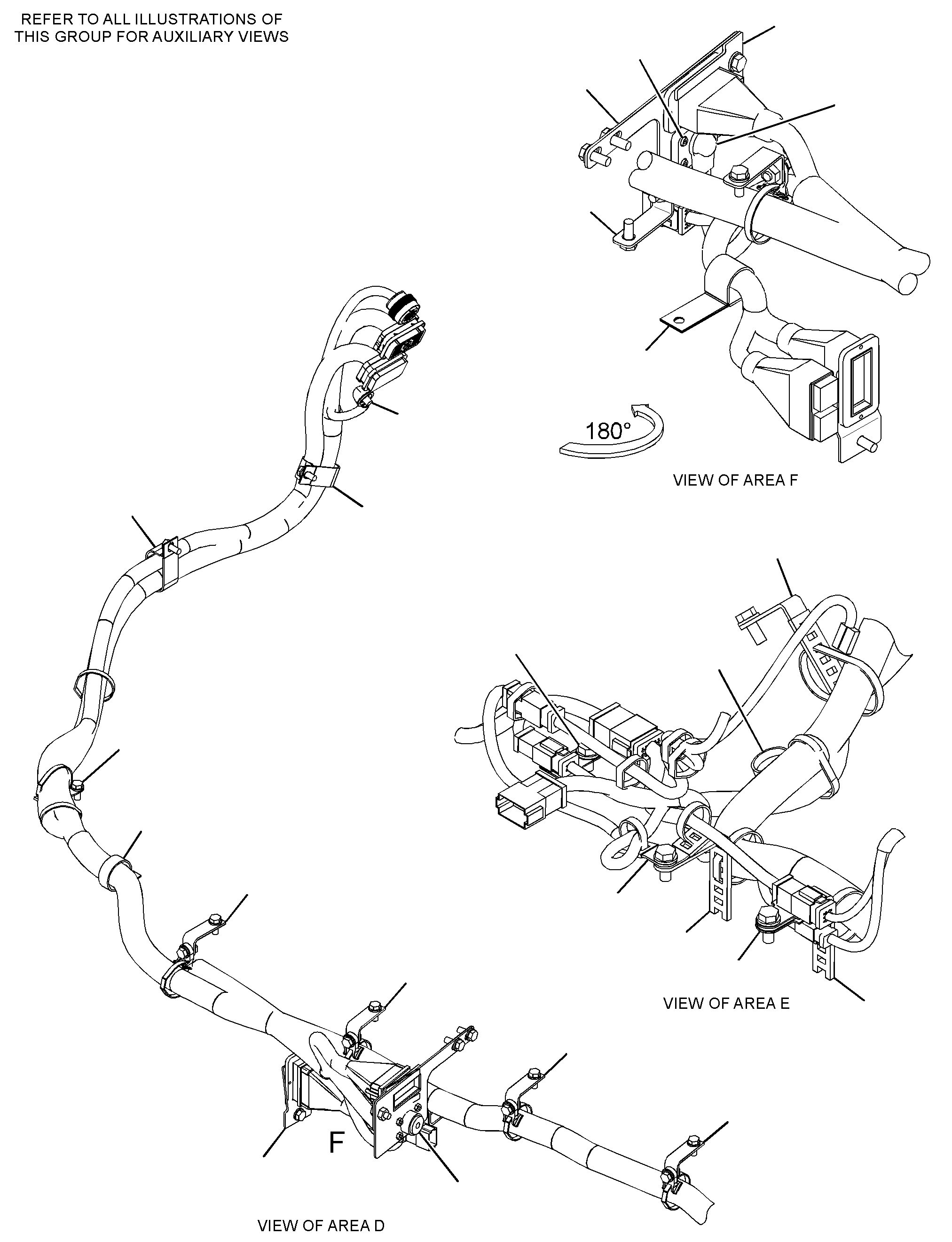

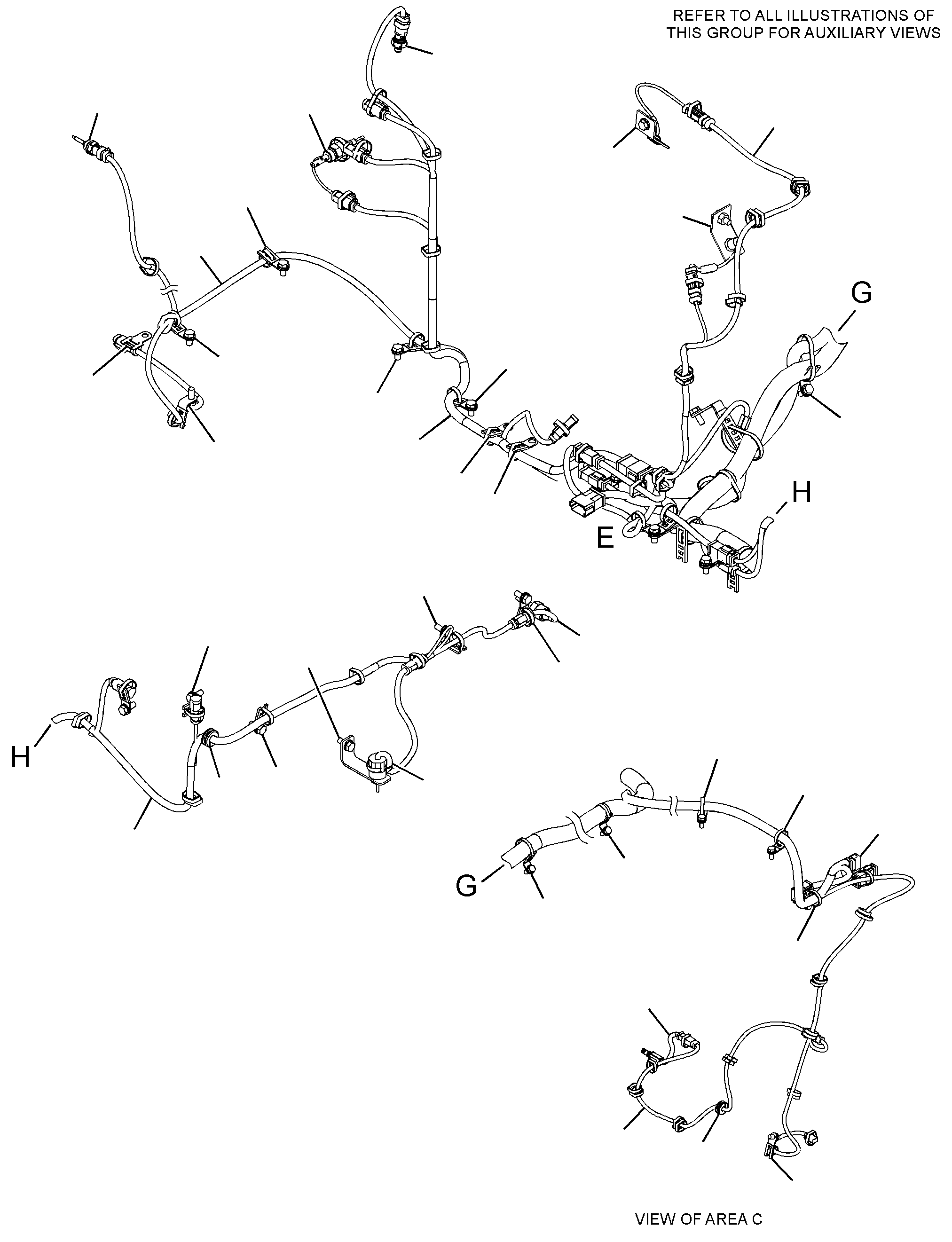

314-4222 WIRING GP-CHASSIS -FRONTS/N MJS401-462
Group No: 314-4222
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 137 | |
| 9X4455 | 2 SWITCH AS-PRESSURE (SECONDARY STEERING) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 3935112 | 3 SWITCH AS-DIFF PRESSURE (FILTER BYPASS) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE (14-CM) | ||
| 1602609 | 4 SWITCH AS-PRESSURE (PARKING BRAKE) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 3822001 | 5 SENSOR GP-LIQUID LEVEL (WATER IN FUEL)(WATER SEPARATOR) | 1 | |
| 2048000 | 6 MOUNTING-CABLE TIE | 4 | |
| 3379078 | 7 SWITCH GP-MAGNETIC (24-VOLT TO 32-VOLT) | 1 | |
| 2418488 | 8 PLATE | 2 | |
| 2469871 | 9 LAMP GP-MARKER (24-VOLT, AMBER) | 2 | |
| 2727239 | 10 BLOCK AS | 2 | |
| 2905562 | 11 MOUNT (DUAL SWIVEL) | 1 | |
| 3169948 | 12 HARNESS AS-LIGHTING (ENGINE) | 1 | |
| 6V0491 | TERMINAL-BLADE (14-GA TO 18-GA) | 2 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 8 | |
| 1237615 | CONNECTOR (1-PIN) | 1 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM) | ||
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 6V2689 | TUBE-HEAT SHRINK (6.35-MM DIA)(0.1-M) | ||
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 2 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 3170765 | 13 HARNESS AS-CHASSIS (MAIN) | 1 | |
| 6I4348 | BOOT (40-PIN) | 3 | |
| 3747468 | CAP-SEAL | 1 | |
| 3088161 | COVER-TERMINAL | 3 | |
| 2110052 | NUT (1-11/16-18-THD) | 1 | |
| 8N1548 | PIN-CONNECTOR (4-GA) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 145 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 14 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 7 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3490 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 6 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 4 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 2 | |
| 1740503 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1607689 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1607690 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 1673693 | PLUG AS-CONNECTOR (31-PIN) | 1 | |
| 8T8737 | PLUG-SEAL | 111 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 6 | |
| 9X1343 | RECEPTACLE AS-CONNECTOR (40-PIN) | 2 | |
| 1886210 | RECEPTACLE AS-CONNECTOR (1-PIN) | 1 | |
| 2722840 | RECEPTACLE AS-CONNECTOR (31-PIN) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 209 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 8 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 3S2093 | STRAP-CABLE | 1 | |
| 3L6513 | TERMINAL-RING (1-GA TO 2-GA, 1/2-IN SCREW) | 2 | |
| 9G4344 | TERMINAL-RING (4-GA, 1/2-IN SCREW) | 1 | |
| 3T4696 | TERMINAL-RING (10-GA TO 12-GA, 7/16-IN SCREW) | 2 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 4 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(160-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 3100674 | LOCKWASHER | 1 | |
| 8C3056 | CABLE (2-GA, RED)(487-CM) | ||
| 3203063 | 14 SENSOR GP-PRESSURE (ATMOSPHERIC AIR) | 1 | |
| 3217058 | 15 HARNESS AS-CHASSIS (REAR) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 18 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 10 | |
| 8T8737 | PLUG-SEAL | 13 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM) | ||
| 2L8076 | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | 2 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 4 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1740503 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 2 | |
| 2647030 | SEAL-CONNECTOR | 1 | |
| 3217437 | 16 HARNESS AS-CHASSIS (FRONT) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 3 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 18 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 10 | |
| 8T8737 | PLUG-SEAL | 12 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM) | ||
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 4 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2818803 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 3245188 | 18 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T8874 | NUT-WELD (M5X0.8-THD) | 4 | |
| 3245189 | 19 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4309455 | 20 SENSOR GP-LIQUID LEVEL (HYDROCARBON)(HYDRAULIC OIL) | 1 | |
| 4309454 | 21 SENSOR GP-LIQUID LEVEL (COOLANT) | 1 | |
| 3337383 | 22 LAMP GP (24-VOLT) | 4 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 2304012 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 3447391 | 23 SENSOR-PRESSURE (BRAKE OIL) | 1 | |
| 3447391 | 23A SENSOR-PRESSURE (DIFFERENTIAL LOCK) | 1 | |
| 3725910 | 24 HARNESS AS-PANEL | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 7 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 10 | |
| 8T8737 | PLUG-SEAL | 7 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM) | ||
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 3 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 2 | |
| 2647029 | SEAL-CONNECTOR | 1 | |
| 3726022 | 25 HARNESS AS-SWITCH (BRAKE PRESSURE) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1148843 | SLEEVE-PLASTIC (40-CM) | ||
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 0309612 | 26 SCREW-FORMING (10-24X0.5-IN) | 6 | |
| 0964833 | 27 BOLT-SOCKET HEAD (M5X0.8X20-MM) | 8 | |
| 1305300 | 28 CLIP | 18 | |
| 1325789 | 29 CLIP (LADDER) | 3 | |
| 1342540 | 30 RECEPTACLE AS-CONNECTOR (3-PIN) | 2 | |
| 1803998 | 32 STUD (M10X1.5X55-MM) | 1 | |
| 2263492 | 33 BRACKET AS | 5 | |
| 2282775 | 34 CLIP (LOOP) | 2 | |
| 2287100 | 35 SEAL-O-RING | 1 | |
| 2566453 | 36 SENSOR-TEMPERATURE (2-PIN)(AIR INLET MANIFOLD) | 1 | |
| 3523964 | 37 CLIP (LADDER) | 2 | |
| 2M9780 | 38 SEAL-O-RING | 1 | |
| 3101898 | 39 CLIP (LADDER) | 3 | |
| 3230049 | 40 CLIP (LOOP) | 1 | |
| 3J1907 | 42 SEAL-O-RING | 4 | |
| 3K0360 | 43 SEAL-O-RING | 2 | |
| 4P7428 | 44 CLIP (LADDER) | 4 | |
| 4P7581 | 45 CLIP (LADDER) | 22 | |
| 4P8134 | 46 CLIP (LADDER) | 9 | |
| 6V2235 | 47 CLIP | 1 | |
| 7G7053 | 48 GROMMET | 1 | |
| 8T0328 | 49 WASHER-HARD (5.5X10X1-MM THK) | 8 | |
| 8T4121 | 50 WASHER-HARD (11X21X2.5-MM THK) | 60 | |
| 8T4133 | 51 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 52 BOLT (M10X1.5X25-MM) | 44 | |
| 8T4137 | 53 BOLT (M10X1.5X20-MM) | 14 | |
| 8T4138 | 54 BOLT (M6X1X20-MM) | 2 | |
| 8T4139 | 55 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4171 | 56 BOLT (M6X1X12-MM) | 4 | |
| 8T4179 | 57 BOLT (M12X1.75X20-MM) | 3 | |
| 8T4223 | 58 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 8T4244 | 59 NUT (M12X1.75-THD) | 1 | |
| 4H2558 | 60 GROMMET | 1 | |
| 9X8256 | 61 WASHER (6.6X12X2-MM THK) | 6 | |
| 2P1279 | 62 LOCKNUT (9/16-18-THD) | 1 | |
| 1342252 | 63 SENSOR GP-TEMPERATURE (8-VOLT)(AMBIENT AIR) | 1 | |
| 0960192 | 64 LOCKWASHER | 6 | |
| 3921568 | 65 HARNESS AS-SENSOR (AMBIENT AIR TEMP) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 2 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 14 | |
| 8T8737 | PLUG-SEAL | 6 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM) | ||
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 4 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 2743779 | 66 CAP-SEAL | 1 | |
| 7Y7389 | 67 SCREW (M5X0.8X16-MM) | 8 | |
| 3307832 | 68 BRACKET | 1 |
