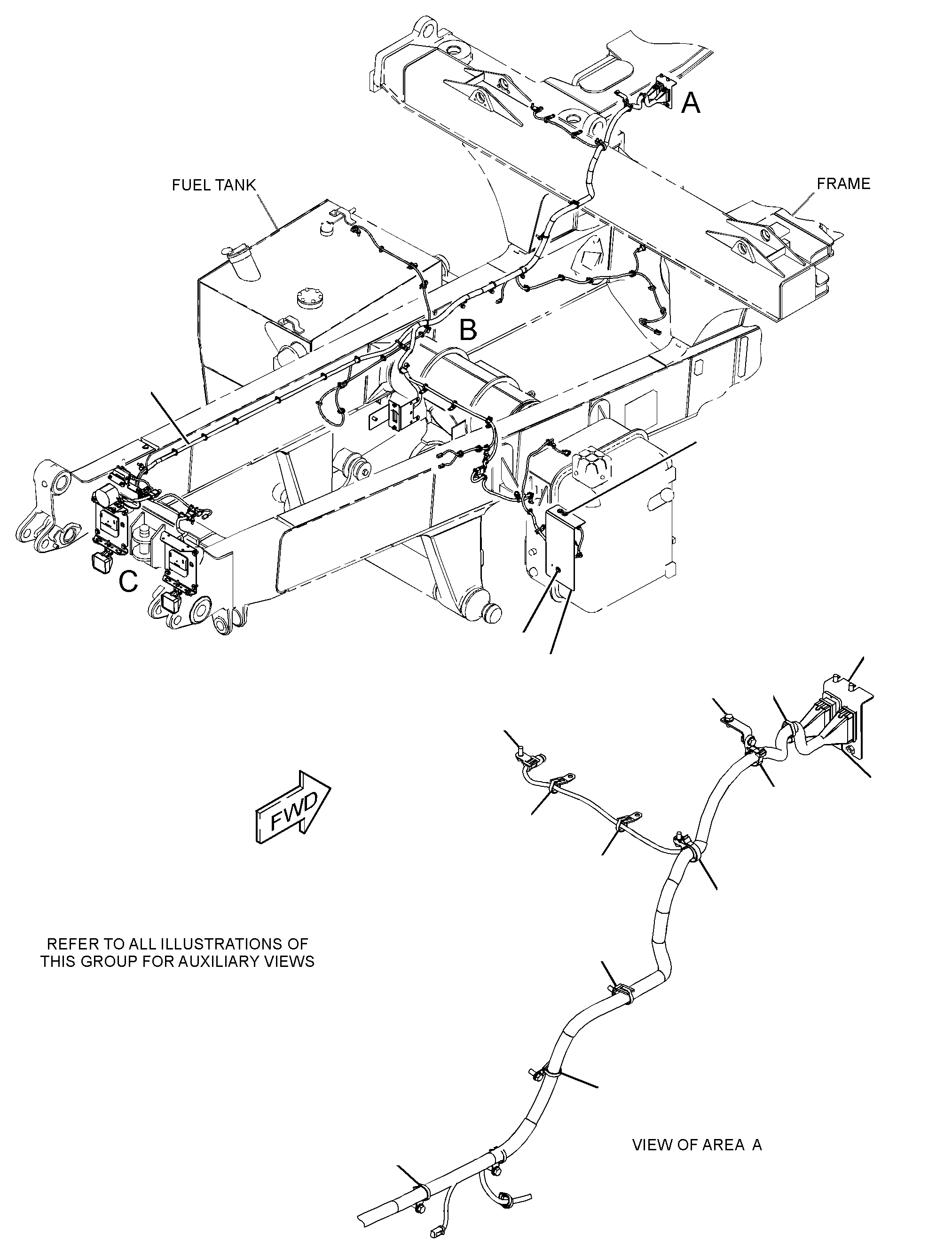

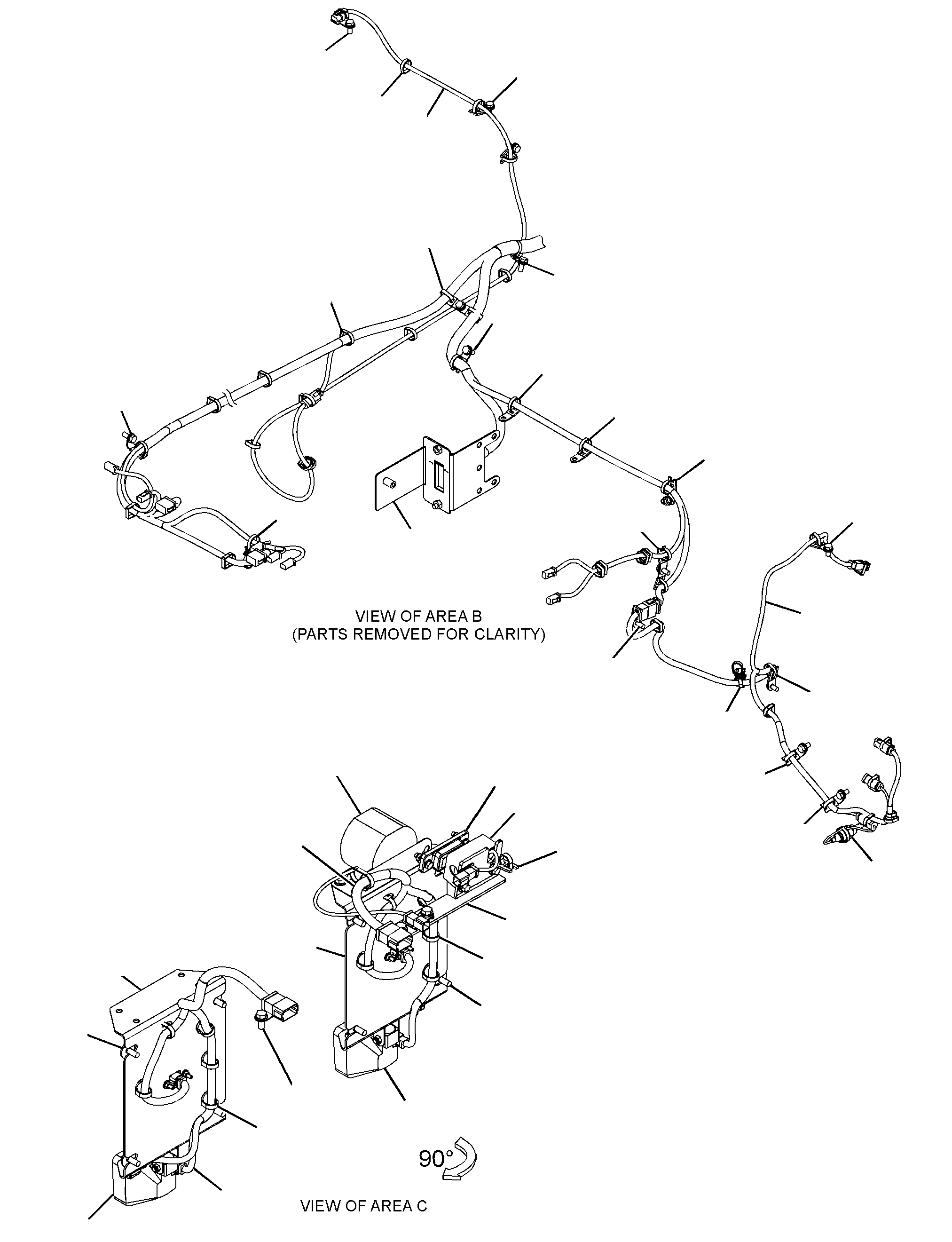

316-9959 WIRING GP-CHASSIS -REARS/N T5S120-122

Group No: 316-9959

Part Number	Part Name	Qty
8T4222	1 WASHER-PLATED (11X32X2.5-MM THK)	11
7K1181	2 STRAP-CABLE	87
2042281	3 STRAP-CABLE	2
2048000	4 MOUNTING-CABLE TIE	2
2139100	5 ALARM AS (BACKUP)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
9X1813	SLEEVE (29-CM)
6A3361	WIRE-ELECTRICAL (16-GA, BLACK)(4-DM)
2196487	6 LAMP GP-FLOOD (24-VOLT, 70-WATT)	2
2284808	7 SWITCH GP-POSITION (TRUCK BODY)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
2188814	SWITCH AS-POSITION (BODY UP)	1
6T4059	GROMMET	1
2418488	8 PLATE	2
2475641	9 HARNESS AS-REAR (LH)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	9
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)	2
1552260	KIT-CONNECTING PLUG (3-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	1
1552271	KIT-CONNECTING PLUG (4-PIN)	1
8T8737	PLUG-SEAL	7
1028803	KIT-RECEPTACLE (3-PIN)	1
1028801	KIT-RECEPTACLE (12-PIN)	1
1148843	SLEEVE-PLASTIC (80-CM)
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	6
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
2475643	10 HARNESS AS-REAR (LH)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
1028801	KIT-RECEPTACLE (12-PIN)	1
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	6
8T8737	PLUG-SEAL	7
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)	2
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	9
1552260	KIT-CONNECTING PLUG (3-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	1
1552271	KIT-CONNECTING PLUG (4-PIN)	1
2905562	11 MOUNT (DUAL SWIVEL)	2
3169949	12 HARNESS AS-SENSOR (HYDRAULIC OIL)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
1028803	KIT-RECEPTACLE (3-PIN)	2
1028801	KIT-RECEPTACLE (12-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	7
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	8
8T8737	PLUG-SEAL	13
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	3
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1552260	KIT-CONNECTING PLUG (3-PIN)	3
1552270	KIT-CONNECTING PLUG (2-PIN)	1
3169960	13 HARNESS AS-CHASSIS (REAR)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	61
1552255	KIT-CONNECTING PLUG (12-PIN)	3
1552270	KIT-CONNECTING PLUG (2-PIN)	9
1552271	KIT-CONNECTING PLUG (4-PIN)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	2
9X0141	PLUG AS-CONNECTOR (40-PIN)	1
3E8557	BOLT (M5X0.8X39.37-MM)	1
3E4367	RING-RETAINING	1
9X3490	SEAL-CONNECTOR (40-PIN)	2
8T8737	PLUG-SEAL	40
1028803	KIT-RECEPTACLE (3-PIN)	1
9X1343	RECEPTACLE AS-CONNECTOR (40-PIN)	2
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	85
9W0844	SOCKET-CONNECTOR (14-GA TO 16-GA)	1
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(55-CM)
3209394	14 PLATE AS	1
8T3490	NUT-WELD (M10X1.5-THD)	2
3216485	15 HARNESS AS-SENSOR (FUEL LEVEL)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	3
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	3
2304013	PLUG AS-CONNECTOR (3-PIN)	1
4550704	SEAL-CONNECTOR	1
3409442	16 PLATE AS	1
8T3490	NUT-WELD (M10X1.5-THD)	2
8T3851	BOSS-WELD (M10X1.5X17.5-MM)	1
3667920	17 LAMP GP-SIGNAL (STOP, TAIL, TURN)	2
1028804	KIT-RECEPTACLE (4-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	4
4477031	18 PLATE	2
5069481	19 PLATE	1
1305300	20 CLIP	7
1803998	21 STUD (M10X1.5X55-MM)	1
2263492	22 BRACKET AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
2M9780	23 SEAL-O-RING	1
3309321	24 SENSOR GP-LIQUID LEVEL (HYDRAULIC OIL)	1
4M6425	25 BOLT (5/16-18X1-IN)	2
4P7581	27 CLIP (LADDER)	19
4P8134	28 CLIP (LADDER)	5
5C2890	29 NUT (M6X1-THD)	4
5G7820	30 MAGNET AS	1
6V9189	31 LOCKNUT (M8X1.25-THD)	2
7X7729	32 WASHER (11X25X3-MM THK)	1
8T4121	33 WASHER-HARD (11X21X2.5-MM THK)	37
8T4133	34 NUT (M10X1.5-THD)	5
8T4136	35 BOLT (M10X1.5X25-MM)	36
8T4137	36 BOLT (M10X1.5X20-MM)	7
8T4205	39 WASHER-HARD (7.2X14.5X2-MM THK)	4
8T4224	40 WASHER-HARD (8.8X16X2-MM THK)	6
8T7547	41 BOLT (M8X1.25X30-MM)	2
4264900	43 PLATE	1
1944121	44 SPACER (10.1X15.9X70-MM THK)	1
8T4178	45 BOLT (M10X1.5X90-MM)	1
