System And Components
569-9698 WIRING GP-COMMUNICATIONS/N LTZ161-UP
Group No: 569-9698

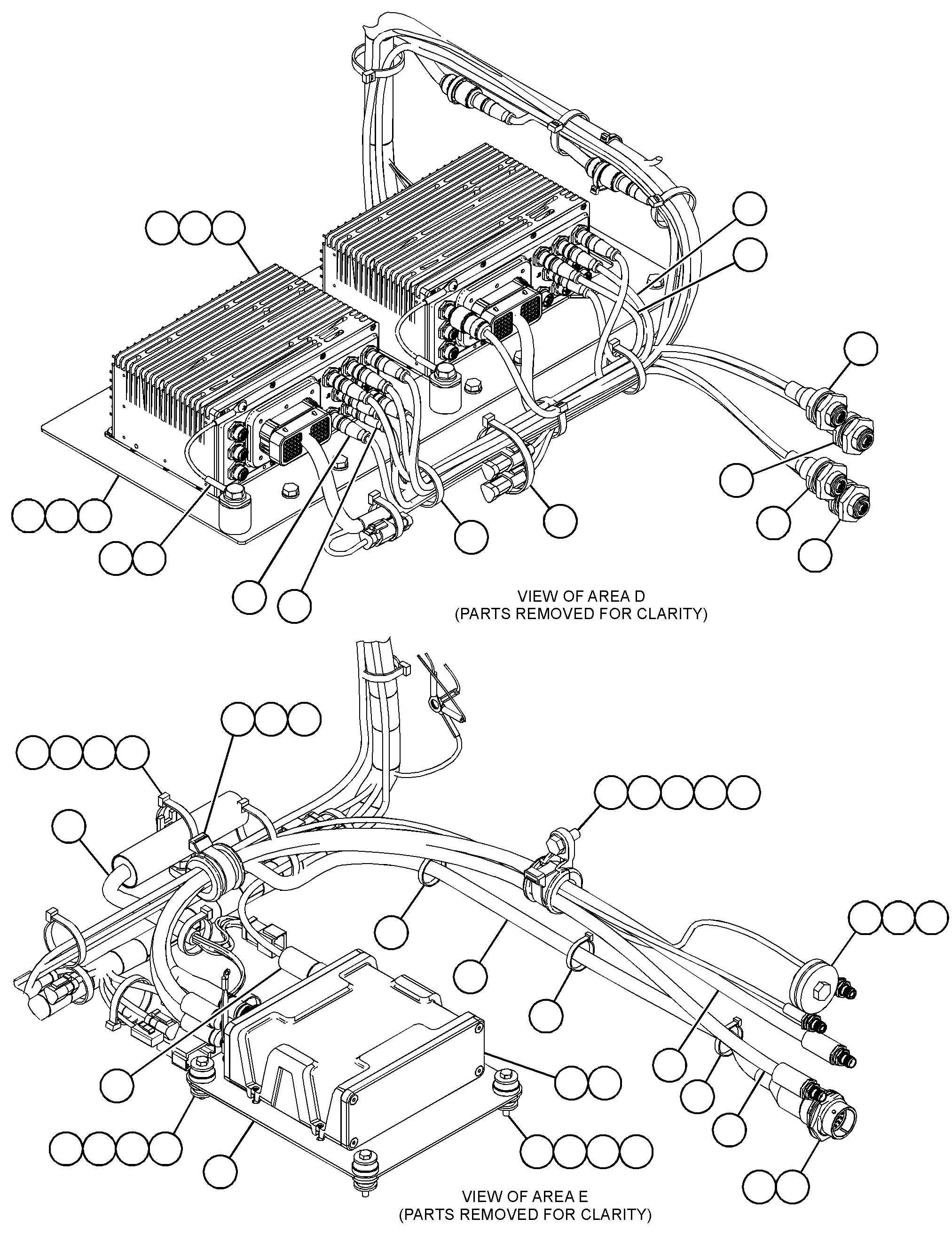

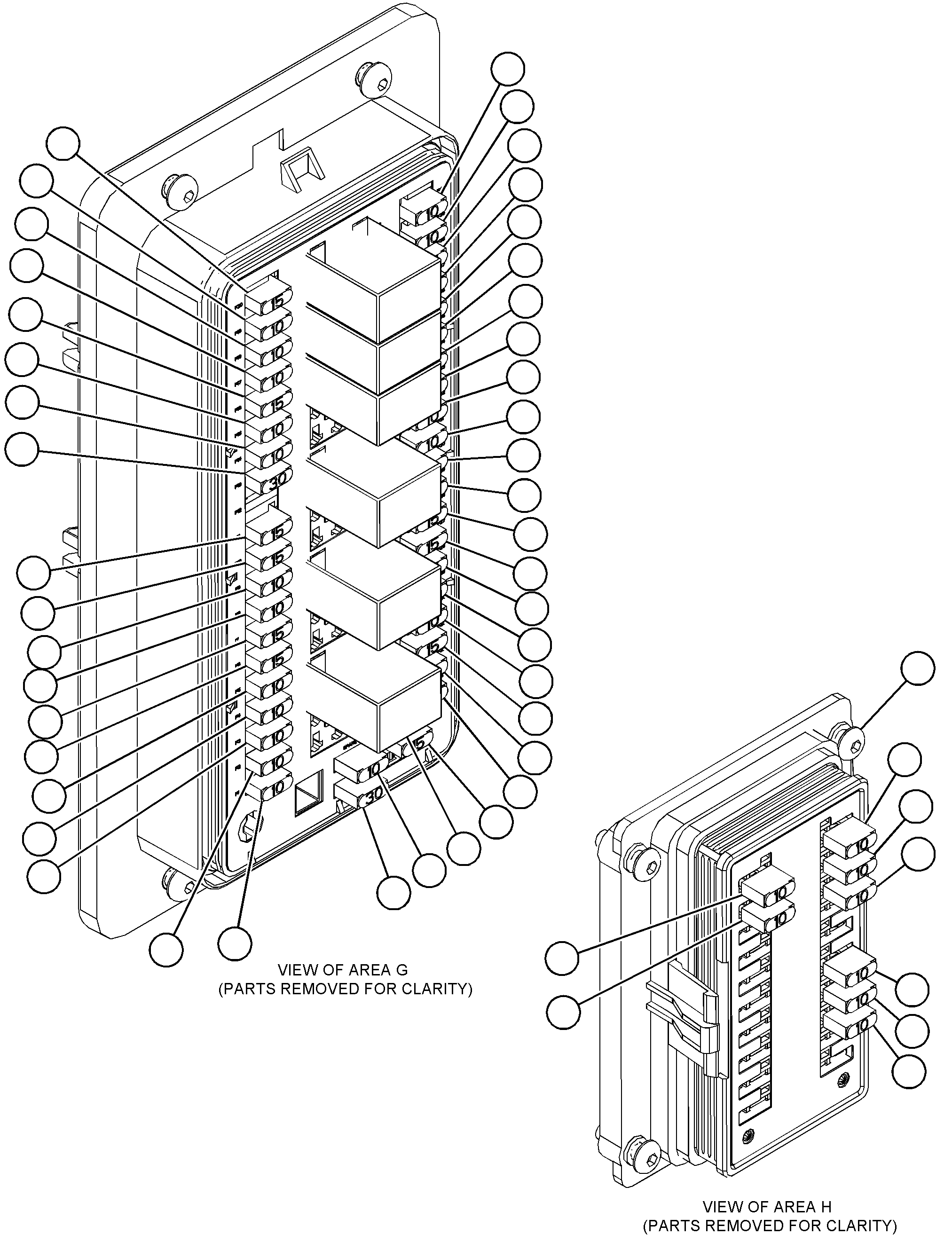

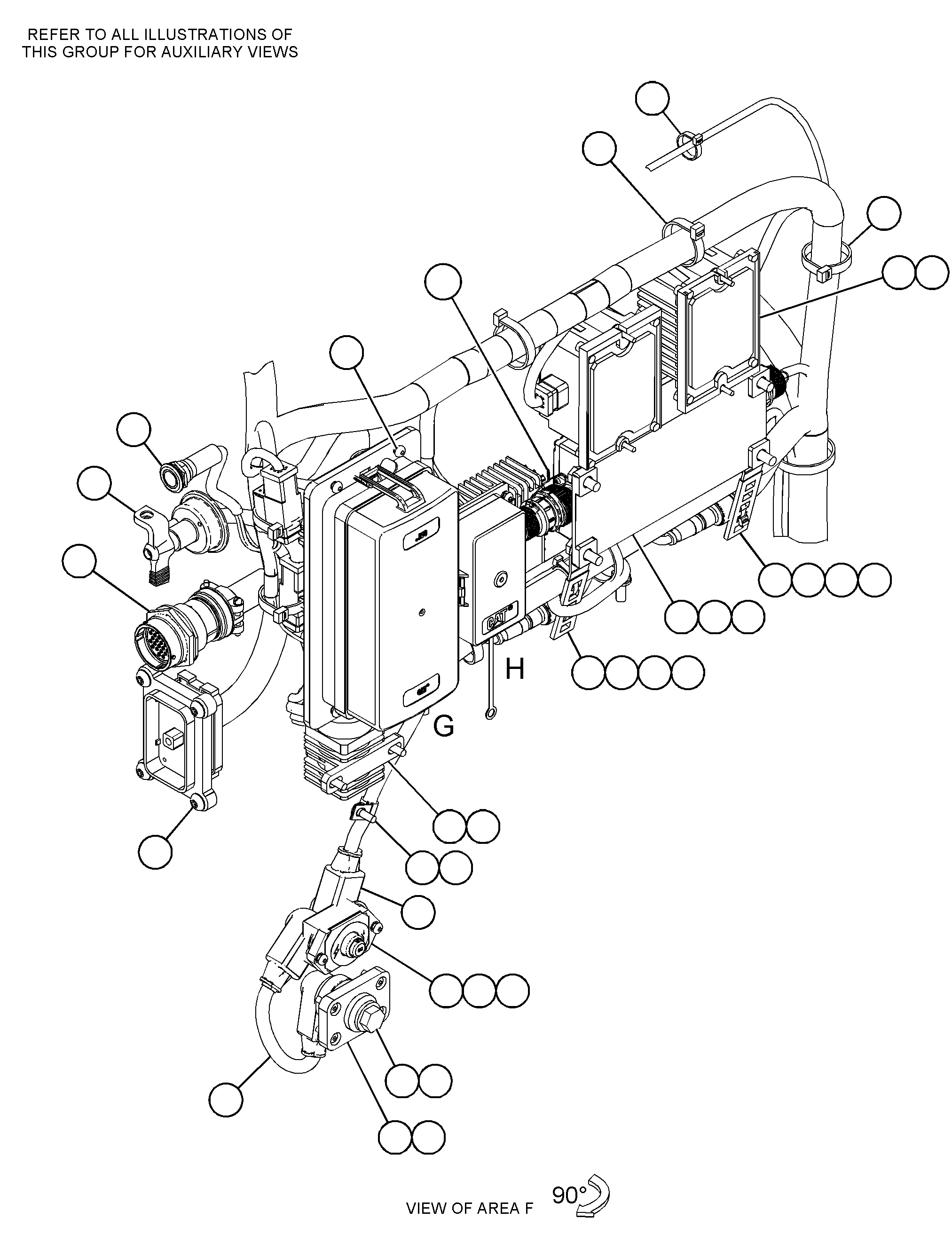

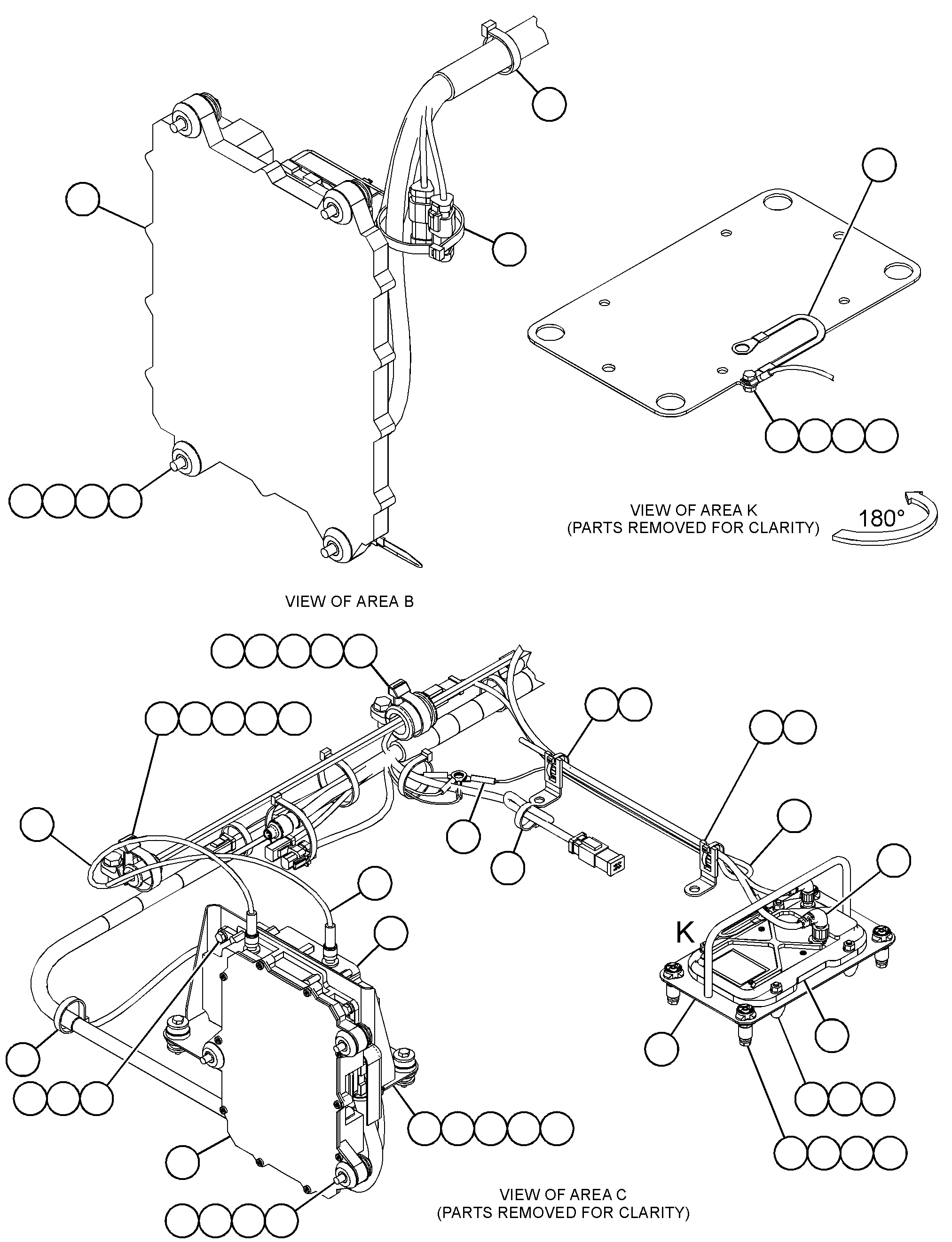

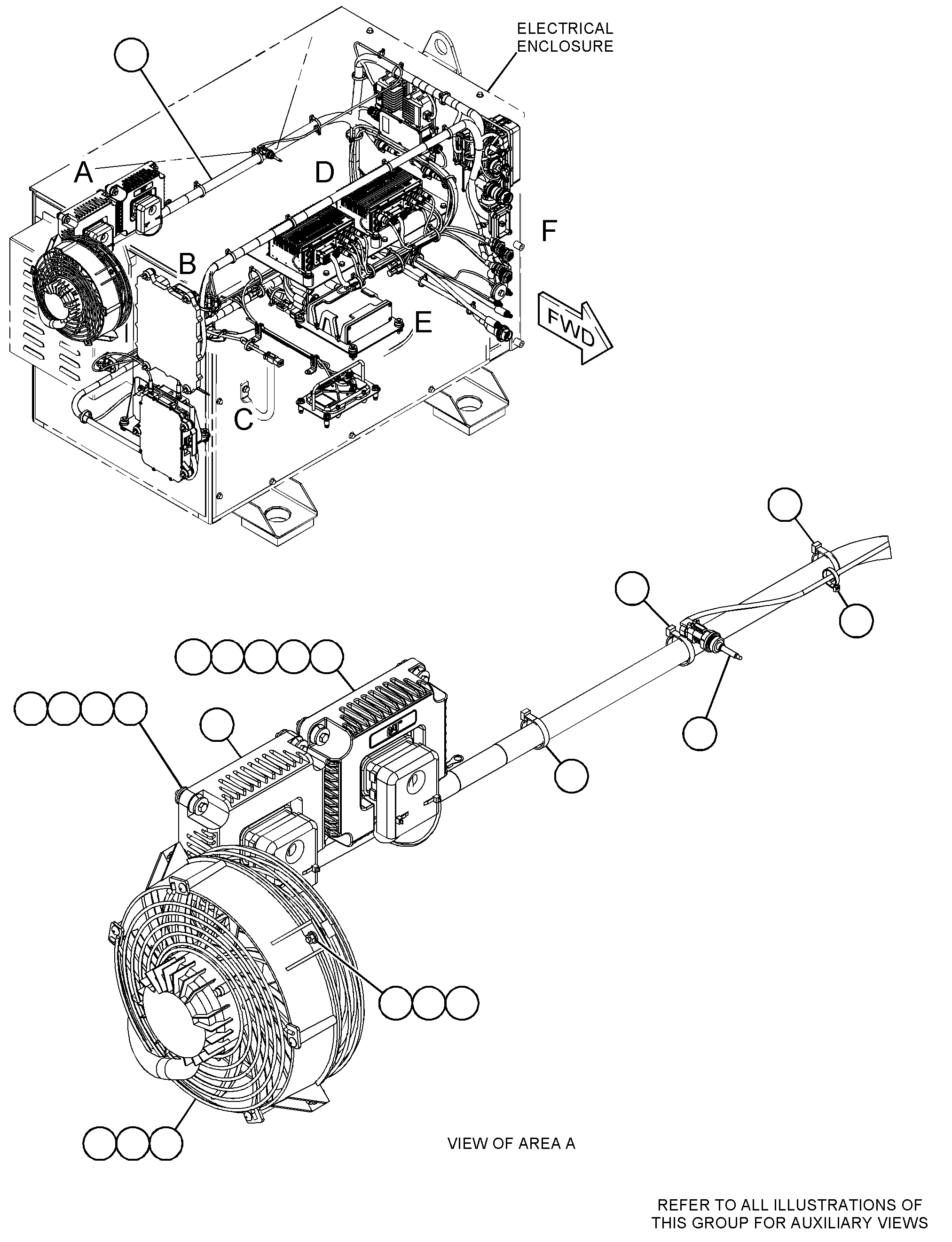

| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E9259 | 1 TERMINAL AS | 1 | |
| 3S2093 | 2 STRAP-CABLE | 13 | |
| 7K1181 | 3 STRAP-CABLE | 42 | |
| 7X6315 | 4 STRAP AS-GROUND | 1 | |
| 8C5607 | 5 MOUNT-ISOLATION | 32 | |
| 8T9655 | 6 MOUNT-ISOLATION | 14 | |
| 1138490 | 7 FUSE (10-AMPERE) | 31 | |
| 1138491 | 8 FUSE (15-AMPERE) | 17 | |
| 1167303 | 9 BUMPER | 4 | |
| 1243548 | 10 FUSE (30-AMPERE) | 2 | |
| 1599495 | 11 NUT (1-1/2-18-THD) | 1 | |
| 1712210 | 12 CIRCUIT BREAKER AS (80-AMPERE)(MAIN) | 1 | |
| 1H3244 | LOCKWASHER | 2 | |
| 4E5724 | WASHER (7X12X1-MM THK) | 2 | |
| 8T0122 | NUT-FULL (1/4-28-THD) | 2 | |
| 2048000 | 13 MOUNTING-CABLE TIE | 4 | |
| 2482841 | 14 RELAY AS (24-VOLT) | 6 | |
| 2566454 | 15 SENSOR-TEMPERATURE (2-PIN)(ELECTRICAL ENCLOSURE) | 1 | |
| 2822436 | 16 FILM-IDENTIFICATION (CIRCUIT BREAKER) | 1 | |
| 3045687 | 17 CONTROL GP-UNPROGRAMMED | 1 | |
| 3365524 | 18 BRACKET AS | 1 | |
| 7M0242 | WASHER-HARD (15.1X25.4X5-MM THK) | 8 | |
| 3407161 | 19 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 2 | |
| 3442915 | 20 CABLE AS | 1 | |
| 6V2369 | CABLE (4-GA, BLACK)(0.3-M) | ||
| 9G4343 | TERMINAL-RING (4-GA, 1/4-IN SCREW) | 1 | |
| 9G4336 | TERMINAL-RING (4-GA, 3/8-IN SCREW) | 1 | |
| 8T8827 | BOOT (RED) | 2 | |
| 3475454 | 21 CABLE AS | 1 | |
| 6V2369 | CABLE (4-GA, BLACK)(0.2-M) | ||
| 9G4343 | TERMINAL-RING (4-GA, 1/4-IN SCREW) | 1 | |
| 9G4344 | TERMINAL-RING (4-GA, 1/2-IN SCREW) | 1 | |
| 8T8827 | BOOT (RED) | 2 | |
| 3479021 | 22 GUARD AS-FAN | 1 | |
| 3531571 | 23 CONTROL GP-ELECTRONIC | 1 | |
| 1344126 | WASHER (4.52X8.28X0.76-MM THK) | 1 | |
| 7X6315 | STRAP AS-GROUND | 1 | |
| 1842472 | SCREW-PAN HEAD (8-32X0.375-IN) | 1 | |
| 3563585 | 24 PLATE AS | 1 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 4 | |
| 3738620 | 25 RECEIVER GP-SATELLITE (A-STOP) | 2 | |
| 4490957 | 27 STUD-BALL | 4 | |
| 4490958 | 28 COUPLING | 4 | |
| 4556348 | 29 MODULE AS-POWER SUPPLY | 1 | |
| 1325789 | 30 CLIP (LADDER) | 3 | |
| 1344126 | 31 WASHER (4.52X8.28X0.76-MM THK) | 2 | |
| 1599496 | 32 LOCKWASHER | 1 | |
| 1809214 | 33 NUT (1-11/16-18-THD) | 1 | |
| 1934623 | 34 SCREW-BUTTON HEAD (10-32X0.5-IN) | 6 | |
| 2001131 | 35 SCREW-TRUSS HEAD (M4X0.7X20-MM) | 4 | |
| 2042281 | 36 STRAP-CABLE | 4 | |
| 2418368 | 37 SWITCH GP-MAGNETIC (24-VOLT)(MAIN RELAY) | 1 | |
| 2727239 | 39 BLOCK AS | 1 | |
| 2851142 | 40 CONTROL GP-UNPROGRAMMED | 1 | |
| 1010852 | SCREW-PAN HEAD (8-32X0.375-IN) | 1 | |
| 2877007 | CONTROL AS-UNPROGRAMMED | 1 | |
| 2280403 | SCREW-PAN HEAD | 10 | |
| 2443164 | FILM-IDENTIFICATION (CATERPILLAR) | 1 | |
| 1344126 | WASHER (4.52X8.28X0.76-MM THK) | 1 | |
| 7X6315 | STRAP AS-GROUND | 1 | |
| 2920358 | 41 SWITCH GP-ROTARY (2-POSITION) | 1 | |
| 3201150 | 42 BOLT (M4X0.7X8-MM) | 1 | |
| 3420606 | 43 WASHER-HARD (5.5X11X1.6-MM THK) | 8 | |
| 3445673 | 44 NUT (M6X1-THD) | 12 | |
| 3523964 | 45 CLIP (LADDER) | 2 | |
| 3563581 | 46 CABLE AS-COAXIAL | 2 | |
| 3756142 | 47 FAN AS (ELECTRICAL ENCLOSURE) | 1 | |
| 1779645 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 2434507 | RECEPTACLE AS-CONNECTOR (4-PIN) | 1 | |
| 3510979 | BLADE-FAN (7-BLADE) | 1 | |
| 4160108 | GUARD-FAN | 1 | |
| 3887064 | 49 CONTROL GP-ELECTRONIC (WHEEL SPEED) | 1 | |
| 4353990 | 51 WIRE AS-GROUND | 1 | |
| 4456789 | 52 MODULE GP-MEMORY | 1 | |
| 4495511 | 53 CABLE AS (POWER) | 1 | |
| 4495513 | 54 CABLE AS | 1 | |
| 4495515 | 55 BRACKET AS | 1 | |
| 4495516 | 56 CABLE AS | 1 | |
| 4590787 | 57 CONTROL GP-COMMUNICATION (NETWORK MANAGER) | 1 | |
| 4792171 | 58 BOLT AS | 2 | |
| 5759387 | 59 CONTROL GP-ELECTRONIC | 1 | |
| 5049998 | 60 CABLE AS | 2 | |
| 5110095 | 61 CABLE AS | 1 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(42-CM) | ||
| 1599495 | NUT (1-1/2-18-THD) | 1 | |
| 1690705 | PLUG-SEAL | 19 | |
| 2702679 | LOCKWASHER | 1 | |
| 2715604 | PIN-CONNECTOR (20-GA) | 12 | |
| 5394705 | 62 SWITCH AS-PUSH BUTTON (SHUTDOWN) | 1 | |
| 1945226 | TERMINAL AS (16-GA) | 5 | |
| 1945227 | TERMINAL AS (14-GA) | 5 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 5 | |
| 5584095 | 63 CONTROL GP-ELECTRONIC | 2 | |
| 5682744 | 64 CABLE AS | 2 | |
| 5682745 | 65 CABLE AS | 1 | |
| 5682747 | 66 CABLE AS | 2 | |
| 5685541 | 68 HARNESS AS-BOX | 1 | |
| 5697659 | 69 CABLE AS-USB | 1 | |
| 5707056 | 70 CABLE AS | 2 | |
| 5725649 | 71 PLATE AS | 1 | |
| 8T8874 | NUT-WELD (M5X0.8-THD) | 8 | |
| 5063240 | BOSS AS | 2 | |
| 5754261 | 72 STRAP AS | 2 | |
| 2L8077 | TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW) | 1 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 6A3626 | WIRE-LIGHTING (14-GA, BLACK) | ||
| 2V3216 | 73 CLIP (LOOP) | 1 | |
| 5C8312 | 74 NUT (M4X0.7-THD) | 1 | |
| 6I1418 | 75 SPACER (8.2X12.7X28.7-MM THK) | 7 | |
| 6V2857 | 76 GROMMET | 1 | |
| 6V3341 | 77 GROMMET | 2 | |
| 7X2619 | 78 BOLT (M6X1X10-MM) | 4 | |
| 7Y7388 | 79 SCREW-BUTTON HEAD (M5X0.8X12-MM) | 4 | |
| 7Y7389 | 80 SCREW (M5X0.8X16-MM) | 12 | |
| 8C5608 | 81 SPACER (6.5X9.5X25.4-MM THK) | 16 | |
| 8C8451 | 82 BOLT (M6X1X40-MM) | 14 | |
| 8T4121 | 83 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4136 | 84 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4138 | 85 BOLT (M6X1X20-MM) | 4 | |
| 8T4179 | 86 BOLT (M12X1.75X20-MM) | 2 | |
| 8T4189 | 87 BOLT (M8X1.25X20-MM) | 12 | |
| 8T4197 | 88 BOLT (M8X1.25X40-MM) | 7 | |
| 8T4205 | 89 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 8T4223 | 90 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 91 WASHER-HARD (8.8X16X2-MM THK) | 14 | |
| 8T4908 | 92 BOLT (M8X1.25X25-MM) | 2 | |
| 8T4971 | 93 BOLT (M6X1X30-MM) | 4 | |
| 8W8909 | 94 SLEEVE | 1 | |
| 9N0869 | 95 WASHER-HARD (8.8X25.5X2-MM THK) | 7 | |
| 9P0719 | 96 GROMMET | 1 | |
| 9X1046 | 97 SCREW (M4X0.7X18-MM) | 4 | |
| 9X2044 | 98 SCREW-TRUSS HEAD (M6X1X16-MM) | 7 | |
| 9X2480 | 99 BOLT (M6X1X45-MM) | 2 | |
| 9X6165 | 100 WASHER (6.5X22X2.5-MM THK) | 32 | |
| 9X8256 | 101 WASHER (6.6X12X2-MM THK) | 16 | |
| 5P0562 | 102 LOCKWIRE (1.3-DM EACH) | ||
| 4422672 | 103 WASHER (13.49X50.80X6.35-MM THK) | 2 | |
| 8T4195 | 104 BOLT (M10X1.5X30-MM) | 1 | |
| 3445675 | 105 NUT (M10X1.5-THD) | 1 |
