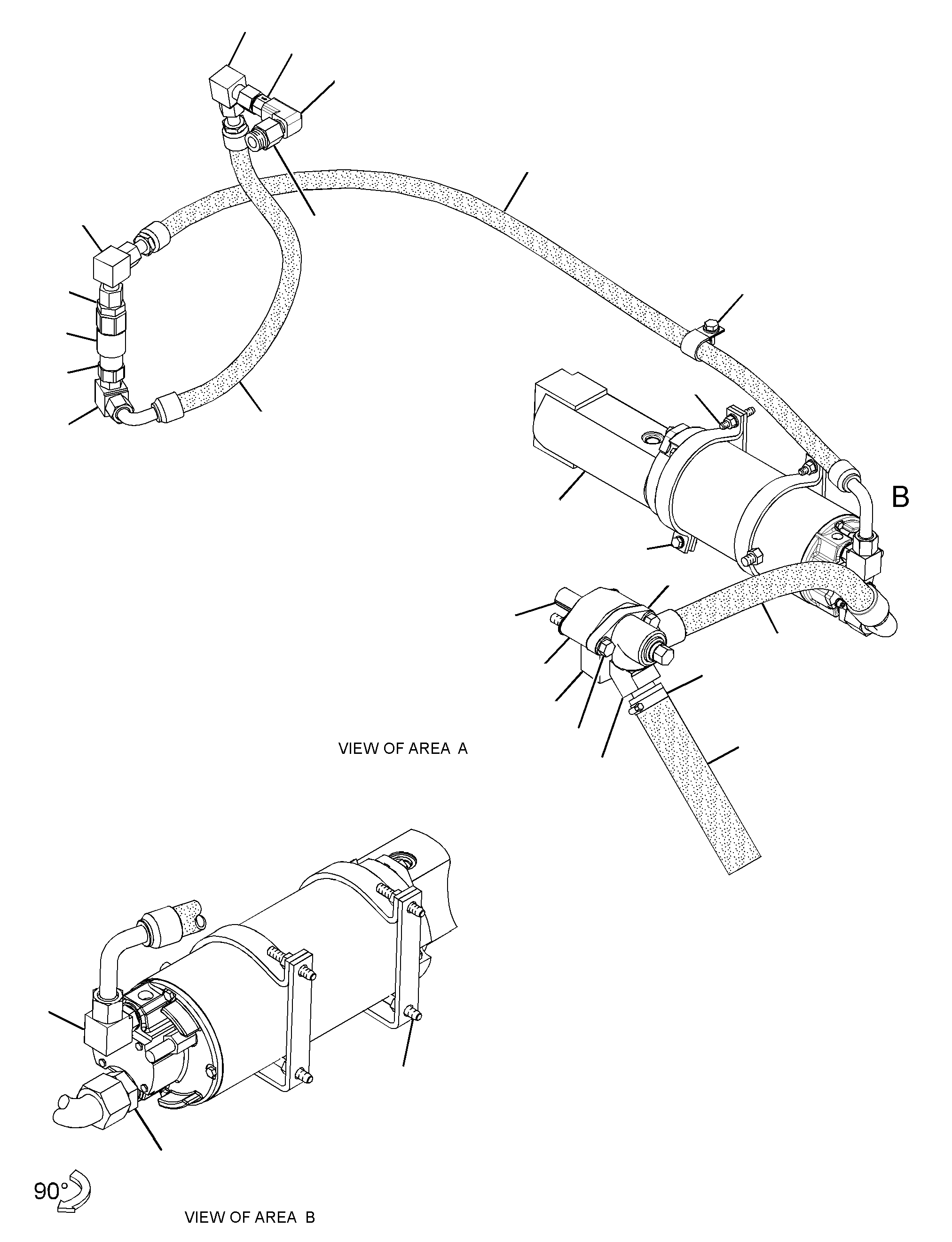

228-0007 PUMP & LINES GPS/N DLS1028-1099

Group No: 228-0007 · Commonality

Part Number	Part Name	Qty
4P0519	1 ADAPTER AS-DRAIN	1
1095839	PLUG-DRAIN (ENGINE OIL)	1
1095840	ADAPTER-PLUG	1
1235150	2 VALVE-CHECK (ENGINE OIL)	1
1292327	3 ELBOW	1
1532995	4 COUPLING (MALE)	1
1938335	5 FITTING AS (QUICK DISCONNECT, FEMALE)	1
2275525	6 PUMP & MOTOR GP-HYDRAULIC (SEC STRG, BRK REL, HS OIL CHG)	1
2302173	7 BLOCK	1
2307170	8 SCREEN AS (PUMP LINES)	1
2534276	9 HOSE AS	1
2534277	10 HOSE AS	1
3272470	11 HOSE AS	1
0025743	12 ELBOW	1
1061793	13 STUD-TAPERLOCK (3/8-16X2.36-IN)	2
1488390	14 ELBOW AS	1
6V8626	ELBOW	1
2M9780	SEAL-O-RING	1
7J9108	SEAL-O-RING	1
1488393	15 ELBOW AS	2
6V9852	ELBOW (SWIVEL)	1
7J9108	SEAL-O-RING	1
1504048	16 ELBOW AS	1
6V8722	ELBOW	1
3K0360	SEAL-O-RING	1
7J9108	SEAL-O-RING	1
1536230	17 CONNECTOR AS	1
2M9780	SEAL-O-RING	1
5K9090	SEAL-O-RING	1
8T9386	CONNECTOR	1
1858834	18 ELBOW AS	1
5K9090	SEAL-O-RING	1
1314863	ELBOW	1
2M9189	19 GASKET	2
2M9780	20 SEAL-O-RING	2
3D2824	21 SEAL-O-RING	1
4S1962	22 CLIP (LOOP)	1
5P2211	23 ADAPTER (1-1/16-12-THD)	1
6B8129	24 NIPPLE-PIPE	1
6V3830	25 SEAL-O-RING	1
6V8189	26 NUT (5/16-18-THD)	2
6V8801	27 NUT (3/8-16-THD)	2
6V8918	28 BOLT (5/16-18X1.25-IN)	2
6V9170	29 NUT-BULKHEAD (1-14-THD)	1
7J9108	30 SEAL-O-RING	2
8T4121	31 WASHER-HARD (11X21X2.5-MM THK)	1
8T4136	32 BOLT (M10X1.5X25-MM)	1
8T4223	33 WASHER-HARD (13.5X25.5X3-MM THK)	2
8T4224	34 WASHER-HARD (8.8X16X2-MM THK)	4
8T4896	35 WASHER-HARD (10.2X18.5X2.5-MM THK)	4
8T9391	36 BOLT (1/2-13X3.75-IN)	2
9B7237	37 BOLT (3/8-16X1.25-IN)	2
9M2904	38 CLAMP-HOSE	1
5P1255	39 HOSE (30-CM)
