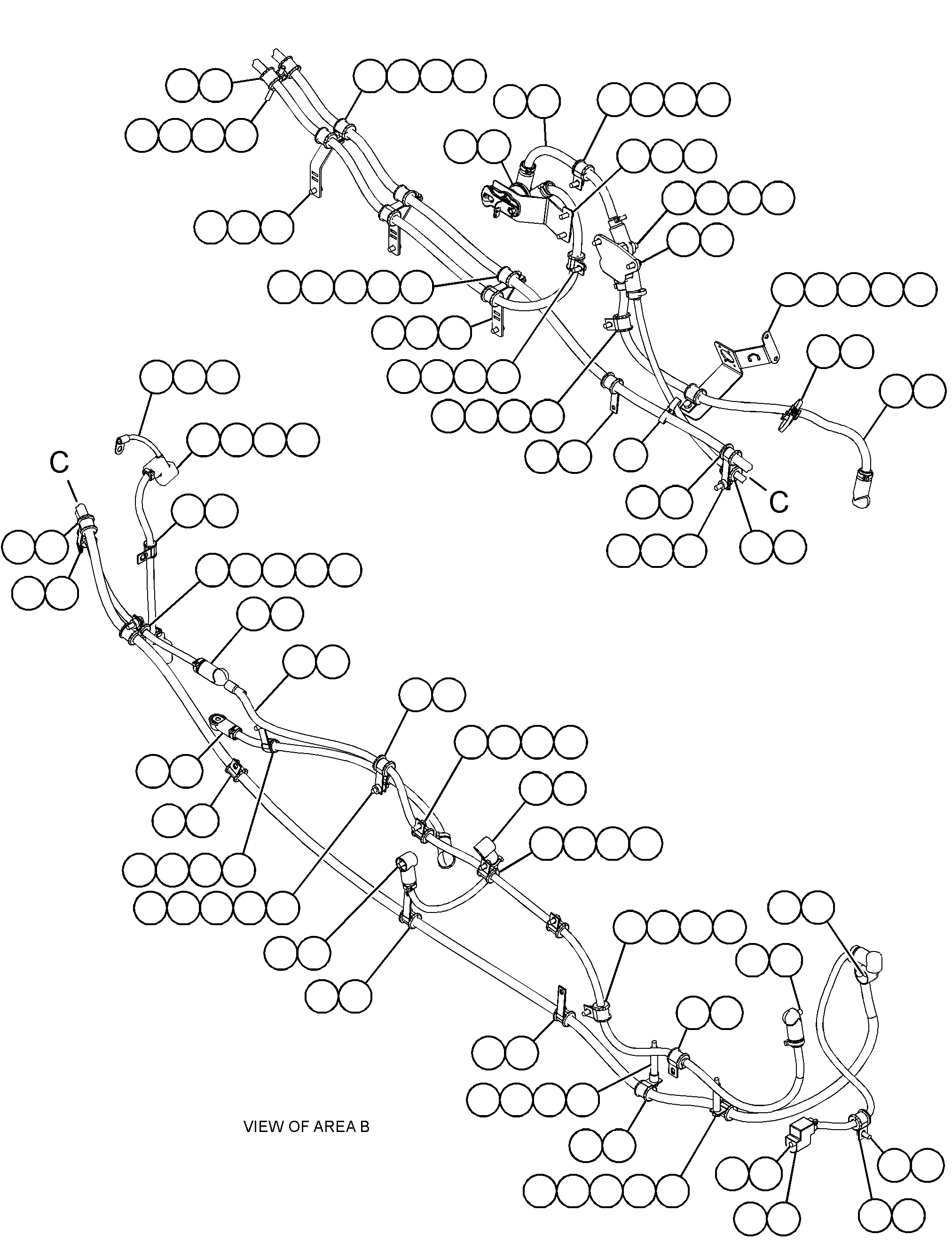

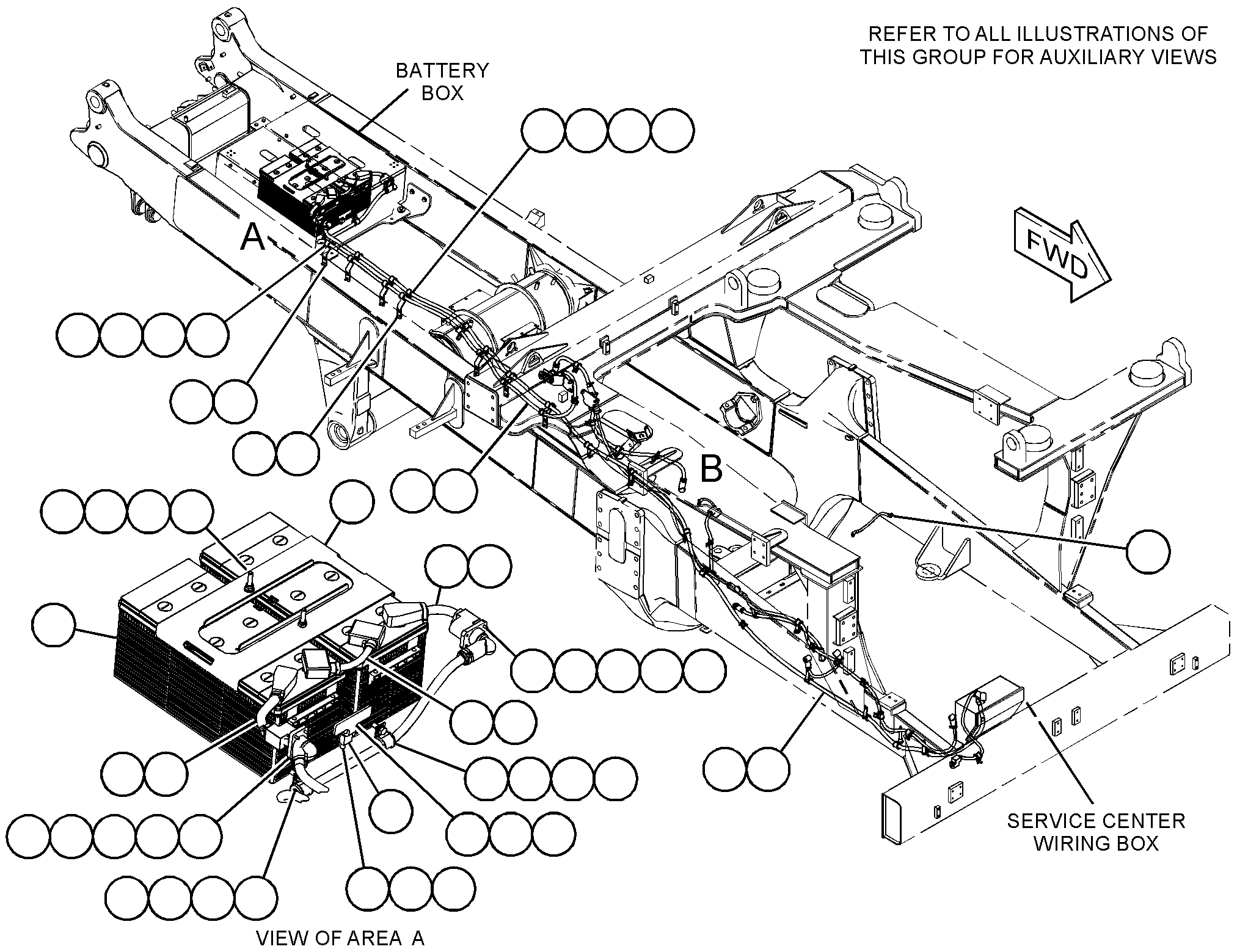

System And Components
322-2415 BATTERY & WIRING GPS/N T5F102-102
Group No: 322-2415
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N0718 | 1 SWITCH GP-DISCONNECT | 1 | |
| 7W9094 | 2 SPACER (11X20X9-MM THK) | 4 | |
| 9C5344 | 3 SPACER (10.5X20X18-MM THK) | 1 | |
| 9G2758 | 4 LOCKOUT-SWITCH (DISCONNECT) | 1 | |
| 1181277 | 5 CABLE AS-BATTERY | 1 | |
| 1598049 | CABLE (00-GA, RED)(20-CM) | ||
| 9G0004 | COVER AS-TERMINAL (RED) | 1 | |
| 9G0003 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8T9757 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 8C5917 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1535710 | 6 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET) | 2 | |
| 1231373 | CAP AS-FILLER (7/8-9-THD) | 6 | |
| 4615232 | CAP AS-FILLER (M18X2-THD) | 6 | |
| 2502185 | 7 BRACKET | 1 | |
| 2502186 | 8 BRACKET | 2 | |
| 2503386 | 9 BAR | 1 | |
| 2727239 | 10 BLOCK AS | 1 | |
| 3209398 | 11 PLATE AS | 7 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3209399 | 12 PLATE | 1 | |
| 3209641 | 13 CABLE AS | 1 | |
| 1598051 | CABLE-ELECTRICAL (00-GA)(337-CM) | ||
| 0350425 | RING-TERMINAL (000-GA, 3/8-IN SCREW) | 1 | |
| 5P2600 | RING-TERMINAL (000-GA, 1/2-IN SCREW) | 1 | |
| 3209642 | 14 CABLE AS | 1 | |
| 3304419 | COVER-TERMINAL | 2 | |
| 1896464 | TERMINAL-RING | 2 | |
| 1598054 | CABLE-ELECTRICAL (0000-GA, BLACK)(634-CM) | ||
| 3209645 | 15 CABLE AS | 1 | |
| 5P2600 | RING-TERMINAL (000-GA, 1/2-IN SCREW) | 1 | |
| 0350425 | RING-TERMINAL (000-GA, 3/8-IN SCREW) | 1 | |
| 1598051 | CABLE-ELECTRICAL (00-GA)(49-CM) | ||
| 3216497 | 16 CABLE AS | 1 | |
| 9X9825 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 1598050 | CABLE (00-GA, BLACK)(50-CM) | ||
| 2999092 | COVER-TERMINAL (BLACK) | 2 | |
| 3216506 | 17 CABLE AS | 1 | |
| 1598048 | CABLE-ELECTRICAL (0-GA, BLACK)(34-CM) | ||
| 3150180 | TERMINAL-RING (00-GA, 3/8-IN SCREW) | 2 | |
| 3216507 | 18 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(19-CM) | ||
| 1903848 | TERMINAL-RING (00-GA, 1/2-IN SCREW) | 1 | |
| 3217030 | 19 CABLE AS | 1 | |
| 5P2600 | RING-TERMINAL (000-GA, 1/2-IN SCREW) | 2 | |
| 1598051 | CABLE-ELECTRICAL (00-GA)(230-CM) | ||
| 2108958 | TUBE-HEAT SHRINK (24-MM DIA)(5-CM) | ||
| 3222630 | 20 CABLE AS | 1 | |
| 3489152 | COVER AS-TERMINAL (BLACK) | 1 | |
| 1598054 | CABLE-ELECTRICAL (0000-GA, BLACK)(16-CM) | ||
| 7T9988 | COVER AS-TERMINAL (BLACK) | 1 | |
| 1880158 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 3222632 | 21 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 2 | |
| 1598050 | CABLE (00-GA, BLACK)(42-CM) | ||
| 3222633 | 22 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 9X9825 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(81-CM) | ||
| 2999092 | COVER-TERMINAL (BLACK) | 1 | |
| 3222638 | 23 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 2 | |
| 8N0869 | COVER-TERMINAL (RED) | 2 | |
| 1598049 | CABLE (00-GA, RED)(70-CM) | ||
| 3222958 | 24 CABLE AS | 1 | |
| 5P2600 | RING-TERMINAL (000-GA, 1/2-IN SCREW) | 1 | |
| 0350425 | RING-TERMINAL (000-GA, 3/8-IN SCREW) | 1 | |
| 1598051 | CABLE-ELECTRICAL (00-GA)(161-CM) | ||
| 3311066 | 25 BLOCK AS-TERMINAL | 1 | |
| 3361537 | 26 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 3416236 | 27 CABLE AS | 1 | |
| 5P2600 | RING-TERMINAL (000-GA, 1/2-IN SCREW) | 2 | |
| 1598051 | CABLE-ELECTRICAL (00-GA)(99-CM) | ||
| 4304432 | 28 CABLE AS | 1 | |
| 3S6051 | TERMINAL AS (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7T9987 | COVER AS-TERMINAL (RED) | 1 | |
| 1598051 | CABLE-ELECTRICAL (00-GA)(21-CM) | ||
| 2629668 | TERMINAL-RING | 1 | |
| 3487341 | COVER-TERMINAL | 1 | |
| 1783620 | 29 STRAP-DUAL CLAMP | 1 | |
| 1944121 | 30 SPACER (10.1X15.9X70-MM THK) | 2 | |
| 1S1015 | 31 CLIP (LOOP) | 1 | |
| 2006345 | 32 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 2233490 | 33 CLIP | 2 | |
| 2310336 | 34 STUD-TAPERLOCK (M10X1.5X70-MM) | 2 | |
| 2887158 | 35 STUD (M10X1.5X125-MM) | 1 | |
| 2V1771 | 36 GROMMET | 3 | |
| 3403690 | 37 STUD (M10X1.5X295-MM) | 2 | |
| 4B4280 | 38 WASHER (13.5X27X2.5-MM THK) | 6 | |
| 4S1962 | 39 CLIP (LOOP) | 32 | |
| 5G6505 | 40 WASHER (25X38X14-MM THK) | 3 | |
| 5P8939 | 41 GROMMET | 40 | |
| 6D4246 | 42 CLIP (LOOP) | 1 | |
| 6V1228 | 43 CLIP | 6 | |
| 6V8188 | 44 NUT (1/2-13-THD) | 3 | |
| 6V8801 | 45 NUT (3/8-16-THD) | 1 | |
| 6W6672 | 46 SPACER (10.5X20X38-MM THK) | 1 | |
| 7K1181 | 47 STRAP-CABLE | 27 | |
| 7Y7389 | 48 SCREW (M5X0.8X16-MM) | 8 | |
| 8C6358 | 49 BLOCK AS-JUNCTION (BATTERY) | 1 | |
| 7F0560 | WASHER (0.516X0.938X0.101-IN THK) | 6 | |
| 8T3518 | NUT-FULL (1/2-13-THD) | 6 | |
| 8D9671 | 50 CLIP | 1 | |
| 8T0328 | 51 WASHER-HARD (5.5X10X1-MM THK) | 8 | |
| 8T0389 | 52 LOCKNUT (M10X1.5-THD) | 2 | |
| 8T4121 | 53 WASHER-HARD (11X21X2.5-MM THK) | 45 | |
| 8T4133 | 54 NUT (M10X1.5-THD) | 5 | |
| 8T4136 | 55 BOLT (M10X1.5X25-MM) | 24 | |
| 8T4137 | 56 BOLT (M10X1.5X20-MM) | 9 | |
| 8T4178 | 57 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4179 | 58 BOLT (M12X1.75X20-MM) | 8 | |
| 8T4196 | 59 BOLT (M10X1.5X35-MM) | 3 | |
| 8T4223 | 60 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4896 | 61 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 8T6685 | 62 BOLT (M10X1.5X110-MM) | 1 |
