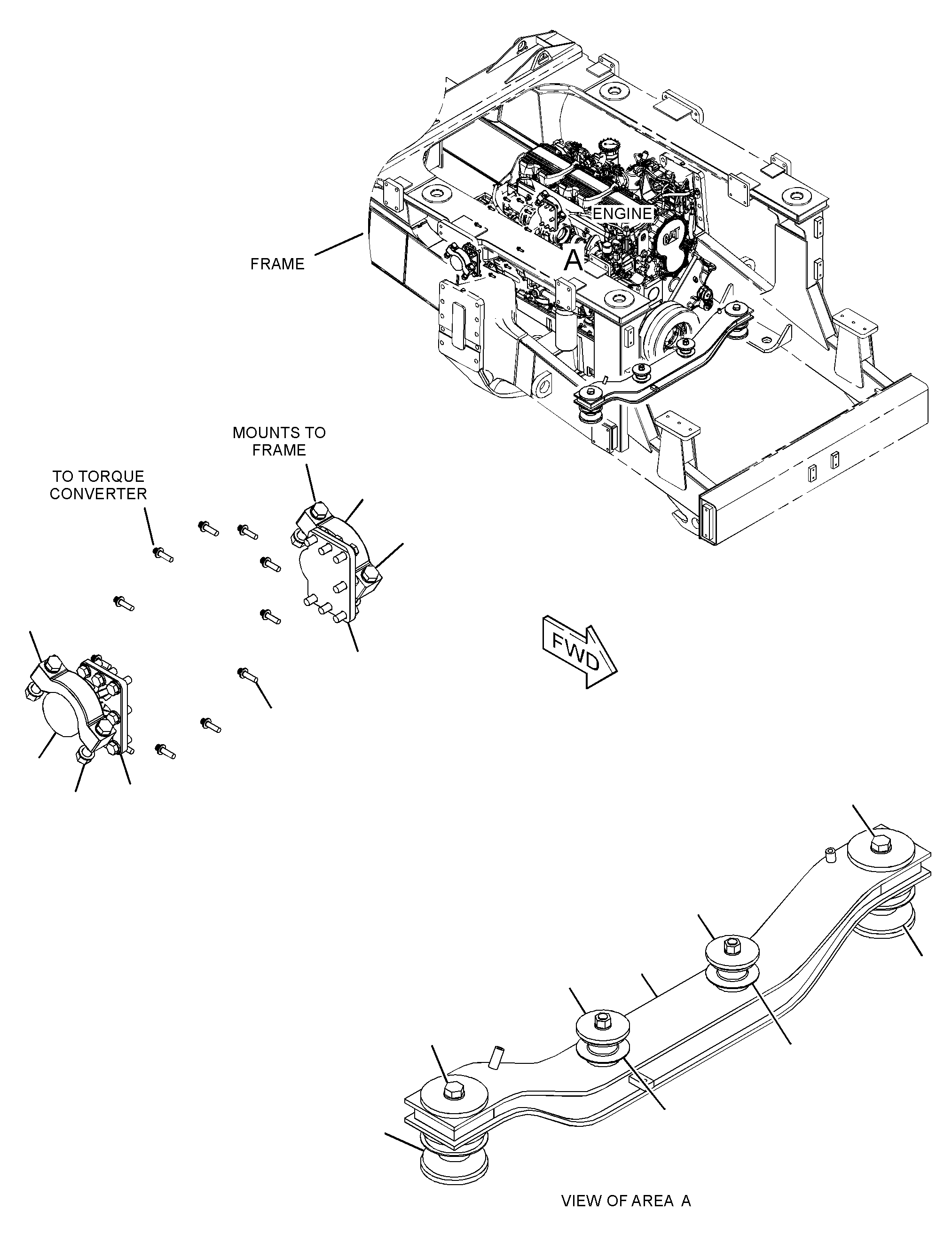

Assembly
100%

341-3131 SUPPORT GP-ENGINES/N KEX1-UP

Group No: 341-3131
Part NumberPart NameQty
6Y20651 MOUNT AS2
6Y99802 MOUNT AS2
9W65823 SLEEVE2
9W73854 SLEEVE2
9W73885 WASHER (26X144X12-MM THK)6
9W99306 MOUNT AS2
21851357 SUPPORT-ENGINE2
24513638 CAP2
31783859 SUPPORT AS1
5G8480LUG (M10X1.5-THD)1
9R2613BOSS-WELD (M10X1.5X25-MM)2
9R9866BOSS-THREADED (M10X1.5-THD)1
299343510 BOLT (7/16-14X1.5-IN)12
7X247611 BOLT (M24X3X220-MM)2
7X253212 BOLT (M20X2.5X130-MM)4
7X256913 BOLT (M20X2.5X200-MM)2
8T400114 NUT (M24X3-THD)2
8T412315 WASHER (22X35X3.5-MM THK)12
8T413116 NUT (M20X2.5-THD)6
8T416717 WASHER-HARD (26X44X4-MM THK)4
8T536018 WASHER (12X22.5X2.5-MM THK)12
8T733819 BOLT (M16X2X45-MM)14
9W658420 WASHER (20.5X114X10-MM THK)2
9X825721 WASHER (17.5X30X3.5-MM THK)14
