System And Components

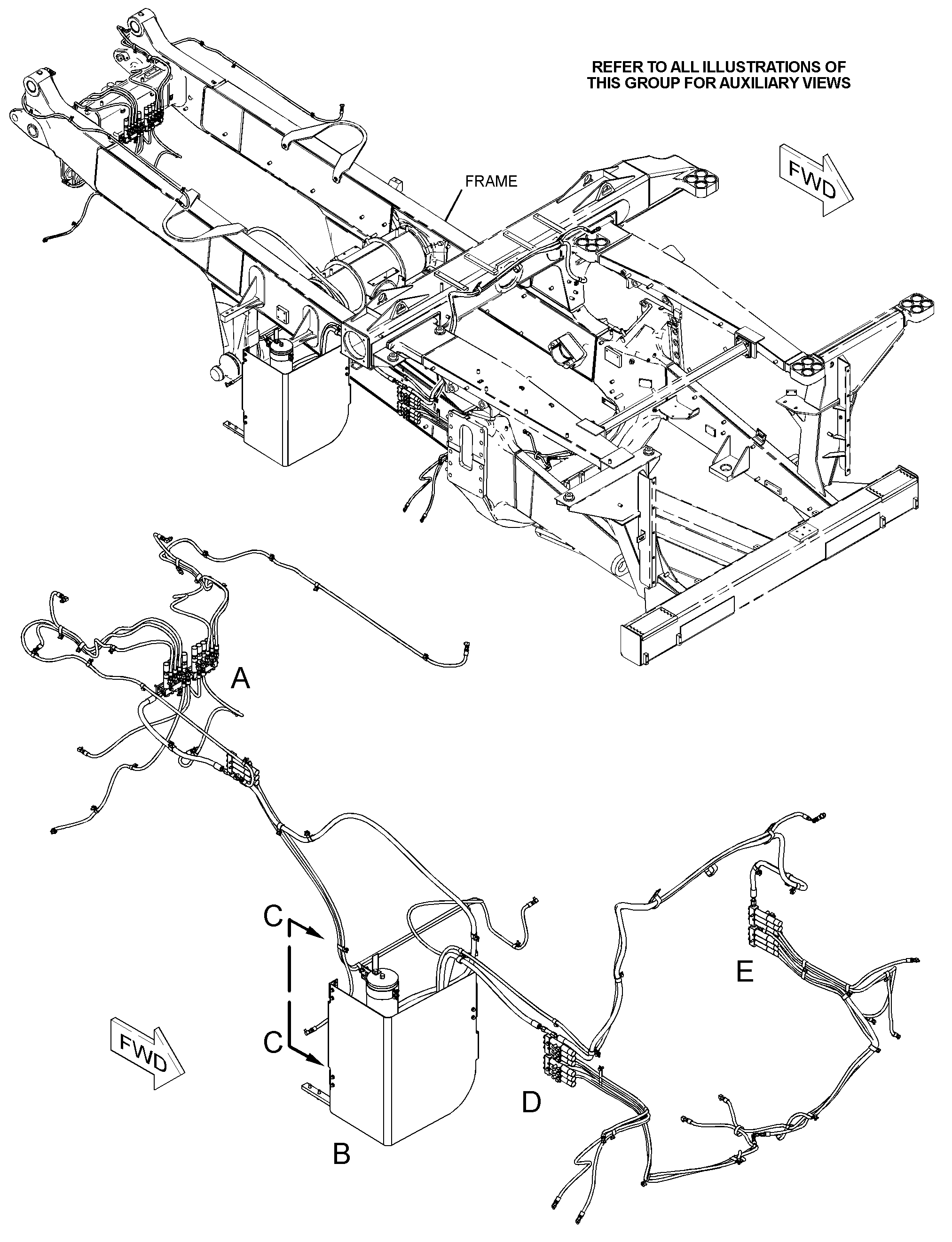

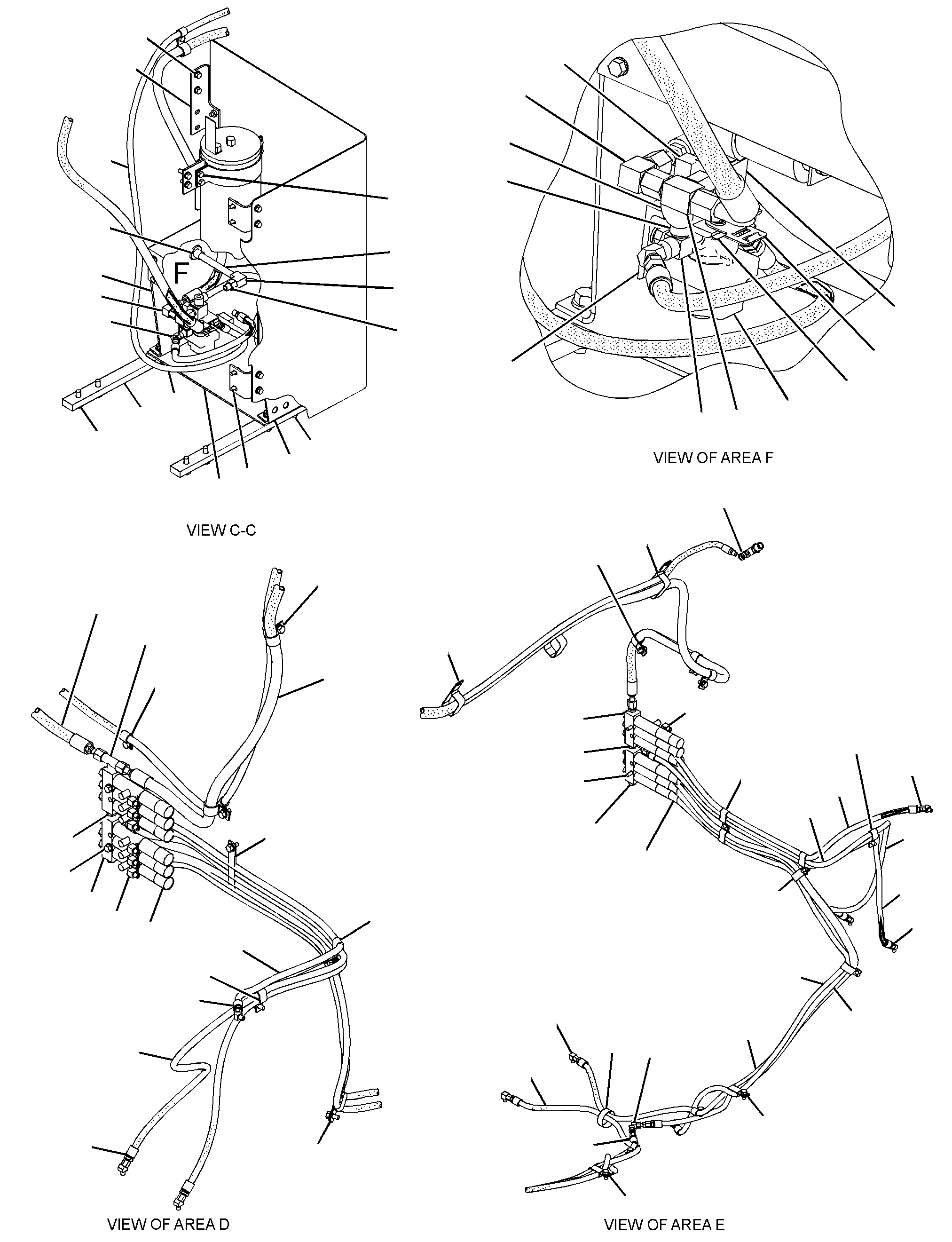

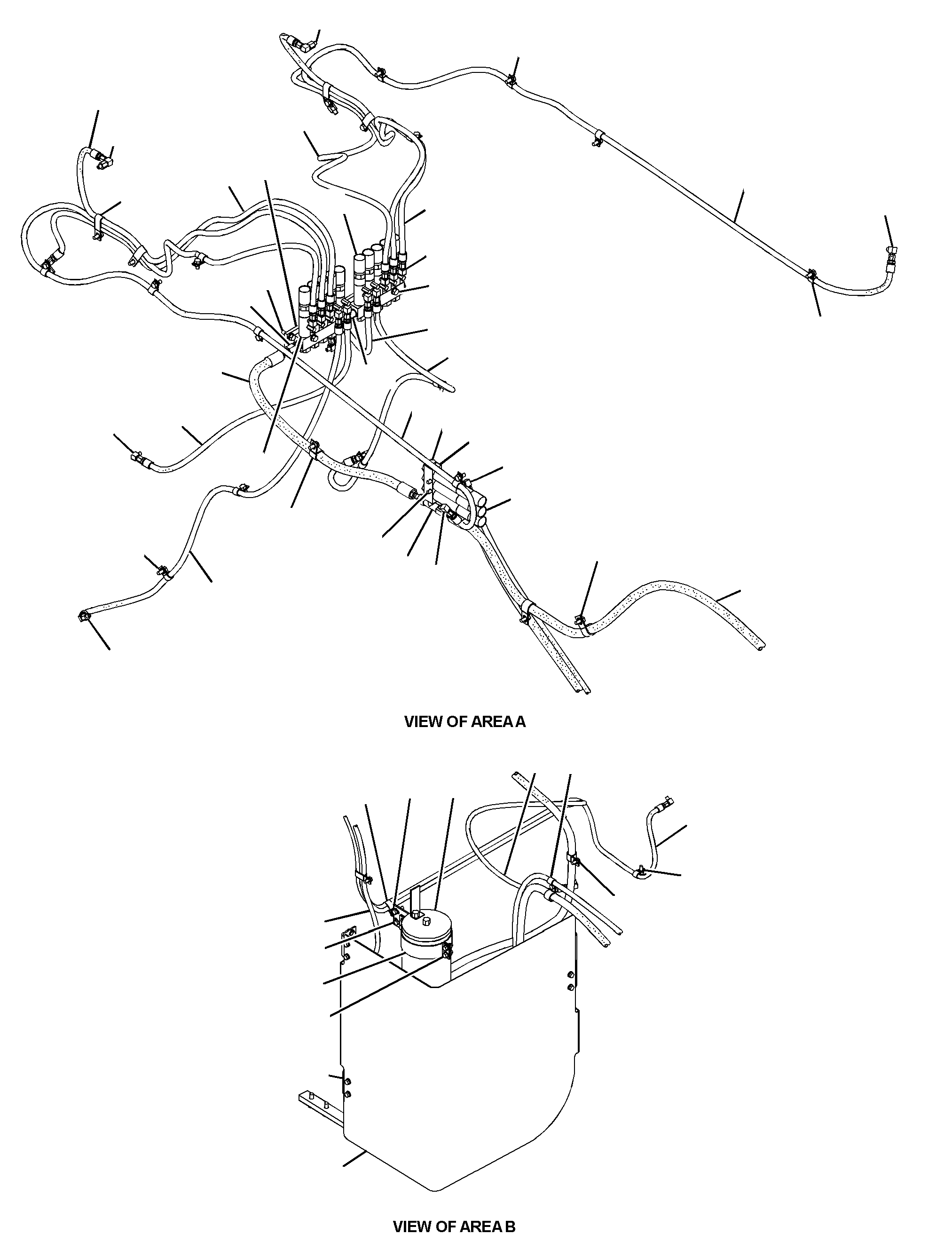

220-2077 PUMP & LINES GP-AUTOMATIC LUBES/N BDA1-UP
Group No: 220-2077
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1L2279 | 1 ELBOW | 1 | |
| 2D1683 | 2 FITTING (1/8-27 PTF) | 2 | |
| 2D7325 | 3 TEE-PIPE | 1 | |
| 2G4505 | 4 HOSE AS | 1 | |
| 4D7645 | 5 CLIP | 3 | |
| 5D7464 | 6 HOSE AS | 2 | |
| 5T4373 | 7 HOSE AS | 1 | |
| 5T4374 | 8 HOSE AS | 4 | |
| 5T5010 | 9 VALVE GP-LUBE DISTRIBUTION (5-INJECTOR) | 2 | |
| 5T5012 | 10 CAP-PROTECTION | 25 | |
| 5T5757 | 11 HOSE AS | 1 | |
| 5T7796 | 12 BRACKET | 1 | |
| 6G9581 | 13 HOSE AS | 1 | |
| 7K2828 | 14 CLIP | 1 | |
| 8D4765 | 15 REGULATOR | 1 | |
| 8J1040 | 16 TEE-FLARED | 2 | |
| 8W4470 | 17 HOSE AS | 3 | |
| 1707160 | 18 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1746974 | 19 HOSE AS | 1 | |
| 1747008 | 20 HOSE AS | 1 | |
| 1747009 | 21 HOSE AS | 1 | |
| 1747010 | 22 HOSE AS | 2 | |
| 1964440 | 23 HOSE AS | 2 | |
| 1980146 | 24 HOSE AS | 1 | |
| 1980147 | 25 HOSE AS | 1 | |
| 1980148 | 26 HOSE AS | 1 | |
| 1980150 | 27 HOSE AS | 1 | |
| 2064486 | 28 PLATE | 1 | |
| 2064487 | 29 BRACKET AS | 2 | |
| 2137331 | 30 PLATE | 1 | |
| 2145972 | 31 PLATE AS | 2 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 2153527 | 32 BRACKET | 2 | |
| 2153581 | 33 PLATE | 1 | |
| 2156802 | 34 BRACKET | 1 | |
| 3556947 | 35 BRACKET | 1 | |
| 2158160 | 36 HOSE AS | 1 | |
| 2219576 | 37 VALVE GP-SOLENOID (24-VOLT)(AUTOLUBE ACTUATION) | 1 | |
| 2219577 | COIL AS (24-VOLT) | 1 | |
| 2245434 | 38 HOSE AS | 1 | |
| 2245451 | 39 HOSE AS | 2 | |
| 2247033 | 40 PLATE | 1 | |
| 2247035 | 41 ANGLE | 1 | |
| 2247037 | 42 PUMP GP-LUBRICATION | 1 | |
| 2311437 | 43 HOSE AS | 1 | |
| 2311438 | 44 HOSE AS | 1 | |
| 2311439 | 45 HOSE AS | 1 | |
| 2360801 | 46 HOSE AS | 1 | |
| 0020639 | 47 ADAPTER-PIPE | 2 | |
| 0046683 | 48 FITTING | 2 | |
| 0307765 | 49 FITTING | 1 | |
| 0520741 | 50 ELBOW | 1 | |
| 0S1347 | 51 BOLT (1/4-20X0.75-IN) | 2 | |
| 0S1588 | 52 BOLT (3/8-16X1.25-IN) | 5 | |
| 1305300 | 53 CLIP | 1 | |
| 1M4543 | 54 GROMMET | 1 | |
| 2N1287 | 55 ELBOW-FLARED | 38 | |
| 2R1939 | 56 CLIP (LOOP) | 15 | |
| 3B7262 | 57 NIPPLE-PIPE | 1 | |
| 3B7743 | 58 FITTING | 1 | |
| 3D7587 | 59 ELBOW | 3 | |
| 3J5390 | 60 PLUG (3/8-18-THD) | 4 | |
| 4B6067 | 61 ELBOW-STREET | 1 | |
| 4D6466 | 62 CLIP | 2 | |
| 4H6147 | 63 CONNECTOR | 2 | |
| 4K8864 | 64 CLIP (LOOP) | 16 | |
| 4L6454 | 65 BOLT (3/8-16X1-IN) | 10 | |
| 5B1309 | 66 COUPLING-PIPE | 1 | |
| 5H4778 | 67 ELBOW | 1 | |
| 5M2894 | 68 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 5M3062 | 69 BOLT (3/8-16X0.75-IN) | 49 | |
| 5P0537 | 70 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 5P2566 | 71 BOLT (1/2-13X1.5-IN) | 4 | |
| 5P3166 | 72 TEE-SWIVEL | 1 | |
| 5S7383 | 73 BOLT (3/8-16X1.75-IN) | 4 | |
| 5T5009 | 74 VALVE GP-LUBE DISTRIBUTION (3-INJECTOR) | 5 | |
| 6D4636 | 75 CLIP (LOOP) | 10 | |
| 6K6967 | 76 ADAPTER-PIPE | 6 | |
| 6V8188 | 77 NUT (1/2-13-THD) | 4 | |
| 6V8801 | 78 NUT (3/8-16-THD) | 10 | |
| 7X3186 | 79 BOLT (3/8-16X2.125-IN) | 4 | |
| 8L6557 | 80 CONNECTOR | 2 | |
| 8M0547 | 81 ELBOW-FLARED (SWIVEL) | 1 | |
| 8M0755 | 82 ADAPTER | 2 | |
| 8T2501 | 83 BOLT (3/8-16X2-IN) | 2 | |
| 8T4223 | 84 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4835 | 85 BOLT (1/2-13X2-IN) | 4 | |
| 8T4896 | 86 WASHER-HARD (10.2X18.5X2.5-MM THK) | 78 | |
| 9B7237 | 87 BOLT (3/8-16X1.25-IN) | 2 | |
| 9L5125 | 88 ELBOW | 10 | |
| 9M4995 | 89 CLIP | 2 | |
| 9M8406 | 90 CLIP (LOOP) | 4 | |
| 8T4137 | 91 BOLT (M10X1.5X20-MM) | 1 | |
| 7J8611 | 92 ELBOW-PIPE | 1 | |
| 6B5072 | 93 ADAPTER | 1 | |
| 5K6875 | 94 ADAPTER | 1 | |
| 2219578 | KIT-VALVE | 1 |
