System And Components

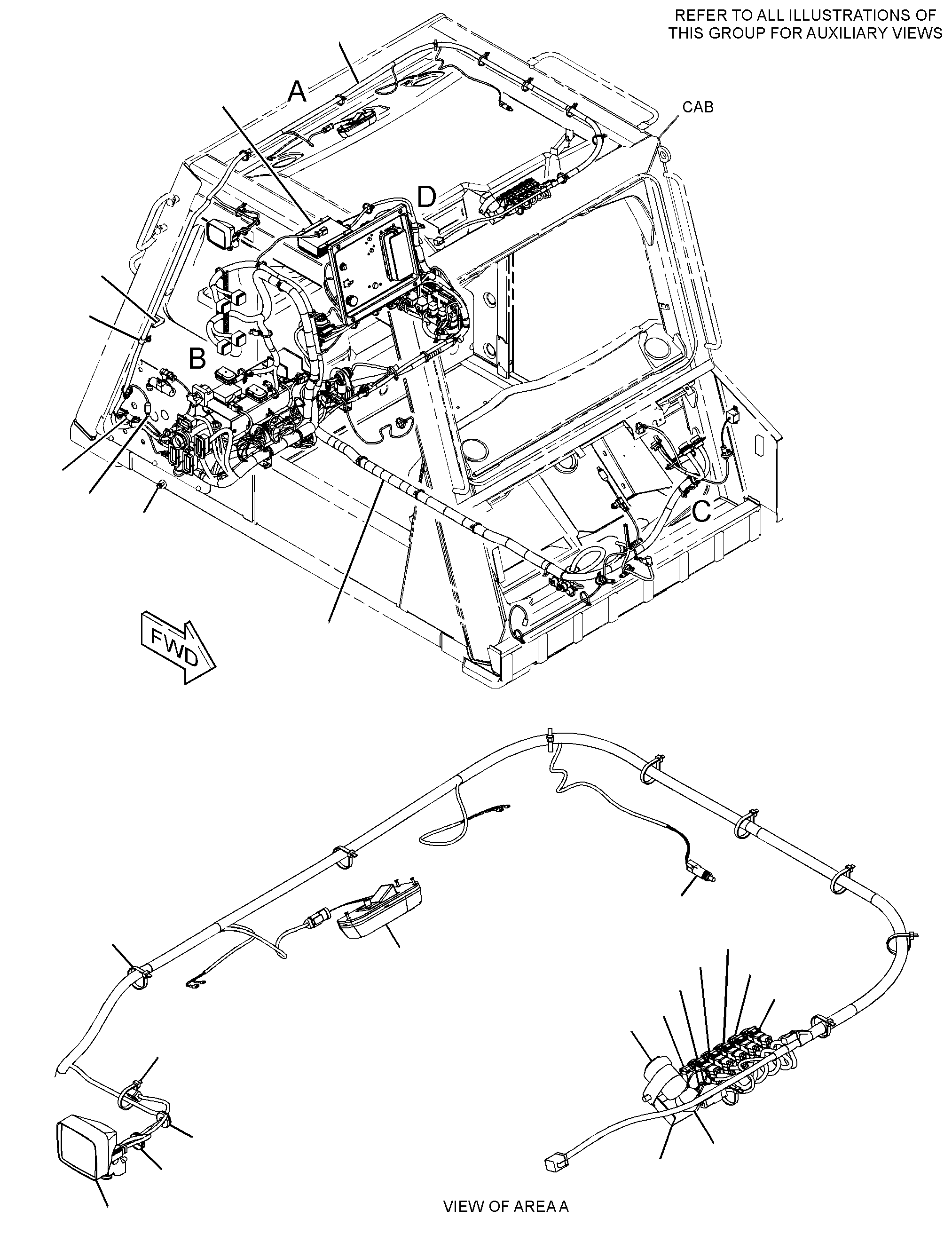

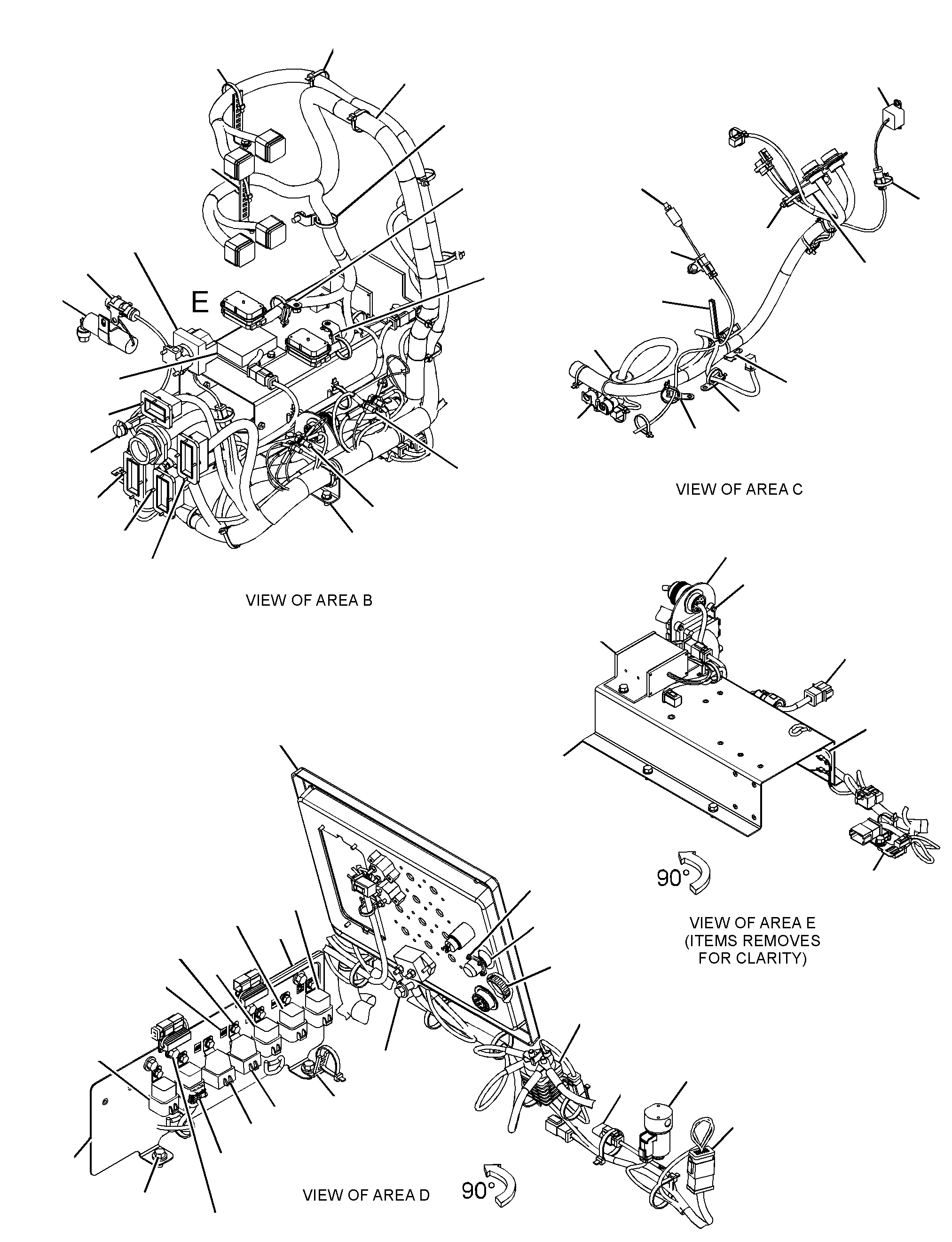

362-2152 WIRING GP-CABS/N 6HK1-UP
Group No: 362-2152
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E0109 | 1 PLUG (ROCKER SWITCH) | 1 | |
| 3E0462 | 2 CONTROL GP-ENGINE ELECTRONIC | 1 | |
| 3E5239 | 3 RELAY AS (24-VOLT)(WINDOW WIPER) | 1 | |
| 3E5239 | 3A RELAY AS (24-VOLT)(HEADLIGHT, HIGH BEAM) | 1 | |
| 3E5239 | 3B RELAY AS (24-VOLT)(BRAKE RELEASE) | 1 | |
| 3E5239 | 3C RELAY AS (24-VOLT)(SEAT BELT) | 1 | |
| 3E6328 | 4 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 3E6389 | 5 LAMP GP-DOME (24-VOLT) | 1 | |
| 6B4540 | 6 NUT (4-40-THD) | 4 | |
| 6D3033 | 7 SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 6V9497 | 8 WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 7S7147 | 9 STUD (3/8-24, 3/8-16X1.5-IN) | 4 | |
| 8C6354 | 10 CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 8D9537 | 11 CAP-DUST | 1 | |
| 9D4068 | 12 SWITCH-PUSH BUTTON (DOME LIGHT) | 1 | |
| 9F8125 | 13 LOCKWASHER | 2 | |
| 9G9154 | 14 CLIP | 2 | |
| 9R7935 | 15 WASHER-SHOULDER (18.5X27X2-MM THK) | 2 | |
| 9R7941 | 16 SOCKET AS | 1 | |
| 9R7980 | COVER | 1 | |
| 9X3495 | 17 CLIP AS | 1 | |
| 1034977 | 18 SWITCH AS-PRESSURE (RETARDER) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1080358 | 19 FLASHER AS (24-VOLT) | 1 | |
| 1119563 | 20 SWITCH AS-PRESSURE (SERVICE BRAKE) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1160118 | 21 CLIP | 1 | |
| 1246704 | 22 RESISTOR AS (ETHER SOLENOID LOAD) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 5P6008 | TUBE-HEAT SHRINK (6.35-MM DIA)(0.1-M) | ||
| 8C3334 | RIVET-TUBULAR | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1415746 | 23 SENSOR GP-PRESSURE (AIR SYSTEM) | 1 | |
| 1558828 | 24 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 3 | |
| 7T1099 | LINK | 4 | |
| 9D6621 | NUT-WELD (10-24-THD) | 6 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 7 | |
| 1636088 | 25 MODULE AS (INTERMITTENT WIPER) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1645393 | 26 PLUG AS-CONNECTOR (SPLICE) | 1 | |
| 1850008 | 27 VALVE GP-SOLENOID (24-VOLT)(AIR HORN) | 1 | |
| 1893158 | 28 SUPPRESSOR-ARC | 1 | |
| 2024781 | 29 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 7T1099 | LINK | 2 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 9 | |
| 2219576 | 30 VALVE GP-SOLENOID (24-VOLT) | 1 | |
| 2219577 | COIL AS (24-VOLT) | 1 | |
| 5D5569 | CONNECTOR | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 2309202 | 31 HARNESS AS-WIRING (VIMS TELEMETRY) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 4 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 5 | |
| 8T8737 | PLUG-SEAL | 3 | |
| 9G3670 | HOUSING-PLUG | 1 | |
| 9G3676 | HOUSING-RECEPTACLE | 1 | |
| 9G3695 | PLUG-SEAL | 8 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 2364631 | 32 BEZEL | 5 | |
| 4436362 | 33 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 2418368 | 34 SWITCH GP-MAGNETIC (24-VOLT) | 1 | |
| 2428903 | 35 SWITCH AS-PRESSURE (PARKING BRAKE) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1386 | SLEEVE (25-CM) | ||
| 3464855 | 36 HARNESS AS-CONTROL | 1 | |
| 3464861 | 37 BRACKET | 2 | |
| 3464862 | 38 BRACKET | 1 | |
| 3514429 | 39 HARNESS AS-CONTROL (ECM) | 1 | |
| 3519848 | 40 FILM-IDENTIFICATION (OPERATOR CONTROLS) | 1 | |
| 3622151 | 41 PANEL GP-CIRCUIT BREAKER | 1 | |
| 3622157 | 42 HARNESS AS-CAB | 1 | |
| 1146658 | 43 WASHER (6.5X17X1-MM THK) | 4 | |
| 1268448 | 44 SCREW-FLAT HEAD (6-20X1.5-IN) | 3 | |
| 1305300 | 45 CLIP | 6 | |
| 1474531 | 46 BOLT-SOCKET HEAD (10-24X0.37-IN) | 2 | |
| 1705632 | 47 BOLT (M4X0.7X16-MM) | 16 | |
| 1860815 | 48 BOLT (M6X1X20-MM) | 8 | |
| 1V6688 | 49 GROMMET | 1 | |
| 2290775 | 50 SWITCH AS-ROCKER (24-VOLT)(HEADLIGHT) | 1 | |
| 2313930 | 51 RELAY AS (24-VOLT)(POWER WINDOW) | 2 | |
| 2364616 | 52 SWITCH AS-ROCKER (24-VOLT)(HAZARD LIGHT) | 1 | |
| 2726641 | 53 LAMP GP-FLOOD (24-VOLT) | 1 | |
| 2771873 | 54 CLIP (LADDER) | 2 | |
| 3470801 | 55 SWITCH AS-ROCKER (BACKUP LIGHT) | 1 | |
| 3470802 | 56 SWITCH AS-ROCKER (LADDER LIGHTS) | 1 | |
| 3552906 | 57 SWITCH AS-ROCKER (FOG LIGHT) | 1 | |
| 4B4274 | 58 WASHER (5.5X13X1.2-MM THK) | 2 | |
| 4B5324 | 59 WASHER (3.9X9.6X1.2-MM THK) | 16 | |
| 4M5281 | 60 BOLT (1/4-20X0.75-IN) | 6 | |
| 4P7581 | 61 CLIP (LADDER) | 3 | |
| 4P8134 | 62 CLIP (LADDER) | 4 | |
| 5M3062 | 63 BOLT (3/8-16X0.75-IN) | 24 | |
| 5P1075 | 64 WASHER-HARD (10.2X22.5X3-MM THK) | 7 | |
| 5P7854 | 65 CLIP (LOOP) | 1 | |
| 5P8440 | 66 GROMMET | 1 | |
| 5S7349 | 67 BOLT (1/4-20X0.5-IN) | 7 | |
| 5S7379 | 68 BOLT (3/8-16X0.875-IN) | 2 | |
| 6D3479 | 69 CLIP (LOOP) | 1 | |
| 6V2687 | 70 SCREW-PAN HEAD (10-24X1-IN) | 2 | |
| 6V8183 | 71 NUT-FULL (3/8-24-THD) | 4 | |
| 6V8801 | 72 NUT (3/8-16-THD) | 2 | |
| 7K1181 | 73 STRAP-CABLE | 67 | |
| 7X2536 | 74 BOLT (M8X1.25X14-MM) | 2 | |
| 8T4205 | 75 WASHER-HARD (7.2X14.5X2-MM THK) | 13 | |
| 8T4224 | 76 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4896 | 77 WASHER-HARD (10.2X18.5X2.5-MM THK) | 25 | |
| 9G1307 | 78 GROMMET | 1 | |
| 9G3659 | 79 CLIP | 1 | |
| 9X2045 | 80 SCREW-TRUSS HEAD (M6X1X20-MM) | 4 | |
| 9X2044 | 81 SCREW-TRUSS HEAD (M6X1X16-MM) | 4 | |
| 9X8256 | 82 WASHER (6.6X12X2-MM THK) | 8 | |
| 7X7877 | 83 STRIP-EDGE (11-CM) | ||
| 7X7877 | 83A STRIP-EDGE (25-CM) | ||
| 7X7877 | 83B STRIP-EDGE (25-CM) | ||
| 2469371 | 84 COVER-RELAY | 1 | |
| 2321792 | 85 HORN (24-VOLT TO 12-VOLT) | 1 | |
| 2526949 | 86 BRACKET | 1 | |
| 1179364 | 87 CONTROL GP-RELAY | 1 | |
| 2219578 | KIT-VALVE | 1 |
