System And Components

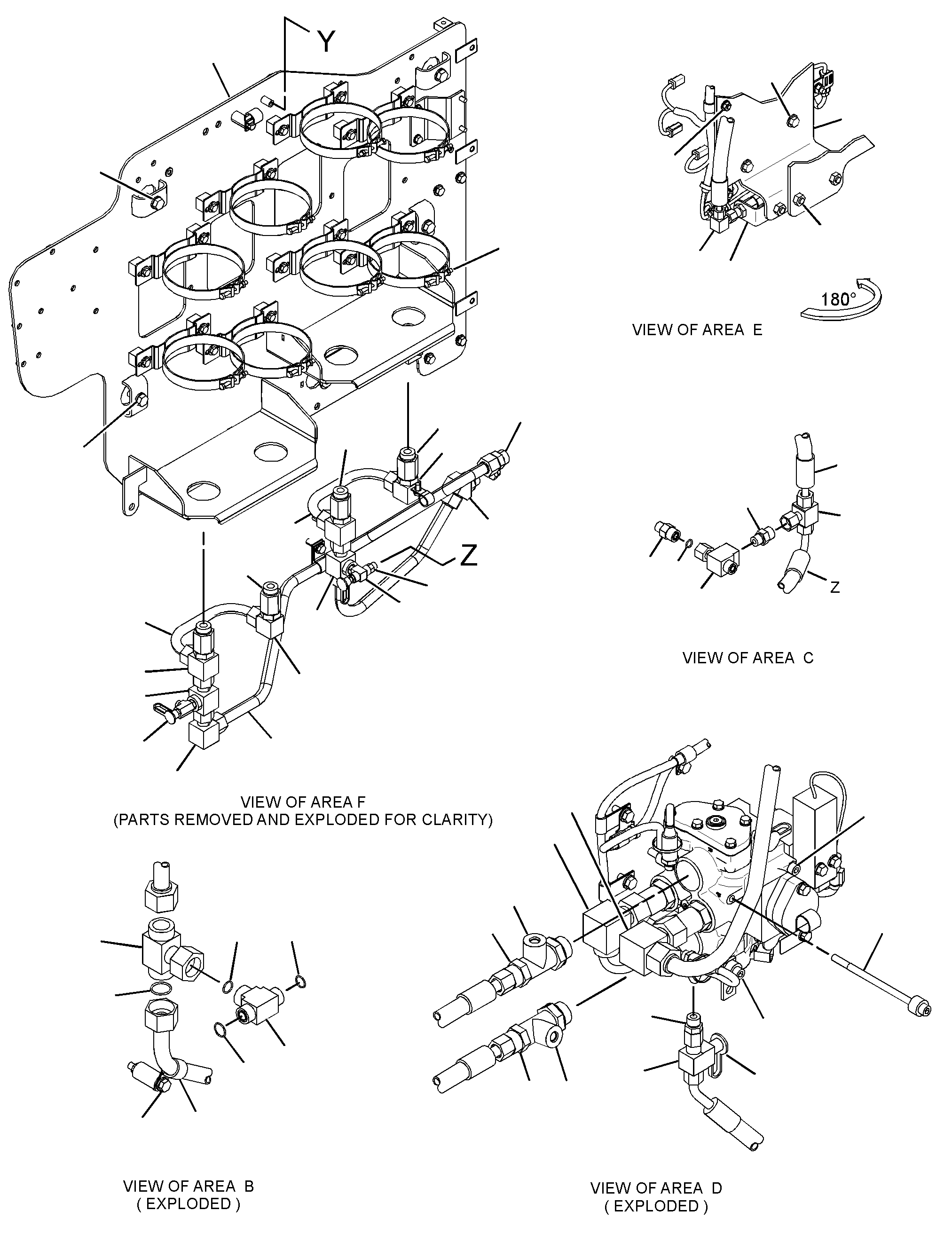

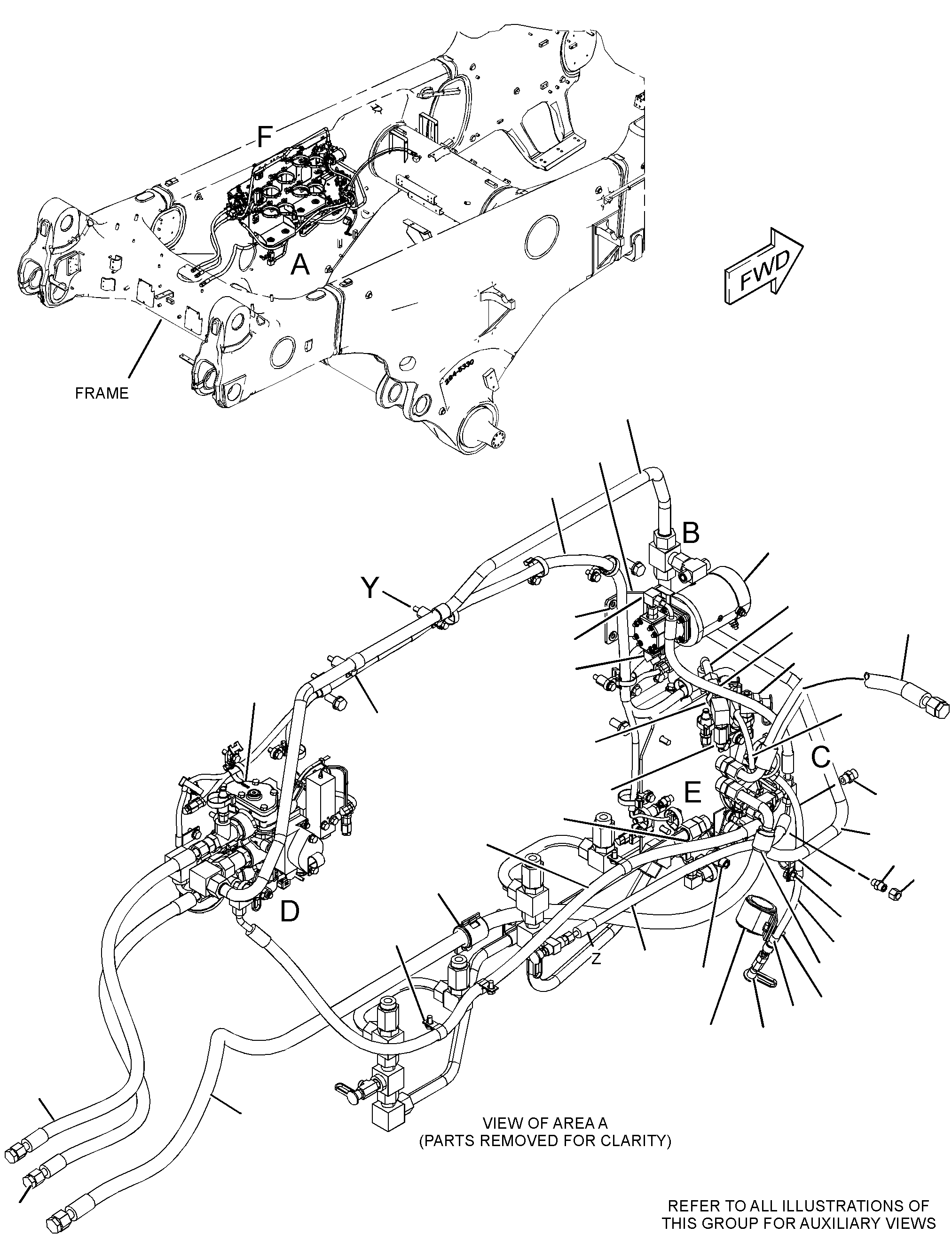

287-1639 CONTROL GP-SERVICE BRAKES/N LTZ1-UP
Group No: 287-1639
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E7407 | 1 TEE-SWIVEL-ORFS | 1 | |
| 5T1060 | 2 PUMP & MOTOR GP-BRAKE RELEASE (PARKING, SECONDARY) | 1 | |
| 3409729 | 3 VALVE GP-CHECK (PILOT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 8C8431 | 4 TEE | 1 | |
| 8C8835 | 5 ADAPTER-BULKHEAD | 1 | |
| 8T8902 | 6 ADAPTER-TEE | 1 | |
| 4655838 | 7 HOSE AS | 1 | |
| 3409727 | 8 VALVE GP-CHECK | 2 | |
| 1563974 | 9 HOSE AS | 2 | |
| 2224744 | 10 VALVE GP-TRACTION CONTROL | 1 | |
| 2773331 | 11 CONTROL GP-SERVICE BRAKE | 1 | |
| 2877268 | 13 CONNECTOR | 1 | |
| 2890729 | 14 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 26 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 8 | |
| 8T3851 | BOSS-WELD (M10X1.5X17.5-MM) | 5 | |
| 8T4935 | BOSS-WELD (M10X1.5X45-MM) | 1 | |
| 8X5147 | BLOCK (M10X1.5-MM) | 2 | |
| 4589901 | 15 CLAMP | 8 | |
| 2934244 | 16 HOSE AS | 1 | |
| 2934251 | 17 HOSE AS | 1 | |
| 4446442 | 18 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 3 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 4319587 | 19 PLATE | 1 | |
| 4339277 | 20 TUBE AS | 1 | |
| 3196220 | 21 ELBOW AS | 2 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3221007 | 22 TUBE AS | 2 | |
| 3328543 | 23 TEE AS | 2 | |
| 7X0871 | TEE | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3353979 | 24 ADAPTER AS | 4 | |
| 8C3051 | ADAPTER | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 4368091 | 25 TUBE AS | 1 | |
| 3363096 | 26 TUBE AS | 1 | |
| 3363097 | 27 TUBE AS | 1 | |
| 3363099 | 28 HOSE AS | 1 | |
| 3397914 | 29 HOSE AS | 1 | |
| 3440992 | 30 PLATE | 1 | |
| 3441011 | 31 HOSE AS | 1 | |
| 1604876 | 33 ELBOW | 1 | |
| 1645567 | 35 COUPLER AS-QUICK DISCONNECT (MALE) | 5 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1833399 | 36 CONNECTOR AS | 3 | |
| 6V8636 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2147568 | 37 SEAL-O-RING | 1 | |
| 2287089 | 38 SEAL-O-RING | 4 | |
| 2287091 | 39 SEAL-O-RING | 3 | |
| 2287092 | 40 SEAL-O-RING | 1 | |
| 2287093 | 41 SEAL-O-RING | 2 | |
| 2385080 | 42 SEAL-O-RING | 2 | |
| 2385082 | 43 SEAL-O-RING | 1 | |
| 2609221 | 44 ELBOW AS | 1 | |
| 9X2085 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2977976 | 45 ELBOW AS | 2 | |
| 6V9850 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3072670 | 46 PLUG AS | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3095137 | 47 CONNECTOR AS | 2 | |
| 6V8635 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3159837 | 48 ELBOW AS | 3 | |
| 6V9854 | ELBOW (SWIVEL) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 3196217 | 49 CONNECTOR AS | 4 | |
| 6V8639 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196219 | 50 ELBOW AS | 1 | |
| 6V9005 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3218653 | 51 CONNECTOR AS | 1 | |
| 8T1687 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3295510 | 52 CONNECTOR AS | 2 | |
| 8T0198 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3295512 | 53 REDUCER AS | 2 | |
| 6V8943 | REDUCER | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 3295514 | 54 TEE AS | 2 | |
| 8T4834 | TEE-SWIVEL-ORFS | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 3295515 | 55 TEE AS | 2 | |
| 6V8785 | TEE | 1 | |
| 2287093 | SEAL-O-RING | 2 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3295521 | 56 TEE AS | 2 | |
| 1096511 | TEE-O-RING | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3353978 | 57 CONNECTOR AS | 2 | |
| 3116686 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3218616 | 58 FITTING AS | 1 | |
| 8X7851 | FITTING-ORIFICE | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 1S0994 | 59 CLIP (LOOP) | 1 | |
| 4D7388 | 60 CLIP | 1 | |
| 4I7889 | 61 SPACER (11X25X45-MM THK) | 2 | |
| 4897251 | 62 BOLT-12 POINT HEAD (M10X1.5X180-MM) | 3 | |
| 5P7466 | 63 CLIP (SLOT) | 1 | |
| 5P7467 | 64 CLIP (TAB) | 1 | |
| 5P8112 | 65 GROMMET | 1 | |
| 5S7379 | 66 BOLT (3/8-16X0.875-IN) | 2 | |
| 6D4244 | 67 CLIP (LOOP) | 4 | |
| 6K5535 | 68 CLIP (SLOT) | 1 | |
| 6K5536 | 69 CLIP (TAB) | 1 | |
| 6V0852 | 70 CAP-DUST | 5 | |
| 6V9168 | 71 NUT (11/16-16-THD) | 1 | |
| 6V9829 | 72 CAP (ORFS) | 1 | |
| 6V9843 | 73 TEE | 1 | |
| 2860693 | 74 SPACER (11X25X18-MM THK) | 2 | |
| 7X7703 | 75 TEE-UNION | 1 | |
| 7X7729 | 76 WASHER (11X25X3-MM THK) | 16 | |
| 8T4121 | 77 WASHER-HARD (11X21X2.5-MM THK) | 15 | |
| 3445675 | 78 NUT (M10X1.5-THD) | 4 | |
| 8T4136 | 79 BOLT (M10X1.5X25-MM) | 19 | |
| 8T4137 | 80 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4139 | 81 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4183 | 82 BOLT (M12X1.75X40-MM) | 2 | |
| 8T4192 | 83 BOLT (M12X1.75X25-MM) | 5 | |
| 8T4223 | 85 WASHER-HARD (13.5X25.5X3-MM THK) | 11 | |
| 8T4779 | 86 BOLT (M16X2X35-MM) | 5 | |
| 8T4896 | 87 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 8T5005 | 88 BOLT (M10X1.5X70-MM) | 3 | |
| 9X2493 | 89 ADAPTER | 1 | |
| 9X8257 | 90 WASHER (17.5X30X3.5-MM THK) | 5 | |
| 4K8864 | 91 CLIP (LOOP) | 2 | |
| 5P7470 | 92 CLIP (SLOT) | 1 | |
| 5P7471 | 93 CLIP (TAB) | 1 | |
| 5P7703 | 94 GROMMET (52-MM ID) | 1 | |
| 8T4186 | 95 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4195 | 96 BOLT (M10X1.5X30-MM) | 1 | |
| 3196245 | 97 ADAPTER AS | 1 | |
| 8T6663 | ADAPTER-PORT | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3866201 | 98 CONNECTOR AS | 1 | |
| 3866200 | ADAPTER | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3884839 | 99 HOSE AS | 1 | |
| 4S1962 | 101 CLIP (LOOP) | 3 | |
| 1790469 | 102 SPACER (11X20X40-MM THK) | 1 | |
| 3526499 | 103 TEE AS | 1 | |
| 1266872 | TEE | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 |
