System And Components

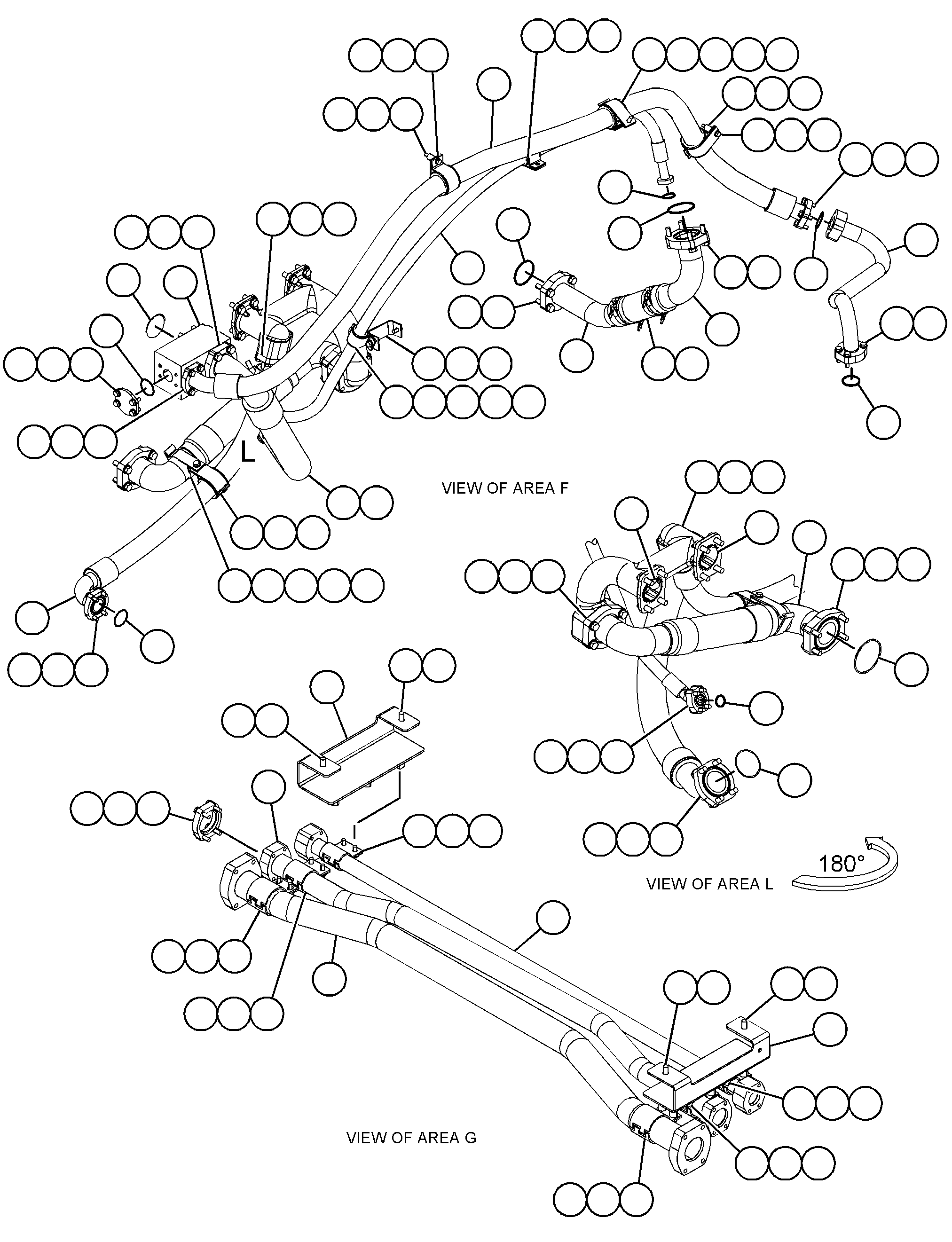

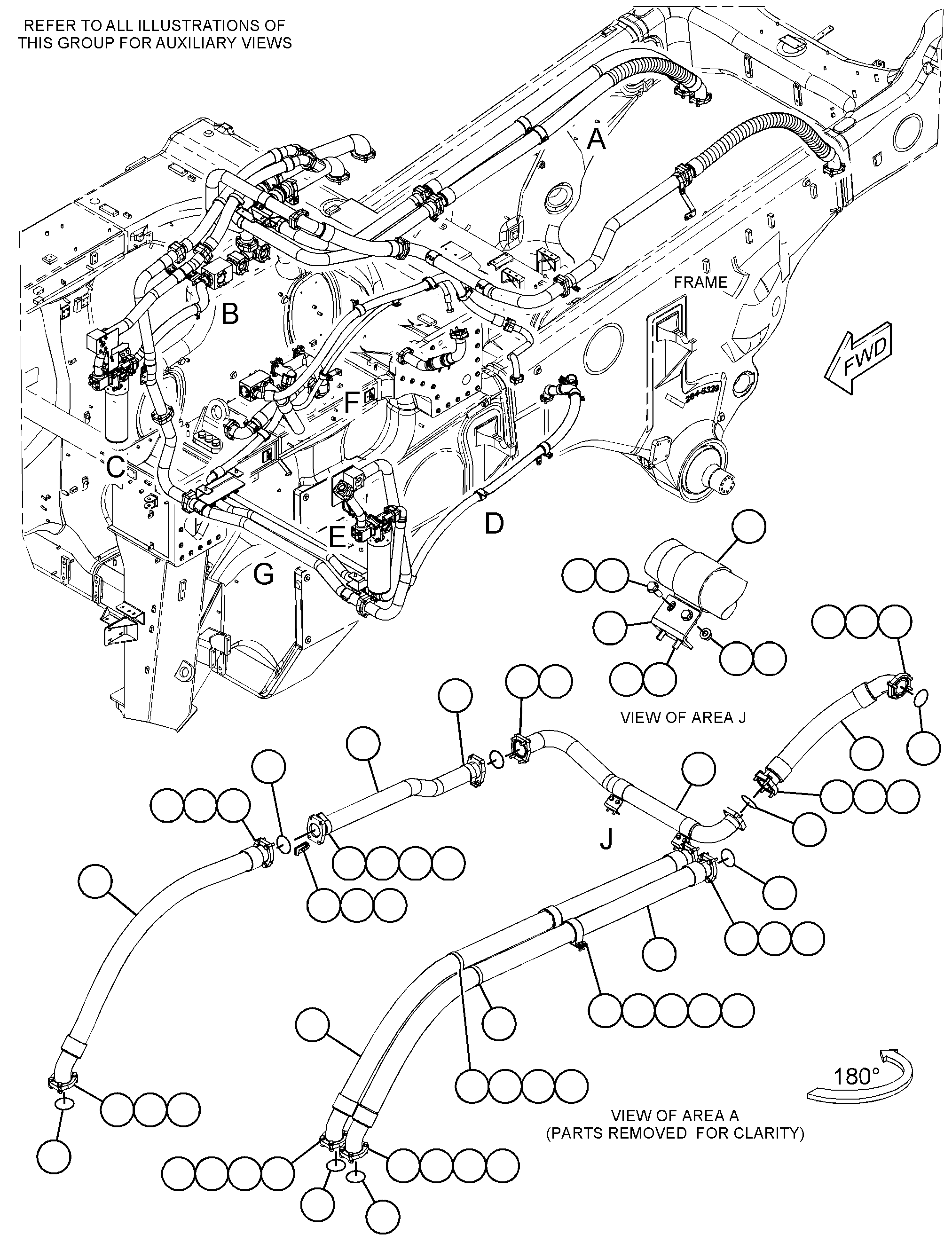

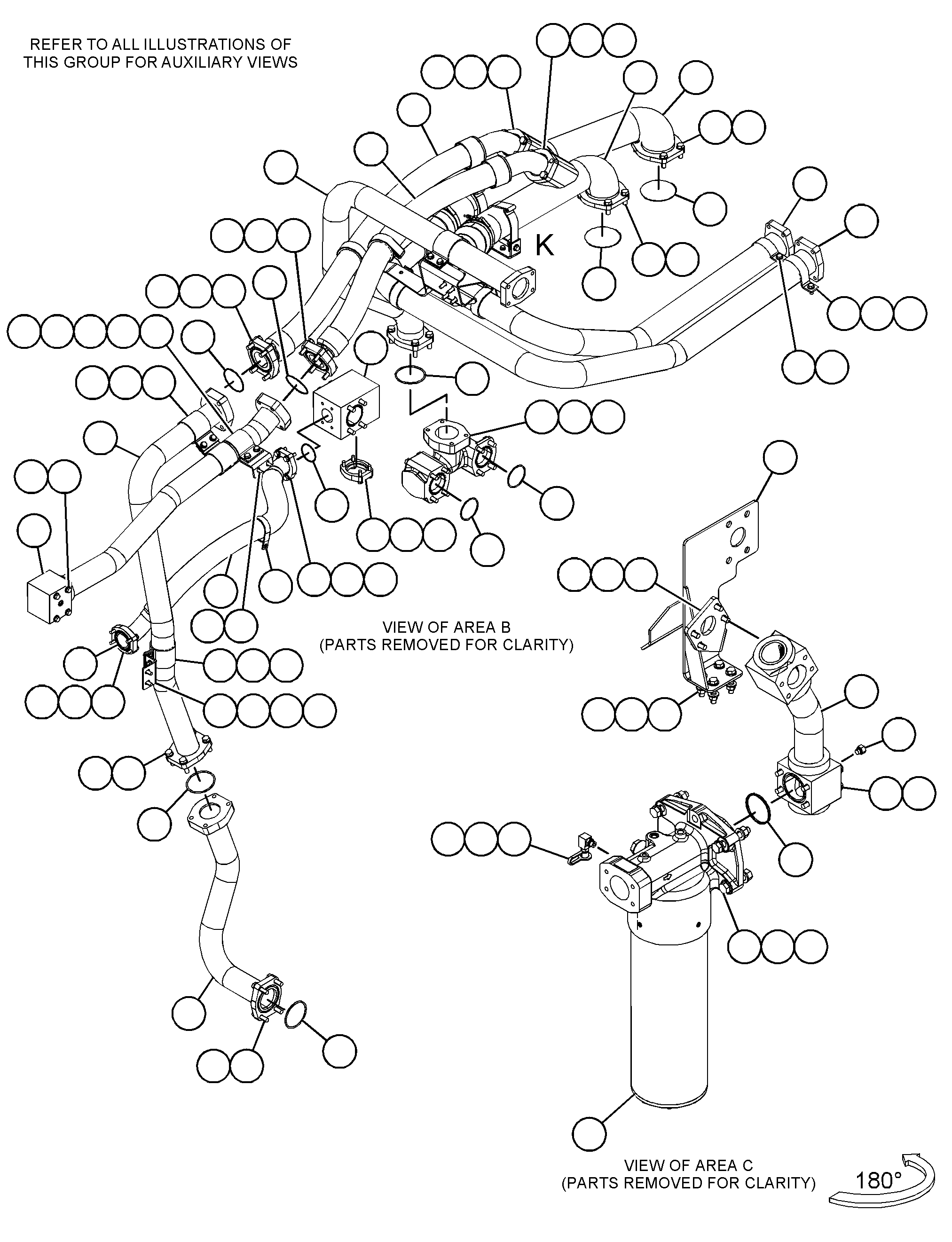

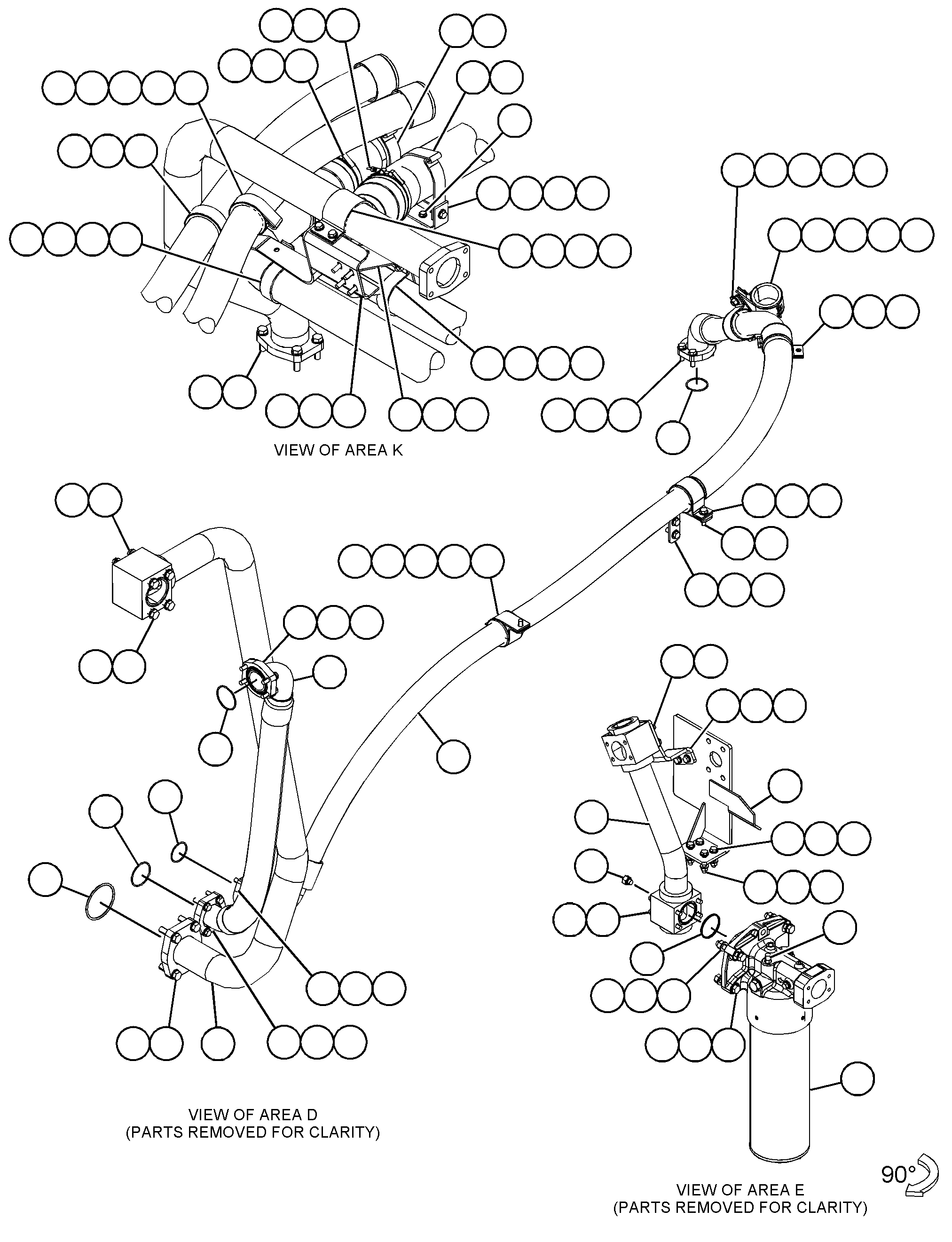

383-8858 LINES GP-OIL COOLER -EXTRA RETARDINGS/N LTZ163-UP
Group No: 383-8858
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1358575 | 1 BOLT AS | 23 | |
| 1358577 | 2 BOLT AS | 4 | |
| 1358578 | 3 BOLT AS | 8 | |
| 1564009 | 4 CLAMP | 1 | |
| 1564010 | 5 CLAMP | 1 | |
| 1576285 | 6 HOSE | 1 | |
| 1925805 | 7 BRACKET AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 2167557 | 8 CLIP | 2 | |
| 2167558 | 9 CLIP | 2 | |
| 2352482 | 10 SEAL-RECTANGULAR | 2 | |
| 2443712 | 11 PLUG AS | 2 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2532673 | 12 SWITCH GP-PRESSURE (FILTER BYPASS) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 5F9144 | SEAL-O-RING | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE (14-CM) | ||
| 2903746 | 13 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2903747 | 14 TUBE AS | 1 | |
| 2904049 | 15 TUBE AS | 1 | |
| 2904199 | 16 MANIFOLD | 1 | |
| 2904200 | 17 MANIFOLD | 1 | |
| 2904215 | 18 HOSE AS | 1 | |
| 2904635 | 19 TUBE AS | 1 | |
| 2904636 | 20 TUBE AS | 1 | |
| 2924377 | 21 BRACKET AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 2933028 | 22 BRACKET AS | 1 | |
| 2958037 | 23 PLATE | 4 | |
| 3053368 | 24 MANIFOLD | 1 | |
| 3053371 | 25 MANIFOLD | 1 | |
| 3054473 | 26 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 3054483 | 27 HOSE AS | 1 | |
| 3066870 | 28 PLATE | 1 | |
| 3221166 | 29 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 3367244 | 30 HOSE AS | 1 | |
| 3399703 | 31 FILTER GP-OIL (BRAKE COOLING) | 2 | |
| 3419014 | 32 TUBE AS | 1 | |
| 3419016 | 33 HOSE AS | 1 | |
| 3430749 | 34 HOSE AS | 1 | |
| 3430820 | 35 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 3555225 | 36 HOSE AS | 1 | |
| 3726436 | 37 TUBE AS | 1 | |
| 3726437 | 38 TUBE AS | 1 | |
| 3726438 | 39 TUBE AS | 1 | |
| 3726439 | 40 HOSE AS | 1 | |
| 3796728 | 41 HOSE AS | 1 | |
| 3796729 | 42 HOSE AS | 1 | |
| 3838877 | 43 TUBE AS | 1 | |
| 3838878 | 44 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 3838879 | 45 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 3838883 | 46 PLATE | 1 | |
| 3838885 | 47 PLATE | 1 | |
| 3845432 | 48 TUBE AS | 1 | |
| 3883574 | 49 HOSE AS | 1 | |
| 4487561 | 50 HOSE AS | 1 | |
| 4513096 | 51 HOSE AS | 1 | |
| 4513097 | 52 PLATE AS | 1 | |
| 4544760 | 53 TUBE AS | 1 | |
| 4544761 | 54 HOSE AS | 1 | |
| 4903754 | 55 HOSE | 2 | |
| 4913927 | 56 BOLT-FLANGE HEAD (M16X2X120-MM) | 4 | |
| 5112377 | 57 HOSE AS | 1 | |
| 5112378 | 58 HOSE AS | 1 | |
| 5112379 | 59 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 0990169 | 60 BOLT (M16X2X55-MM) | 4 | |
| 1065125 | 61 CLIP (SLOT) | 1 | |
| 1065126 | 62 CLIP (TAB) | 1 | |
| 1274833 | 63 CLIP (LOOP) | 2 | |
| 1308433 | 64 GROMMET | 3 | |
| 1361122 | 65 SPACER (13.8X25X10-MM THK) | 1 | |
| 1565744 | 66 CLAMP-HALF | 12 | |
| 1565745 | 67 CLAMP-HALF | 6 | |
| 1576199 | 68 GROMMET | 2 | |
| 1600012 | 69 CLIP (SLOT) | 1 | |
| 1600013 | 70 CLIP (TAB) | 1 | |
| 1P4582 | 71 FLANGE-HALF | 12 | |
| 1P4584 | 72 FLANGE-HALF | 12 | |
| 1P4585 | 73 FLANGE-HALF | 8 | |
| 1P7016 | 74 FLANGE-HALF | 8 | |
| 1P7017 | 75 FLANGE-HALF | 16 | |
| 2094582 | 76 CLAMP-T BOLT | 4 | |
| 2183258 | 77 GROMMET | 2 | |
| 2260087 | 78 CLAMP-T BOLT | 4 | |
| 2303671 | 79 CLAMP-T BOLT | 4 | |
| 2352474 | 80 SEAL-RECTANGULAR | 1 | |
| 2352475 | 81 SEAL-RECTANGULAR | 1 | |
| 2352478 | 82 SEAL-RECTANGULAR | 1 | |
| 2935974 | 83 TUBE AS | 1 | |
| 2V0600 | 84 CLAMP-HALF | 4 | |
| 3023908 | 85 SPACER (11X20X30-MM THK) | 1 | |
| 3054477 | 86 TUBE AS | 1 | |
| 3054478 | 87 TUBE AS | 1 | |
| 3218649 | 88 VALVE AS-FLUID SAMPLING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3293356 | 89 NUT (M12X1.75-THD) | 26 | |
| 3309764 | 90 ELBOW AS | 1 | |
| 8C6712 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3363200 | 91 TUBE AS | 1 | |
| 3363201 | 92 TUBE AS | 1 | |
| 3424461 | 93 TUBE AS | 1 | |
| 3424462 | 94 TUBE AS | 1 | |
| 3445675 | 95 NUT (M10X1.5-THD) | 1 | |
| 3838876 | 96 TUBE AS | 1 | |
| 3J2903 | 97 COVER | 1 | |
| 4513094 | 98 TUBE AS | 1 | |
| 4792172 | 99 BOLT AS | 3 | |
| 5P1076 | 100 WASHER-HARD (13.5X30X4-MM THK) | 16 | |
| 5P7468 | 101 CLIP (SLOT) | 3 | |
| 5P7469 | 102 CLIP (TAB) | 3 | |
| 5P8444 | 103 GROMMET (37-MM ID) | 3 | |
| 5P9371 | 104 SEAL-RECTANGULAR | 2 | |
| 5S9134 | 105 SEAL-O-RING | 1 | |
| 5T6374 | 106 SPACER (11X20X40-MM THK) | 1 | |
| 6V0400 | 107 FLANGE-HALF | 2 | |
| 6V1195 | 108 SEAL-O-RING | 2 | |
| 6V1197 | 109 SEAL-O-RING | 4 | |
| 6V1867 | 110 CLIP (SLOT) | 8 | |
| 6V1868 | 111 CLIP (TAB) | 8 | |
| 6V1869 | 112 GROMMET (65-MM ID) | 8 | |
| 6V1875 | 113 GROMMET | 1 | |
| 6V4356 | 114 CLIP (SLOT) | 7 | |
| 6V4357 | 115 CLIP (TAB) | 7 | |
| 6V4590 | 116 SEAL-O-RING | 7 | |
| 6V5052 | 117 SEAL-O-RING | 3 | |
| 6V5101 | 118 SEAL-O-RING | 2 | |
| 6V5386 | 119 CLIP | 1 | |
| 6V6782 | 120 CLIP (SLOT) | 5 | |
| 6V6783 | 121 CLIP (TAB) | 5 | |
| 6V8001 | 122 SEAL-O-RING | 10 | |
| 6V8521 | 123 CLAMP-HALF | 4 | |
| 6V9832 | 124 CAP (ORFS) | 1 | |
| 7W2033 | 125 CLIP (TAB) | 2 | |
| 7W2034 | 126 CLIP (SLOT) | 2 | |
| 7X2549 | 127 BOLT (M12X1.75X100-MM) | 1 | |
| 7X2555 | 128 BOLT (M16X2X80-MM) | 4 | |
| 7X2556 | 129 BOLT (M16X2X100-MM) | 4 | |
| 7X2558 | 130 BOLT (M16X2X150-MM) | 6 | |
| 8C3451 | 131 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 8T0568 | 132 SEAL-O-RING | 6 | |
| 8T4121 | 133 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4132 | 134 NUT (M16X2-THD) | 8 | |
| 8T4139 | 135 BOLT (M12X1.75X30-MM) | 29 | |
| 8T4140 | 136 BOLT (M16X2X60-MM) | 76 | |
| 8T4183 | 137 BOLT (M12X1.75X40-MM) | 17 | |
| 8T4184 | 138 BOLT (M12X1.75X45-MM) | 39 | |
| 8T4192 | 139 BOLT (M12X1.75X25-MM) | 1 | |
| 8T4193 | 140 BOLT (M16X2X50-MM) | 15 | |
| 8T4194 | 141 BOLT (M12X1.75X50-MM) | 22 | |
| 8T4223 | 142 WASHER-HARD (13.5X25.5X3-MM THK) | 140 | |
| 8T4648 | 143 BOLT (M12X1.75X70-MM) | 2 | |
| 8T4779 | 144 BOLT (M16X2X35-MM) | 4 | |
| 8T4910 | 145 BOLT (M12X1.75X60-MM) | 6 | |
| 8T4956 | 146 BOLT (M12X1.75X35-MM) | 5 | |
| 8T5005 | 147 BOLT (M10X1.5X70-MM) | 1 | |
| 8T5041 | 148 BOLT (M12X1.75X120-MM) | 8 | |
| 8T6385 | 149 BOLT (M16X2X180-MM) | 8 | |
| 8T6466 | 150 BOLT (M10X1.5X60-MM) | 1 | |
| 8T7338 | 151 BOLT (M16X2X45-MM) | 10 | |
| 8T9527 | 152 SEAL-O-RING | 8 | |
| 9X7456 | 153 GROMMET | 1 | |
| 9X8257 | 154 WASHER (17.5X30X3.5-MM THK) | 139 |
