System And Components

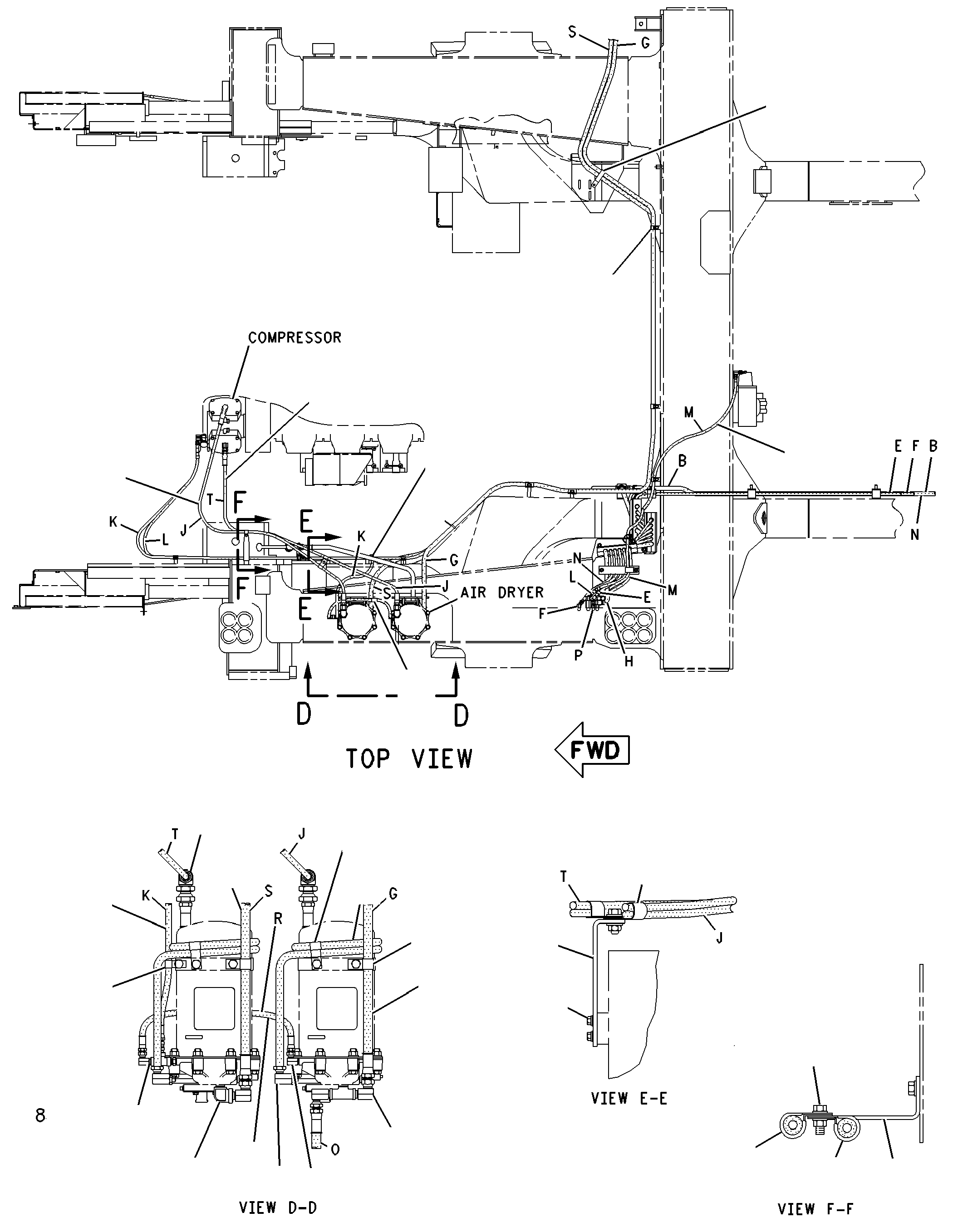

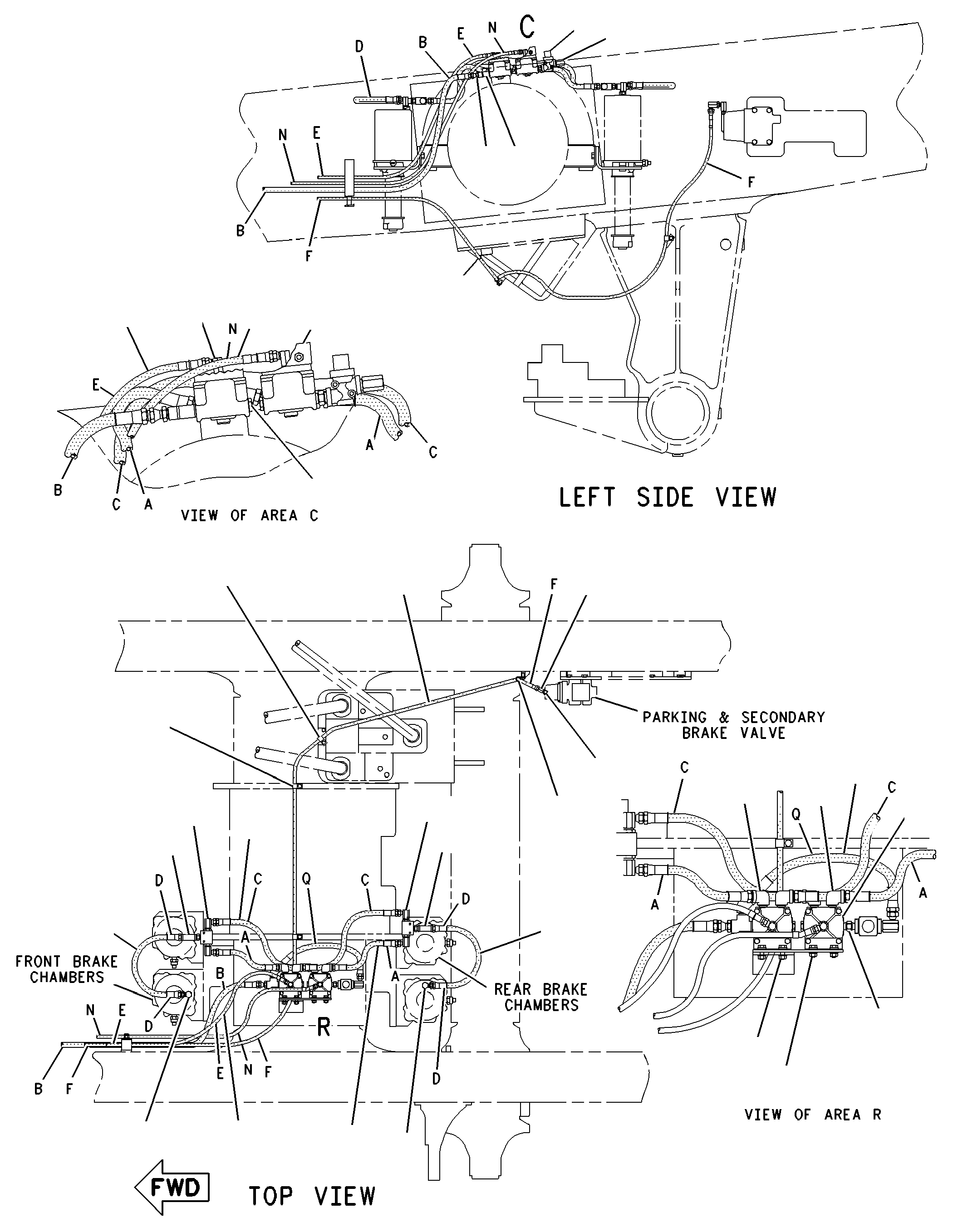

154-3753 CONTROL GP-SERVICE BRAKE -CHASSISS/N 4AR1-UP
Group No: 154-3753
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2H9091 | 1 CONNECTOR-PIPE | 2 | |
| 2D8928 | 2 HOSE AS | 1 | |
| 8D9423 | 3 COUPLING | 2 | |
| 4D4917 | 4 TEE | 1 | |
| 1264503 | 5 HOSE AS | 1 | |
| 3B6552 | 6 ELBOW-PIPE | 2 | |
| 0070950 | 7 ADAPTER-PIPE | 3 | |
| 8X6262 | 8 HOSE AS | 2 | |
| 5H4778 | 9 ELBOW | 4 | |
| 1595149 | 10 VALVE GP-RELAY (BRAKE AIR) | 2 | |
| 9M8406 | 11 CLIP (LOOP) | 7 | |
| 8X6263 | 12 HOSE AS | 3 | |
| 2H3940 | 13 ELBOW | 8 | |
| 0332177 | 14 TEE-PIPE | 3 | |
| 4D2560 | 15 CONNECTOR-PIPE | 1 | |
| 0026453 | 16 ELBOW | 6 | |
| 3J5389 | 17 PLUG (EXTERNAL) | 2 | |
| 8T4136 | 18 BOLT (M10X1.5X25-MM) | 8 | |
| 8T4121 | 19 WASHER-HARD (11X21X2.5-MM THK) | 27 | |
| 8T4133 | 20 NUT (M10X1.5-THD) | 5 | |
| 1264034 | 21 HOSE AS | 1 | |
| 4S7606 | 22 ELBOW | 2 | |
| 1573245 | 23 HOSE AS | 2 | |
| 4K8302 | 25 CLIP (LOOP) | 2 | |
| 7D3494 | 26 HOSE AS | 2 | |
| 6V3668 | 27 BOLT (M12X1.75X30-MM) | 2 | |
| 6D4244 | 28 CLIP (LOOP) | 1 | |
| 8X5379 | 29 SPACER (12.52X17.14X40-MM THK) | 16 | |
| 1263950 | 30 CLAMP | 8 | |
| 1259477 | 31 PLATE | 8 | |
| 8T4223 | 32 WASHER-HARD (13.5X25.5X3-MM THK) | 19 | |
| 8T4244 | 33 NUT (M12X1.75-THD) | 17 | |
| 5P4426 | 35 ELBOW-AIR BRAKE | 2 | |
| 5P4431 | 36 ELBOW-AIR BRAKE | 2 | |
| 3D8928 | 37 HOSE AS | 1 | |
| 0026454 | 38 CONNECTOR | 4 | |
| 7D5206 | 39 CAP-DUST | 1 | |
| 7D5207 | 40 PLUG | 1 | |
| 7D5208 | 41 FITTING (QUICK DISCONNECT, FEMALE) | 1 | |
| 5T9733 | 42 BRACKET | 1 | |
| 1263951 | 44 CLAMP | 8 | |
| 2P4439 | 45 ADAPTER | 1 | |
| 8T4137 | 47 BOLT (M10X1.5X20-MM) | 7 | |
| 9D1829 | 48 CLIP | 1 | |
| 1644228 | 49 CLIP | 3 | |
| 0060210 | 50 TEE-PIPE | 1 | |
| 8T4195 | 51 BOLT (M10X1.5X30-MM) | 5 | |
| 3G5587 | 52 HOSE AS | 2 | |
| 1361715 | 53 PLATE | 1 | |
| 1476277 | 56 VALVE GP-CHECK (BRAKE AIR RELAY) | 2 | |
| 2G6305 | 57 HOSE AS | 1 | |
| 4S7570 | 58 HOSE AS | 1 | |
| 7K1181 | 59 STRAP-CABLE | 1 | |
| 8X8340 | 60 BRACKET | 1 | |
| 4S7571 | 61 HOSE AS | 1 | |
| 2N7308 | 63 CONNECTOR-PIPE | 4 | |
| 0007244 | 65 ELBOW | 1 | |
| 1539540 | 66 VALVE (BRAKE AIR SYSTEM) | 1 | |
| 5L5502 | 67 FITTING | 1 | |
| 1572397 | 68 TUBE | 2 | |
| 1578436 | 69 HOSE AS | 1 | |
| 1578435 | 70 HOSE AS | 1 | |
| 8T7529 | 71 CLIP | 4 | |
| 7D0477 | 72 ELBOW | 2 | |
| 5K8451 | 73 CLIP (LOOP) | 2 | |
| 7D2629 | 74 HOSE AS | 1 | |
| 4M8973 | 75 ELBOW | 1 | |
| 5M3062 | 76 BOLT (3/8-16X0.75-IN) | 2 | |
| 1640228 | 77 ELBOW | 1 | |
| 1609873 | 78 BRACKET | 1 | |
| 1P7009 | 79 CLIP | 2 | |
| 1644225 | 80 CLIP | 2 | |
| 4D0124 | 81 ELBOW | 1 | |
| 4H6147 | 82 CONNECTOR | 1 | |
| 5P8998 | 83 FITTING | 1 | |
| 6K6967 | 84 ADAPTER-PIPE | 1 | |
| 1309984 | 85 CLIP (LOOP) | 3 | |
| 4D6988 | 86 CLIP | 2 | |
| 1644227 | 87 CLIP | 2 | |
| 1644226 | 88 CLIP | 1 | |
| 6K8178 | 89 CLIP (LOOP) | 1 | |
| 1423439 | KIT-SEAL & VALVE (BRAKE AIR RELAY)(SERVICE BRAKE CONTROL) | 1 |
