System And Components

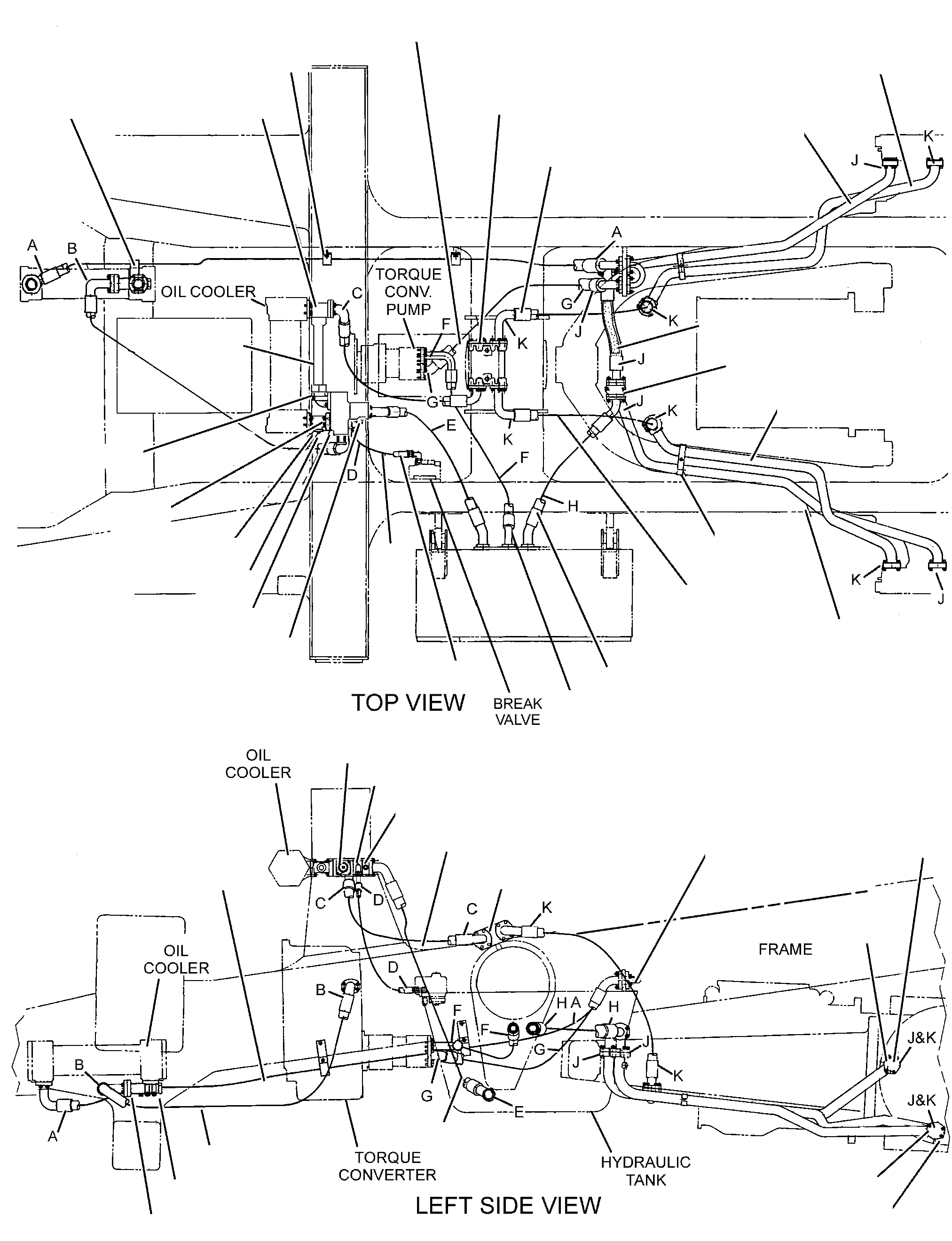

129-4927 LINES GP-HYDRAULIC OIL COOLERS/N 5ER1-UP
Group No: 129-4927
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8W3291 | 1 HOSE AS | 1 | |
| 4J0527 | 2 SEAL-O-RING | 29 | |
| 1P4582 | 3 FLANGE-HALF | 38 | |
| 5P2566 | 4 BOLT (1/2-13X1.5-IN) | 80 | |
| 8T4223 | 5 WASHER-HARD (13.5X25.5X3-MM THK) | 108 | |
| 1047658 | 6 ELBOW | 1 | |
| 6F8146 | 7 SEAL-O-RING | 2 | |
| 9S4182 | 8 PLUG (7/16-20-THD) | 1 | |
| 6E6640 | 9 SCREEN AS (HYDRAULIC OIL) | 1 | |
| 9T1460 | 10 SCREEN | 1 | |
| 5P7470 | 11 CLIP (SLOT) | 2 | |
| 5P7471 | 12 CLIP (TAB) | 2 | |
| 3E8026 | 13 CLIP (SLOT) | 1 | |
| 1549001 | 14 HOSE AS (50.8MM ID) | 1 | |
| 5T7949 | 15 HOSE AS | 1 | |
| 1050170 | 16 VALVE GP-DIVERTER (OIL COOLER) | 1 | |
| 8W0959 | 17 HOSE AS | 1 | |
| 5T5533 | 18 MANIFOLD | 1 | |
| 6K6307 | 19 SEAL-O-RING | 1 | |
| 8T4835 | 20 BOLT (1/2-13X2-IN) | 8 | |
| 8W5566 | 21 ADAPTER | 1 | |
| 6V8801 | 23 NUT (3/8-16-THD) | 2 | |
| 5T6742 | 24 ELBOW | 1 | |
| 7X0331 | 25 BOLT (1/2-13X4.25-IN) | 2 | |
| 5T0017 | 26 ELBOW | 1 | |
| 5T9030 | 27 TUBE | 1 | |
| 1092332 | 28 SEAL-O-RING | 2 | |
| 5T6778 | 29 MANIFOLD | 1 | |
| 9S4183 | 30 PLUG (1-1/16-12-THD) | 1 | |
| 3D2824 | 31 SEAL-O-RING | 2 | |
| 2G6104 | 32 TUBE AS | 1 | |
| 8G0423 | 33 PLATE | 2 | |
| 3J2903 | 34 COVER | 1 | |
| 7X0772 | 35 WASHER-HARD (10.2X25.5X2.5-MM THK) | 4 | |
| 8W0958 | 36 HOSE AS | 2 | |
| 1196709 | 37 TUBE AS | 1 | |
| 4J0528 | 38 SEAL-O-RING | 4 | |
| 8T2502 | 39 BOLT (3/8-16X1.125-IN) | 2 | |
| 8T9391 | 40 BOLT (1/2-13X3.75-IN) | 8 | |
| 8C4436 | 41 BOLT (1/2-13X1.375-IN) | 2 | |
| 8W3292 | 43 HOSE AS | 1 | |
| 5C6565 | 44 BOLT (1/2-13X1.125-IN) | 4 | |
| 1196707 | 45 TUBE AS | 1 | |
| 6D8305 | 46 CLAMP | 4 | |
| 7X0584 | 47 WASHER-HARD (13.5X20.5X2-MM THK) | 12 | |
| 8T6684 | 48 ELBOW | 1 | |
| 8W3290 | 49 HOSE AS | 1 | |
| 8W3289 | 50 HOSE AS | 1 | |
| 1196706 | 51 TUBE AS | 1 | |
| 7X0334 | 52 BOLT (1/2-13X5-IN) | 4 | |
| 3J1907 | 53 SEAL-O-RING | 1 | |
| 9S4191 | 54 PLUG (9/16-18-THD) | 1 | |
| 1196708 | 55 TUBE AS | 1 | |
| 8T0198 | 56 CONNECTOR | 1 | |
| 7M8485 | 57 SEAL-O-RING | 1 | |
| 2A6780 | 58 HOSE AS | 1 | |
| 6G1444 | 59 ADAPTER | 1 | |
| 1P3707 | 60 SEAL-RECTANGULAR | 1 | |
| 8W4431 | 61 HOSE AS | 1 | |
| 2G2213 | 62 TEE | 1 | |
| 8T8919 | 63 BOLT (1/2-13X1.75-IN) | 16 | |
| 1N5998 | 64 PLUG | 1 | |
| 3J7354 | 65 SEAL-O-RING | 1 | |
| 3E8027 | 66 CLIP (TAB) | 1 | |
| 5K9090 | 67 SEAL-O-RING | 2 | |
| 3H7654 | 68 WASHER-HARD (13.5X22.5X3-MM THK) | 4 |
