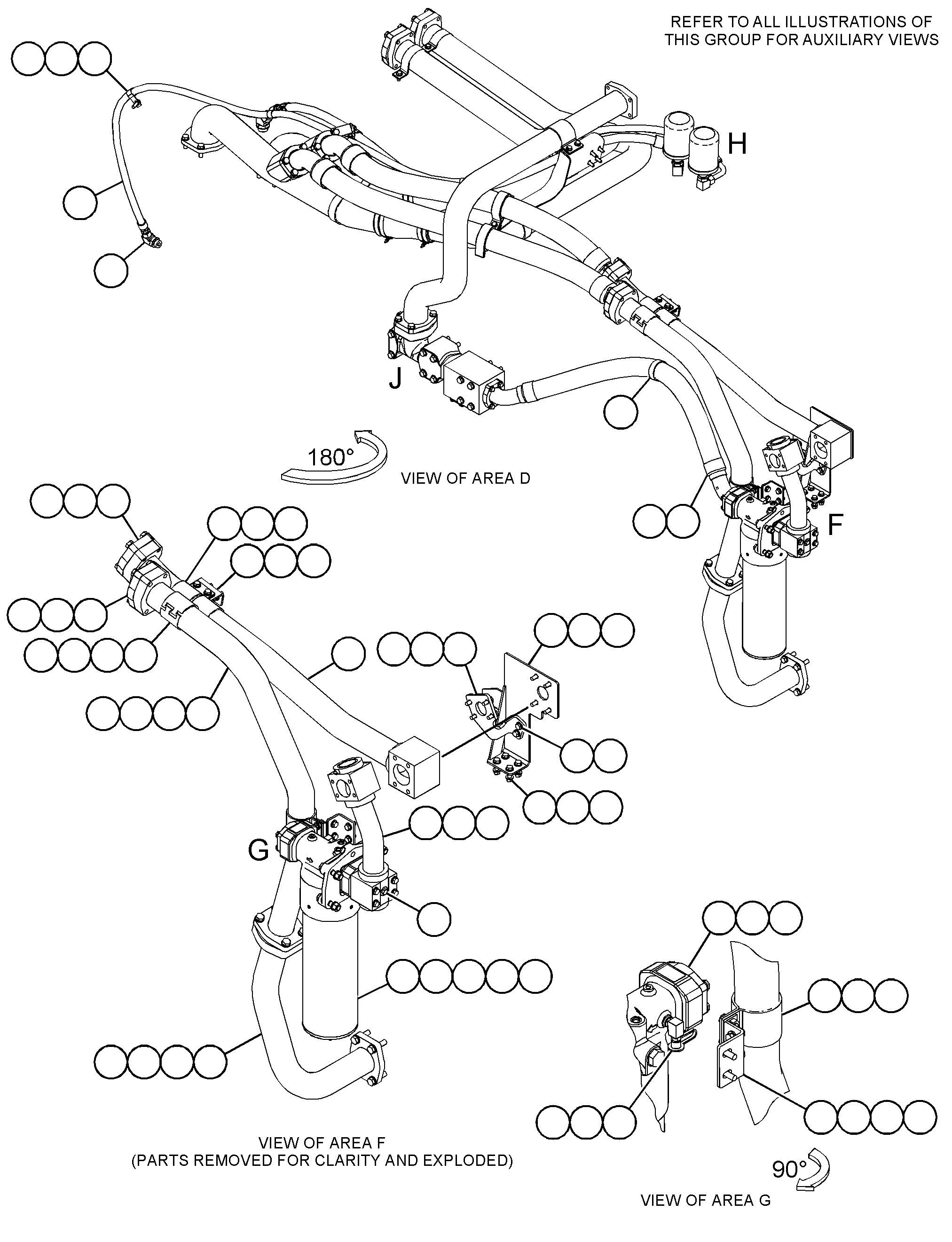

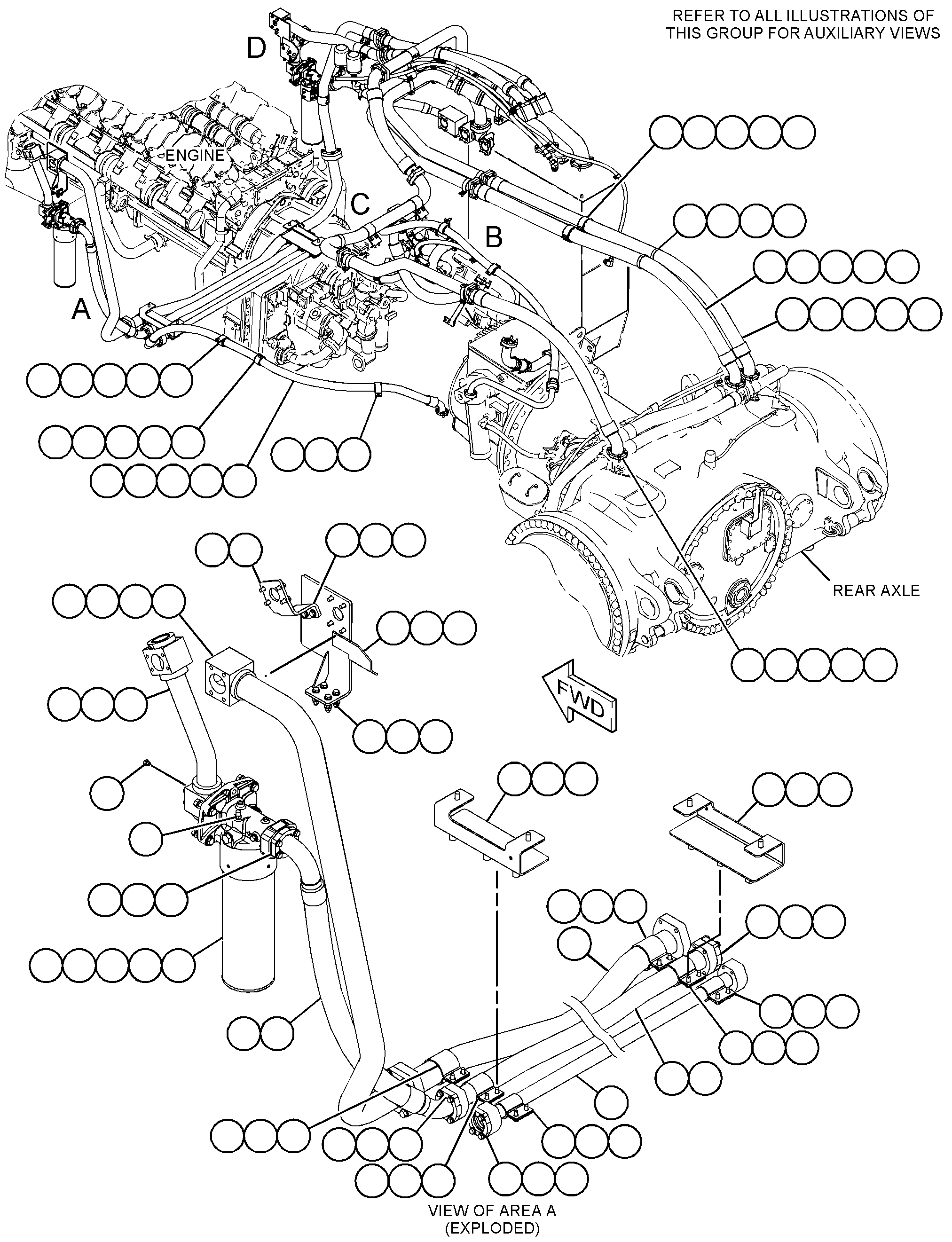

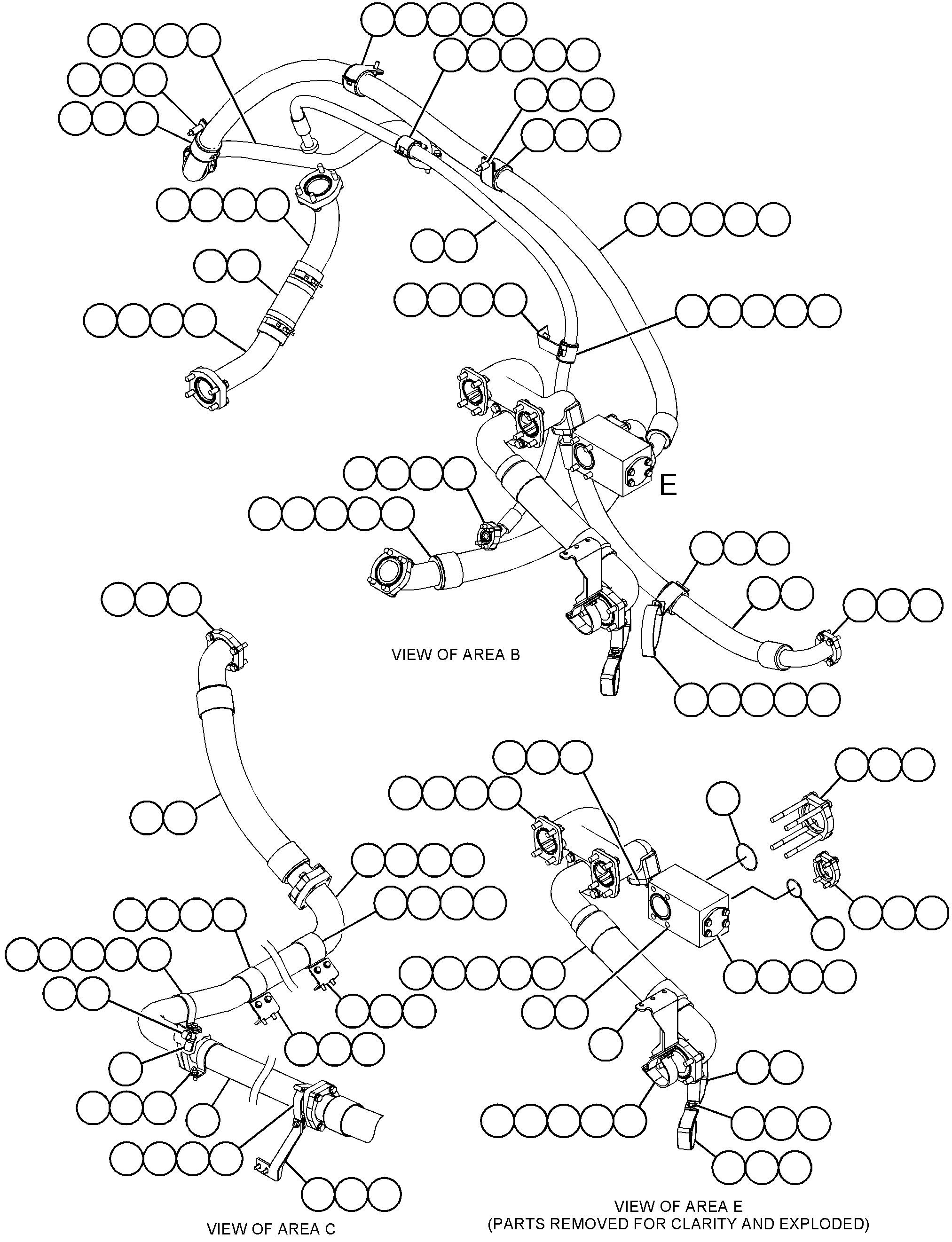

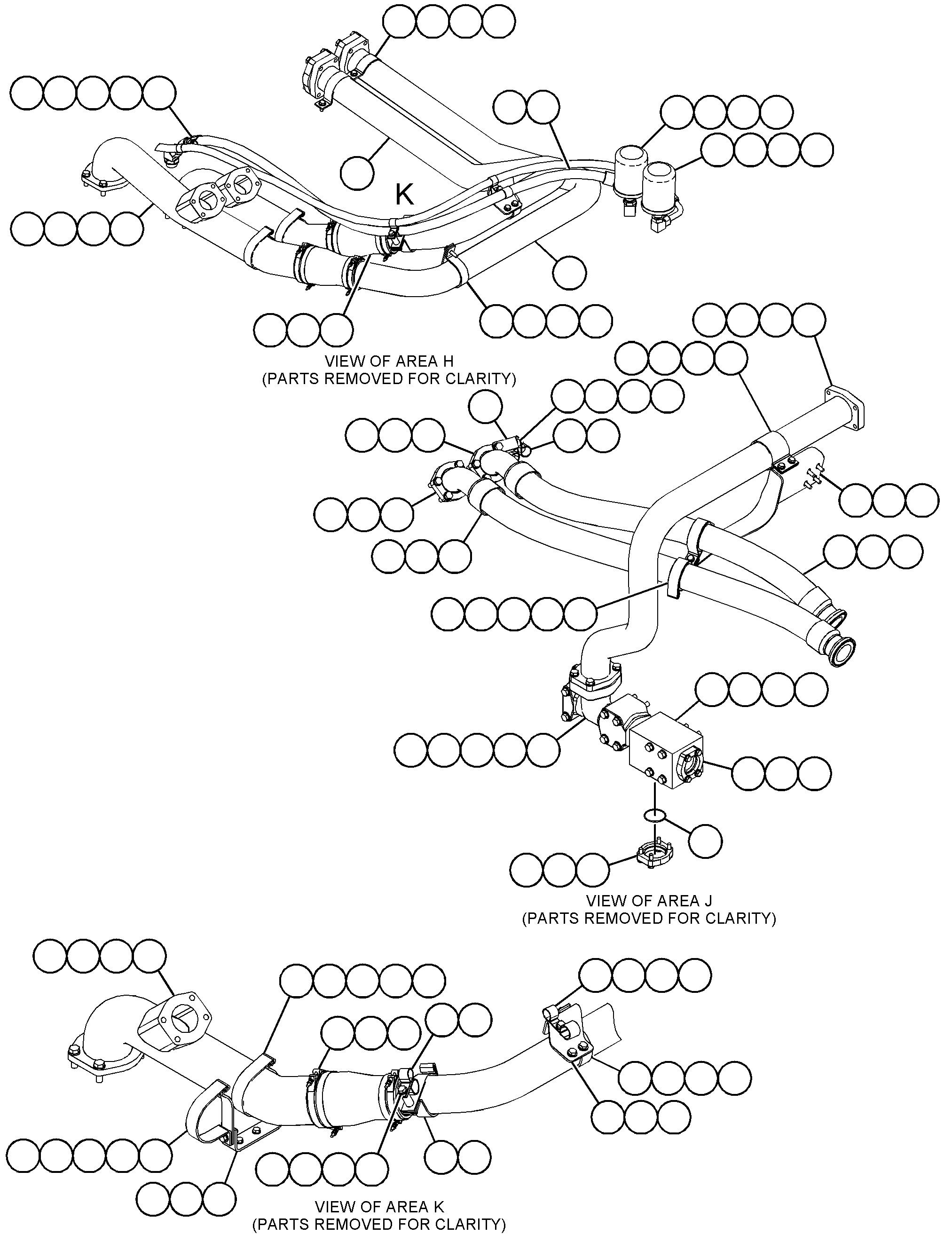

383-8858 LINES GP-OIL COOLER -EXTRA RETARDINGS/N LAJ535-599
Group No: 383-8858
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8C3451 | 1 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 1564009 | 2 CLAMP | 1 | |
| 1564010 | 3 CLAMP | 1 | |
| 1576285 | 4 HOSE | 1 | |
| 1749708 | 5 ADAPTER-FILTER | 2 | |
| 1925805 | 6 BRACKET AS | 1 | |
| 2167557 | 7 CLIP | 2 | |
| 2167558 | 8 CLIP | 2 | |
| 2352482 | 9 SEAL-RECTANGULAR | 2 | |
| 2443712 | 10 PLUG AS | 2 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2510098 | 11 ANGLE | 1 | |
| 2532673 | 12 SWITCH GP-PRESSURE (BRAKE COOLER FILTER BYPASS) | 1 | |
| 5F9144 | SEAL-O-RING | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE (14-CM) | ||
| 2903746 | 13 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2903747 | 14 TUBE AS | 1 | |
| 2904049 | 15 TUBE AS | 1 | |
| 2904199 | 16 MANIFOLD | 1 | |
| 2904200 | 17 MANIFOLD | 1 | |
| 2904215 | 18 HOSE AS | 1 | |
| 2904635 | 19 TUBE AS | 1 | |
| 2904636 | 20 TUBE AS | 1 | |
| 2924377 | 21 BRACKET AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 2933028 | 22 BRACKET AS | 1 | |
| 2935974 | 23 TUBE AS | 1 | |
| 2958037 | 24 PLATE | 4 | |
| 3053368 | 25 MANIFOLD | 1 | |
| 3053371 | 26 MANIFOLD | 1 | |
| 3054473 | 27 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 3054477 | 28 TUBE AS | 1 | |
| 3054478 | 29 TUBE AS | 1 | |
| 3054483 | 30 HOSE AS | 1 | |
| 3066870 | 31 PLATE | 1 | |
| 3068131 | 32 HOSE AS | 1 | |
| 3172686 | 33 HOSE AS | 1 | |
| 3221166 | 34 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 3223906 | 35 HOSE | 2 | |
| 3363200 | 36 TUBE AS | 1 | |
| 3363201 | 37 TUBE AS | 1 | |
| 3367244 | 38 HOSE AS | 1 | |
| 3399703 | 39 FILTER GP-OIL (BRAKE COOLING) | 2 | |
| 3419014 | 40 TUBE AS | 1 | |
| 3419015 | 41 HOSE AS | 1 | |
| 3419016 | 42 HOSE AS | 1 | |
| 3424461 | 43 TUBE AS | 1 | |
| 3424462 | 44 TUBE AS | 1 | |
| 3424463 | 45 HOSE AS | 1 | |
| 3430749 | 46 HOSE AS | 1 | |
| 3430820 | 47 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 3450114 | 48 HOSE AS | 1 | |
| 3726436 | 49 TUBE AS | 1 | |
| 3726437 | 50 TUBE AS | 1 | |
| 3726438 | 51 TUBE AS | 1 | |
| 3726439 | 52 HOSE AS | 1 | |
| 3796728 | 53 HOSE AS | 1 | |
| 3796729 | 54 HOSE AS | 1 | |
| 3838876 | 55 TUBE AS | 1 | |
| 3838877 | 56 TUBE AS | 1 | |
| 3838878 | 57 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 3838879 | 58 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 3838883 | 59 PLATE | 1 | |
| 3838885 | 60 PLATE | 1 | |
| 3845432 | 61 TUBE AS | 1 | |
| 4487561 | 62 HOSE AS | 1 | |
| 4513096 | 63 HOSE AS | 1 | |
| 4513097 | 64 PLATE AS | 1 | |
| 4544760 | 65 TUBE AS | 1 | |
| 4544761 | 66 HOSE AS | 1 | |
| 0990169 | 67 BOLT (M16X2X55-MM) | 4 | |
| 1274833 | 68 CLIP (LOOP) | 2 | |
| 1308433 | 69 GROMMET | 1 | |
| 1455181 | 70 SPACER (13.5X25X12-MM THK) | 1 | |
| 1565744 | 71 CLAMP-HALF | 12 | |
| 1565745 | 72 CLAMP-HALF | 6 | |
| 1576199 | 73 GROMMET | 2 | |
| 1644227 | 74 CLIP | 5 | |
| 1P4582 | 75 FLANGE-HALF | 12 | |
| 1P4584 | 76 FLANGE-HALF | 12 | |
| 1P4585 | 77 FLANGE-HALF | 8 | |
| 1P7016 | 78 FLANGE-HALF | 8 | |
| 1P7017 | 79 FLANGE-HALF | 16 | |
| 1V7753 | 80 SPACER (0.546X0.841X1.75-IN THK) | 1 | |
| 2094582 | 81 CLAMP-T BOLT | 4 | |
| 2183258 | 82 GROMMET | 2 | |
| 2260087 | 83 CLAMP-T BOLT | 4 | |
| 2303671 | 84 CLAMP-T BOLT | 4 | |
| 2352474 | 85 SEAL-RECTANGULAR | 1 | |
| 2352475 | 86 SEAL-RECTANGULAR | 1 | |
| 2352478 | 87 SEAL-RECTANGULAR | 1 | |
| 2385084 | 88 SEAL-O-RING | 2 | |
| 2V0600 | 89 CLAMP-HALF | 4 | |
| 3023908 | 90 SPACER (11X20X30-MM THK) | 1 | |
| 3196220 | 91 ELBOW AS | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196221 | 92 ELBOW AS | 2 | |
| 6V9182 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3218649 | 93 VALVE AS-FLUID SAMPLING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3293356 | 94 NUT (M12X1.75-THD) | 2 | |
| 3309761 | 95 ELBOW AS | 1 | |
| 1434281 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2287096 | SEAL-O-RING | 1 | |
| 3309764 | 96 ELBOW AS | 1 | |
| 8C6712 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3J2903 | 97 COVER | 1 | |
| 3P2404 | 98 CLIP | 1 | |
| 3W1100 | 99 SPACER (13.87X21.34X30-MM THK) | 1 | |
| 4T6788 | 100 FILTER-OIL (ADVANCED EFFICIENCY) | 2 | |
| 5P7468 | 101 CLIP (SLOT) | 2 | |
| 5P7469 | 102 CLIP (TAB) | 2 | |
| 5P8444 | 103 GROMMET (37-MM ID) | 2 | |
| 5P9371 | 104 SEAL-RECTANGULAR | 2 | |
| 6D4636 | 105 CLIP (LOOP) | 1 | |
| 6V0400 | 106 FLANGE-HALF | 2 | |
| 6V1195 | 107 SEAL-O-RING | 2 | |
| 6V1197 | 108 SEAL-O-RING | 4 | |
| 6V1867 | 109 CLIP (SLOT) | 7 | |
| 6V1868 | 110 CLIP (TAB) | 7 | |
| 6V1869 | 111 GROMMET (65-MM ID) | 7 | |
| 6V4356 | 112 CLIP (SLOT) | 2 | |
| 6V4357 | 113 CLIP (TAB) | 2 | |
| 6V4590 | 114 SEAL-O-RING | 7 | |
| 6V5052 | 115 SEAL-O-RING | 3 | |
| 6V5101 | 116 SEAL-O-RING | 2 | |
| 6V5386 | 117 CLIP | 1 | |
| 6V6782 | 118 CLIP (SLOT) | 7 | |
| 6V6783 | 119 CLIP (TAB) | 7 | |
| 6V8001 | 120 SEAL-O-RING | 10 | |
| 6V8521 | 121 CLAMP-HALF | 4 | |
| 7W2033 | 122 CLIP (TAB) | 4 | |
| 7W2034 | 123 CLIP (SLOT) | 4 | |
| 7X2549 | 124 BOLT (M12X1.75X100-MM) | 1 | |
| 7X2555 | 125 BOLT (M16X2X80-MM) | 8 | |
| 7X2558 | 126 BOLT (M16X2X150-MM) | 6 | |
| 8C7534 | 127 CLIP | 4 | |
| 8T0568 | 128 SEAL-O-RING | 6 | |
| 8T4121 | 129 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4132 | 130 NUT (M16X2-THD) | 8 | |
| 8T4133 | 131 NUT (M10X1.5-THD) | 1 | |
| 8T4139 | 132 BOLT (M12X1.75X30-MM) | 55 | |
| 8T4140 | 133 BOLT (M16X2X60-MM) | 84 | |
| 8T4176 | 134 BOLT (M12X1.75X90-MM) | 1 | |
| 8T4183 | 135 BOLT (M12X1.75X40-MM) | 29 | |
| 8T4184 | 136 BOLT (M12X1.75X45-MM) | 33 | |
| 8T4192 | 137 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4193 | 138 BOLT (M16X2X50-MM) | 8 | |
| 8T4194 | 139 BOLT (M12X1.75X50-MM) | 25 | |
| 8T4195 | 140 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4196 | 141 BOLT (M10X1.5X35-MM) | 1 | |
| 8T4223 | 142 WASHER-HARD (13.5X25.5X3-MM THK) | 193 | |
| 8T4244 | 143 NUT (M12X1.75-THD) | 25 | |
| 8T4779 | 144 BOLT (M16X2X35-MM) | 4 | |
| 8T4910 | 145 BOLT (M12X1.75X60-MM) | 4 | |
| 8T4956 | 146 BOLT (M12X1.75X35-MM) | 7 | |
| 8T5005 | 147 BOLT (M10X1.5X70-MM) | 1 | |
| 8T5041 | 148 BOLT (M12X1.75X120-MM) | 8 | |
| 8T6385 | 149 BOLT (M16X2X180-MM) | 8 | |
| 8T6466 | 150 BOLT (M10X1.5X60-MM) | 1 | |
| 8T6868 | 151 BOLT (M12X1.75X80-MM) | 1 | |
| 8T7338 | 152 BOLT (M16X2X45-MM) | 10 | |
| 8T9527 | 153 SEAL-O-RING | 8 | |
| 9X8257 | 154 WASHER (17.5X30X3.5-MM THK) | 140 | |
| 9Y2700 | 155 SPACER (11X20X42-MM THK) | 1 |
