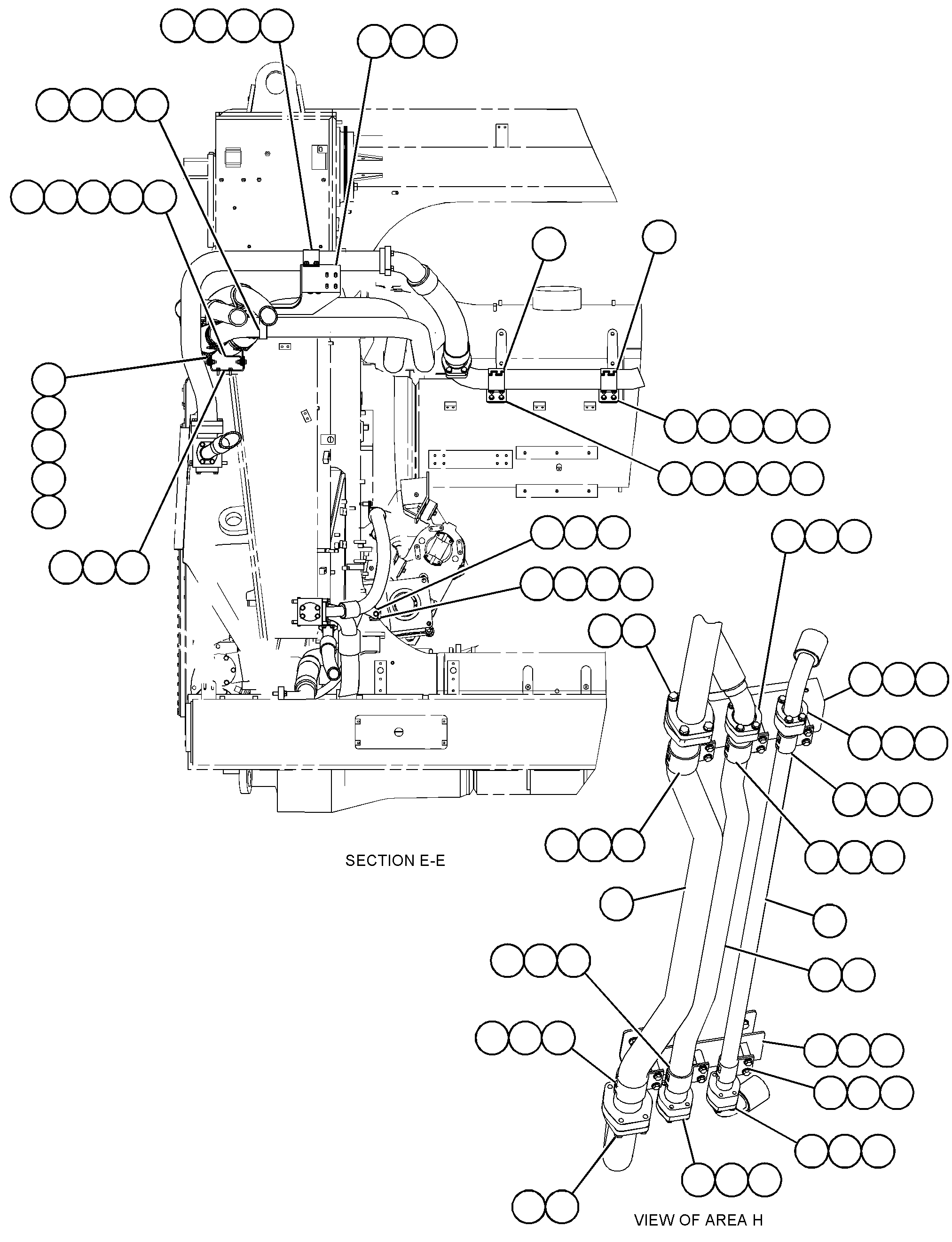

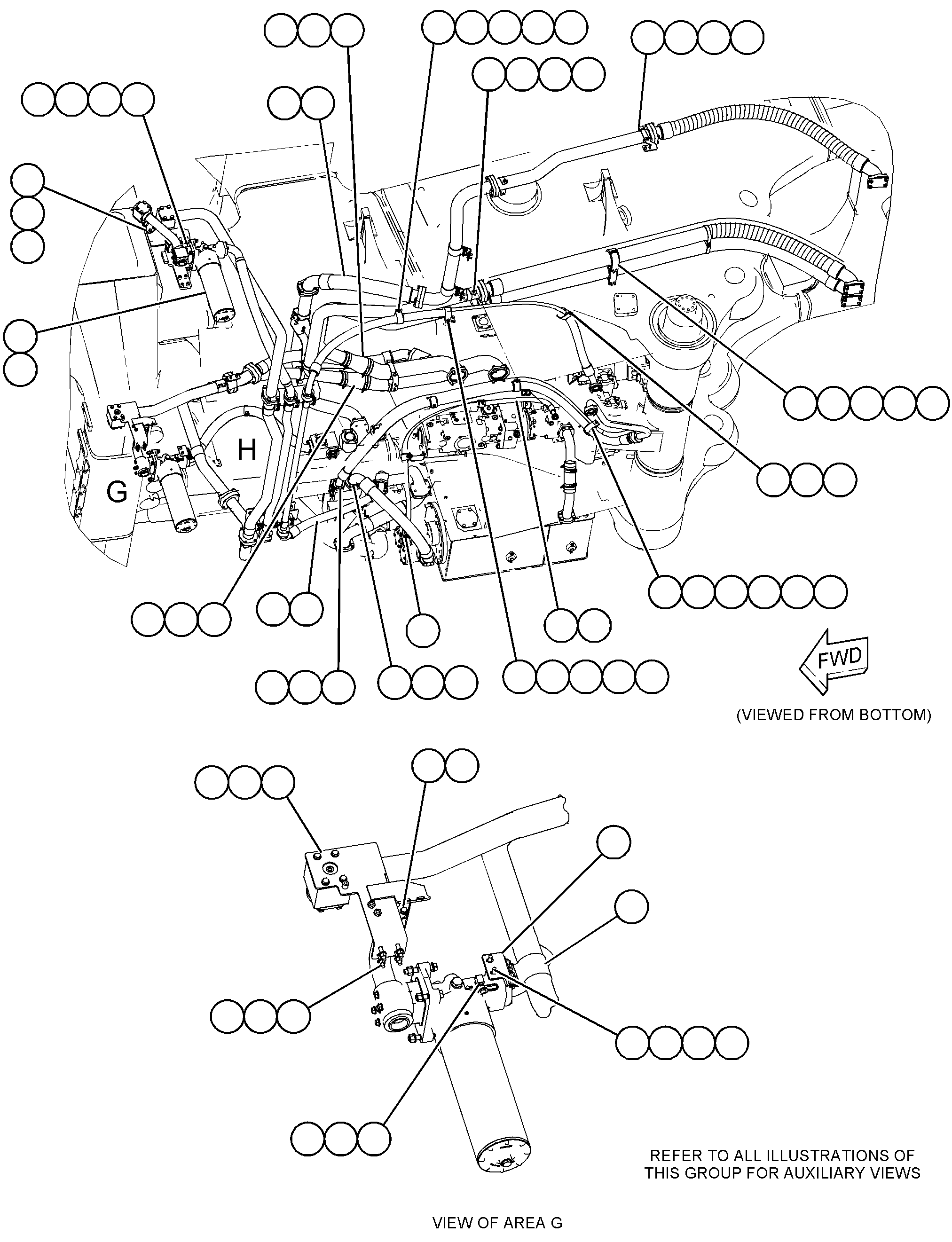

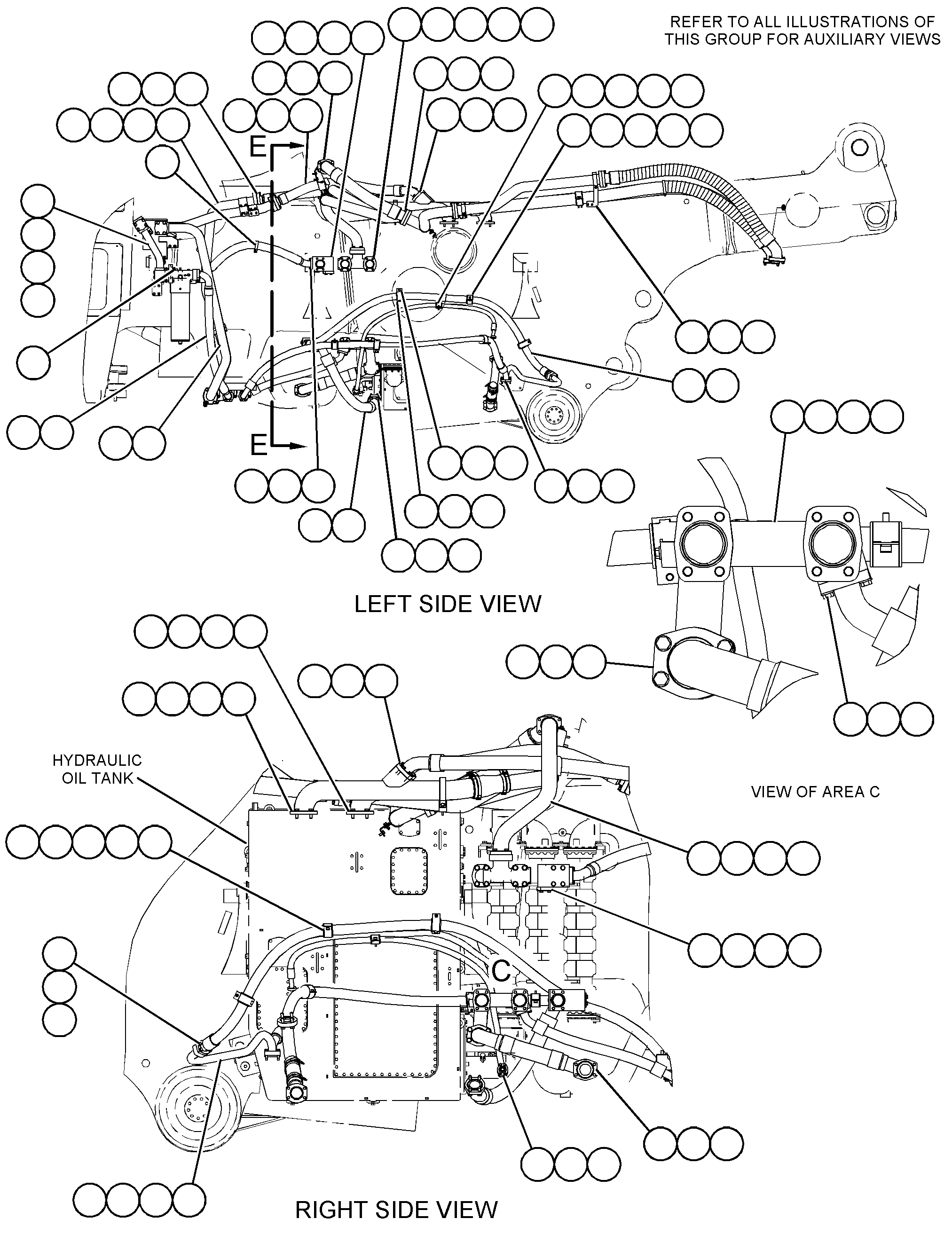

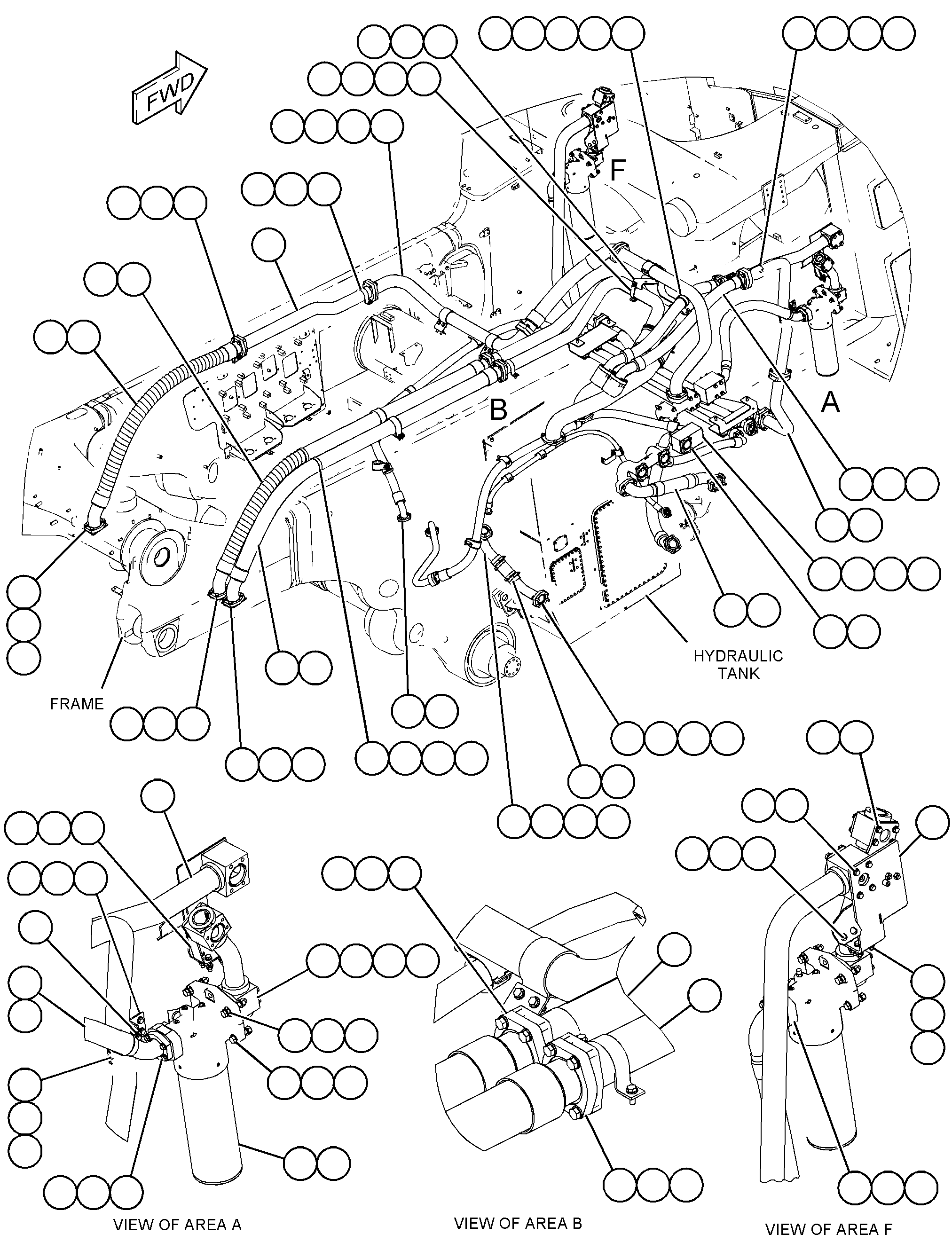

383-8858 LINES GP-OIL COOLER -EXTRA RETARDINGS/N LAJ600-621
Group No: 383-8858
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8C3451 | 1 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 1564009 | 2 CLAMP | 1 | |
| 1564010 | 3 CLAMP | 1 | |
| 1576285 | 4 HOSE | 1 | |
| 1925805 | 5 BRACKET AS | 1 | |
| 2167557 | 6 CLIP | 2 | |
| 2167558 | 7 CLIP | 2 | |
| 2352482 | 8 SEAL-RECTANGULAR | 2 | |
| 2443712 | 9 PLUG AS | 2 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2532673 | 10 SWITCH GP-PRESSURE (FILTER BYPASS) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 5F9144 | SEAL-O-RING | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE (14-CM) | ||
| 2903746 | 11 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2903747 | 12 TUBE AS | 1 | |
| 2904049 | 13 TUBE AS | 1 | |
| 2904199 | 14 MANIFOLD | 1 | |
| 2904200 | 15 MANIFOLD | 1 | |
| 2904215 | 16 HOSE AS | 1 | |
| 2904635 | 17 TUBE AS | 1 | |
| 2904636 | 18 TUBE AS | 1 | |
| 2924377 | 19 BRACKET AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 2933028 | 20 BRACKET AS | 1 | |
| 2935974 | 21 TUBE AS | 1 | |
| 2958037 | 22 PLATE | 4 | |
| 3053368 | 23 MANIFOLD | 1 | |
| 3053371 | 24 MANIFOLD | 1 | |
| 3054473 | 25 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 3054477 | 26 TUBE AS | 1 | |
| 3054478 | 27 TUBE AS | 1 | |
| 3054483 | 28 HOSE AS | 1 | |
| 3066870 | 29 PLATE | 1 | |
| 3221166 | 30 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 3363200 | 31 TUBE AS | 1 | |
| 3363201 | 32 TUBE AS | 1 | |
| 3367244 | 33 HOSE AS | 1 | |
| 3399703 | 34 FILTER GP-OIL (BRAKE COOLING) | 2 | |
| 3419014 | 35 TUBE AS | 1 | |
| 3419015 | 36 HOSE AS | 1 | |
| 3419016 | 37 HOSE AS | 1 | |
| 3424461 | 38 TUBE AS | 1 | |
| 3424462 | 39 TUBE AS | 1 | |
| 3424463 | 40 HOSE AS | 1 | |
| 3430749 | 41 HOSE AS | 1 | |
| 3726436 | 42 TUBE AS | 1 | |
| 3726437 | 43 TUBE AS | 1 | |
| 3726438 | 44 TUBE AS | 1 | |
| 3726439 | 45 HOSE AS | 1 | |
| 3796728 | 46 HOSE AS | 1 | |
| 3796729 | 47 HOSE AS | 1 | |
| 3838876 | 48 TUBE AS | 1 | |
| 3838877 | 49 TUBE AS | 1 | |
| 3838878 | 50 PLATE AS | 1 | |
| 3838879 | 51 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 3838883 | 52 PLATE | 1 | |
| 3838885 | 53 PLATE | 1 | |
| 3845432 | 54 TUBE AS | 1 | |
| 4487561 | 55 HOSE AS | 1 | |
| 4513096 | 56 HOSE AS | 1 | |
| 4544760 | 57 TUBE AS | 1 | |
| 4544761 | 58 HOSE AS | 1 | |
| 4903754 | 59 HOSE | 2 | |
| 4918121 | 60 HOSE AS | 1 | |
| 0990169 | 61 BOLT (M16X2X55-MM) | 4 | |
| 1274833 | 62 CLIP (LOOP) | 2 | |
| 1565744 | 63 CLAMP-HALF | 12 | |
| 1565745 | 64 CLAMP-HALF | 6 | |
| 1576199 | 65 GROMMET | 2 | |
| 1P4582 | 66 FLANGE-HALF | 12 | |
| 1P4584 | 67 FLANGE-HALF | 12 | |
| 1P4585 | 68 FLANGE-HALF | 8 | |
| 1P7016 | 69 FLANGE-HALF | 8 | |
| 1P7017 | 70 FLANGE-HALF | 16 | |
| 2094582 | 71 CLAMP-T BOLT | 4 | |
| 2183258 | 72 GROMMET | 2 | |
| 2260087 | 73 CLAMP-T BOLT | 4 | |
| 2303671 | 74 CLAMP-T BOLT | 4 | |
| 2352474 | 75 SEAL-RECTANGULAR | 1 | |
| 2352475 | 76 SEAL-RECTANGULAR | 1 | |
| 2352478 | 77 SEAL-RECTANGULAR | 1 | |
| 2V0600 | 78 CLAMP-HALF | 4 | |
| 3023908 | 79 SPACER (11X20X30-MM THK) | 1 | |
| 3218649 | 80 VALVE AS-FLUID SAMPLING | 1 | |
| 8C3446 | VALVE-SAMPLING | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3309764 | 81 ELBOW AS | 1 | |
| 8C6712 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3J2903 | 82 COVER | 1 | |
| 5P7468 | 83 CLIP (SLOT) | 2 | |
| 5P7469 | 84 CLIP (TAB) | 2 | |
| 5P8444 | 85 GROMMET (37-MM ID) | 2 | |
| 5P9371 | 86 SEAL-RECTANGULAR | 2 | |
| 6V0400 | 87 FLANGE-HALF | 2 | |
| 6V1195 | 88 SEAL-O-RING | 2 | |
| 6V1197 | 89 SEAL-O-RING | 4 | |
| 6V1867 | 90 CLIP (SLOT) | 6 | |
| 6V1868 | 91 CLIP (TAB) | 6 | |
| 6V1869 | 92 GROMMET (65-MM ID) | 6 | |
| 6V4590 | 93 SEAL-O-RING | 7 | |
| 6V5052 | 94 SEAL-O-RING | 3 | |
| 6V5101 | 95 SEAL-O-RING | 2 | |
| 6V5386 | 96 CLIP | 1 | |
| 6V6782 | 97 CLIP (SLOT) | 5 | |
| 6V6783 | 98 CLIP (TAB) | 5 | |
| 6V8001 | 99 SEAL-O-RING | 10 | |
| 6V8521 | 100 CLAMP-HALF | 4 | |
| 7W2033 | 101 CLIP (TAB) | 2 | |
| 7W2034 | 102 CLIP (SLOT) | 2 | |
| 7X2549 | 103 BOLT (M12X1.75X100-MM) | 1 | |
| 7X2555 | 104 BOLT (M16X2X80-MM) | 4 | |
| 7X2556 | 105 BOLT (M16X2X100-MM) | 4 | |
| 7X2558 | 106 BOLT (M16X2X150-MM) | 6 | |
| 8T0568 | 107 SEAL-O-RING | 6 | |
| 8T4121 | 108 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4132 | 109 NUT (M16X2-THD) | 8 | |
| 8T4133 | 110 NUT (M10X1.5-THD) | 1 | |
| 8T4139 | 111 BOLT (M12X1.75X30-MM) | 53 | |
| 8T4140 | 112 BOLT (M16X2X60-MM) | 83 | |
| 8T4183 | 113 BOLT (M12X1.75X40-MM) | 29 | |
| 8T4184 | 114 BOLT (M12X1.75X45-MM) | 32 | |
| 8T4192 | 115 BOLT (M12X1.75X25-MM) | 1 | |
| 8T4193 | 116 BOLT (M16X2X50-MM) | 8 | |
| 8T4194 | 117 BOLT (M12X1.75X50-MM) | 18 | |
| 8T4195 | 118 BOLT (M10X1.5X30-MM) | 3 | |
| 8T4196 | 119 BOLT (M10X1.5X35-MM) | 1 | |
| 8T4223 | 120 WASHER-HARD (13.5X25.5X3-MM THK) | 177 | |
| 8T4244 | 121 NUT (M12X1.75-THD) | 20 | |
| 8T4648 | 122 BOLT (M12X1.75X70-MM) | 2 | |
| 8T4779 | 123 BOLT (M16X2X35-MM) | 4 | |
| 8T4910 | 124 BOLT (M12X1.75X60-MM) | 6 | |
| 8T4956 | 125 BOLT (M12X1.75X35-MM) | 7 | |
| 8T5005 | 126 BOLT (M10X1.5X70-MM) | 1 | |
| 8T5041 | 127 BOLT (M12X1.75X120-MM) | 8 | |
| 8T6385 | 128 BOLT (M16X2X180-MM) | 8 | |
| 8T6466 | 129 BOLT (M10X1.5X60-MM) | 1 | |
| 8T7338 | 130 BOLT (M16X2X45-MM) | 10 | |
| 8T9527 | 131 SEAL-O-RING | 8 | |
| 9X8257 | 132 WASHER (17.5X30X3.5-MM THK) | 139 | |
| 9Y2700 | 133 SPACER (11X20X42-MM THK) | 1 | |
| 3430820 | 134 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 |
