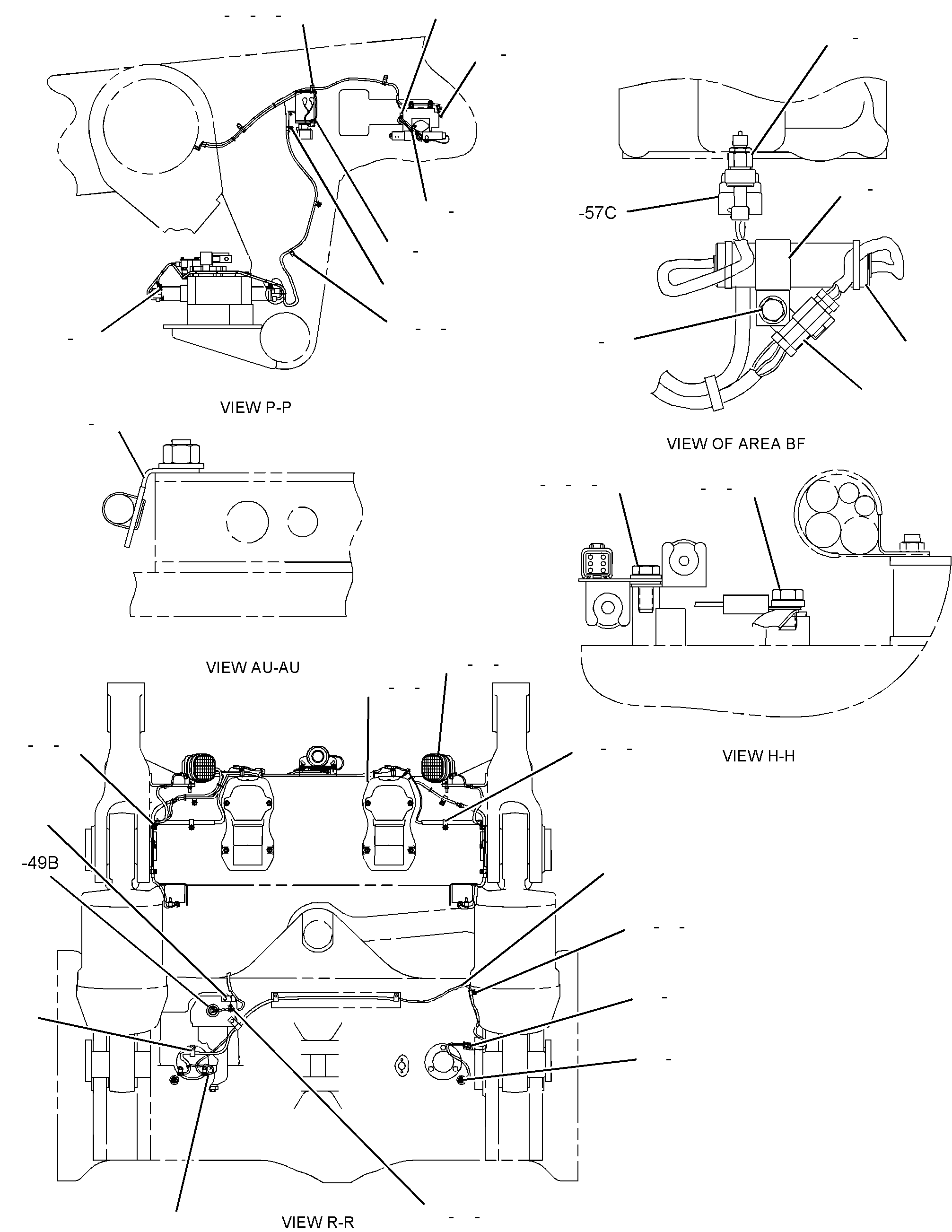

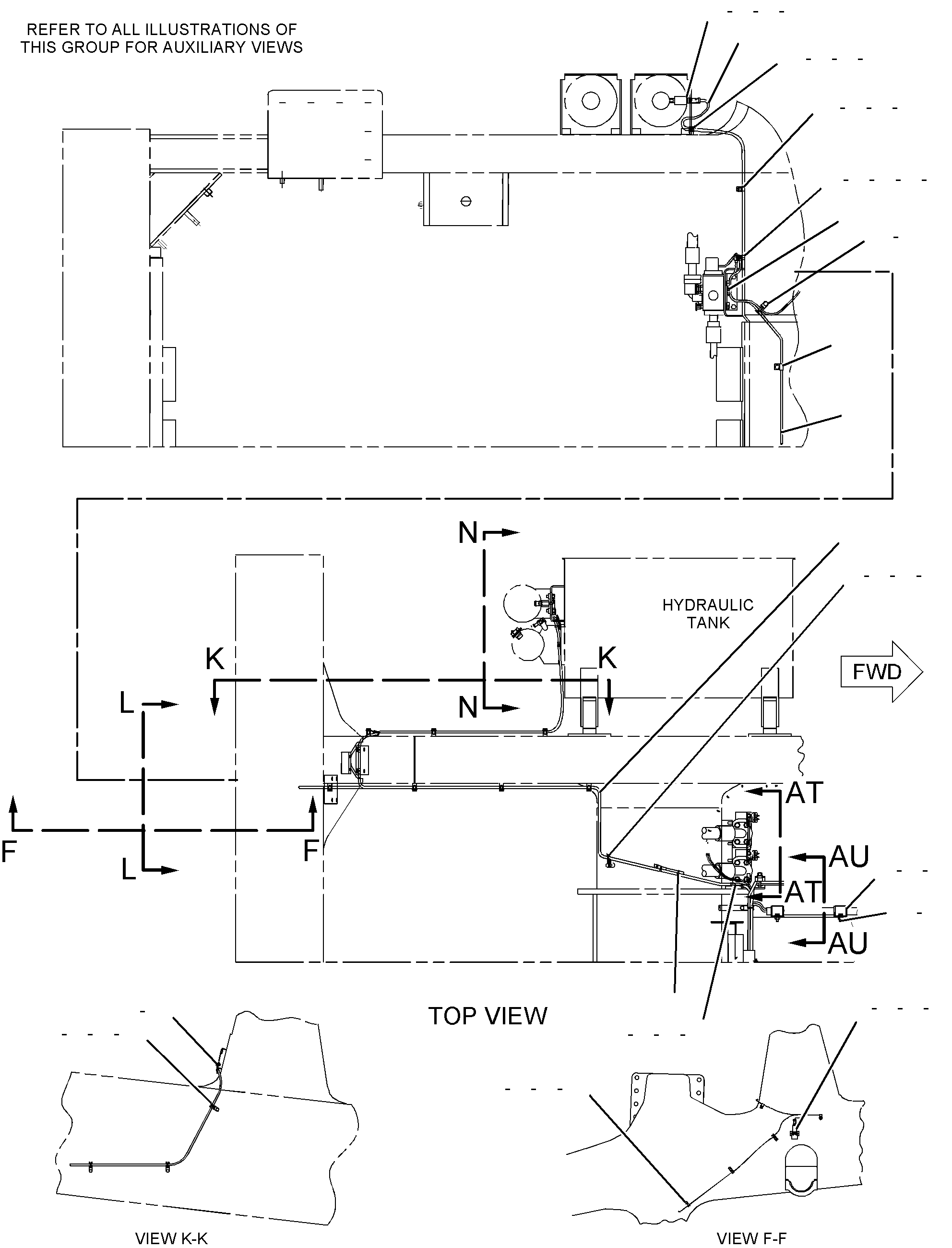

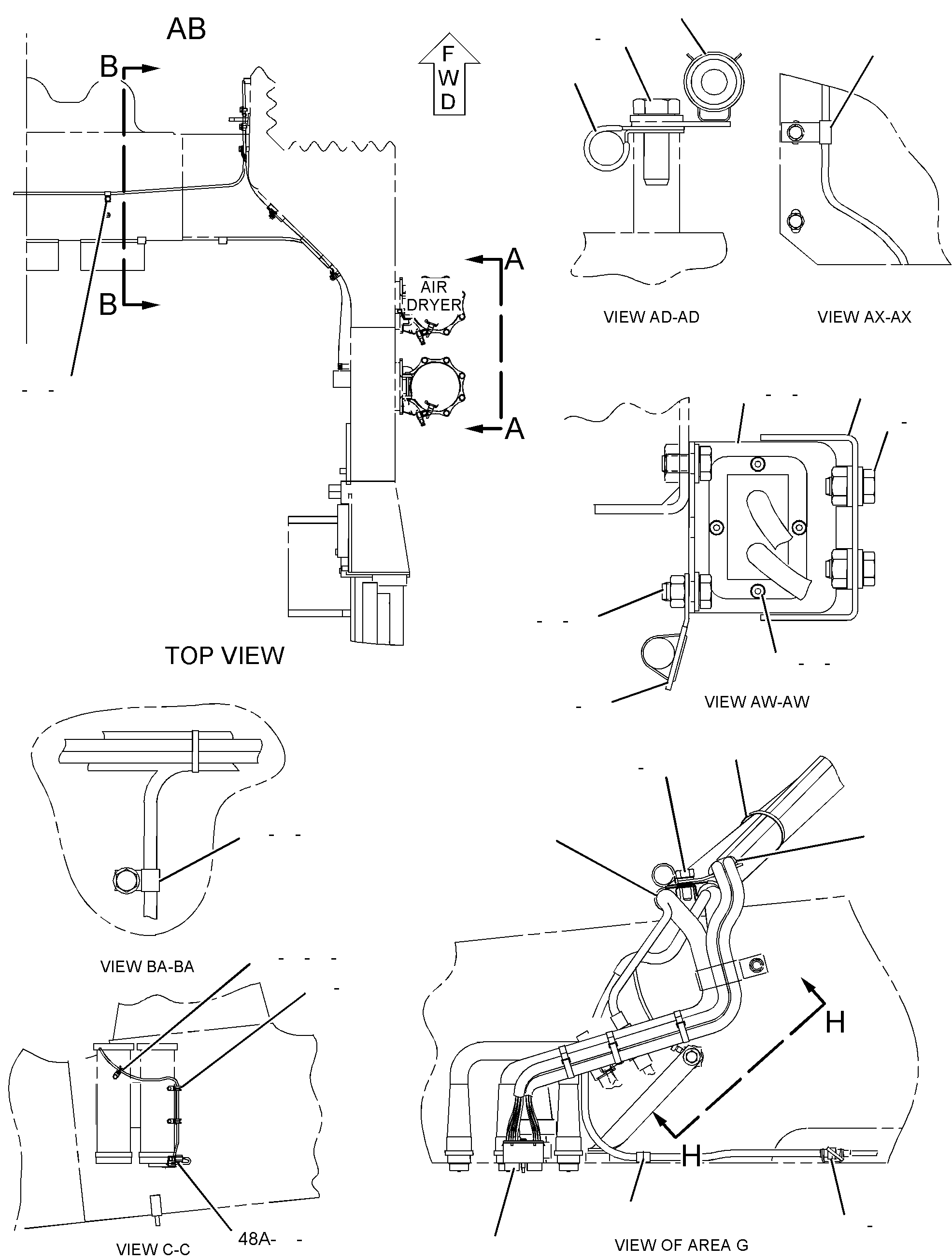

170-3624 WIRING GP-CHASSIS -REARS/N ATY545-UP

Group No: 170-3624
Part NumberPart NameQty
21222911 HARNESS AS-CHASSIS (ENGINE)1
1028804KIT-RECEPTACLE (4-PIN)1
1552272PLUG AS-CONNECTOR (4-PIN)1
1106845PLUG AS-CONNECTOR (40-PIN)1
9X7147PLUG AS-CONNECTOR (40-PIN)1
18523542 HARNESS AS-CHASSIS (SENSORS, SWITCHES)1
1028803KIT-RECEPTACLE (3-PIN)1
1028804KIT-RECEPTACLE (4-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)4
1552265KIT-CONNECTING PLUG (8-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)1
9D3955PLUG AS-CONNECTOR (3-PIN)2
1552272PLUG AS-CONNECTOR (4-PIN)2
1130580RECEPTACLE AS-CONNECTOR (40-PIN)1
18523533 HARNESS AS-CHASSIS (BATTERY CABLE, REAR CHASSIS)1
1028802KIT-RECEPTACLE (2-PIN)2
1028803KIT-RECEPTACLE (3-PIN)2
1028801KIT-RECEPTACLE (12-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)2
1106845PLUG AS-CONNECTOR (40-PIN)1
9X0141PLUG AS-CONNECTOR (40-PIN)1
9X7147PLUG AS-CONNECTOR (40-PIN)1
1552272PLUG AS-CONNECTOR (4-PIN)1
21105524 HARNESS AS-CHASSIS (BODY, REAR TSMN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
7X6222PLUG AS-CONNECTOR (24-PIN)1
9X7143RECEPTACLE AS-CONNECTOR (24-PIN)1
18523565 HARNESS AS-CHASSIS (LIGHTING, PAYLOAD)1
1028803KIT-RECEPTACLE (3-PIN)2
1028804KIT-RECEPTACLE (4-PIN)1
1028805KIT-RECEPTACLE (6-PIN)2
1552255KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)4
1552274KIT-CONNECTING PLUG (6-PIN)4
18523556 HARNESS AS-CHASSIS (DIFFERENTIAL, SENSORS)1
1028803KIT-RECEPTACLE (3-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1552265KIT-CONNECTING PLUG (8-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
1552274KIT-CONNECTING PLUG (6-PIN)1
9D3955PLUG AS-CONNECTOR (3-PIN)2
16431727 HARNESS AS-SENSOR (BODY POSITION)1
1028803KIT-RECEPTACLE (3-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)2
15495208 HARNESS AS-SWITCH (DIFFERENTIAL OIL LEVEL)2
1028802KIT-RECEPTACLE (2-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)4
20111229 HARNESS AS-CHASSIS (AIR CONDITIONER, ENG, HEATER)1
1552270KIT-CONNECTING PLUG (2-PIN)3
1552272PLUG AS-CONNECTOR (4-PIN)3
8M277010 CLIP (LOOP)3
8T413711 BOLT (M10X1.5X20-MM)77
9G915412 CLIP2
1S099413 CLIP (LOOP)10
8T412114 WASHER-HARD (11X21X2.5-MM THK)123
8T413615 BOLT (M10X1.5X25-MM)33
8M277316 CLIP (LOOP)4
5P908517 CLIP (LOOP)2
4D779418 CLIP1
8T413319 NUT (M10X1.5-THD)8
116011820 CLIP2
5P785421 CLIP (LOOP)4
130530122 CLIP6
5P432523 CLIP (LOOP)1
3T304724 CLIP AS2
9G915025 CLIP2
160158226 SENSOR GP-PRESSURE (REAR AXLE OIL)1
4D779427 CLIP5
8T419528 BOLT (M10X1.5X30-MM)7
7S424429 CLIP1
4D646330 CLIP2
164760031 LAMP GP-FLOOD (24-VOLT)2
192896132 BRACKET1
4D154433 CLIP2
192895934 BRACKET AS1
4P758135 CLIP (LADDER)65
8T940536 BOLT-SOCKET HEAD (M4X0.7X16-MM)4
9M840637 CLIP (LOOP)11
113433938 SPACER (10.5X18X21-MM THK)2
5C726139 NUT (M8X1.25-THD)1
7N371840 CLIP3
8T417941 BOLT (M12X1.75X20-MM)2
5P107642 WASHER-HARD (13.5X30X4-MM THK)1
7X772943 WASHER (11X25X3-MM THK)2
8T033844 BOLT-SOCKET HEAD (M8X1.25X45-MM)5
5P602945 LOCKWIRE
3J735446 SEAL-O-RING3
9G915047 CLIP1
144566148 SWITCH AS-PRESSURE (TORQUE CONVERTER INLET FILTER)1
1028802KIT-RECEPTACLE (2-PIN)2
6V3922SEAL-O-RING1
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
2M9780SEAL-O-RING1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
9X1813SLEEVE
144566148A SWITCH AS-PRESSURE (FRONT BRAKE COOLING SCREEN)1
1028802KIT-RECEPTACLE (2-PIN)1
6V3922SEAL-O-RING1
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
2M9780SEAL-O-RING1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
9X1813SLEEVE
164757749 SWITCH GP-BYPASS (TRANSMISSION CHARGE FILTER)1
164757749A SWITCH GP-BYPASS (PARK BRAKE RELEASE FILTER)1
164757749B SWITCH GP-BYPASS (REAR AXLE OIL FILTER)1
198427150 LEVER (BODY POSITION SENSOR)1
130530051 CLIP15
7K118152 STRAP-CABLE1
4M714653 STRAP AS-GROUND1
213910054 ALARM AS (BACKUP)1
1028802KIT-RECEPTACLE (2-PIN)1
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
9X1813SLEEVE
5P5623WIRE-ELECTRICAL (16-GA, BLACK)
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
172866055 SWITCH GP-LIQUID LEVEL (REAR AXLE OIL)2
105348756 BOLT-SOCKET HEAD (M6X1X20-MM)1
100305557 SENSOR GP-TEMPERATURE (TRANSMISSION OIL)1
100305557A SENSOR GP-TEMPERATURE (REAR BRAKE OIL, RH, LH)2
100305557B SENSOR GP-TEMPERATURE (FRONT BRAKE OIL)2
100305557C SENSOR GP-TEMPERATURE (REAR AXLE OIL)1
3J190758 SEAL-O-RING8
4P742859 CLIP (LADDER)5
4S445560 CLIP1
4S196261 CLIP (LOOP)1
7X254162 BOLT (M8X1.25X140-MM)2
198837263 SENSOR GP-POSITION (ROTARY)(BODY)1
8T754764 BOLT (M8X1.25X30-MM)1
9M197465 WASHER-HARD (8.8X16X2-MM THK)7
144413866 SUPPORT GP-LIGHT (ROD)1
5C7261NUT (M8X1.25-THD)1
7X7915ROD END1
8T4133NUT (M10X1.5-THD)1
8T6431ROD END1
7X339267 WASHER-HARD (13.5X22.5X3-MM THK)1
6D424668 CLIP (LOOP)1
155825369 WIRE AS2
3E646170 SWITCH AS-PRESSURE (HIGH PRESSURE, STEERING)1
3E780971 SWITCH AS-PRESSURE (LOW PRESSURE, STEERING)1
4K830272 CLIP (LOOP)1
5S738373 BOLT (3/8-16X1.75-IN)2
8C966074 WASHER (4.6X7.9X0.8-MM THK)8
5P107575 WASHER-HARD (10.2X22.5X3-MM THK)2
2T301976 CLIP (LOOP)4
9X349577 CLIP AS6
175416978 LAMP GP-REAR (STOP, TAIL, TURN, PARK)2
5L424179 SPACER (0.6-IN THK)1
8T419680 BOLT (M10X1.5X35-MM)1
2M978081 SEAL-O-RING2
9X026282 ADAPTER1
5C831283 NUT (M4X0.7-THD)4
9U227784 CLIP AS2
5K845185 CLIP (LOOP)2
3S209386 STRAP-CABLE68
7K118187 STRAP-CABLE110
4P742988 CLIP (LADDER)8
5P961789 ADAPTER1
5K329490 CLIP1
4K886491 CLIP (LOOP)6
169744392 TIMER AS-ON DELAY (24-VOLT)1
1028804KIT-RECEPTACLE (4-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)4
5P746993 CLIP (TAB)2
5P746894 CLIP (SLOT)2
8T252595 GROMMET2
