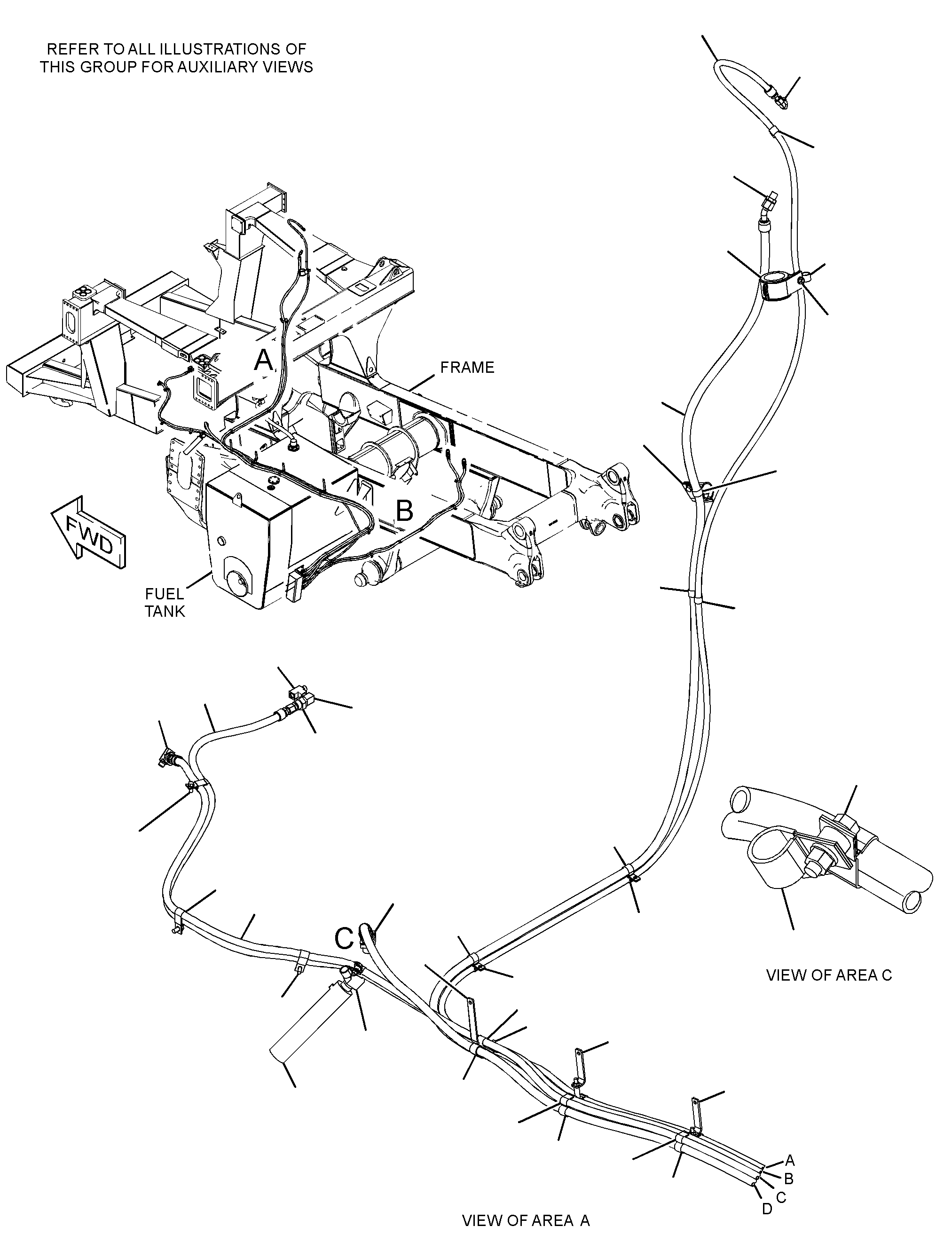

System And Components
361-3226 SERVICE CENTER GPS/N APX2392-UP
Group No: 361-3226
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1Q5468 | 1 CAP | 3 | |
| 2F1336 | 2 FITTING-HEAD | 1 | |
| 4D0487 | 3 VALVE AS-CHECK | 2 | |
| 3718115 | 4 HOSE (27-CM) | ||
| 8L6005 | 5 TEE-PIPE | 2 | |
| 2161649 | 6 CLAMP | 1 | |
| 9S9271 | 7 COUPLER-MALE | 1 | |
| 9S9272 | 8 CAP AS (ENGINE OIL DRAIN) | 1 | |
| 1474348 | 9 SPACER (11X25X65-MM THK) | 1 | |
| 1842421 | 10 CONNECTOR AS | 4 | |
| 8C6874 | CONNECTOR | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 2032059 | 11 CONNECTOR AS | 1 | |
| 8C6869 | CONNECTOR | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 3626168 | 12 BOX AS-SERVICE CENTER | 1 | |
| 3B6489 | COUPLING-PIPE | 2 | |
| 3B6490 | COUPLING-PIPE | 4 | |
| 5B1309 | COUPLING-PIPE | 1 | |
| 3613228 | 13 HOSE AS | 1 | |
| 3613229 | 14 HOSE AS | 1 | |
| 3613230 | 15 HOSE AS | 1 | |
| 4443710 | 16 HOSE AS | 1 | |
| 3613232 | 17 HOSE AS | 1 | |
| 3613233 | 18 HOSE AS | 1 | |
| 3613234 | 19 HOSE AS | 1 | |
| 3752308 | 20 BRACKET | 1 | |
| 3752311 | 21 BRACKET AS | 2 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 3752312 | 22 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 3763171 | 23 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 0025743 | 24 ELBOW | 2 | |
| 0L1351 | 25 BOLT (3/8-16X0.875-IN) | 4 | |
| 1004336 | 26 CLIP (LOOP) | 9 | |
| 1488414 | 27 REDUCER AS | 4 | |
| 6V8943 | REDUCER | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1694279 | 28 CONNECTOR AS | 2 | |
| 8C6872 | CONNECTOR | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1858834 | 29 ELBOW AS | 2 | |
| 1314863 | ELBOW | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1932120 | 30 GROMMET | 1 | |
| 1Q5459 | 31 RECEIVER | 2 | |
| 1Q5461 | 32 RECEIVER | 3 | |
| 1Q5764 | 33 FILM-INSTRUCTION (TRANSMISSION OIL) | 1 | |
| 1Q5765 | 34 FILM-INSTRUCTION (STEERING OIL) | 1 | |
| 1Q5766 | 35 FILM-INSTRUCTION (HYDRAULIC OIL) | 1 | |
| 1Q5767 | 36 FILM-INSTRUCTION (ENGINE OIL) | 1 | |
| 1Q5768 | 37 FILM-INSTRUCTION (ENGINE COOLANT) | 1 | |
| 1Q5769 | 38 FILM-INSTRUCTION (AFTERCOOLER COOLANT) | 1 | |
| 3637502 | 39 CLIP | 1 | |
| 2681543 | 40 ELBOW AS | 1 | |
| 2T1925 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2815930 | 41 REDUCER AS | 3 | |
| 6V8946 | REDUCER | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 3295533 | 42 CONNECTOR AS | 1 | |
| 8C6875 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 3526496 | 43 ADAPTER AS | 2 | |
| 8C6871 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 5P7162 | 44 SCREW-MACHINE (10-32X0.5-IN) | 2 | |
| 4B4274 | 45 WASHER (5.5X13X1.2-MM THK) | 2 | |
| 4L6454 | 47 BOLT (3/8-16X1-IN) | 3 | |
| 5M2894 | 48 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 5P3587 | 49 CAP-DUST | 2 | |
| 5P7466 | 50 CLIP (SLOT) | 1 | |
| 5P7467 | 51 CLIP (TAB) | 1 | |
| 5S7379 | 54 BOLT (3/8-16X0.875-IN) | 2 | |
| 5S7382 | 55 BOLT (3/8-16X1.375-IN) | 3 | |
| 6B8129 | 56 NIPPLE-PIPE | 1 | |
| 6D1641 | 57 CLIP (LOOP) | 12 | |
| 6D4244 | 58 CLIP (LOOP) | 1 | |
| 6V1867 | 60 CLIP (SLOT) | 1 | |
| 6V1868 | 61 CLIP (TAB) | 1 | |
| 6V8801 | 62 NUT (3/8-16-THD) | 2 | |
| 7J9108 | 63 SEAL-O-RING | 1 | |
| 7X0288 | 64 BOLT (3/8-16X1.625-IN) | 1 | |
| 7X0291 | 65 BOLT (3/8-16X3.75-IN) | 1 | |
| 8C6873 | 66 CONNECTOR | 1 | |
| 8M2773 | 68 CLIP (LOOP) | 11 | |
| 8T2502 | 69 BOLT (3/8-16X1.125-IN) | 1 | |
| 8T4121 | 70 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4133 | 71 NUT (M10X1.5-THD) | 2 | |
| 8T4195 | 72 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4896 | 73 WASHER-HARD (10.2X18.5X2.5-MM THK) | 14 | |
| 8T7008 | 74 BOLT (3/8-16X3-IN) | 1 | |
| 8Y8503 | 75 SPACER (0.8X1X40-MM THK) | 1 | |
| 9M5501 | 76 ELBOW-STREET | 1 | |
| 9X8250 | 77 CLIP (LOOP) | 4 | |
| 0910081 | 78 SPACER (10.5X20X10-MM THK) | 1 | |
| 8T4223 | 79 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4192 | 80 BOLT (M12X1.75X25-MM) | 1 | |
| 6D4636 | 81 CLIP (LOOP) | 1 |
