System And Components

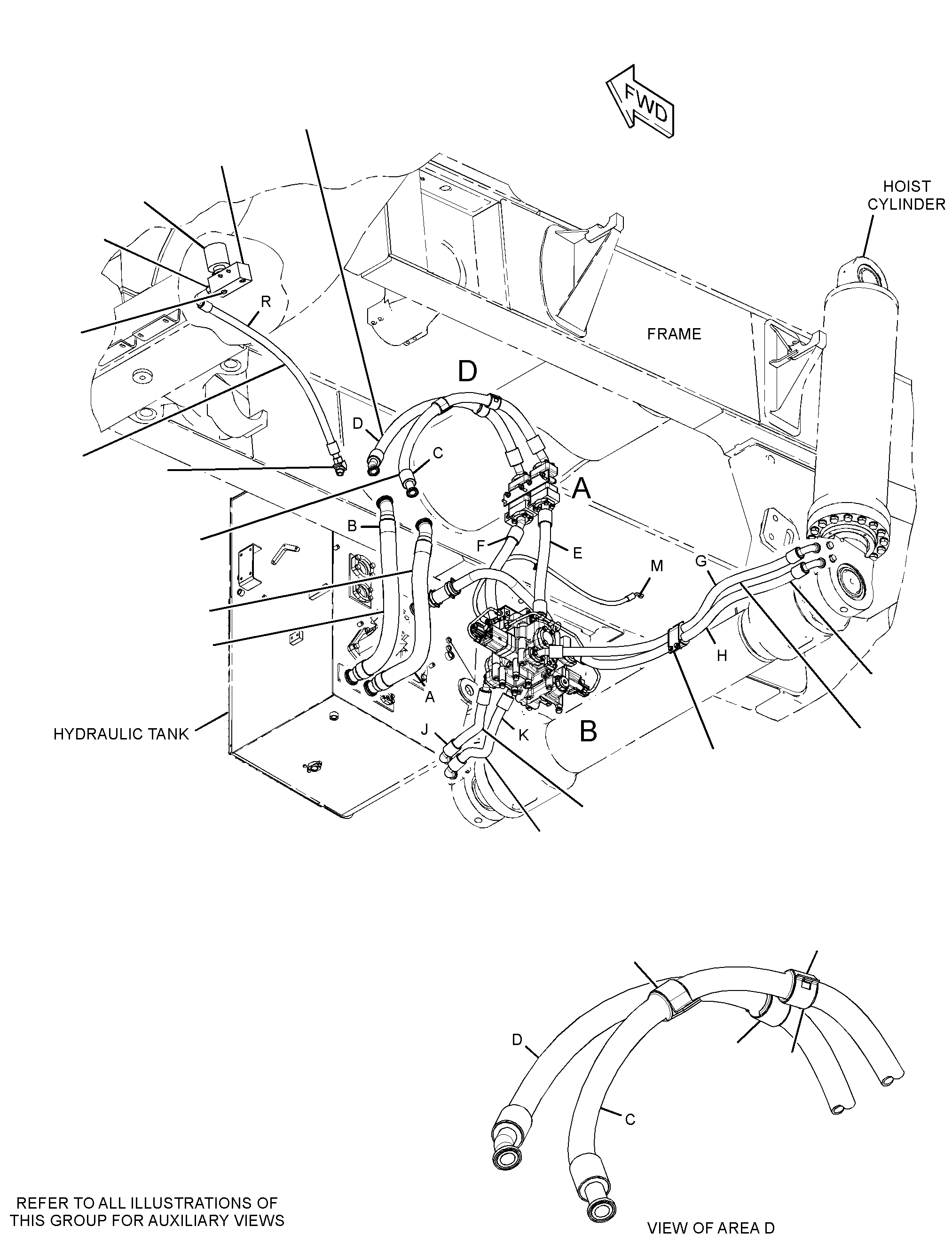

193-6295 LINES GP-HOISTS/N FDB1-UP
Group No: 193-6295
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5C9762 | 1 MANIFOLD | 1 | |
| 6E5472 | 2 SCREEN GP (HOIST PUMP) | 2 | |
| 9T1364 | KIT-SCREEN | 1 | |
| 0083214 | RING-RETAINING (INTERNAL) | 1 | |
| 8X4575 | 3 FILTER AS-BREATHER (HOIST LINES) | 1 | |
| 2161649 | 4 CLAMP | 1 | |
| 1255619 | 5 HOSE AS | 1 | |
| 1255621 | 6 HOSE AS | 1 | |
| 1466174 | 7 HOSE AS | 1 | |
| 1630593 | 8 TUBE AS | 1 | |
| 2881033 | 9 TUBE AS | 1 | |
| 1866317 | 10 MANIFOLD GP-HYDRAULIC (HOIST) | 2 | |
| 2313944 | 11 PLATE | 1 | |
| 2423460 | 12 HOSE AS | 2 | |
| 2423461 | 13 HOSE AS | 1 | |
| 2423462 | 14 HOSE AS | 1 | |
| 5796205 | 15 HOSE AS | 1 | |
| 2428805 | 16 HOSE AS | 1 | |
| 2471437 | 17 VALVE GP-CONTROL (BRAKE COOLING, HOIST) | 1 | |
| 3661335 | 18 HOSE AS | 1 | |
| 2728449 | 19 TUBE AS | 1 | |
| 5201730 | 20 TUBE AS | 1 | |
| 3109368 | 21 HOSE AS | 1 | |
| 3196214 | 22 CONNECTOR AS | 1 | |
| 6V9875 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2287096 | SEAL-O-RING | 1 | |
| 3218610 | 23 CONNECTOR AS | 1 | |
| 9X2297 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3196219 | 24 ELBOW AS | 1 | |
| 6V9005 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 2443712 | 25 PLUG AS | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3072670 | 26 PLUG AS | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196240 | 27 CONNECTOR AS | 3 | |
| 6V9873 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 1P4582 | 28 FLANGE-HALF | 10 | |
| 1S0994 | 29 CLIP (LOOP) | 1 | |
| 1912962 | 31 SEAL-O-RING | 8 | |
| 2343544 | 32 SEAL-O-RING | 4 | |
| 6V4590 | 33 SEAL-O-RING | 8 | |
| 5C7261 | 34 NUT (M8X1.25-THD) | 2 | |
| 1728681 | 35 CLIP | 2 | |
| 5P7470 | 36 CLIP (SLOT) | 3 | |
| 5P7471 | 37 CLIP (TAB) | 3 | |
| 5P7703 | 38 GROMMET (52-MM ID) | 3 | |
| 8T0568 | 39 SEAL-O-RING | 4 | |
| 1258274 | 40 SEAL-O-RING | 2 | |
| 5476087 | 41 HOSE | 1 | |
| 3E4096 | 42 CAP | 4 | |
| 7G3413 | 43 CLIP (SLOT) | 1 | |
| 7G3414 | 44 CLIP (TAB) | 1 | |
| 7G3415 | 45 GROMMET | 1 | |
| 7X2549 | 46 BOLT (M12X1.75X100-MM) | 4 | |
| 7X7729 | 47 WASHER (11X25X3-MM THK) | 2 | |
| 8T4121 | 48 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 8T4122 | 49 WASHER-HARD (17X32X3.5-MM THK) | 5 | |
| 8T4137 | 50 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4139 | 51 BOLT (M12X1.75X30-MM) | 3 | |
| 8T4176 | 52 BOLT (M12X1.75X90-MM) | 8 | |
| 2592627 | 53 BOLT (M12X1.75X40-MM) | 12 | |
| 8T4193 | 54 BOLT (M16X2X50-MM) | 5 | |
| 8T4194 | 55 BOLT (M12X1.75X50-MM) | 1 | |
| 1837121 | 56 BOLT (M10X1.5X35-MM) | 2 | |
| 8T4223 | 57 WASHER-HARD (13.5X25.5X3-MM THK) | 33 | |
| 8T4224 | 58 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T4244 | 59 NUT (M12X1.75-THD) | 5 | |
| 2639020 | 60 CLAMP | 4 | |
| 8T6685 | 61 BOLT (M10X1.5X110-MM) | 2 | |
| 8T6870 | 62 BOLT (M8X1.25X70-MM) | 2 | |
| 3218614 | 63 ELBOW AS | 1 | |
| 8T7521 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 8X6483 | 64 BASE AS | 1 | |
| 3082061 | 65 HOSE AS | 1 |
