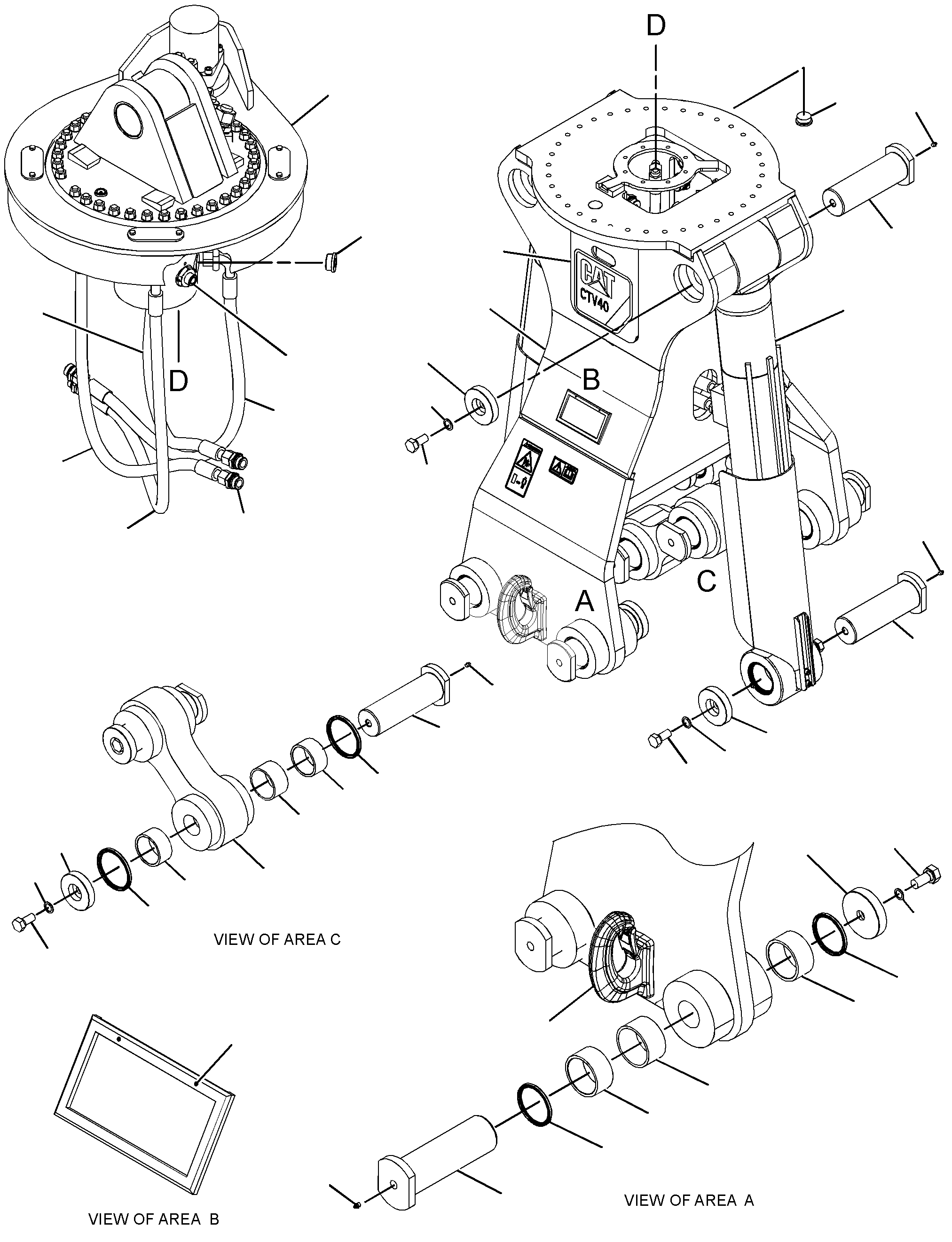

390-8314 GRAPPLE GPPART OF 390-7459, 468-2557, 494-0327, 494-0328 GRAPPLE AR, 591-6853, 591-6855 GRAPPLE AR-HYDRAULIC
Group No: 390-8314
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5W2817 | 1 FITTING-GREASE | 10 | |
| 1626599 | 2 ADAPTER AS | 4 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1559646 | SEAL | 1 | |
| 3779596 | CONNECTOR | 1 | |
| 2156212 | 4 PLUG AS | 1 | |
| 1663781 | SEAL | 1 | |
| 3176248 | 5 ROTATOR GP-HYDRAULIC | 1 | |
| 3651051 | 6 BUSHING | 12 | |
| 5191178 | 7 CYLINDER GP-GRAPPLE | 2 | |
| 3651223 | 8 PLATE-LOCK | 10 | |
| 3651224 | 9 PIN | 10 | |
| 3651225 | 10 BAR AS-PUSH | 1 | |
| 3651228 | 11 PLATE & FILM GP | 1 | |
| 3662595 | 12 CONNECTOR AS | 4 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1663781 | SEAL | 1 | |
| 3960419 | CONNECTOR | 1 | |
| 3663097 | 13 RING | 6 | |
| 3663337 | 14 HOSE AS | 2 | |
| 3663705 | 15 HOSE AS | 2 | |
| 1094440 | 16 PLUG | 1 | |
| 1360155 | 17 SETSCREW (M4X0.7X8-MM) | 2 | |
| 1591122 | 18 LOCKWASHER | 10 | |
| 3908313 | 19 HOUSING AS | 1 | |
| 4930329 | 19A HOOK GP-LIFTING | 2 | |
| 4930331 | KIT-LATCH | 1 | |
| 1661495 | 20 SEAL-LIP TYPE | 12 | |
| 8T5379 | 21 BOLT (M24X3X50-MM) | 10 |
