System And Components

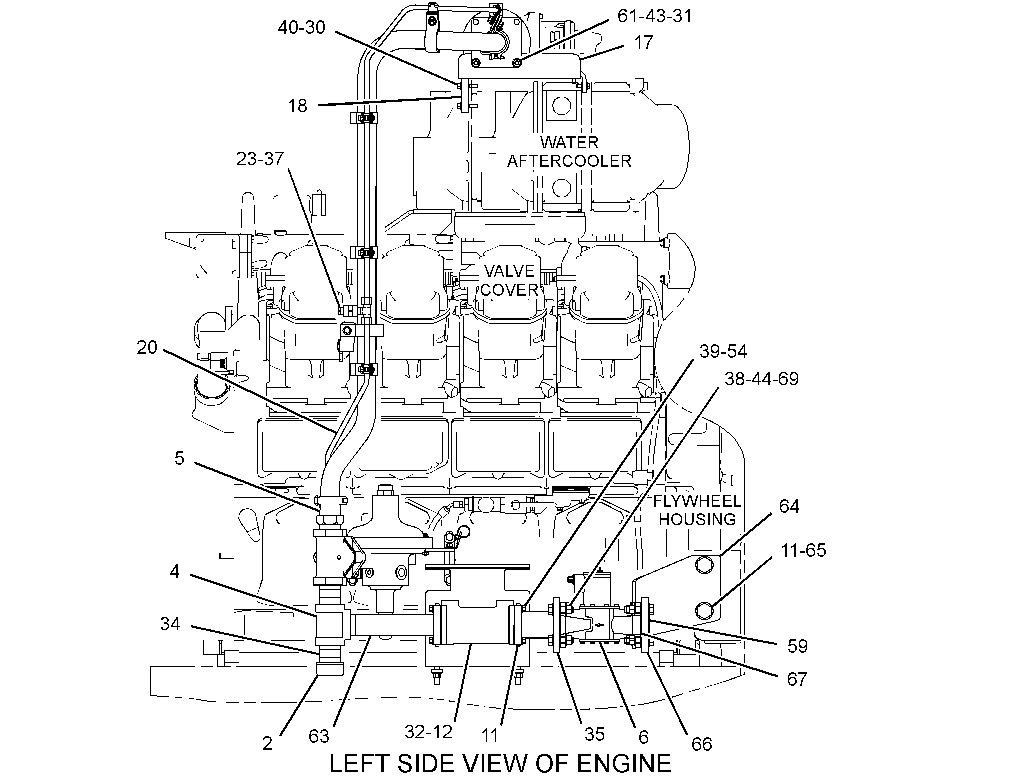

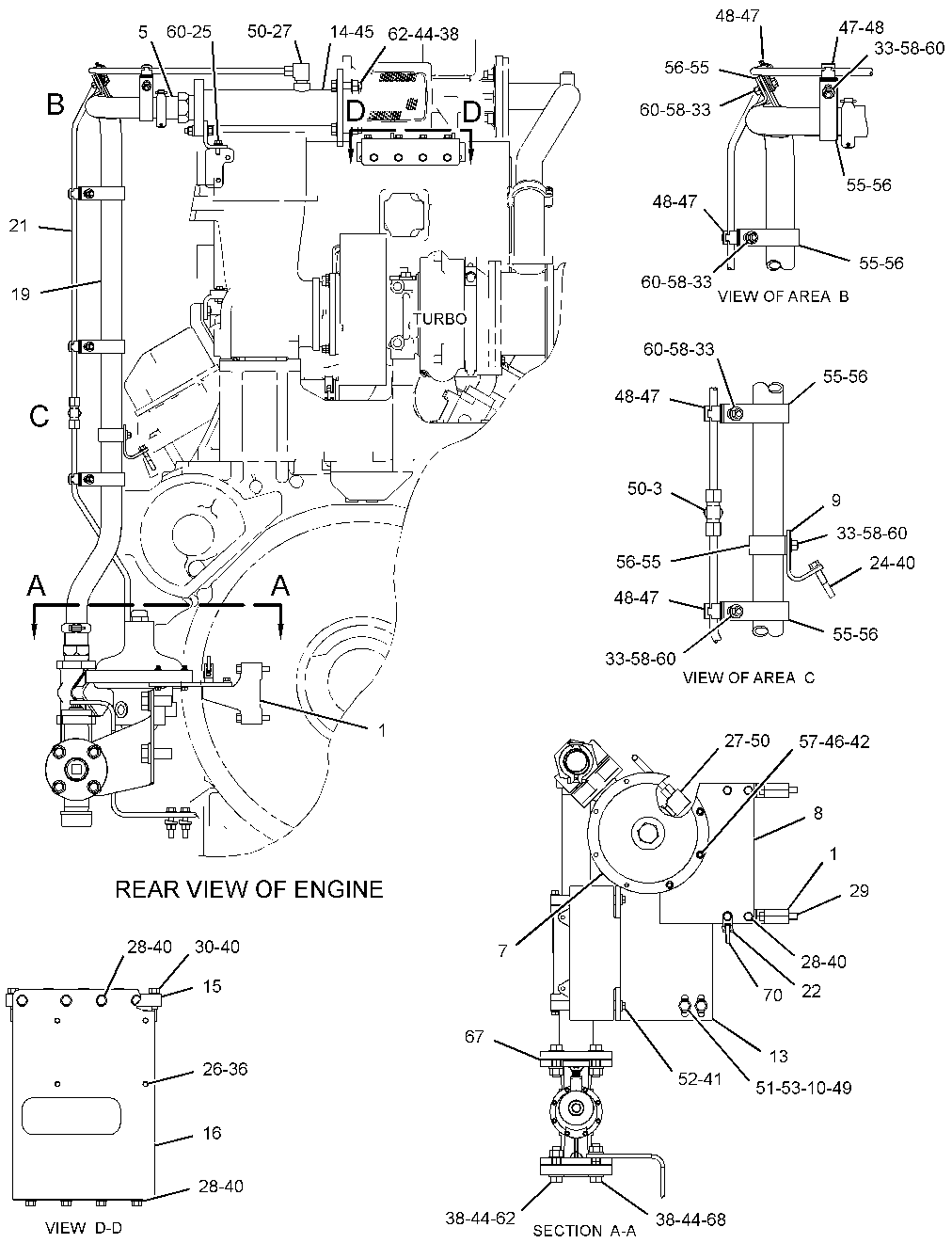

332-8971 LINES GP-FUELPART OF 381-0873 CONVERSION AR-ENGINE
Group No: 332-8971
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1N3872 | 1 SUPPORT | 2 | |
| 2L6055 | 2 CAP-PIPE | 1 | |
| 3E2343 | 3 TEE | 1 | |
| 6L7322 | 4 TEE-PIPE | 1 | |
| 8T2657 | 5 JOINT AS-TUBE | 2 | |
| 9X7529 | SEAL | 1 | |
| 4190893 | 6 VALVE GP-SOLENOID (24-VOLT)(GAS SHUTOFF) | 1 | |
| 4178521 | COIL AS | 1 | |
| 2102007 | 7 REGULATOR GP-GAS PRESSURE | 1 | |
| 2107769 | 8 PLATE | 1 | |
| 2308986 | 9 BRACKET | 1 | |
| 2370927 | 10 WASHER-BEVEL | 4 | |
| 5P8250 | 11 WASHER (28X49X5-MM THK) | 2 | |
| 2938396 | 12 CORE AS-FUEL COOLER | 1 | |
| 4241117 | 13 BRACKET | 1 | |
| 3282620 | 14 TUBE AS | 1 | |
| 3328972 | 15 BLOCK | 1 | |
| 3456982 | 16 BRACKET | 1 | |
| 3456983 | 17 BRACKET | 1 | |
| 3328975 | 18 BLOCK | 1 | |
| 3328976 | 19 TUBE AS | 1 | |
| 3328977 | 20 TUBE AS | 1 | |
| 3328978 | 21 TUBE AS | 1 | |
| 4P8134 | 22 CLIP (LADDER)(LADDER) | 1 | |
| 0444101 | 23 COUPLING-PIPE | 1 | |
| 0L2070 | 24 BOLT (3/8-16X2.25-IN) | 1 | |
| 0S1594 | 25 BOLT (3/8-16X1-IN) | 2 | |
| 6V3940 | 26 BOLT (M8X1.25X25-MM) | 4 | |
| 1228905 | 27 ELBOW (90-DEG) | 2 | |
| 1A2029 | 28 BOLT (3/8-16X1.125-IN) | 12 | |
| 1A5822 | 29 BOLT (1/2-13X2.75-IN) | 4 | |
| 1C2251 | 30 BOLT (3/8-16X1.87-IN) | 7 | |
| 1F7958 | 31 NUT-FULL (1/2-13-THD) | 2 | |
| 4253549 | 32 GASKET | 2 | |
| 3B1915 | 33 BOLT (3/8-16X1.375-IN) | 6 | |
| 3B7286 | 34 NIPPLE-PIPE | 2 | |
| 4196617 | 35 TUBE AS | 1 | |
| 3E4352 | 36 WASHER-HARD (8.8X20.5X2.5-MM THK) | 4 | |
| 3J5389 | 37 PLUG (EXTERNAL) | 1 | |
| 4K0367 | 38 NUT-FULL (5/8-11-THD) | 12 | |
| 4L9337 | 39 BOLT (3/8-16X1.5-IN) | 8 | |
| 5M2894 | 40 WASHER-HARD (10.2X18.5X2.5-MM THK) | 20 | |
| 5P1075 | 41 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 5P6446 | 42 BOLT-12 POINT HEAD (5/16-18X2-IN) | 3 | |
| 5P8245 | 43 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 5P8247 | 44 WASHER-HARD (17X32X3.5-MM THK) | 24 | |
| 5R9779 | 45 GASKET | 1 | |
| 5S0003 | 46 NUT (5/16-18-THD) | 3 | |
| 3441950 | 47 CLIP (SLOT) | 5 | |
| 3441951 | 48 CLIP (TAB) | 5 | |
| 6V8188 | 49 NUT (1/2-13-THD) | 4 | |
| 6V8398 | 50 SEAL-O-RING | 4 | |
| 7X0325 | 51 BOLT (1/2-13X2.5-IN) | 4 | |
| 8T2502 | 52 BOLT (3/8-16X1.125-IN) | 4 | |
| 8T4223 | 53 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4896 | 54 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 9D6196 | 55 CLIP (SLOT) | 6 | |
| 9D6197 | 56 CLIP (TAB) | 6 | |
| 9M1974 | 57 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 9S8752 | 58 NUT-FULL (3/8-16-THD) | 6 | |
| 9X6138 | 59 PLUG-PIPE | 1 | |
| 9X6458 | 60 WASHER-HARD (10.2X22.5X3-MM THK) | 14 | |
| 9X8873 | 61 BOLT (1/2-13X2.25-IN) | 2 | |
| 0S1625 | 62 BOLT (5/8-11X2.5-IN) | 6 | |
| 4437246 | 63 TUBE AS | 1 | |
| 4437245 | 64 BRACKET | 1 | |
| 2H3744 | 65 BOLT (1-14X2.25-IN) | 2 | |
| 4240851 | 66 FLANGE | 1 | |
| 4208789 | 67 GASKET | 2 | |
| 1A8537 | 68 BOLT (5/8-11X2.75-IN) | 2 | |
| 8S9092 | 69 BOLT (5/8-11X2.25-IN) | 4 | |
| 7K1181 | 70 STRAP-CABLE | 1 |
