System And Components

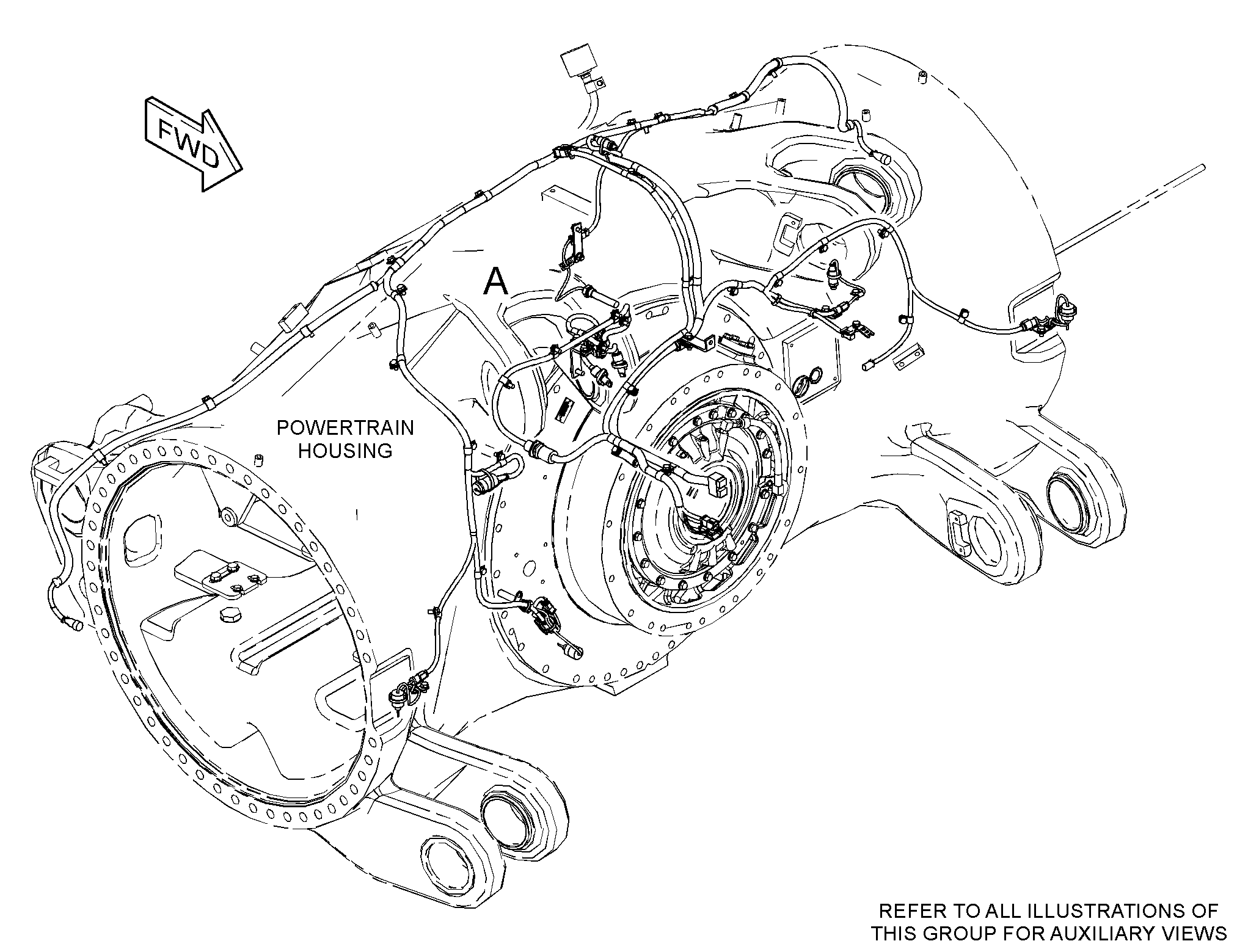

337-7879 WIRING GP-POWER TRAIN -POWER TRAINS/N RBT123-171
Group No: 337-7879
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 1 | |
| 7K1181 | 2 STRAP-CABLE | 13 | |
| 9X9365 | 3 BRACKET (LAMP) | 1 | |
| 9Y9194 | 4 BRACKET | 1 | |
| 9M8406 | 5 CLIP (LOOP) | 4 | |
| 1369699 | 6 BRACKET AS | 1 | |
| 2174590 | 7 BRACKET AS | 1 | |
| 2213405 | 8 SENSOR GP-PRESSURE (REAR SERVICE BRAKE) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1809340 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 3 | |
| 2343545 | 9 PLATE | 1 | |
| 2974836 | 10 HARNESS AS-ALARM | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 5P6008 | TUBE-HEAT SHRINK (6.35-MM DIA)(0.2-M) | ||
| 9X2384 | HOSE (225-CM) | ||
| 6D5234 | PLUG AS-CONNECTOR (14-PIN) | 1 | |
| 7X6222 | PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8558 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3265 | SEAL-CONNECTOR (24-PIN) | 2 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 32 | |
| 8T8737 | PLUG-SEAL | 5 | |
| 9D3955 | PLUG AS-CONNECTOR (3-PIN) | 2 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1148843 | SLEEVE-PLASTIC (200-CM) | ||
| 1148845 | SLEEVE-PLASTIC (20-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(25-CM) | ||
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 4 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 3 | |
| 1P0810 | TAPE-ELECTRICAL | ||
| 2108958 | TUBE-HEAT SHRINK (24-MM DIA)(32-CM) | ||
| 3547433 | 11 SENSOR GP-SPEED (TRANSMISSION) | 2 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 6 | |
| 2287104 | SEAL-O-RING | 1 | |
| 2434508 | RECEPTACLE AS-CONNECTOR (6-PIN) | 1 | |
| 3930376 | 12 HARNESS AS-SENSOR (REAR SERVICE BRAKE) | 1 | |
| 3764208 | 13 HARNESS AS-SENSOR (TRANSMISSION SPEED) | 1 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 10 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 10 | |
| 2305010 | PLUG AS-CONNECTOR (6-PIN) | 2 | |
| 2647032 | SEAL-CONNECTOR | 1 | |
| 0338248 | 14 CLIP (LOOP) | 8 | |
| 0672551 | 15 CLIP | 3 | |
| 1305300 | 16 CLIP | 9 | |
| 1305301 | 17 CLIP | 1 | |
| 1342252 | 18 SENSOR GP-TEMPERATURE (8-VOLT)(REAR BRAKE OIL, RH) | 1 | |
| 1342252 | 18A SENSOR GP-TEMPERATURE (8-VOLT)(DIFFERENTIAL OIL) | 1 | |
| 1342252 | 18B SENSOR GP-TEMPERATURE (8-VOLT)(REAR BRAKE OIL, LH) | 1 | |
| 1728660 | 19 SWITCH GP-LIQUID LEVEL (DIFFERENTIAL OIL) | 2 | |
| 1834403 | 20 CLIP (LOOP) | 6 | |
| 1S0994 | 21 CLIP (LOOP) | 5 | |
| 2213415 | 22 SENSOR GP-PRESSURE (DIFFERENTIAL OIL) | 1 | |
| 2M9780 | 23 SEAL-O-RING | 2 | |
| 3J1907 | 25 SEAL-O-RING | 5 | |
| 4D7794 | 26 CLIP | 5 | |
| 4K8864 | 27 CLIP (LOOP) | 1 | |
| 4P7429 | 28 CLIP (LADDER) | 2 | |
| 4P7581 | 29 CLIP (LADDER) | 5 | |
| 5P7462 | 30 CLIP (SLOT) | 1 | |
| 5P7463 | 31 CLIP (TAB) | 1 | |
| 6V0683 | 32 GROMMET | 1 | |
| 8M2770 | 33 CLIP (LOOP) | 4 | |
| 8M2772 | 34 CLIP (LOOP) | 1 | |
| 8M2773 | 35 CLIP (LOOP) | 6 | |
| 8T0267 | 36 BOLT-SOCKET HEAD (M6X1X12-MM) (M6X1X12-MM) | 4 | |
| 8T4121 | 37 WASHER-HARD (11X21X2.5-MM THK) | 50 | |
| 8T4133 | 38 NUT (M10X1.5-THD) | 6 | |
| 8T4136 | 39 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4137 | 40 BOLT (M10X1.5X20-MM) | 38 | |
| 8T4139 | 41 BOLT (M12X1.75X30-MM) | 2 | |
| 8T4186 | 42 BOLT (M10X1.5X40-MM) | 1 | |
| 8T4189 | 43 BOLT (M8X1.25X20-MM) | 1 | |
| 8T4223 | 44 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 45 WASHER-HARD (8.8X16X2-MM THK) | 1 |
