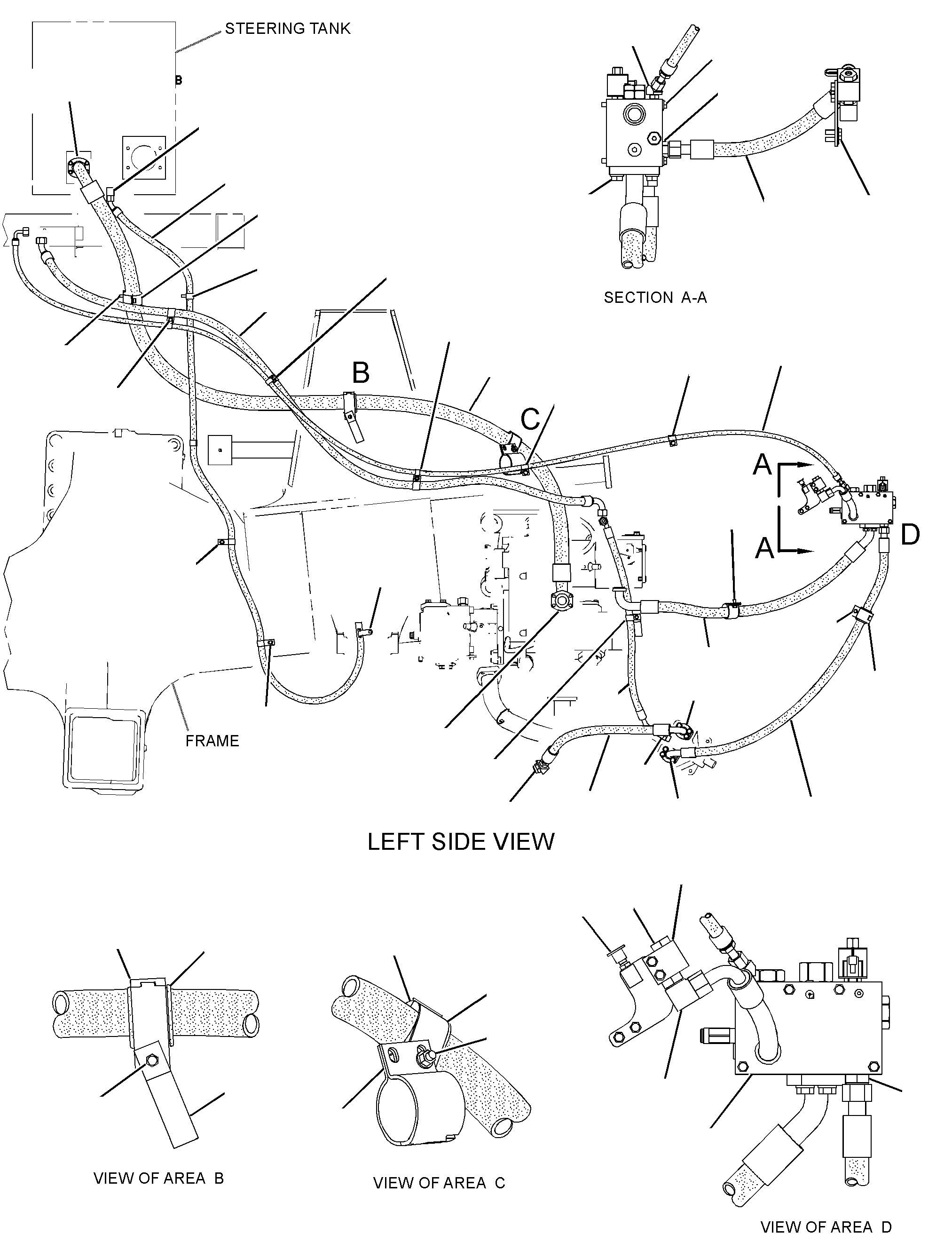

193-6296 LINES GP-HYDRAULICS/N FDB1-120
Group No: 193-6296
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 1 | |
| 8W5161 | 2 MANIFOLD | 1 | |
| 8X6280 | 3 HOSE AS | 1 | |
| 1645567 | 5 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1986577 | 6 VALVE GP-SOLENOID & MANIFOLD (COMBINATION) | 1 | |
| 2416215 | 7 ELBOW AS | 1 | |
| 2476968 | 8 HOSE AS | 1 | |
| 2500555 | 9 HOSE AS | 1 | |
| 2522317 | 10 PLATE AS | 1 | |
| 2525231 | 11 HOSE AS | 1 | |
| 2527156 | 12 HOSE AS | 1 | |
| 2533548 | 13 HOSE AS | 1 | |
| 2731168 | 14 HOSE AS | 1 | |
| 2731169 | 15 HOSE AS | 1 | |
| 2848944 | 16 HOSE AS | 1 | |
| 0311358 | 17 ELBOW-FLARED | 1 | |
| 1488309 | 18 ADAPTER AS | 1 | |
| 2P8421 | ADAPTER-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 1488327 | 19 CONNECTOR AS | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 1488335 | 20 CONNECTOR AS | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 1488347 | 21 ELBOW AS | 1 | |
| 6V9007 | ELBOW | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 1488355 | 22 ELBOW AS | 1 | |
| 6V9005 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 1565744 | 24 CLAMP-HALF | 2 | |
| 1600012 | 25 CLIP (SLOT) | 1 | |
| 1600013 | 26 CLIP (TAB) | 1 | |
| 1645578 | 27 TEE AS | 1 | |
| 6V9175 | TEE (FACE SEAL) | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 1645624 | 29 ELBOW AS | 1 | |
| 9X2085 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2352474 | 30 SEAL-RECTANGULAR | 2 | |
| 2352476 | 31 SEAL-RECTANGULAR | 2 | |
| 1P4582 | 32 FLANGE-HALF | 4 | |
| 1S1015 | 33 CLIP (LOOP) | 2 | |
| 3P2404 | 34 CLIP | 4 | |
| 4D7388 | 35 CLIP | 4 | |
| 6V4590 | 36 SEAL-O-RING | 2 | |
| 5P7468 | 37 CLIP (SLOT) | 1 | |
| 5P7469 | 38 CLIP (TAB) | 1 | |
| 5P8077 | 39 FLANGE-HALF | 2 | |
| 5P8444 | 40 GROMMET (37-MM ID) | 1 | |
| 6D4244 | 41 CLIP (LOOP) | 3 | |
| 6V0400 | 42 FLANGE-HALF | 4 | |
| 6V1867 | 43 CLIP (SLOT) | 3 | |
| 6V1868 | 44 CLIP (TAB) | 3 | |
| 6V1869 | 45 GROMMET (65-MM ID) | 3 | |
| 6V1875 | 46 GROMMET | 1 | |
| 7X2544 | 48 BOLT (M10X1.5X140-MM) | 4 | |
| 7X7729 | 49 WASHER (11X25X3-MM THK) | 1 | |
| 8D9947 | 50 CLIP | 1 | |
| 8T4121 | 51 WASHER-HARD (11X21X2.5-MM THK) | 15 | |
| 8T4133 | 52 NUT (M10X1.5-THD) | 4 | |
| 8T4137 | 53 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 54 BOLT (M12X1.75X30-MM) | 3 | |
| 8T4184 | 55 BOLT (M12X1.75X45-MM) | 9 | |
| 8T4193 | 56 BOLT (M16X2X50-MM) | 4 | |
| 8T4195 | 57 BOLT (M10X1.5X30-MM) | 6 | |
| 8T4196 | 58 BOLT (M10X1.5X35-MM) | 1 | |
| 8T4223 | 59 WASHER-HARD (13.5X25.5X3-MM THK) | 21 | |
| 8T4244 | 60 NUT (M12X1.75-THD) | 1 | |
| 8T4956 | 61 BOLT (M12X1.75X35-MM) | 8 | |
| 8T5005 | 62 BOLT (M10X1.5X70-MM) | 2 | |
| 9U2276 | 63 CLIP AS | 1 | |
| 9X2646 | 64 CLIP (SLOT) | 1 | |
| 9X2647 | 65 CLIP (TAB) | 1 | |
| 9X8257 | 66 WASHER (17.5X30X3.5-MM THK) | 4 |
