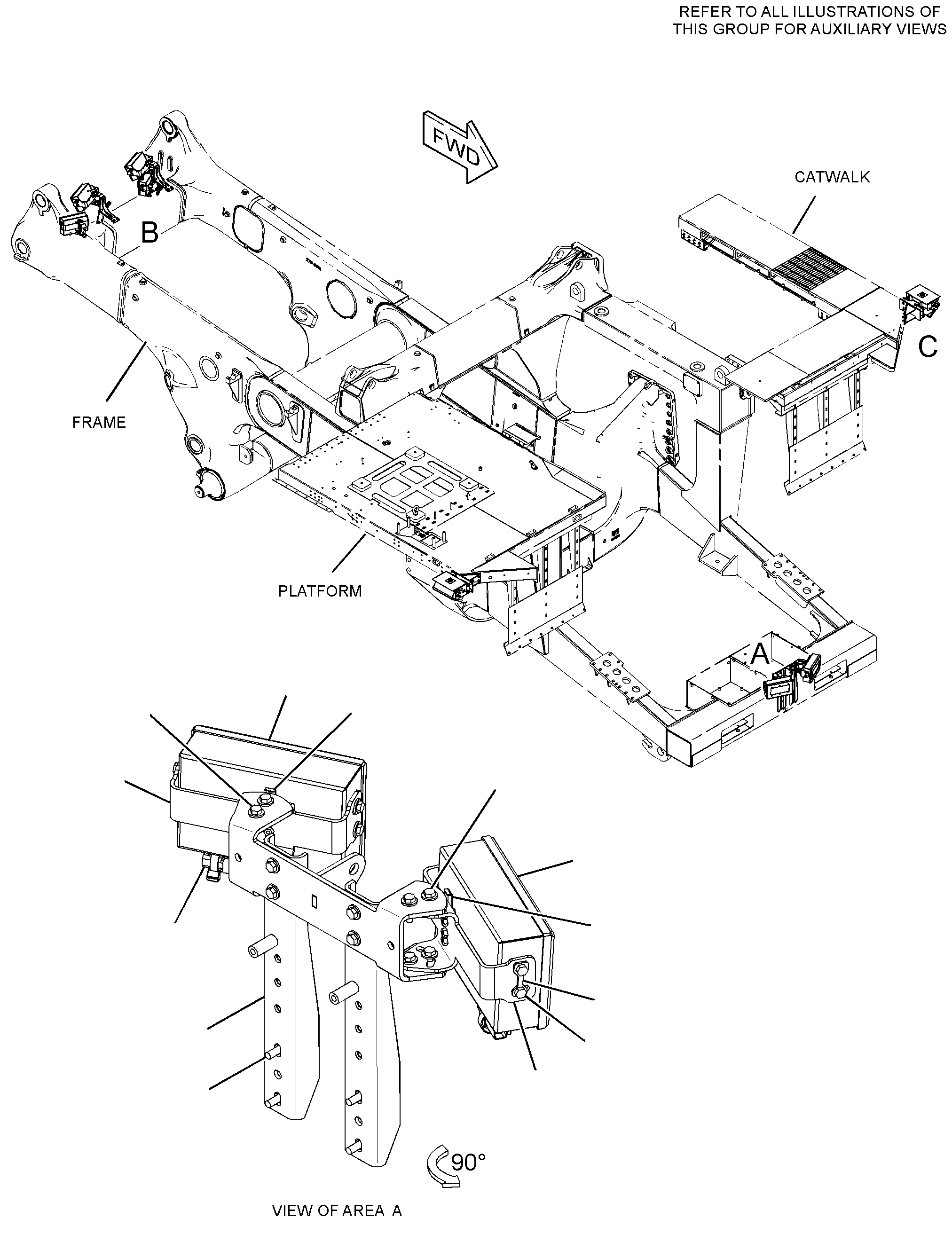

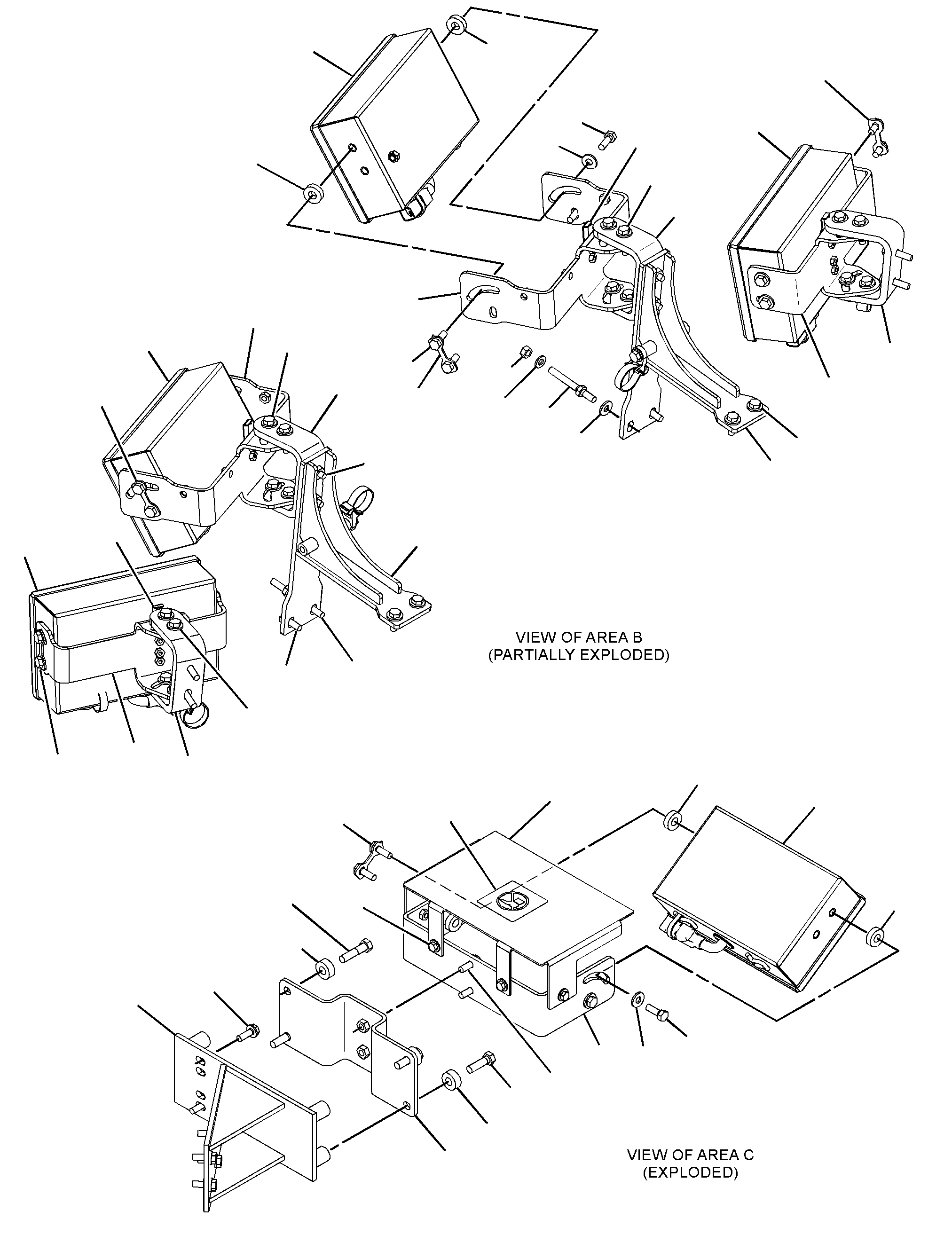

379-8148 BOX & MTG GP-OBJECT DETECTIONS/N SND115-133

Group No: 379-8148
Part NumberPart NameQty
32690551 FILM-INSTRUCTION (NO STEP)2
34779172 BOX GP-OBJECT DETECTION (RADAR)(LOWER)8
34949153 BRACKET4
36038624 PLATE AS2
36038665 PLATE AS2
37291436 PLATE2
45822067 BRACKET AS2
6V9632NUT-WELD (M6X1-THD)2
8T3612NUT-WELD (M8X1.25-THD)4
37869978 BRACKET AS2
37870079 PLATE AS2
8T3490NUT-WELD (M10X1.5-THD)2
379812810 MOUNTING GP-SENSOR (RADAR)1
458220411 BRACKET AS4
6V9632NUT-WELD (M6X1-THD)4
380448912 PLATE8
380693213 BRACKET6
381075414 WIRING GP-OBJECT DETECTION (RADAR)1
198477815 WASHER-HARD (13.5X30X12-MM THK)12
234952516 STUD (M10X1.5-THD)2
265959617 WASHER-HARD (13.5X30X9-MM THK)32
5C955318 BOLT (M6X1X16-MM)12
5P411619 WASHER-HARD (8.8X20.5X2-MM THK)8
6V774420 LOCKNUT (M10X1.5-THD)24
7X772921 WASHER (11X25X3-MM THK)84
8T412122 WASHER-HARD (11X21X2.5-MM THK)12
8T413323 NUT (M10X1.5-THD)2
8T418325 BOLT (M12X1.75X40-MM)8
8T418626 BOLT (M10X1.5X40-MM)30
8T418927 BOLT (M8X1.25X20-MM)8
8T419428 BOLT (M12X1.75X50-MM)4
8T419529 BOLT (M10X1.5X30-MM)52
9X825630 WASHER (6.6X12X2-MM THK)12
8T418231 BOLT (M10X1.5X45-MM)2
