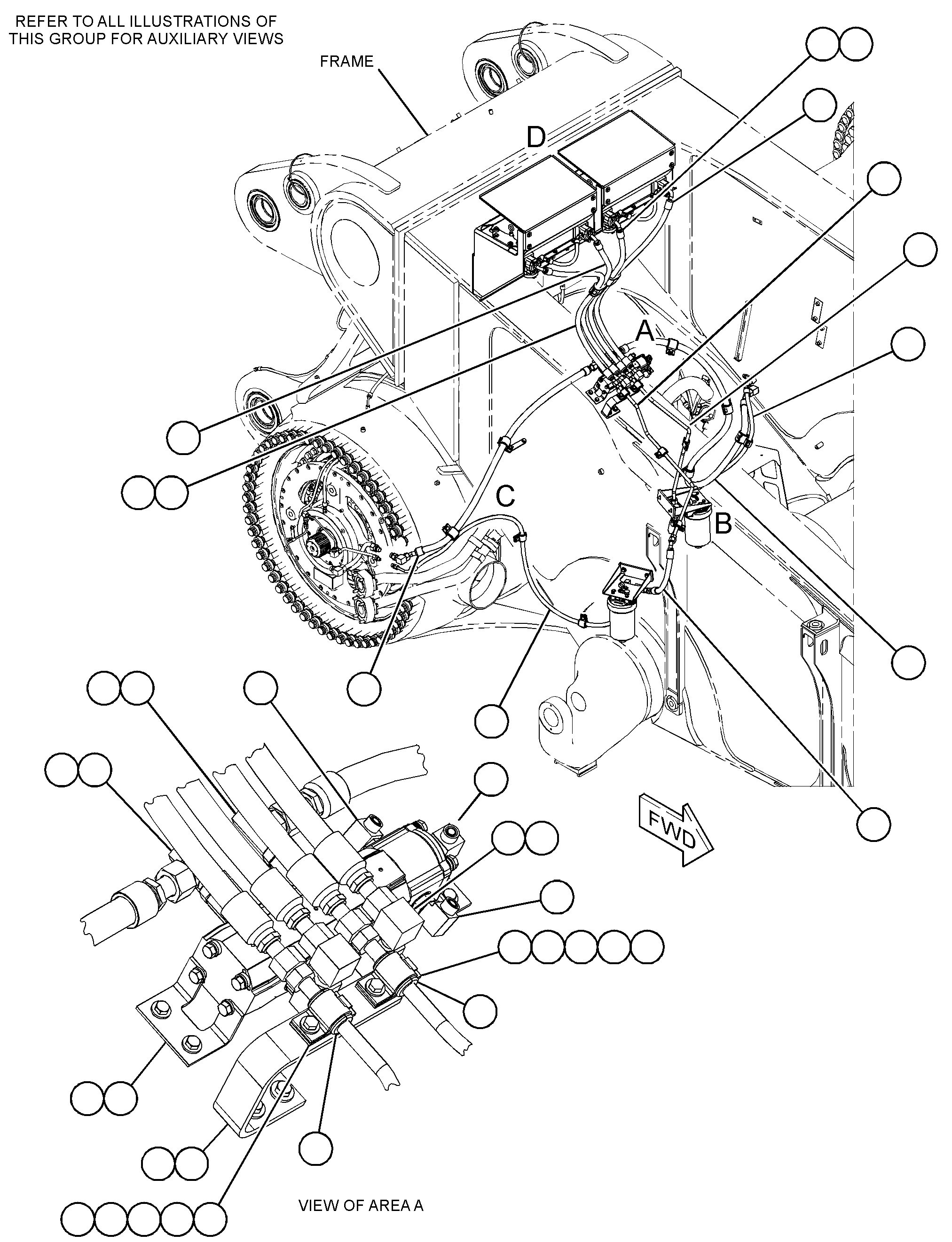

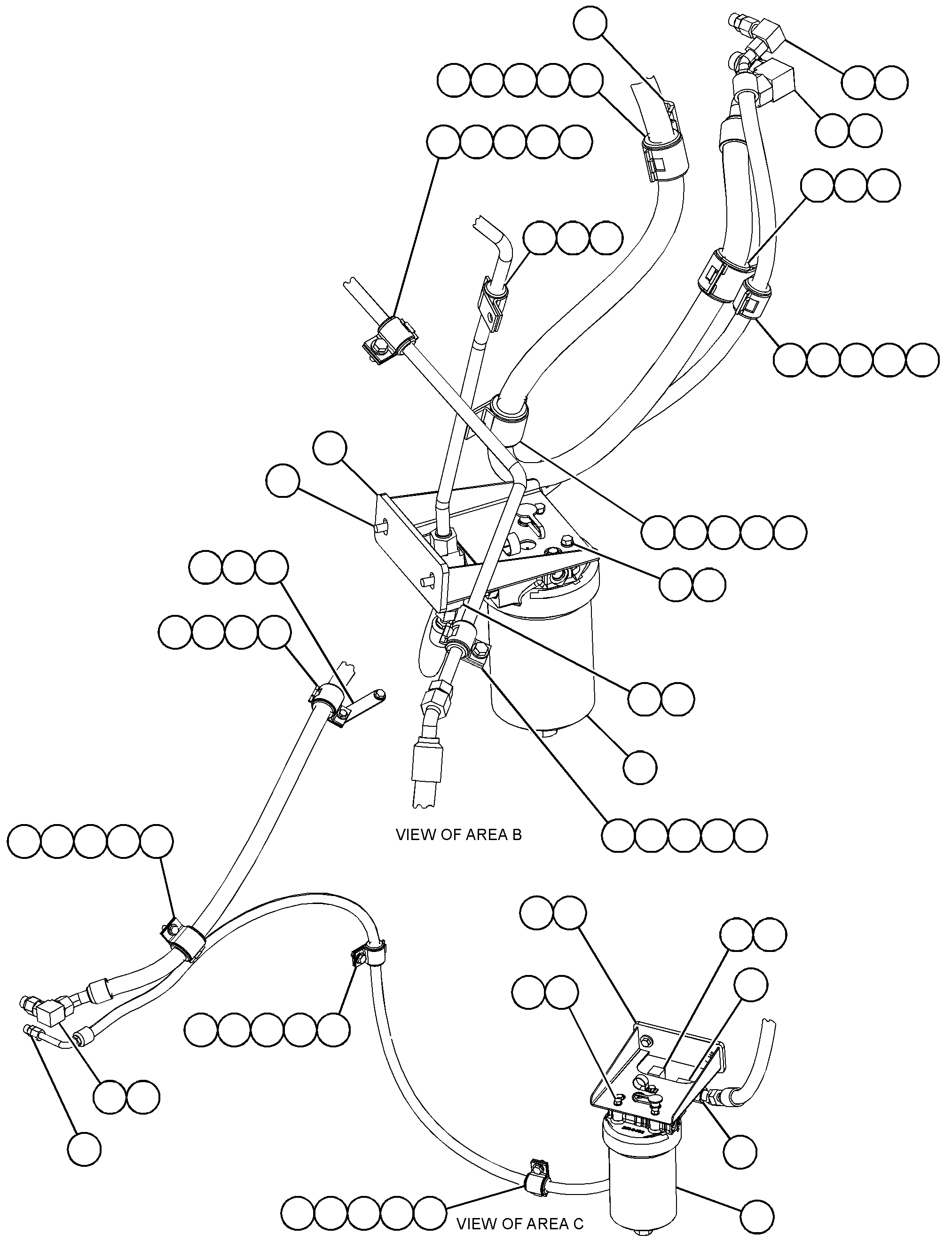

System And Components
542-2535 LINES GP-OIL COOLERS/N ST31-UP
Group No: 542-2535
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9D7924 | 1 MOUNTING AS | 8 | |
| 0617540 | 2 SEAL-O-RING | 8 | |
| 1358575 | 3 BOLT AS | 4 | |
| 1358577 | 4 BOLT AS | 2 | |
| 1935576 | 5 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 1P4578 | 6 FLANGE-HALF | 8 | |
| 1P7405 | 7 EYEBOLT (3/8-16-THD) | 4 | |
| 2287092 | 8 SEAL-O-RING | 3 | |
| 2815933 | 9 ELBOW AS | 2 | |
| 6V9853 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2815979 | 10 ELBOW AS | 2 | |
| 6V9007 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3148706 | 11 BLOCK | 4 | |
| 3196217 | 12 CONNECTOR AS | 4 | |
| 6V8639 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196221 | 13 ELBOW AS | 2 | |
| 6V9182 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196223 | 14 ELBOW AS | 2 | |
| 8T6684 | ELBOW | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3196225 | 15 ELBOW AS | 2 | |
| 6V8625 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196227 | 16 ELBOW AS | 1 | |
| 6V9851 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3196228 | 17 ELBOW AS | 1 | |
| 6V8721 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3293356 | 18 NUT (M12X1.75-THD) | 2 | |
| 3295528 | 19 ELBOW AS | 1 | |
| 8T8899 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 3328562 | 20 ELBOW AS | 2 | |
| 6V9852 | ELBOW (SWIVEL) | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 3353979 | 21 ADAPTER AS | 2 | |
| 8C3051 | ADAPTER | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3445675 | 22 NUT (M10X1.5-THD) | 2 | |
| 3534672 | 23 FILTER & MTG GP-POWER TRAIN (TRANSMISSION OIL) | 2 | |
| 3603672 | 24 TEE AS | 2 | |
| 2287093 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 2501457 | TEE | 1 | |
| 4264116 | 25 CONNECTOR AS | 2 | |
| 1387538 | CONNECTOR | 1 | |
| 2287091 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 4424349 | 26 VALVE AS-CHECK | 2 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 4491426 | 27 ADAPTER AS | 2 | |
| 8C8989 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 4532604 | 28 ADAPTER AS | 2 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3410103 | CONNECTOR | 1 | |
| 4641047 | 29 BRACKET | 2 | |
| 4731405 | 30 BRACKET AS | 2 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 5 | |
| 4731408 | 31 BRACKET AS | 2 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 5 | |
| 4731410 | 32 DEFLECTOR AS | 2 | |
| 4731413 | 33 BRACKET AS | 4 | |
| 4761816 | 34 HOSE AS | 2 | |
| 4883974 | 35 BOLT AS | 5 | |
| 4L6454 | 36 BOLT (3/8-16X1-IN) | 8 | |
| 5186160 | 37 COOLER GP-OIL | 2 | |
| 5221652 | 38 PUMP & MOTOR GP-REAR AXLE LUBE | 1 | |
| 5443078 | 39 HOSE AS | 1 | |
| 5443081 | 40 HOSE AS | 1 | |
| 5443088 | 41 HOSE AS | 1 | |
| 5630495 | 42 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5645323 | 43 HOSE AS | 1 | |
| 5645325 | 44 HOSE AS | 2 | |
| 5645326 | 45 HOSE AS | 1 | |
| 5726945 | 46 BRACKET AS | 2 | |
| 5726951 | 47 TUBE AS | 1 | |
| 5726952 | 48 TUBE AS | 1 | |
| 5726955 | 49 PLATE | 1 | |
| 5807891 | 50 HOSE AS | 1 | |
| 5807928 | 51 HOSE AS | 1 | |
| 5M3062 | 52 BOLT (3/8-16X0.75-IN) | 12 | |
| 5P2228 | 53 BOLT (1/2-13X1-IN) | 7 | |
| 5P7462 | 54 CLIP (SLOT) | 5 | |
| 5P7463 | 55 CLIP (TAB) | 5 | |
| 5P7464 | 56 CLIP (SLOT) | 4 | |
| 5P7465 | 57 CLIP (TAB) | 4 | |
| 5P7468 | 58 CLIP (SLOT) | 6 | |
| 5P7469 | 59 CLIP (TAB) | 6 | |
| 5P8444 | 60 GROMMET (37-MM ID) | 6 | |
| 5S7379 | 61 BOLT (3/8-16X0.875-IN) | 6 | |
| 6V0683 | 62 GROMMET | 5 | |
| 6V1249 | 63 GROMMET (22-MM ID) | 4 | |
| 7G3832 | 64 GROMMET | 2 | |
| 7G3833 | 65 CLIP (TAB) | 2 | |
| 7G3834 | 66 CLIP (SLOT) | 2 | |
| 7X0314 | 67 BOLT (7/16-14X3-IN) | 16 | |
| 7X0578 | 68 WASHER-HARD (10.2X32X2.5-MM THK) | 16 | |
| 7X7729 | 69 WASHER (11X25X3-MM THK) | 5 | |
| 8T4139 | 70 BOLT (M12X1.75X30-MM) | 6 | |
| 8T4183 | 71 BOLT (M12X1.75X40-MM) | 2 | |
| 8T4186 | 72 BOLT (M10X1.5X40-MM) | 3 | |
| 8T4192 | 73 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4194 | 74 BOLT (M12X1.75X50-MM) | 2 | |
| 8T4222 | 75 WASHER-PLATED (11X32X2.5-MM THK) | 20 | |
| 8T4223 | 76 WASHER-HARD (13.5X25.5X3-MM THK) | 16 | |
| 8T4821 | 77 WASHER (13.5X40X3-MM THK) | 7 | |
| 8T4896 | 78 WASHER-HARD (10.2X18.5X2.5-MM THK) | 14 | |
| 8T5360 | 79 WASHER (12X22.5X2.5-MM THK) | 16 | |
| 8T9377 | 80 BOLT (3/8-16X2.25-IN) | 8 |
