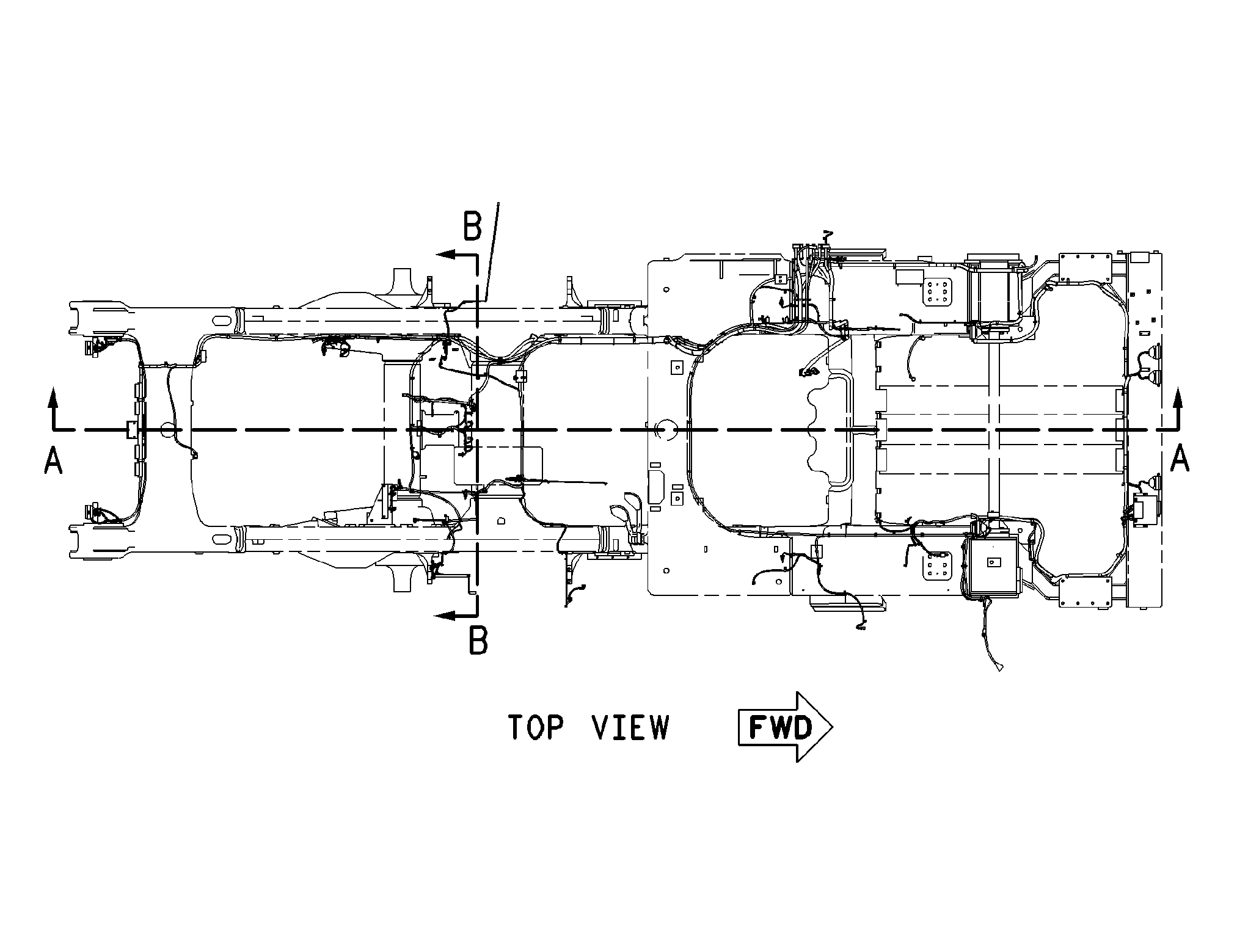

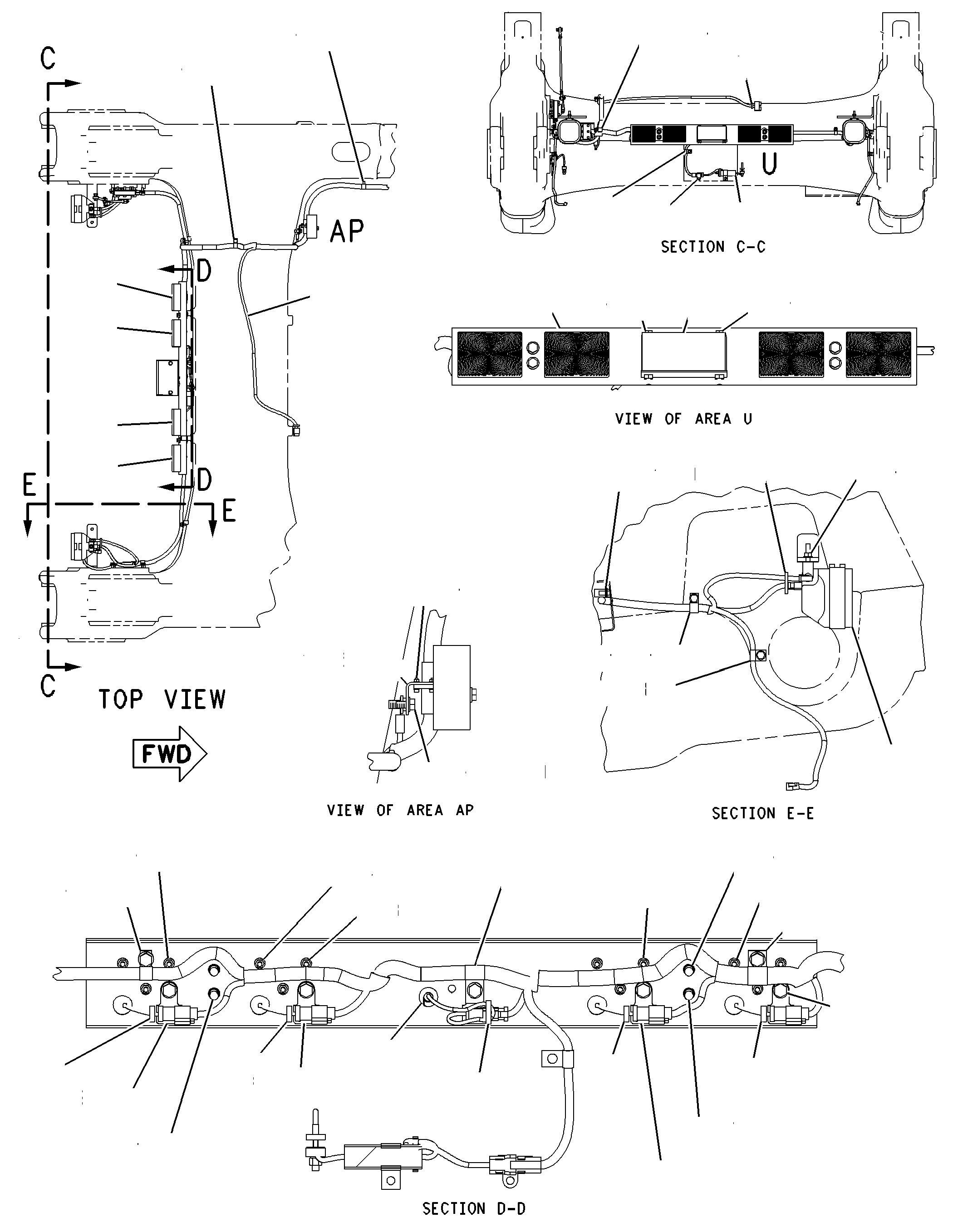

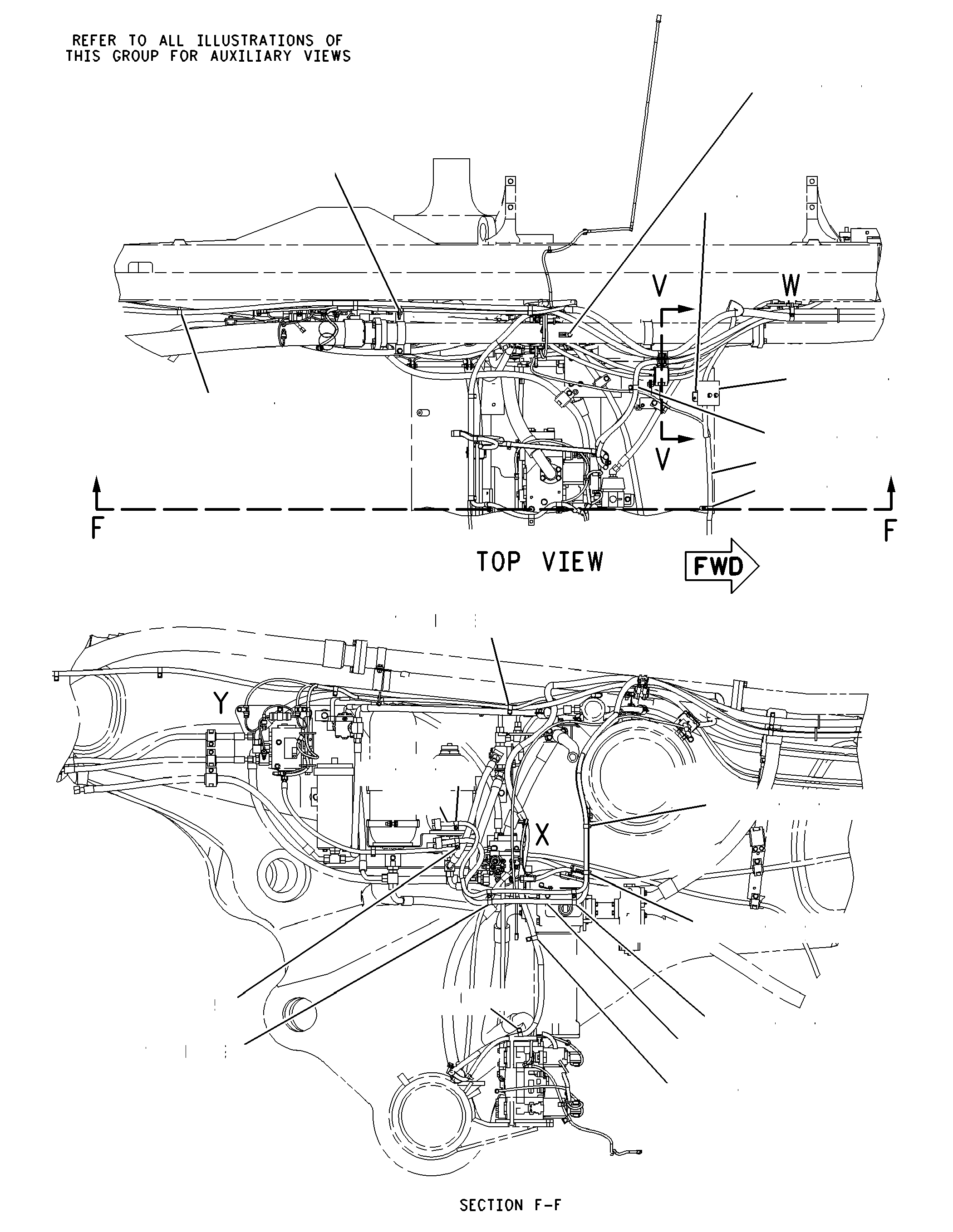

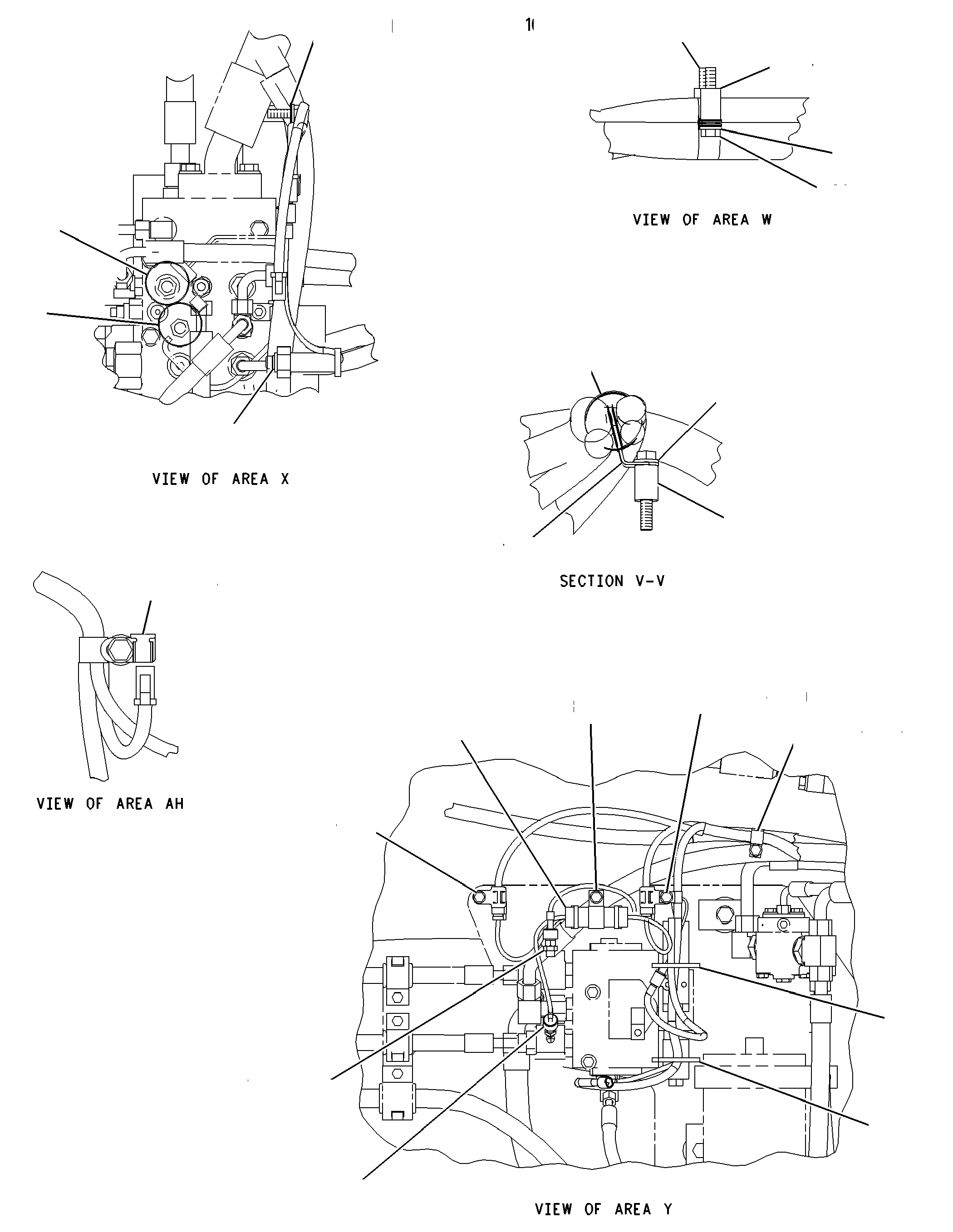

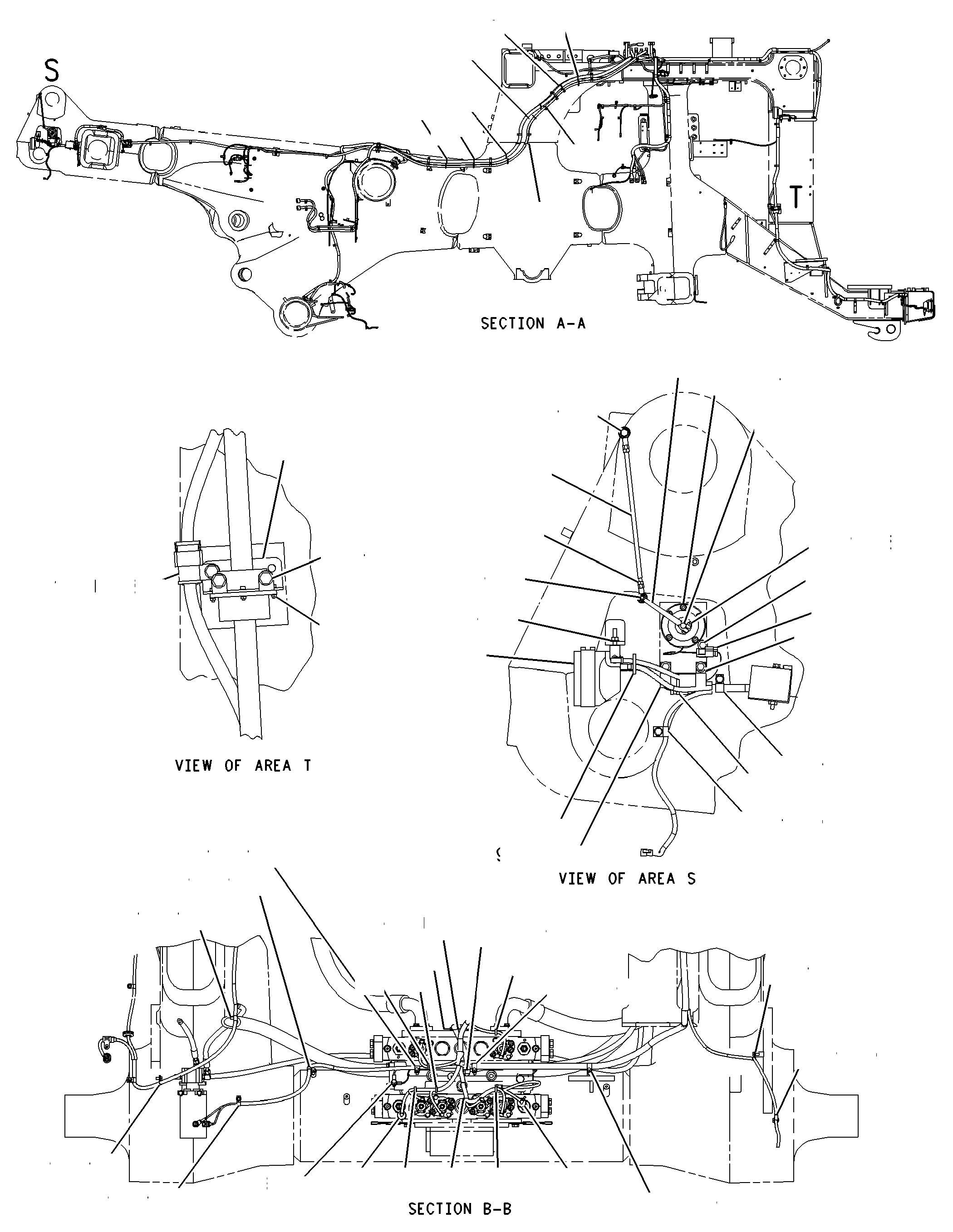

149-3056 WIRING GP-CHASSISS/N 5YW234-237

Group No: 149-3056
Part NumberPart NameQty
2A73211 BOX AS1
8F8551HINGE-BUTT1
2G87672 WASHER (10.5X60X3-MM THK)8
3E51693 GUARD-SWITCH (ENGINE SHUTDOWN)1
3T30484 CLIP AS1
6B45405 NUT (4-40-THD)4
6D30336 SCREW-SOCKET HEAD (4-40X0.5-IN)4
6G22567 CLAMP4
6V94978 WASHER-HARD (3.2X6X0.5-MM THK)4
6W76369 SPACER (11.13X19.05X30-MM THK)4
7K118110 STRAP-CABLE76
8D953711 CAP-DUST (RS-232 SERVICE CONNECTOR)1
8X574012 CABLE AS1
5P0744CABLE (00-GA, BLACK)(93.0CM)
5P2600RING-TERMINAL (000-GA, 1/2-IN SCREW)1
9G8909COVER-TERMINAL (BLACK)2
0350425RING-TERMINAL (000-GA, 3/8-IN SCREW)1
8X808213 BRACKET2
9G710114 SPACER (11X20X30-MM THK)6
9G915015 CLIP1
9X026116 ADAPTER2
9X349517 CLIP AS1
9X685518 SWITCH AS-PRESSURE (BRAKE OIL ACCUMULATOR)1
5P6008TUBE-HEAT SHRINK (6.35-MM DIA)
8T5677SLEEVE
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)2
7N7781HOUSING-RECEPTACLE (14-GA TO 18-GA)1
091008119 SPACER (10.5X20X10-MM THK)17
102140020 SENSOR GP-PRESSURE (AUTO LUBE)1
107228221 LAMP GP-SIGNAL (24-VOLT)1
116011822 CLIP3
117907923 PLATE AS1
118042924 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)2
123644926 ALARM GP1
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
5P5677WIRE (18-GA, BLACK)(.6M)
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
126018227 BUFFER GP-SENSOR (FUEL LEVEL)1
130530028 CLIP24
135042629 LAMP GP-SIGNAL (24-VOLT, STOP, TAIL)(STOP/TAIL)2
135042730 LAMP GP-SIGNAL (24-VOLT, PARK, TURN)(TURN/PARK)2
135612531 KEY-WOODRUFF1
138750032 SPACER (11X25X50-MM THK)4
139211633 SWITCH GP-TOGGLE (ACCESS LIGHTS)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
139211834 SWITCH AS-TOGGLE (ENGINE SERVICE LIGHTS)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
142570535 PLATE1
154632037 LEVER1
156392738 HARNESS AS (CAB TO XMSN INPUT)1
156393139 HARNESS AS (CAB TO XMSN OUTPUT)1
156956340 HARNESS AS-CHASSIS (CAB TO ENGINE)(CAB TO ENGINE)1
158048741 ROD (37.0CM)1
8T6431ROD END (M10 X 1.5MM THD)1
7X7915ROD END (M8 X 1.2MM THD)1
5C7261NUT (M8X1.25-THD)1
8T4133NUT (M10X1.5-THD)1
158048942 CHANNEL AS1
8T3490NUT-WELD (M10X1.5-THD)2
159542643 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
8N0869COVER-TERMINAL (RED)2
0301706TERMINAL-RING (00-GA, 1/4-IN SCREW)1
159542744 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
5P0747CABLE (00-GA, BLACK)(80CM)
8S3020TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
0375197BOOT1
164760045 LAMP GP-FLOOD (24-VOLT)(ENGINE WORK)2
168039146 PLATE2
170251247 SWITCH GP-TOGGLE (ENGINE SHUTDOWN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
3E3383WEDGE-RECEPTACLE LOCK (6-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)6
173267948 SWITCH AS-PRESSURE (STEERING)(HIGH)1
185620749 CABLE AS1
5P0747CABLE (00-GA, BLACK)(720CM)
7N5274COVER AS-TERMINAL (BLACK)1
8S3020TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
192895850 BRACKET AS2
192895951 BRACKET AS3
192896052 BRACKET2
192896153 BRACKET3
193466354 HARNESS AS (797 REAR)1
193466455 HARNESS AS (CAB TO TAIL CASTING)1
193466556 HARNESS AS (BUMPER TO RH SIDE)1
193466657 HARNESS AS (797 BUMPER)1
193466758 HARNESS AS (CAB TO LH FENDER)1
193466859 HARNESS AS (MIDDLE TO RH SIDE)1
193466960 HARNESS AS (CAB TO LH MIDDLE)1
033824861 CLIP (LOOP)9
137760162 POTENTIOMETER AS (BODY POSITION SENSOR)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
164759563 LAMP GP-HEAD (24-VOLT)(LOW BEAM)4
164759864 LAMP GP-FLOOD (REAR BACK-UP)2
170766365 BUFFER GP-SENSOR (DUMP BODY)1
186604766 SENDER AS (STEERING TANK)1
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
1S099467 CLIP (LOOP)18
1S642068 CLIP2
2T301969 CLIP (LOOP)5
3J190770 SEAL-O-RING9
3J735471 SEAL-O-RING3
3S866472 CLIP6
3S866573 CLIP (LOOP)5
4D779474 CLIP14
4K830275 CLIP (LOOP)1
4K886476 CLIP (LOOP)4
4P742977 CLIP (LADDER)1
4P758178 CLIP (LADDER)5
4P758279 CLIP (LADDER)2
4P813480 CLIP (LADDER)2
4S196281 CLIP (LOOP)1
4S445582 CLIP6
5C289083 NUT (M6X1-THD)16
5C726184 NUT (M8X1.25-THD)1
5C831285 NUT (M4X0.7-THD)20
5P785486 CLIP (LOOP)11
5P929787 CLIP (LOOP)10
5P929988 CLIP (LOOP)1
5P961789 ADAPTER1
6D424490 CLIP (LOOP)20
6K817891 CLIP (LOOP)1
6V188992 CLIP (LOOP)24
6V429893 BOLT (M5X0.8X16-MM)5
6V821294 BOLT (M10X1.5X16-MM)3
7N071895 SWITCH GP-DISCONNECT1
7N371896 CLIP1
7X262197 BOLT (M10X1.5X12-MM)7
7X772998 WASHER (11X25X3-MM THK)3
8C966099 WASHER (4.6X7.9X0.8-MM THK)40
8K1433100 GROMMET1
8M2770101 CLIP (LOOP)14
8M2773102 CLIP (LOOP)20
8S7583103 GROMMET1
8T0328104 WASHER-HARD (5.5X10X1-MM THK)5
8T0338105 BOLT-SOCKET HEAD (M8X1.25X45-MM)5
8T4121106 WASHER-HARD (11X21X2.5-MM THK)213
8T4133107 NUT (M10X1.5-THD)14
8T4136108 BOLT (M10X1.5X25-MM)10
8T4137109 BOLT (M10X1.5X20-MM)148
8T4139110 BOLT (M12X1.75X30-MM)4
8T4179111 BOLT (M12X1.75X20-MM)5
8T4185112 BOLT (M10X1.5X50-MM)8
8T4192113 BOLT (M12X1.75X25-MM)2
8T4195114 BOLT (M10X1.5X30-MM)23
8T4205115 WASHER-HARD (7.2X14.5X2-MM THK)15
8T4223116 WASHER-HARD (13.5X25.5X3-MM THK)11
8T4896117 WASHER-HARD (10.2X18.5X2.5-MM THK)2
8T4971118 BOLT (M6X1X30-MM)1
8T5005119 BOLT (M10X1.5X70-MM)4
8T6466120 BOLT (M10X1.5X60-MM)6
8T7547121 BOLT (M8X1.25X30-MM)1
8T9379122 BOLT (3/8-16X4.25-IN)2
8T9405123 BOLT-SOCKET HEAD (M4X0.7X16-MM)20
9D3768124 GROMMET1
9G7641125 SWITCH GP-START (ENGINE, KEY)(VIMS SERVICE CONNECTOR)1
9M1974126 WASHER-HARD (8.8X16X2-MM THK)7
9M8406127 CLIP (LOOP)32
9R7240128 GASKET1
9X8256129 WASHER (6.6X12X2-MM THK)1
1342252130 SENSOR GP-TEMPERATURE (8-VOLT)(LH REAR BRAKE)1
1342252131 SENSOR GP-TEMPERATURE (8-VOLT)(RH REAR BRAKE)1
1342252132 SENSOR GP-TEMPERATURE (8-VOLT)(LH FRONT BRAKE)1
1342252133 SENSOR GP-TEMPERATURE (8-VOLT)(RH FRONT BRAKE)1
1187226134 SENSOR GP-TEMPERATURE (STEERING TANK)1
1439170135 SENSOR GP-PRESSURE (RH PARKING BRAKE RELEASE)1
1439170136 SENSOR GP-PRESSURE (LH PARKING BRAKE RELEASE)1
1028802KIT-RECEPTACLE (2-PIN)2
1028803KIT-RECEPTACLE (3-PIN)3
1028805KIT-RECEPTACLE (6-PIN)1
