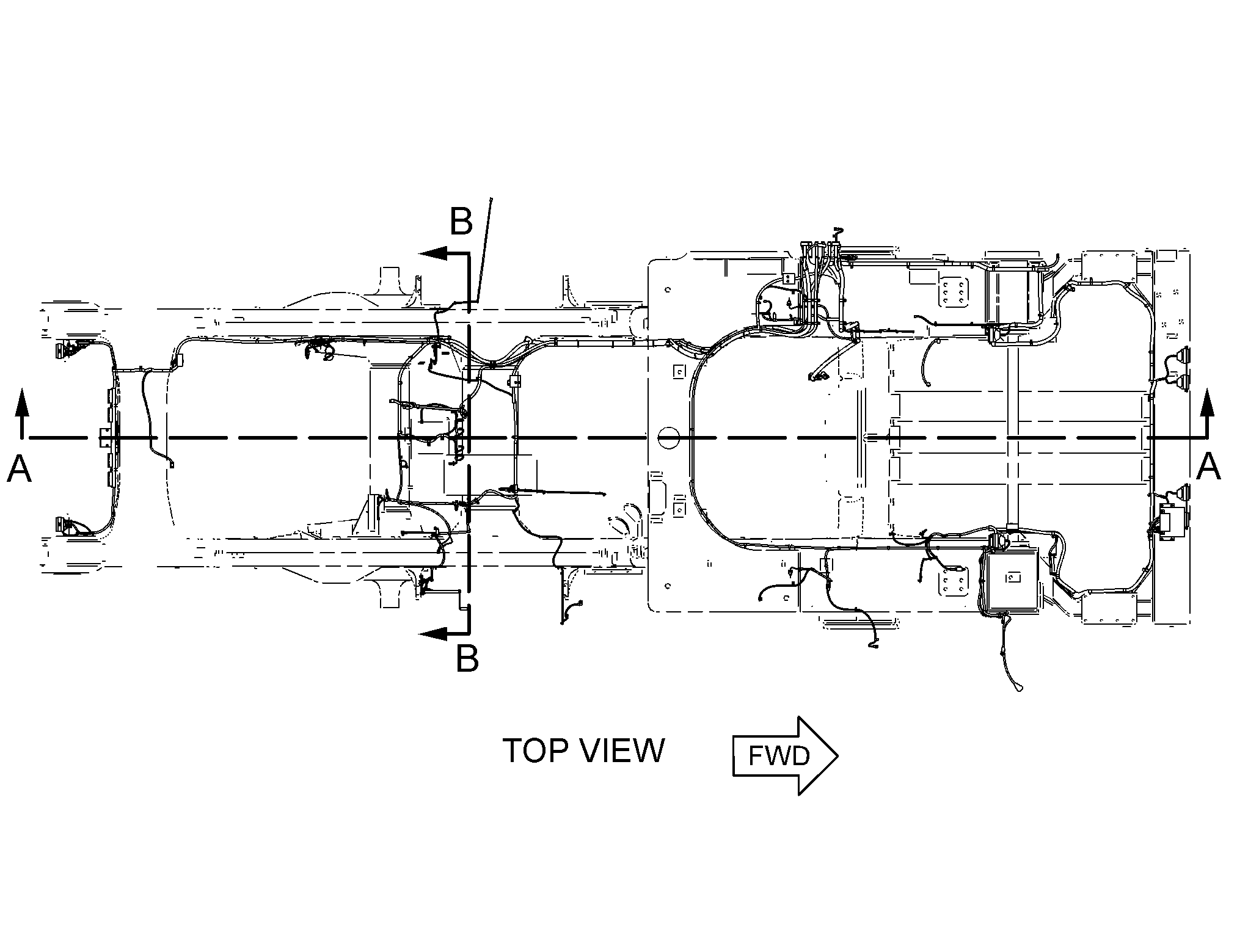

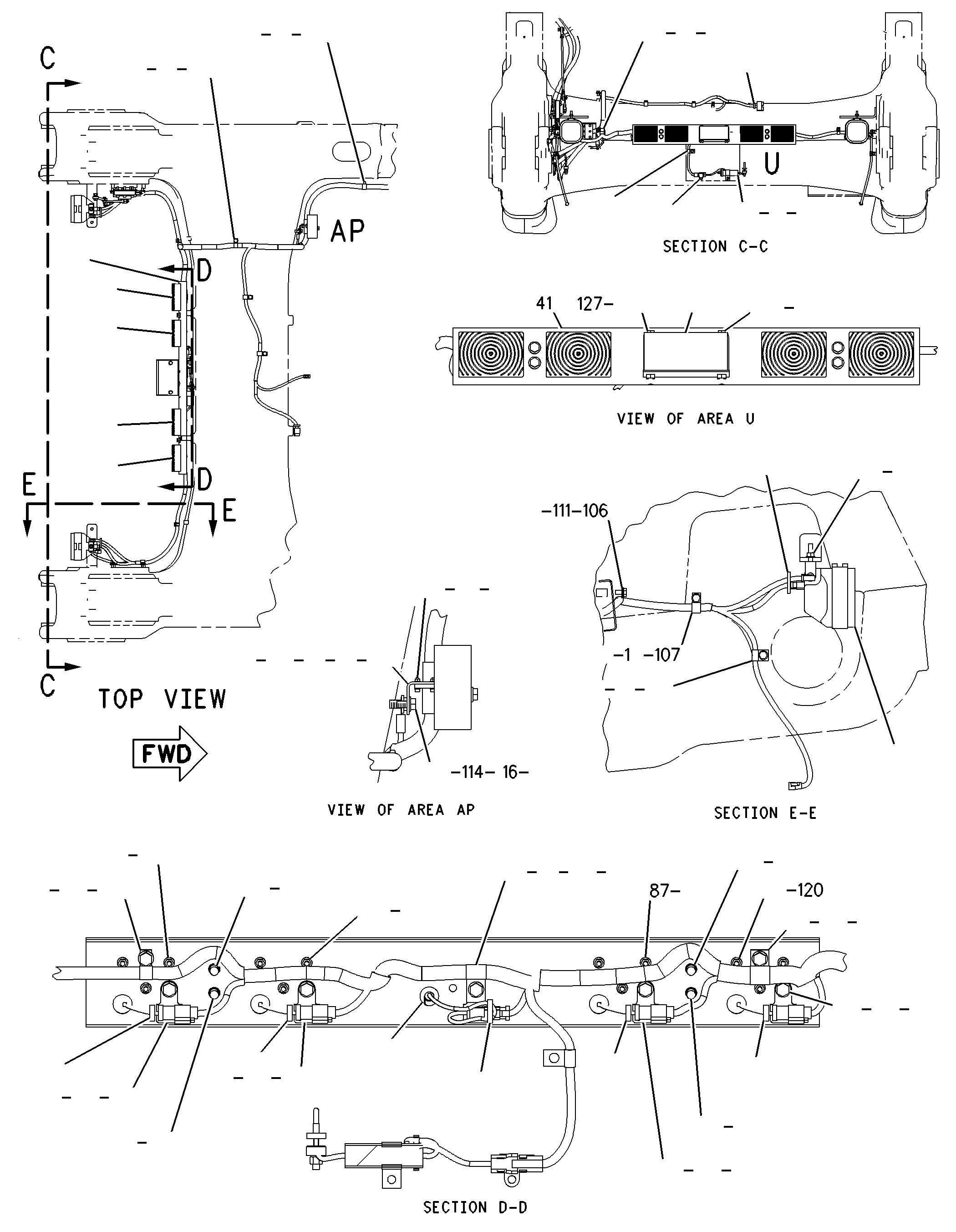

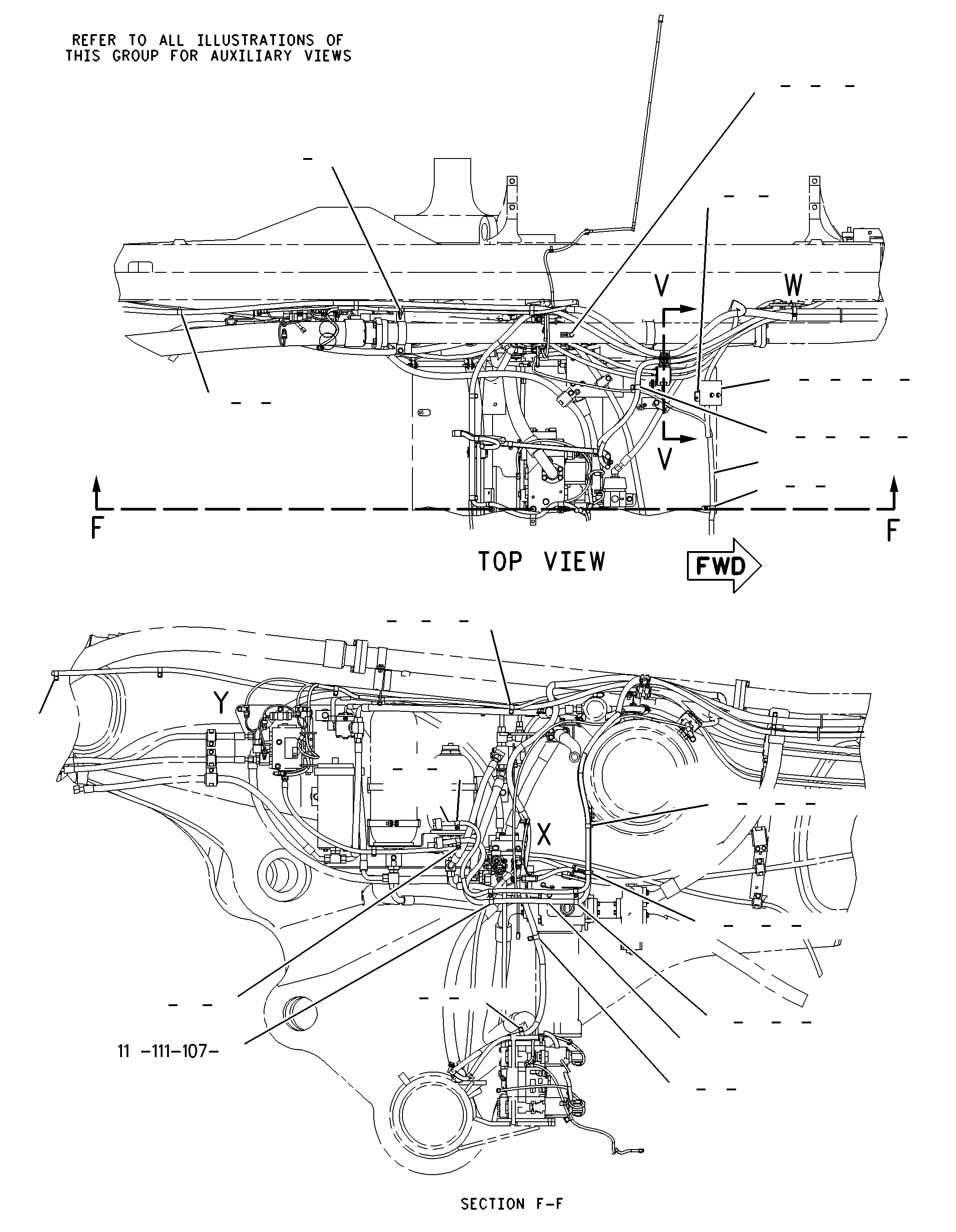

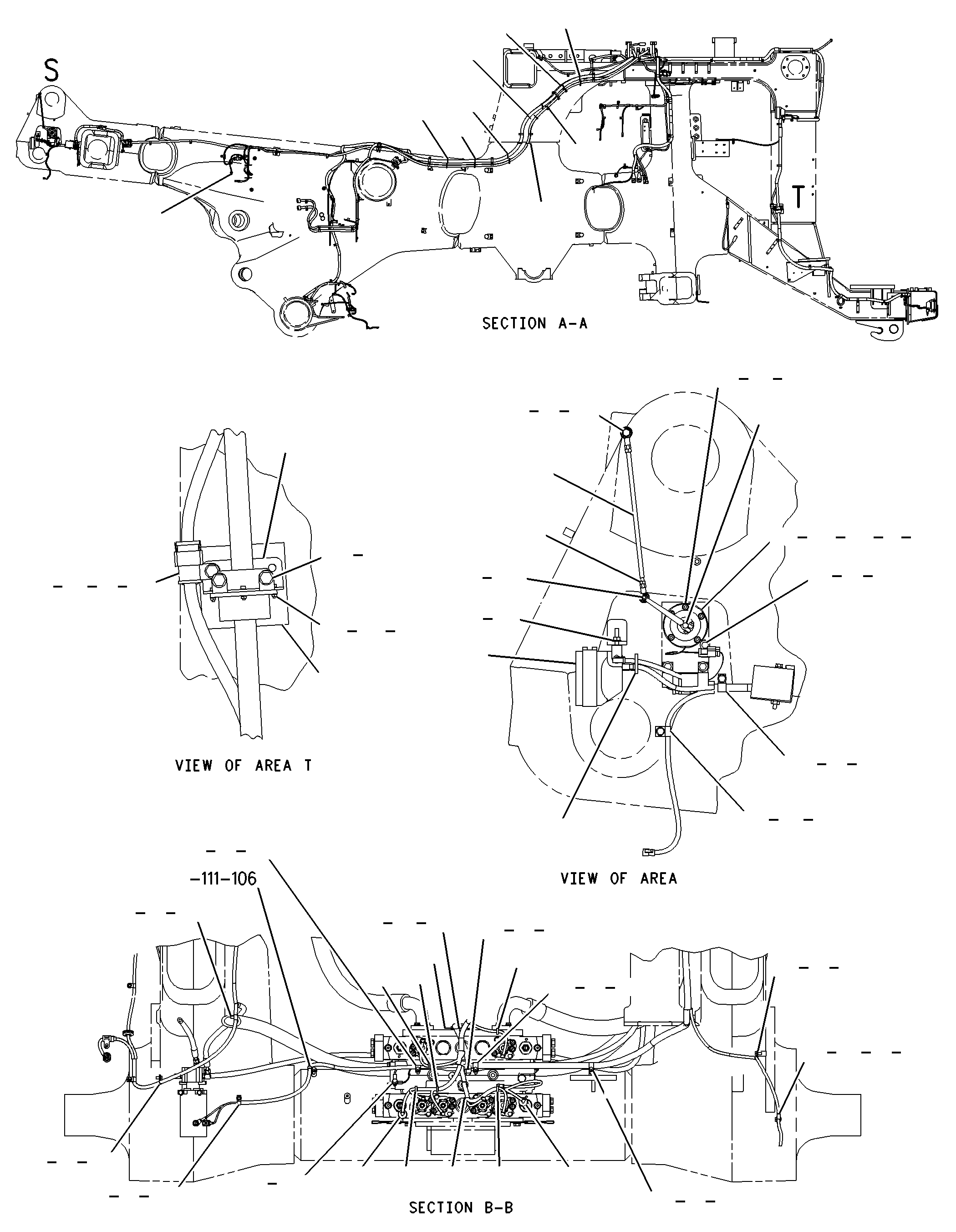

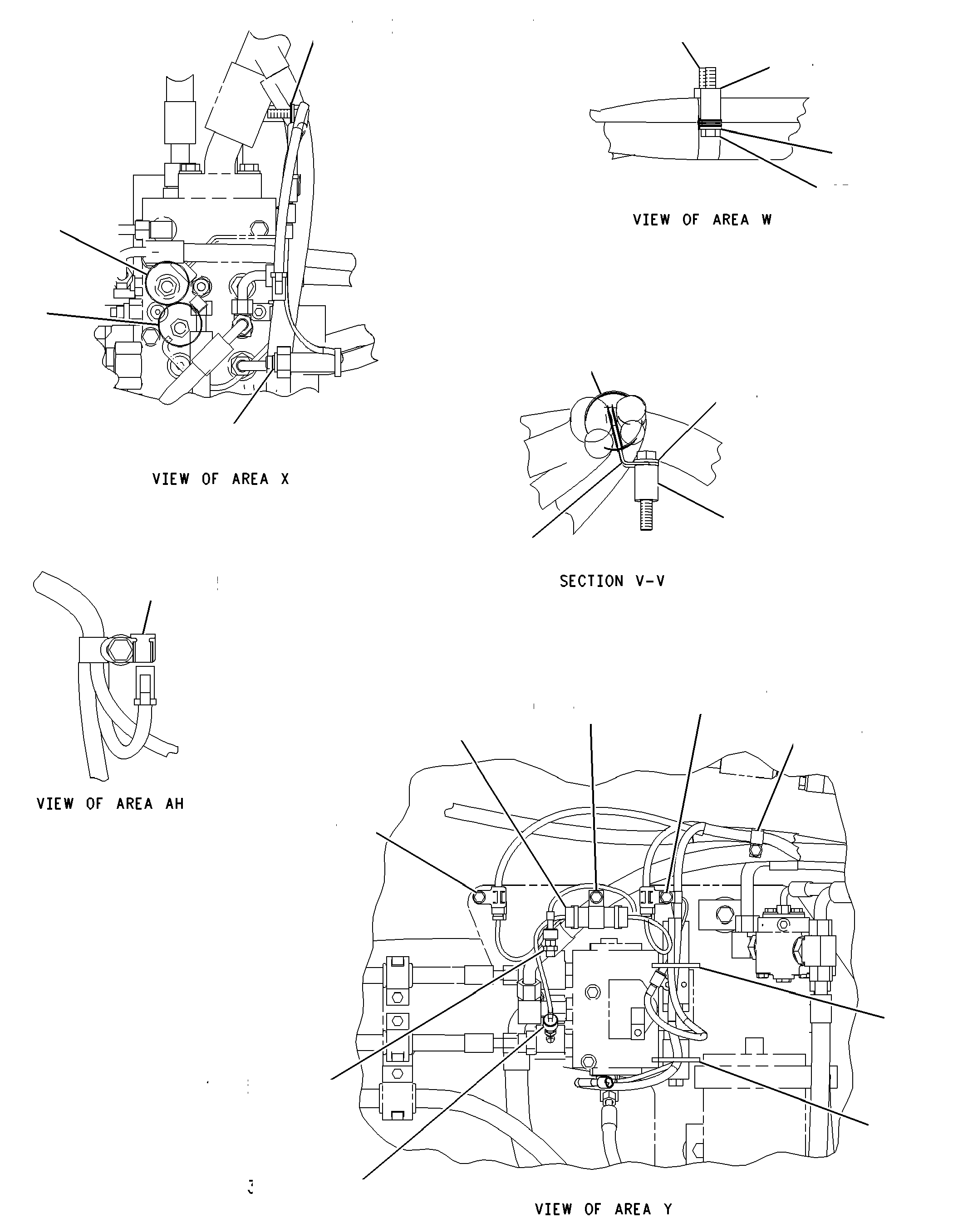

149-3056 WIRING GP-CHASSISS/N 5YW262-275

Group No: 149-3056
Part NumberPart NameQty
2A73211 BOX AS1
8F8551HINGE-BUTT1
2G87672 WASHER (10.5X60X3-MM THK)8
3E51693 GUARD-SWITCH (ENGINE SHUTDOWN)1
3T30484 CLIP AS1
6B45405 NUT (4-40-THD)4
6D30336 SCREW-SOCKET HEAD (4-40X0.5-IN)4
6G22567 CLAMP4
6V94978 WASHER-HARD (3.2X6X0.5-MM THK)4
6W76369 SPACER (11.13X19.05X30-MM THK)4
7K118110 STRAP-CABLE76
8D953711 CAP-DUST (RS-232 SERVICE CONNECTOR)1
8X574012 CABLE AS1
5P0744CABLE (00-GA, BLACK)(93.0CM)
5P2600RING-TERMINAL (000-GA, 1/2-IN SCREW)1
9G8909COVER-TERMINAL (BLACK)2
0350425RING-TERMINAL (000-GA, 3/8-IN SCREW)1
8X808213 BRACKET2
9G710114 SPACER (11X20X30-MM THK)5
9G915015 CLIP1
9X026116 ADAPTER2
9X349517 CLIP AS1
9X685518 SWITCH AS-PRESSURE (BRAKE OIL ACCUMULATOR)1
5P6008TUBE-HEAT SHRINK (6.35-MM DIA)
8T5677SLEEVE
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)2
7N7781HOUSING-RECEPTACLE (14-GA TO 18-GA)1
102140019 SENSOR GP-PRESSURE (AUTO LUBE)1
107228220 LAMP GP-SIGNAL (24-VOLT)1
116011821 CLIP3
117907922 PLATE AS1
118042923 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)2
134225224 SENSOR GP-TEMPERATURE (8-VOLT)(LH FRONT BRAKE)1
123644925 ALARM GP1
126018226 BUFFER GP-SENSOR (FUEL LEVEL)1
130530027 CLIP19
130530128 CLIP1
135042629 LAMP GP-SIGNAL (24-VOLT, STOP, TAIL)(STOP/TAIL)2
135042730 LAMP GP-SIGNAL (24-VOLT, PARK, TURN)(TURN/PARK)2
135612531 KEY-WOODRUFF1
138750032 SPACER (11X25X50-MM THK)3
139211633 SWITCH GP-TOGGLE (ACCESS LIGHTS)1
1028803KIT-RECEPTACLE (3-PIN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
139211834 SWITCH AS-TOGGLE (ENGINE SERVICE LIGHTS)1
1028803KIT-RECEPTACLE (3-PIN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
3E3371WEDGE-RECEPTACLE LOCK (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
142570535 PLATE1
143917036 SENSOR GP-PRESSURE (LH PARKING BRAKE RELEASE)1
154632037 LEVER1
156393138 HARNESS AS (CAB TO XMSN OUTPUT)1
156956339 HARNESS AS-CHASSIS (CAB TO ENGINE)(CAB TO ENGINE)1
158048740 ROD (37.0CM)1
8T6431ROD END (M10 X 1.5MM THD)1
7X7915ROD END (M8 X 1.2MM THD)1
5C7261NUT (M8X1.25-THD)1
8T4133NUT (M10X1.5-THD)1
158048941 CHANNEL AS1
8T3490NUT-WELD (M10X1.5-THD)2
159542642 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
8N0869COVER-TERMINAL (RED)2
0301706TERMINAL-RING (00-GA, 1/4-IN SCREW)1
159542743 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
5P0747CABLE (00-GA, BLACK)(80CM)
8S3020TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
0375197BOOT1
164760044 LAMP GP-FLOOD (24-VOLT)(ENGINE WORK)2
168039145 PLATE2
170251246 SWITCH GP-TOGGLE (ENGINE SHUTDOWN)1
1028805KIT-RECEPTACLE (6-PIN)1
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
3E3383WEDGE-RECEPTACLE LOCK (6-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)6
173267947 SWITCH AS-PRESSURE (STEERING)(HIGH)1
185620748 CABLE AS1
5P0747CABLE (00-GA, BLACK)(720CM)
7N5274COVER AS-TERMINAL (BLACK)1
8S3020TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
192895849 BRACKET AS2
192895950 BRACKET AS3
192896051 BRACKET2
192896152 BRACKET3
193466553 HARNESS AS (BUMPER TO RH SIDE)1
193466654 HARNESS AS (797 BUMPER)1
193466755 HARNESS AS (CAB TO LH FENDER)1
193466856 HARNESS AS (MIDDLE TO RH SIDE)1
193466957 HARNESS AS (CAB TO LH MIDDLE)1
195458958 HARNESS AS (CAB TO XMSN INPUT)1
209213059 SENSOR GP-PRESSURE1
209361360 HARNESS AS (797 REAR)1
209361461 HARNESS AS (CAB TO TAIL CASTING)1
033824862 CLIP (LOOP)9
091008163 SPACER (10.5X20X10-MM THK)15
137760164 POTENTIOMETER AS (BODY POSITION SENSOR)1
1028803KIT-RECEPTACLE (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
164759565 LAMP GP-HEAD (24-VOLT)(LOW BEAM FOG)4
164759866 LAMP GP-FLOOD (REAR BACK-UP LOW BEAM)2
170766367 BUFFER GP-SENSOR (DUMP BODY)1
186604768 SENDER AS (STEERING TANK)1
1028802KIT-RECEPTACLE (2-PIN)1
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
1J967169 SEAL-O-RING1
1S099470 CLIP (LOOP)20
1S642071 CLIP2
205307972 ADAPTER1
2T301973 CLIP (LOOP)5
3J190774 SEAL-O-RING8
3J735475 SEAL-O-RING3
3S866476 CLIP6
3S866577 CLIP (LOOP)5
4D779478 CLIP14
4K830279 CLIP (LOOP)1
4K886480 CLIP (LOOP)4
4P742981 CLIP (LADDER)1
4P758182 CLIP (LADDER)5
4P758283 CLIP (LADDER)2
4P813484 CLIP (LADDER)2
4S196285 CLIP (LOOP)1
4S445586 CLIP6
5C289087 NUT (M6X1-THD)16
5C726188 NUT (M8X1.25-THD)1
5C831289 NUT (M4X0.7-THD)20
5K329490 CLIP1
5P785491 CLIP (LOOP)12
5P929792 CLIP (LOOP)10
5P929993 CLIP (LOOP)1
5P961794 ADAPTER1
6D424495 CLIP (LOOP)20
6K817896 CLIP (LOOP)1
6V188997 CLIP (LOOP)24
6V429898 BOLT (M5X0.8X16-MM)5
6V821299 BOLT (M10X1.5X16-MM)3
7N0718100 SWITCH GP-DISCONNECT1
7N3718101 CLIP1
7X2621102 BOLT (M10X1.5X12-MM)7
7X7729103 WASHER (11X25X3-MM THK)3
8C9660104 WASHER (4.6X7.9X0.8-MM THK)40
8K1433105 GROMMET1
8M2770106 CLIP (LOOP)13
8M2773107 CLIP (LOOP)20
8S7583108 GROMMET1
8T0328109 WASHER-HARD (5.5X10X1-MM THK)5
8T0338110 BOLT-SOCKET HEAD (M8X1.25X45-MM)5
8T4121111 WASHER-HARD (11X21X2.5-MM THK)210
8T4133112 NUT (M10X1.5-THD)14
8T4136113 BOLT (M10X1.5X25-MM)10
8T4137114 BOLT (M10X1.5X20-MM)148
8T4139115 BOLT (M12X1.75X30-MM)4
8T4179116 BOLT (M12X1.75X20-MM)5
8T4185117 BOLT (M10X1.5X50-MM)7
8T4192118 BOLT (M12X1.75X25-MM)2
8T4195119 BOLT (M10X1.5X30-MM)22
8T4205120 WASHER-HARD (7.2X14.5X2-MM THK)15
8T4223121 WASHER-HARD (13.5X25.5X3-MM THK)11
8T4896122 WASHER-HARD (10.2X18.5X2.5-MM THK)2
8T4971123 BOLT (M6X1X30-MM)1
8T5005124 BOLT (M10X1.5X70-MM)3
8T6466125 BOLT (M10X1.5X60-MM)6
8T7547126 BOLT (M8X1.25X30-MM)1
8T9379127 BOLT (3/8-16X4.25-IN)2
8T9405128 BOLT-SOCKET HEAD (M4X0.7X16-MM)20
9D3768129 GROMMET1
9G7641130 SWITCH GP-START (ENGINE, KEY)(VIMS SERVICE CONNECTOR)1
9M1974131 WASHER-HARD (8.8X16X2-MM THK)7
9M8406132 CLIP (LOOP)32
9R7240133 GASKET1
9X8256134 WASHER (6.6X12X2-MM THK)1
1342252135 SENSOR GP-TEMPERATURE (8-VOLT)(RH FRONT BRAKE)1
1187226136 SENSOR GP-TEMPERATURE (STEERING TANK)1
1439170137 SENSOR GP-PRESSURE (RH PARKING BRAKE RELEASE)1
