System And Components
Assembly
100%

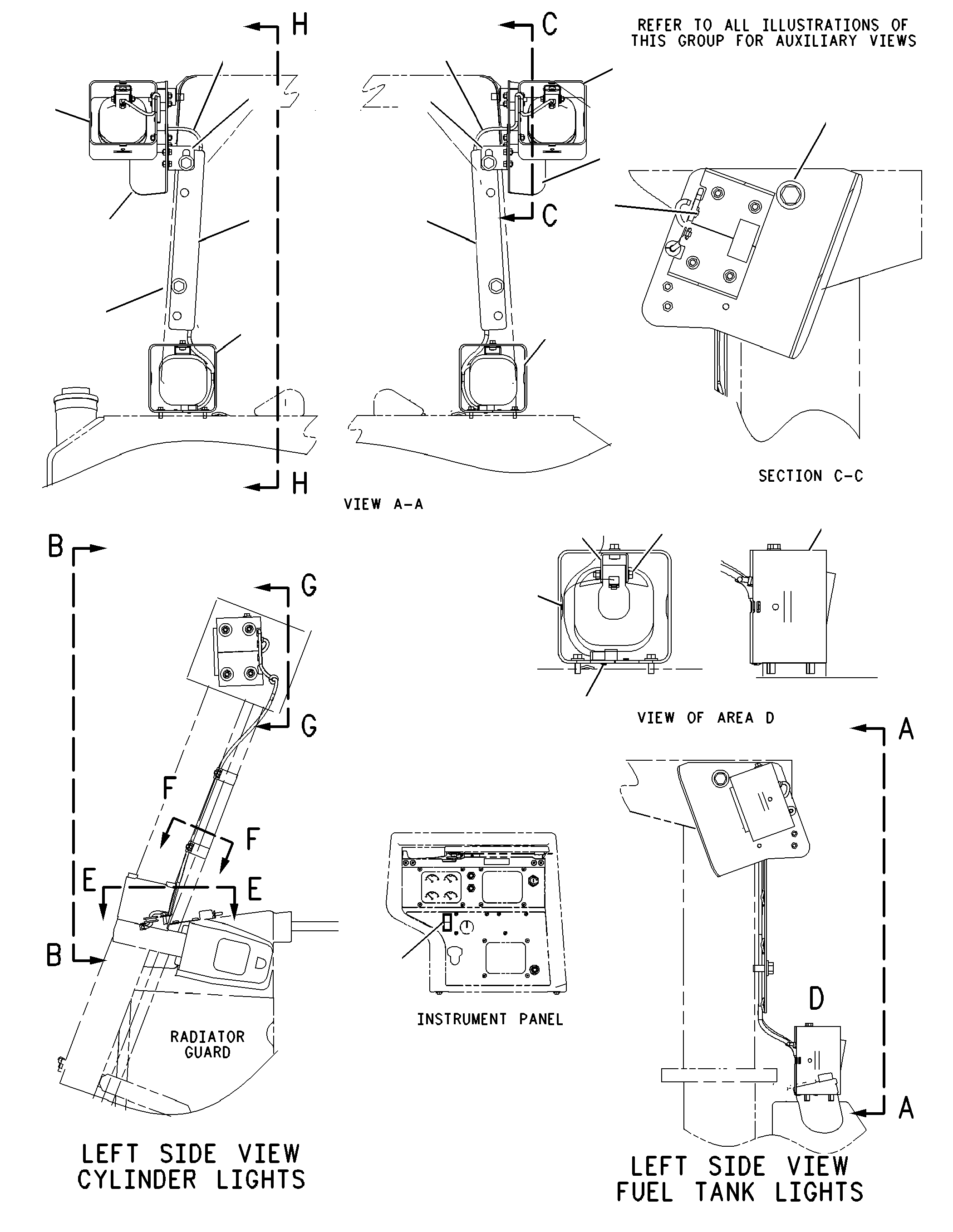

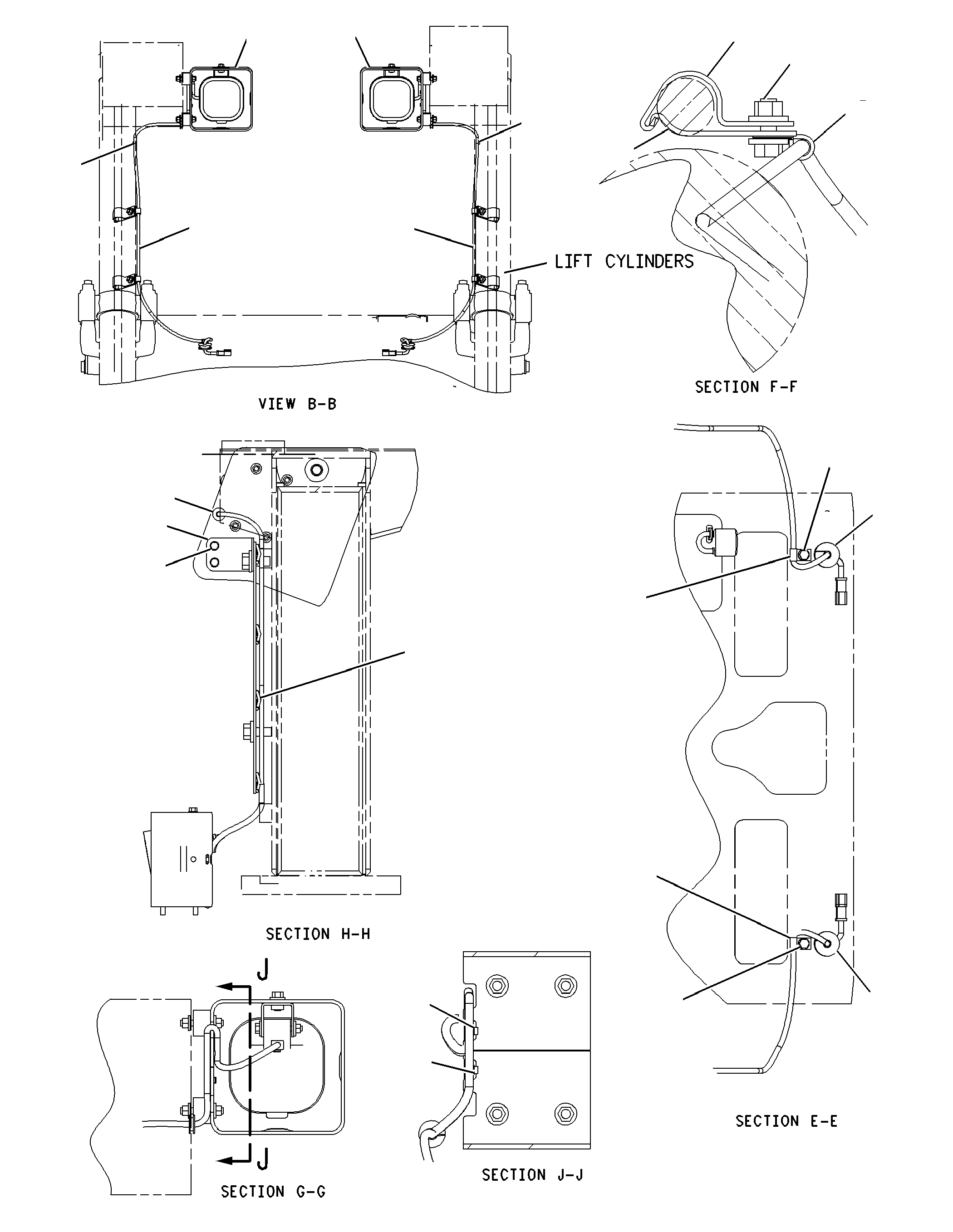

172-3978 LIGHTING GP-FLOOD -6-LAMP, ROPS, CYL, FUEL TANKS/N BPM1-101; FDT1-285

Group No: 172-3978
Part NumberPart NameQty
11183141 BRACKET AS2
1F0750NUT-WELD (3/8-16-THD)1
11510242 BRACKET AS (RH)1
11510253 BRACKET AS (LH)1
1F0750NUT-WELD (3/8-16-THD)2
12983314 PLATE AS2
7T1099LINK4
21536625 SPACER (22.2X50.8X31.8-MM THK)2
16718846 GUARD2
16718857 LIGHTING GP-FLOOD4
16721718 HARNESS AS-WIRING (CYLINDER LIGHTS)2
1028802KIT-RECEPTACLE (2-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
17248699 BRACKET2
185960710 HARNESS AS-LIGHTING (FUEL TANK, ROPS)(ROPS & FUEL TANK LIGHTS)2
1028804KIT-RECEPTACLE (4-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)2
147031911 LAMP GP-FLOOD (24-VOLT, 70-WATT)2
3E878212 ACTUATOR1
4D779413 CLIP4
4L645414 BOLT (3/8-16X1-IN)14
5M306215 BOLT (3/8-16X0.75-IN)2
5P107516 WASHER-HARD (10.2X22.5X3-MM THK)20
5P295517 BOLT (5/16-18X2.5-IN)2
5P908518 CLIP (LOOP)2
5S737919 BOLT (3/8-16X0.875-IN)4
6H400520 GROMMET4
6K493421 CLIP (SLOT)4
6K493522 CLIP (TAB)4
6V818923 NUT (5/16-18-THD)2
6V880124 NUT (3/8-16-THD)4
7K118125 STRAP-CABLE26
7X037026 BOLT (3/4-10X3.5-IN)2
7X058227 WASHER-HARD (20X44.5X6-MM THK)4
8P854028 GROMMET2
8T422429 WASHER-HARD (8.8X16X2-MM THK)4
8T489630 WASHER-HARD (10.2X18.5X2.5-MM THK)4
8T499431 WASHER-HARD (20X36.5X3.5-MM THK)2
8T939832 BOLT (3/4-10X1.75-IN)4
