System And Components

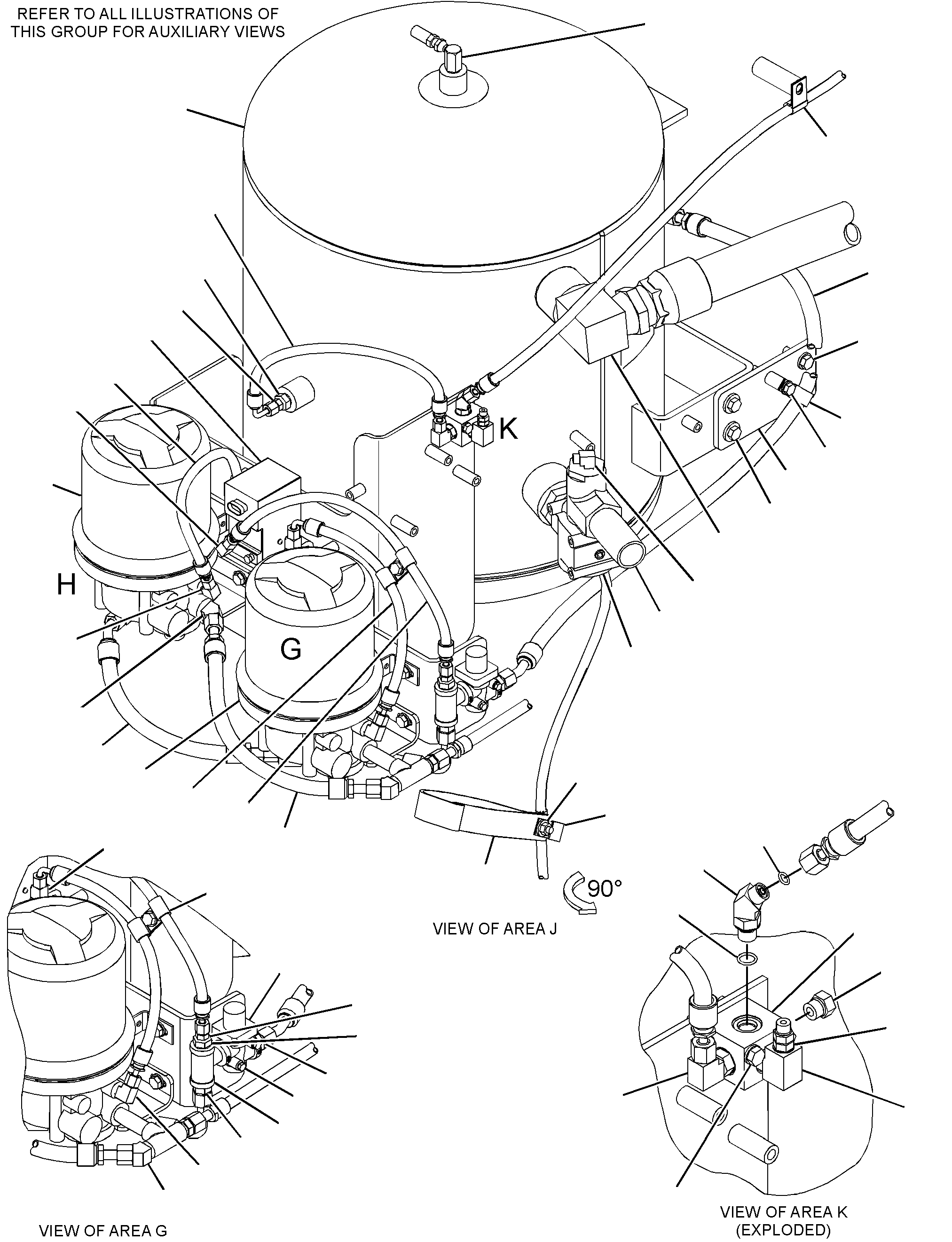

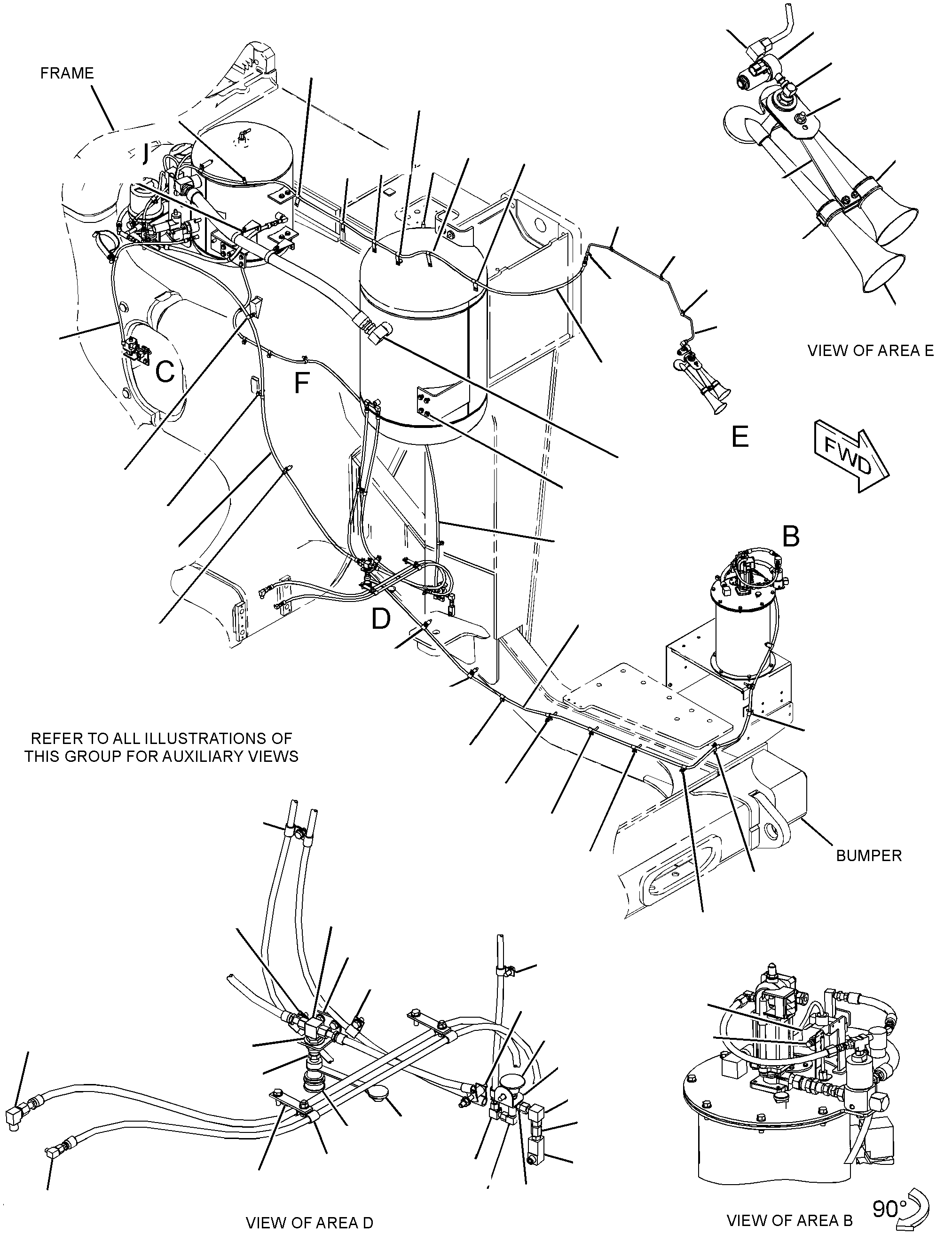

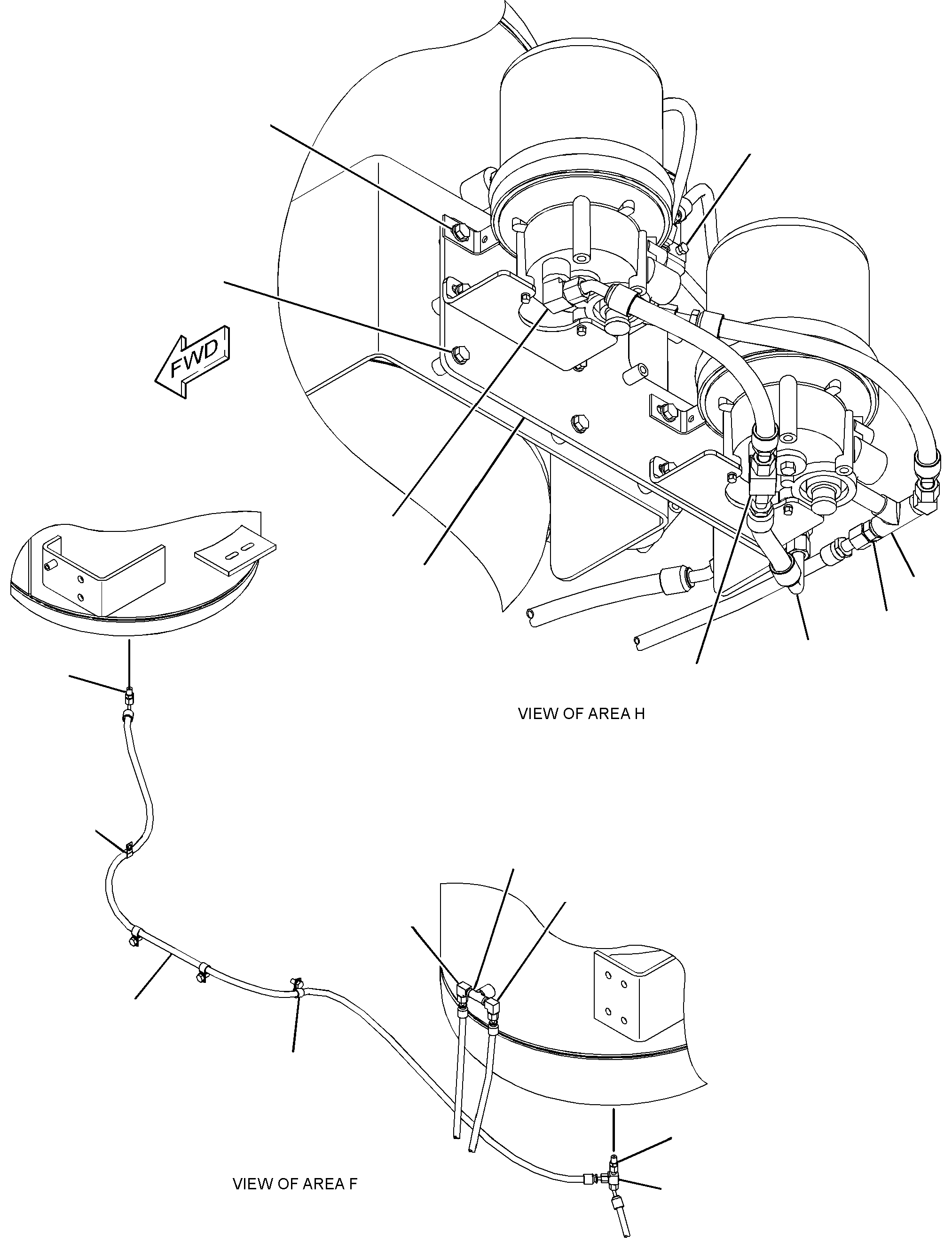

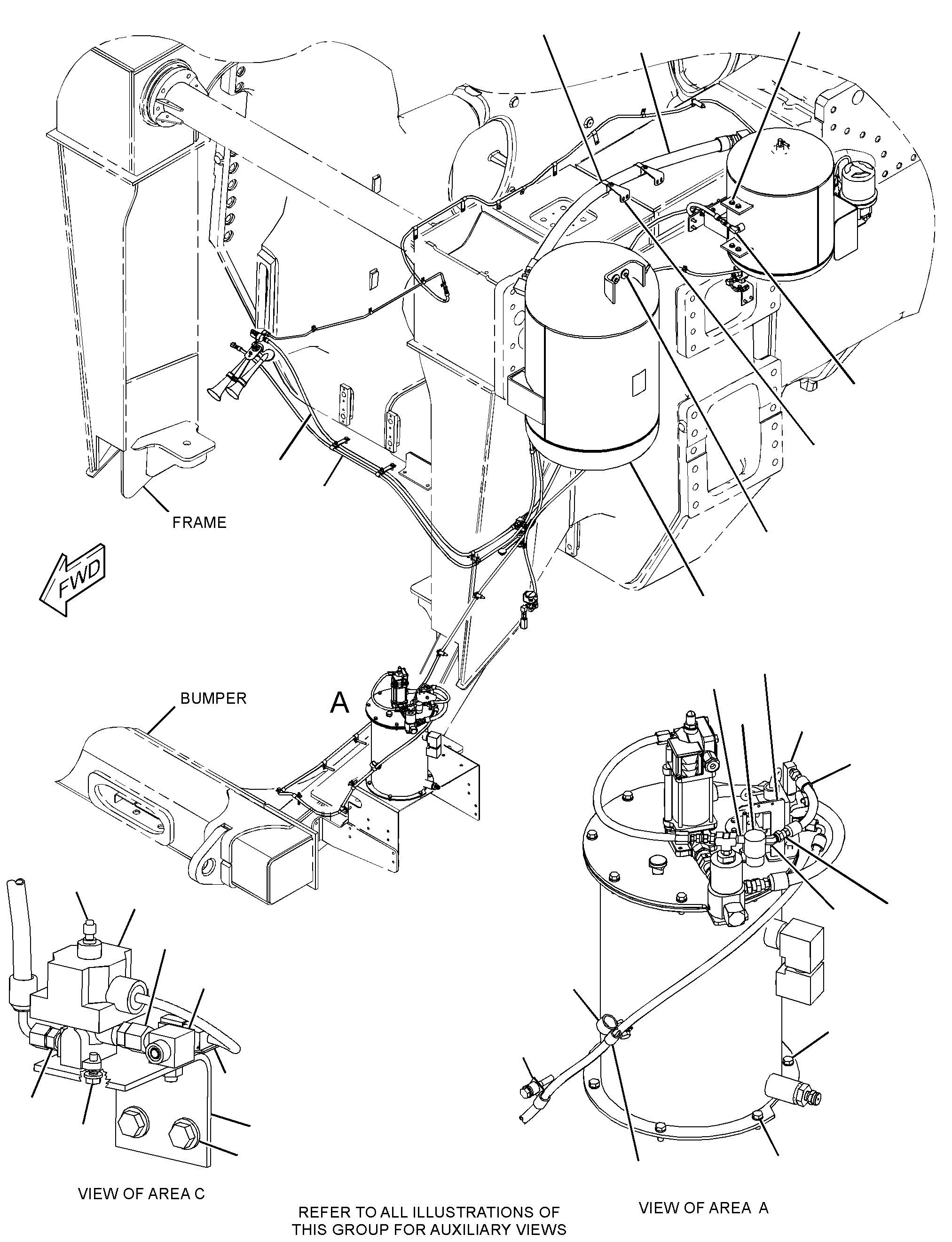

288-2628 LINES GP-AIR STARTINGS/N LAJ478-491
Group No: 288-2628
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1Y0413 | 1 TEE | 1 | |
| 3B8822 | 2 ELBOW | 1 | |
| 3D6370 | 3 ELBOW | 1 | |
| 3E2343 | 4 TEE | 2 | |
| 3R4825 | 5 VALVE GP-AIR CONTROL (AIR TANK DRAIN) | 1 | |
| 4D0487 | 6 VALVE AS-CHECK (AIR STARTING CONTROL) | 1 | |
| 5C9762 | 7 MANIFOLD | 1 | |
| 5D6998 | 8 HORN GP-AIR | 1 | |
| 5D7132 | 9 CLAMP | 2 | |
| 5D7133 | 10 BRACKET | 1 | |
| 5F5434 | 11 VALVE AS-VENT (AIR START) | 1 | |
| 5F5434 | 11A VALVE AS-VENT (AUTOLUBE) | 1 | |
| 6B9664 | 12 VALVE-AIR RELIEF | 2 | |
| 5240073 | VALVE-AIR RELIEF | 2 | |
| 7D5206 | 13 CAP-DUST | 1 | |
| 7D5208 | 14 FITTING (QUICK DISCONNECT, FEMALE) | 1 | |
| 7T8331 | 15 MOUNT AS | 2 | |
| 8C6868 | 16 CONNECTOR | 1 | |
| 8D4765 | 17 REGULATOR | 1 | |
| 8D9423 | 18 COUPLING | 1 | |
| 0025299 | 19 TEE-PIPE | 1 | |
| 0332177 | 20 TEE-PIPE | 1 | |
| 1732087 | 21 SPACER (11X20X28-MM THK) | 1 | |
| 1159190 | 22 VALVE GP-RELAY (AIR STARTING MOTOR) | 1 | |
| 1778847 | KIT-SEAL (RELAY VALVE) | 1 | |
| 1194167 | 23 ROD | 1 | |
| 1322453 | 24 UNION | 1 | |
| 1850008 | 25 VALVE GP-SOLENOID (24-VOLT)(AIR HORN) | 1 | |
| 1941986 | 26 AIR DRYER GP | 2 | |
| 2174184 | 27 VALVE AS-CONTROL (AIR DRYER) | 1 | |
| 2219576 | 28 VALVE GP-SOLENOID (24-VOLT)(LUBE) | 1 | |
| 2219576 | 28A VALVE GP-SOLENOID (24-VOLT)(AIR STARTING) | 1 | |
| 2219578 | KIT-VALVE | 1 | |
| 2220570 | 29 VALVE GP-RELIEF | 1 | |
| 2343545 | 30 PLATE | 2 | |
| 2532686 | 31 HOSE AS | 1 | |
| 2597140 | 32 STUD-TAPERLOCK (M10X1.5X80-MM) | 1 | |
| 2603192 | 33 HOSE AS | 1 | |
| 2909541 | 34 RESERVOIR | 1 | |
| 2916320 | 35 RESERVOIR | 1 | |
| 2928224 | 36 BRACKET | 1 | |
| 2929086 | 37 PLATE | 1 | |
| 4763355 | 39 PLATE AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2968658 | 40 HOSE AS | 1 | |
| 2972597 | 41 HOSE AS | 1 | |
| 2972875 | 42 HOSE AS | 1 | |
| 3079418 | 43 HOSE AS | 1 | |
| 3057509 | 44 HOSE AS | 1 | |
| 3229253 | 45 HOSE AS | 1 | |
| 3284568 | 46 PLATE AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 5 | |
| 8T3851 | BOSS-WELD (M10X1.5X17.5-MM) | 1 | |
| 9B0523 | SPACER (0.53X0.75X1-IN THK) | 6 | |
| 3309757 | 47 ELBOW AS | 1 | |
| 8T1905 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3309764 | 48 ELBOW AS | 1 | |
| 8C6712 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3319716 | 49 HOSE AS | 1 | |
| 3319717 | 50 HOSE AS | 1 | |
| 3319718 | 51 HOSE AS | 1 | |
| 3319719 | 52 HOSE AS | 1 | |
| 3378785 | 53 CONNECTOR AS | 6 | |
| 8C6866 | CONNECTOR | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3399752 | 54 PLATE | 1 | |
| 3471540 | 55 HOSE AS | 1 | |
| 3480218 | 56 HOSE AS | 1 | |
| 3512420 | 57 PUMP GP-LUBRICATION | 1 | |
| 3653244 | 58 HOSE AS | 1 | |
| 3653245 | 59 HOSE AS | 1 | |
| 3653246 | 60 HOSE AS | 1 | |
| 3653247 | 61 PLATE | 1 | |
| 3731105 | 62 HOSE AS | 1 | |
| 3756612 | 63 TUBE AS | 1 | |
| 0026454 | 64 CONNECTOR | 1 | |
| 0308324 | 65 ELBOW | 1 | |
| 0908747 | 66 SPACER (11X19X32-MM THK) | 6 | |
| 1010387 | 67 CONNECTOR | 1 | |
| 1085678 | 68 UNION | 1 | |
| 3557217 | 69 STUD (M10X1.5X90-MM) | 2 | |
| 1240174 | 70 CLIP (LOOP) | 5 | |
| 1305300 | 71 CLIP | 1 | |
| 2057299 | 72 CLIP (LOOP) | 2 | |
| 2147566 | 73 SEAL-O-RING | 2 | |
| 2147568 | 74 SEAL-O-RING | 1 | |
| 2287088 | 75 SEAL-O-RING | 13 | |
| 2287089 | 76 SEAL-O-RING | 6 | |
| 2287090 | 77 SEAL-O-RING | 9 | |
| 2310336 | 78 STUD-TAPERLOCK (M10X1.5X70-MM) | 2 | |
| 2443712 | 79 PLUG AS | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2746085 | 80 STUD-TAPERLOCK (M10X1.5X100-MM) | 1 | |
| 2977976 | 81 ELBOW AS | 2 | |
| 6V9850 | ELBOW | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3160487 | 82 SPACER (11X25X70-MM THK) | 1 | |
| 3309763 | 83 CONNECTOR AS | 3 | |
| 8C6872 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3353982 | 84 ELBOW AS | 1 | |
| 6V8627 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 1L8432 | 85 FITTING | 1 | |
| 2H9523 | 86 GROMMET | 1 | |
| 2H9524 | 87 GROMMET | 1 | |
| 2T1922 | 88 ELBOW | 2 | |
| 2T1925 | 89 ELBOW | 2 | |
| 2T2305 | 90 ELBOW | 2 | |
| 3B7262 | 91 NIPPLE-PIPE | 1 | |
| 3E2315 | 92 ADAPTER-PIPE | 1 | |
| 3E7449 | 93 ELBOW | 2 | |
| 3L1258 | 94 NIPPLE-PIPE | 1 | |
| 3P9847 | 95 CLIP | 2 | |
| 4D7794 | 96 CLIP | 4 | |
| 4K8864 | 97 CLIP (LOOP) | 5 | |
| 4M5281 | 98 BOLT (1/4-20X0.75-IN) | 4 | |
| 5C2890 | 99 NUT (M6X1-THD) | 2 | |
| 5C7261 | 100 NUT (M8X1.25-THD) | 1 | |
| 5K4778 | 101 CLIP | 1 | |
| 5P1076 | 102 WASHER-HARD (13.5X30X4-MM THK) | 14 | |
| 5P4116 | 103 WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 5S7379 | 104 BOLT (3/8-16X0.875-IN) | 2 | |
| 6B5072 | 105 ADAPTER | 2 | |
| 6D3479 | 106 CLIP (LOOP) | 21 | |
| 6D4244 | 107 CLIP (LOOP) | 1 | |
| 6K1019 | 108 NIPPLE-PIPE | 1 | |
| 6K8178 | 109 CLIP (LOOP) | 3 | |
| 6V7349 | 110 ELBOW | 2 | |
| 6V7383 | 111 CLIP | 4 | |
| 6V9835 | 112 TEE | 1 | |
| 6V9849 | 113 ELBOW | 1 | |
| 7G8839 | 114 SPACER (13.5X57X6-MM THK) | 2 | |
| 7W2033 | 115 CLIP (TAB) | 1 | |
| 7W2034 | 116 CLIP (SLOT) | 1 | |
| 7X0492 | 117 ELBOW | 5 | |
| 7X2533 | 118 BOLT (M6X1X35-MM) | 2 | |
| 7X2537 | 119 BOLT (M8X1.25X35-MM) | 1 | |
| 7X5331 | 120 ELBOW | 3 | |
| 7X7729 | 121 WASHER (11X25X3-MM THK) | 2 | |
| 8C6871 | 122 CONNECTOR | 1 | |
| 8T0164 | 123 ELBOW | 1 | |
| 8T3844 | 124 BOLT (M6X1X70-MM) | 2 | |
| 8T4121 | 125 WASHER-HARD (11X21X2.5-MM THK) | 55 | |
| 8T4133 | 126 NUT (M10X1.5-THD) | 14 | |
| 8T4136 | 127 BOLT (M10X1.5X25-MM) | 11 | |
| 8T4137 | 128 BOLT (M10X1.5X20-MM) | 12 | |
| 8T4183 | 131 BOLT (M12X1.75X40-MM) | 4 | |
| 8T4184 | 132 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4185 | 133 BOLT (M10X1.5X50-MM) | 2 | |
| 8T4186 | 134 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4192 | 135 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4194 | 136 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4195 | 137 BOLT (M10X1.5X30-MM) | 11 | |
| 8T4205 | 138 WASHER-HARD (7.2X14.5X2-MM THK) | 6 | |
| 8T4223 | 139 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4224 | 140 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4244 | 141 NUT (M12X1.75-THD) | 4 | |
| 8T4896 | 142 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 8T4910 | 143 BOLT (M12X1.75X60-MM) | 2 | |
| 8T5005 | 144 BOLT (M10X1.5X70-MM) | 1 | |
| 8T6466 | 145 BOLT (M10X1.5X60-MM) | 7 | |
| 8T6764 | 146 PLUG-PIPE (1/8-27-THD) | 1 | |
| 8T6870 | 147 BOLT (M8X1.25X70-MM) | 2 | |
| 9X8250 | 148 CLIP (LOOP) | 1 | |
| 9X8256 | 149 WASHER (6.6X12X2-MM THK) | 2 | |
| 4200802 | 150 PLATE AS | 1 | |
| 3979301 | 151 WASHER-HARD (11.5X20X15-MM THK) | 1 | |
| 4D0124 | 152 ELBOW | 1 | |
| 3D7587 | 153 ELBOW | 1 | |
| 3445675 | 154 NUT (M10X1.5-THD) | 1 | |
| 0993001 | 155 CLIP | 1 |
