System And Components

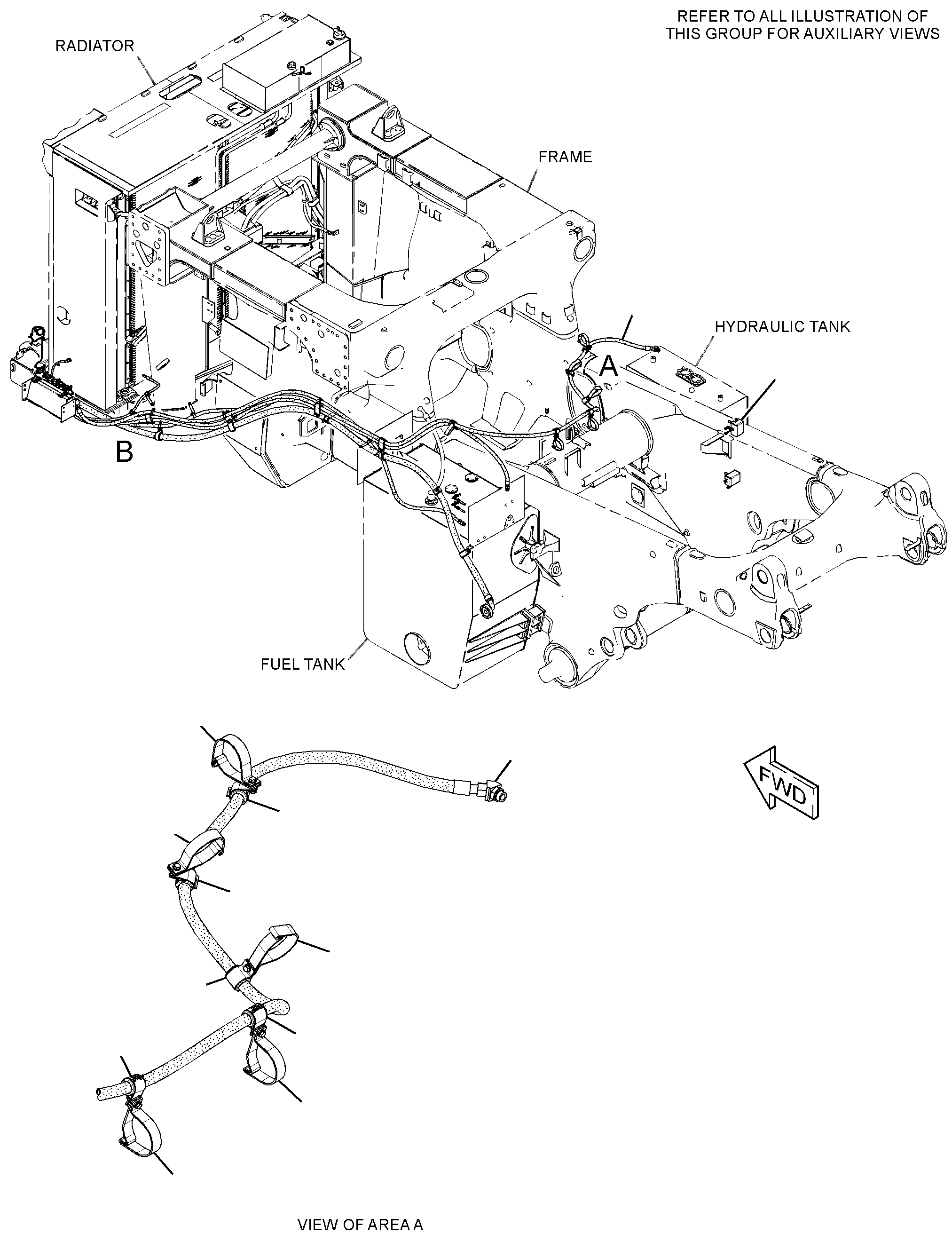

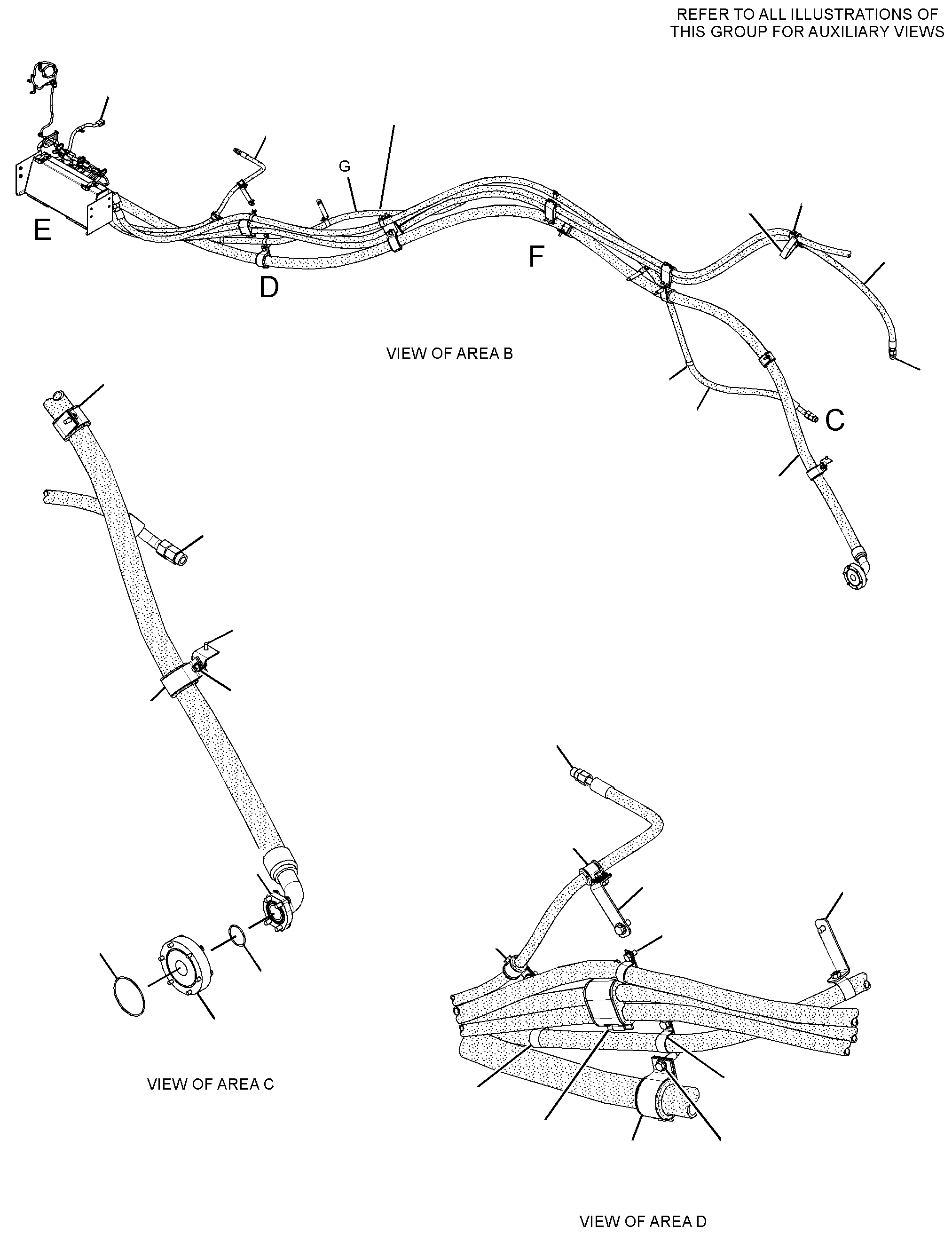

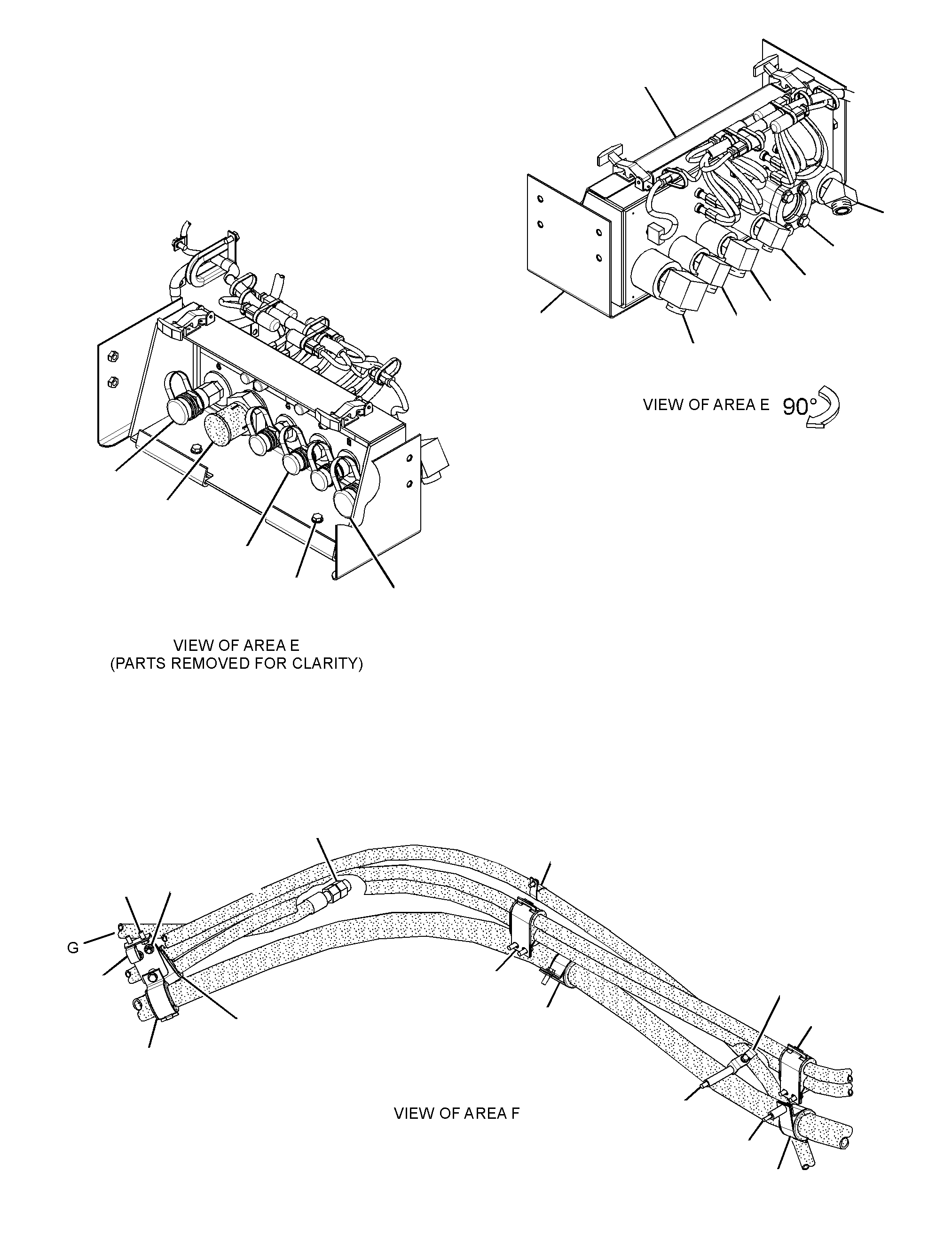

272-5377 SERVICE CENTER GPS/N LAJ1-220
Group No: 272-5377
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9D0630 | 1 CAP-DUST | 1 | |
| 1724620 | 2 CONNECTOR AS | 4 | |
| 3D2824 | SEAL-O-RING | 2 | |
| 6Y2349 | CONNECTOR | 1 | |
| 1724622 | 3 UNION AS | 1 | |
| 7M8485 | SEAL-O-RING | 2 | |
| 8C9029 | UNION | 1 | |
| 1952640 | 4 BRACKET | 1 | |
| 2175703 | 5 RECEIVER (FAST FILL FUEL) | 1 | |
| 2317582 | 6 ADAPTER | 1 | |
| 2773332 | 7 SWITCH GP-LIQUID LEVEL | 1 | |
| 2810037 | 8 WIRING GP-SERVICE CENTER | 1 | |
| 2845370 | 9 FITTING AS (QUICK DISCONNECT) | 3 | |
| 2845371 | CAP-DUST | 1 | |
| 2845372 | 10 FITTING AS (QUICK DISCONNECT) | 1 | |
| 2845373 | CAP-DUST | 1 | |
| 2907432 | 11 BOX AS | 1 | |
| 2G9524 | LATCH | 2 | |
| 4E9919 | HINGE | 2 | |
| 2912840 | 12 PLATE-IDENTIFICATION (LUBRICATION DISTRIBUTION) | 1 | |
| 2924951 | 13 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 12 | |
| 2931002 | 14 PLATE | 1 | |
| 3086925 | 15 HOSE AS | 1 | |
| 3145277 | 16 HOSE AS | 1 | |
| 3345101 | 17 PLATE AS | 1 | |
| 9R2640 | BOSS (M12X1.75X25-MM) | 1 | |
| 3345817 | 18 HOSE AS | 1 | |
| 3349099 | 19 HOSE AS | 1 | |
| 3422790 | 20 HOSE AS | 1 | |
| 3433303 | 21 PLATE AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3448620 | 22 HOSE AS | 1 | |
| 0396360 | 23 RIVET | 8 | |
| 1108827 | 24 FITTING (QUICK DISCONNECT, MALE) | 1 | |
| 1220450 | 25 GROMMET | 2 | |
| 1488308 | 26 ADAPTER AS | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 7X2470 | ADAPTER | 1 | |
| 1488335 | 27 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488340 | 28 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488355 | 29 ELBOW AS | 2 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9005 | ELBOW | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488362 | 30 ELBOW AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T6684 | ELBOW (90-DEG) | 1 | |
| 1488381 | 31 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T5429 | ELBOW | 1 | |
| 1488391 | 32 ELBOW AS | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 8T8987 | ELBOW | 1 | |
| 1645594 | 33 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8C5723 | CONNECTOR | 1 | |
| 1645648 | 34 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1346962 | CONNECTOR | 1 | |
| 1724621 | 35 ADAPTER AS | 1 | |
| 6V0301 | ADAPTER | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1932120 | 36 GROMMET | 6 | |
| 1P4582 | 37 FLANGE-HALF | 4 | |
| 3046771 | 38 BOSS | 1 | |
| 3L3825 | 39 SPACER (0.493X0.675X1.375-IN THK) | 1 | |
| 4D2886 | 40 CLIP | 5 | |
| 4J0527 | 41 SEAL-O-RING | 2 | |
| 5H6734 | 42 SEAL-O-RING | 1 | |
| 5P7468 | 43 CLIP (SLOT) | 7 | |
| 5P7469 | 44 CLIP (TAB) | 7 | |
| 5P8444 | 45 GROMMET (37-MM ID) | 7 | |
| 6V1867 | 46 CLIP (SLOT) | 6 | |
| 6V1868 | 47 CLIP (TAB) | 6 | |
| 7D7233 | 48 CLIP (LOOP) | 3 | |
| 7G5984 | 49 CLIP (TAB) | 4 | |
| 7G5985 | 50 CLIP (SLOT) | 4 | |
| 7G5986 | 51 GROMMET | 4 | |
| 7W2033 | 52 CLIP (TAB) | 6 | |
| 7W2034 | 53 CLIP (SLOT) | 6 | |
| 7Y3283 | 54 SPACER (13.88X21.34X95-MM THK) | 1 | |
| 8S0023 | 55 CLIP (SLOT) | 2 | |
| 8S0024 | 56 CLIP (TAB) | 2 | |
| 8T4121 | 57 WASHER-HARD (11X21X2.5-MM THK) | 22 | |
| 8T4133 | 58 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 59 BOLT (M10X1.5X25-MM) | 7 | |
| 8T4137 | 60 BOLT (M10X1.5X20-MM) | 7 | |
| 8T4139 | 61 BOLT (M12X1.75X30-MM) | 9 | |
| 8T4178 | 62 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4183 | 63 BOLT (M12X1.75X40-MM) | 11 | |
| 8T4184 | 64 BOLT (M12X1.75X45-MM) | 5 | |
| 8T4185 | 65 BOLT (M10X1.5X50-MM) | 6 | |
| 8T4192 | 66 BOLT (M12X1.75X25-MM) | 1 | |
| 8T4223 | 67 WASHER-HARD (13.5X25.5X3-MM THK) | 41 | |
| 8T4244 | 68 NUT (M12X1.75-THD) | 9 | |
| 8T4910 | 69 BOLT (M12X1.75X60-MM) | 2 | |
| 8T4956 | 70 BOLT (M12X1.75X35-MM) | 3 | |
| 8T5041 | 71 BOLT (M12X1.75X120-MM) | 1 |
