System And Components

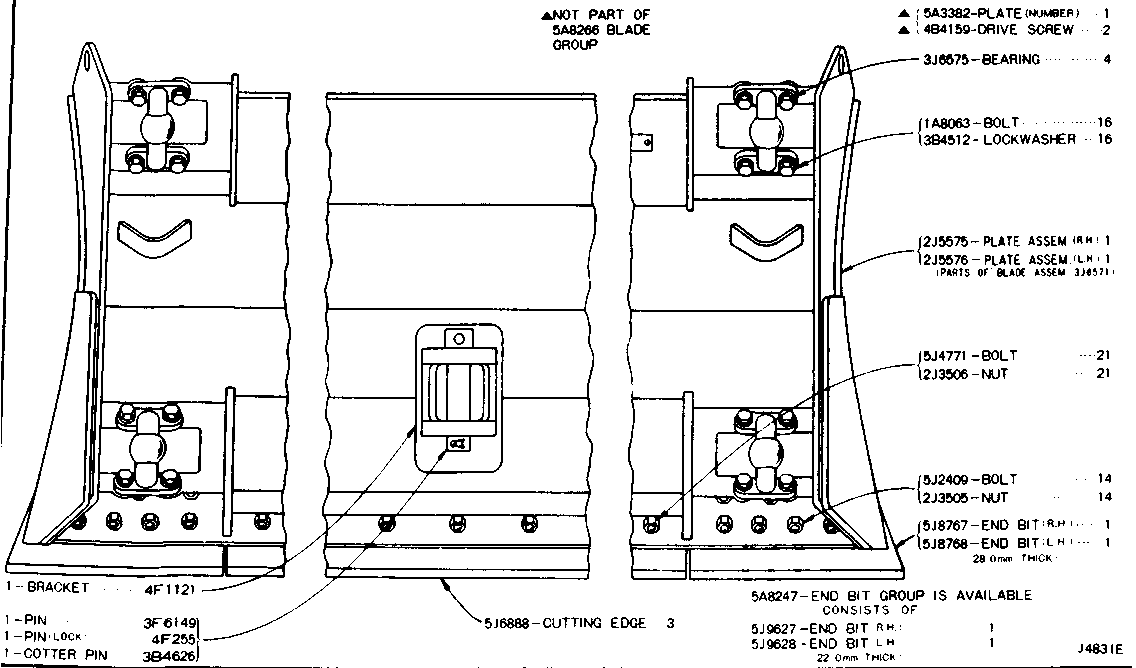

5A8266 BLADE GROUP--Angling--Type 1Part of 5A7392, 5A8575, 5A8297 Arrangements
Group No: 5A8266
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4F1121 | BRACKET | 1 | |
| 3F6149 | PIN | 1 | |
| 4F0255 | PIN (lock) | 1 | |
| 3B4626 | COTTER PIN | 1 | |
| 5J6888 | CUTTING EDGE | 3 | |
| 5A3382 | PLATE (number) | 1 | |
| 4B4159 | DRIVE SCREW | 2 | |
| 3J6575 | BEARING | 4 | |
| 1A8063 | BOLT | 16 | |
| 3B4512 | LOCKWASHER | 16 | |
| 2J5575 | PLATE ASSEM. (r.h.) | 1 | |
| 2J5576 | PLATE ASSEM. (l.h.) | 1 | |
| 5J4771 | BOLT | 21 | |
| 2J3506 | NUT | 21 | |
| 5J2409 | BOLT | 14 | |
| 2J3505 | NUT | 14 | |
| 5J8767 | END BIT (r.h.) | 1 | |
| 5J8768 | END BIT (l.h.) | 1 | |
| 5A8247 | END BIT GROUP IS AVAILABLE | NULL | |
| 5J9627 | END BIT (r.h.) | 1 | |
| 5J9628 | END BIT (l.h.) | 1 |
